Passive module - FLKM-2KS50/BFI/SPT/CS - 2321813
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)

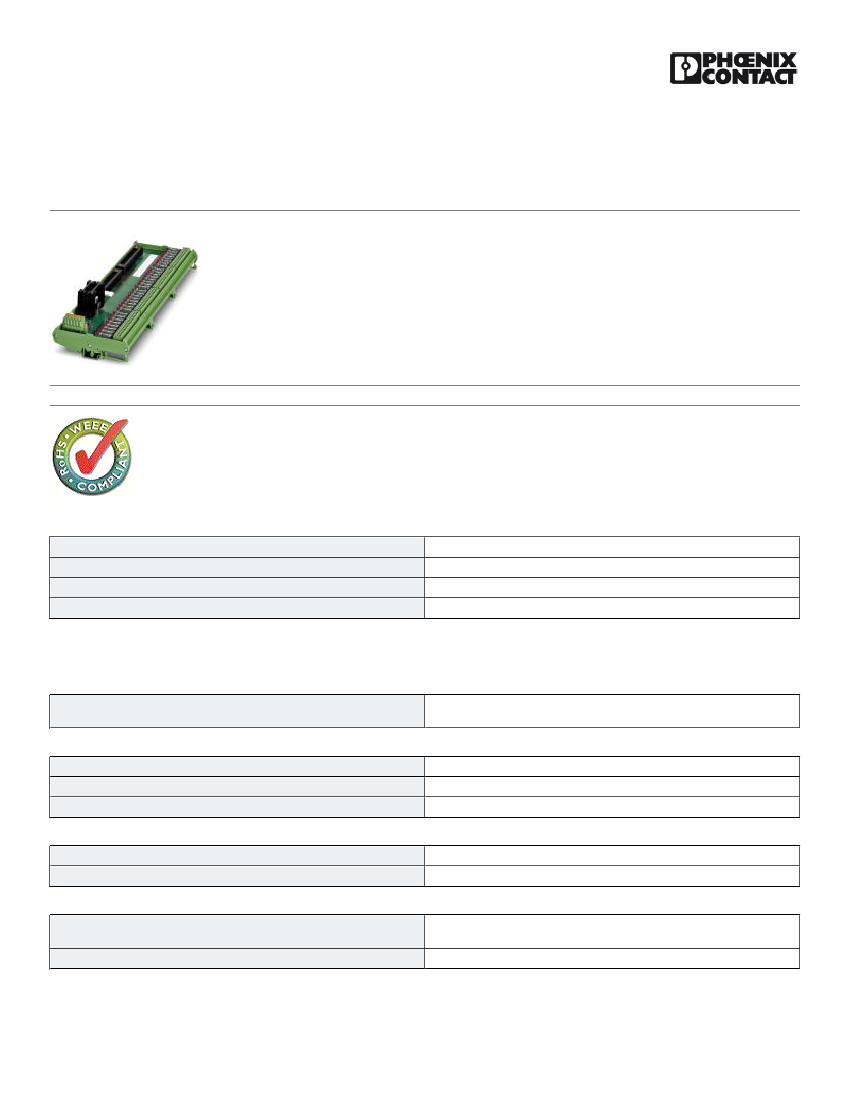

Interface module for Yokogawa ADV 151, ADV 161, ADV 551 and ADV 561 I/O modules with a fuse (5 x 20) and
fuse failure display (LED) per channel. Redundant system connection.
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 STK
797.000 g
85369010
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
344 mm
126 mm
70 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
-20 °C ... 50 °C
-20 °C ... 70 °C
General
Note
Max. perm. operating voltage
Voltage monitoring on the module does not work in combination with
upstream HESILED fuse terminal blocks with integrated LED display.
24 V DC ±10 %
08/29/2016 Page 1 / 16
https://www.phoenixcontact.com/us/products/2321813
Passive module - FLKM-2KS50/BFI/SPT/CS - 2321813
Technical data
General
Max. perm. current (per branch)
Max. permissible current (all branches)
Mounting position
Assembly instructions
Standards/regulations
Rated surge voltage
Degree of pollution
Overvoltage category
100 mA
4A
any
In rows with zero spacing
DIN EN 50178
0.8 kV
2
III
Connection data for connection 1
Connection name
Connection method
Conductor cross section solid
Conductor cross section flexible
Conductor cross section AWG
Field level
Spring-cage connection
0.2 m² ... 4 mm²
0.2 mm² ... 2.5 mm²
24 ... 12
Connection data for connection 2
Connection name
Connection method
Torque
Number of connections
Number of positions
Note
Controller level
Yokogawa KS-compatible
0.5 Nm
2
50
Usable system cables: Phoenix Contact YUC50, Yokogawa AKB331
Supported controller
Controller
- suitable I/O card
YOKOGAWA CS3000 CentumVP
ADV151
ADV161
ADV551
ADV561
Controller
- suitable I/O card
YOKOGAWA STARDOM
NFDV151
NFDV161
NFDV551
NFDV561
Standards and Regulations
Standards/regulations
Degree of pollution
DIN EN 50178
2
08/29/2016 Page 2 / 16
https://www.phoenixcontact.com/us/products/2321813
Passive module - FLKM-2KS50/BFI/SPT/CS - 2321813
Technical data
Standards and Regulations
Overvoltage category
III
Drawings
08/29/2016 Page 3 / 16
https://www.phoenixcontact.com/us/products/2321813
344
32B 32A 31B 31A 30B 30A 29B 29A 28B 28A 27B 27A 26B 26A 25B 25A
24B 24A 23B 23A 22B 22A 21B 21A 20B 20A 19B 19A 18B 18A 17B 17A
16B 16A 15B 15A 14B 14A 13B 13A 12B 12A 11B 11A 10B 10A 9B 9A
8B 8A 7B 7A 6B 6A 5B 5A 4B 4A 3B 3A 2B 2A 1B 1A
X10
F8
F7
F6
F5
F4
F3
F2
F1
F9
F16
F15
F14
F13
F12
F11
F10
F24
F23
F22
F21
F20
F19
F18
F17
125,4
32
25

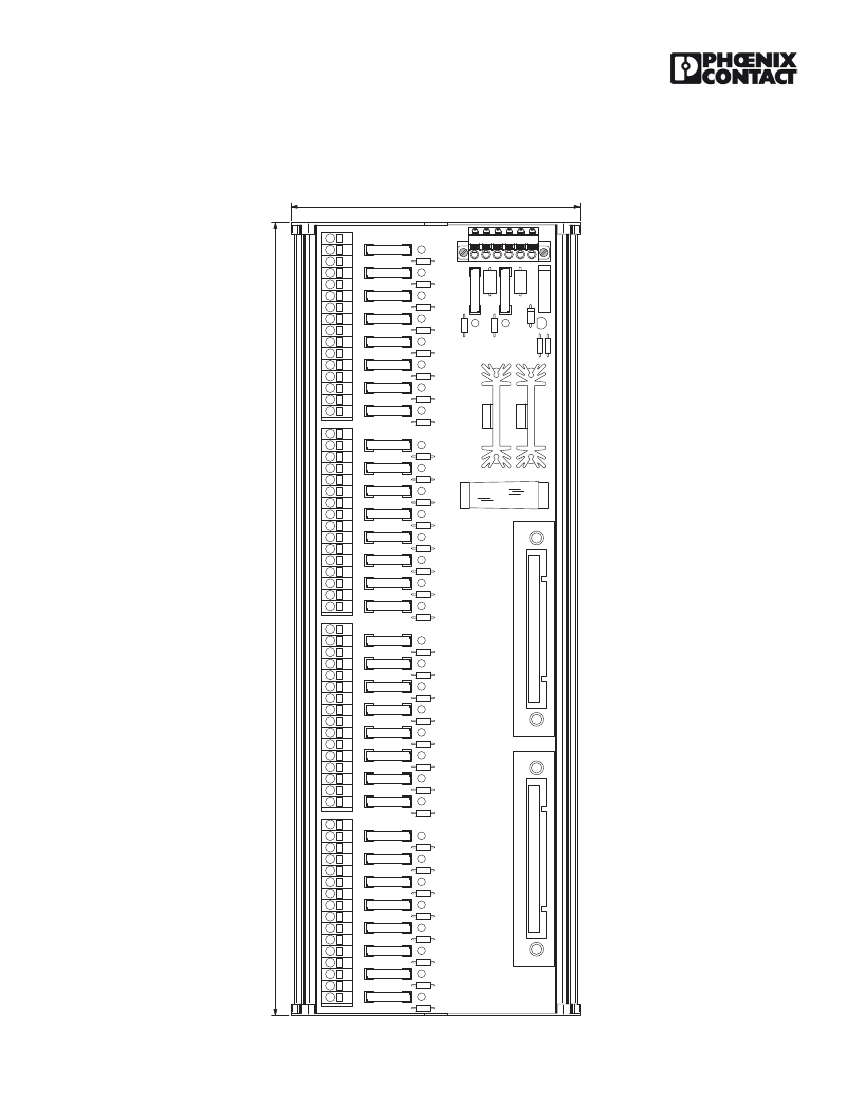

Dimensional drawing
Passive module - FLKM-2KS50/BFI/SPT/CS - 2321813
F32
24
23
22
21
14
12
20
19
18
17
16
15
13
11
10
9
8
7
V4
31
F31
30
X1B
X1A
F30
V3
X1
1
F29
29
28
F28
27
F27
26
F26
F25
6
5
4
3
2
1
X20
6
F101
V2
F100
V1
V5
F101
F101
K1
5
4
3
2
1
1
X2
08/29/2016 Page 4 / 16
https://www.phoenixcontact.com/us/products/2321813
Passive module - FLKM-2KS50/BFI/SPT/CS - 2321813

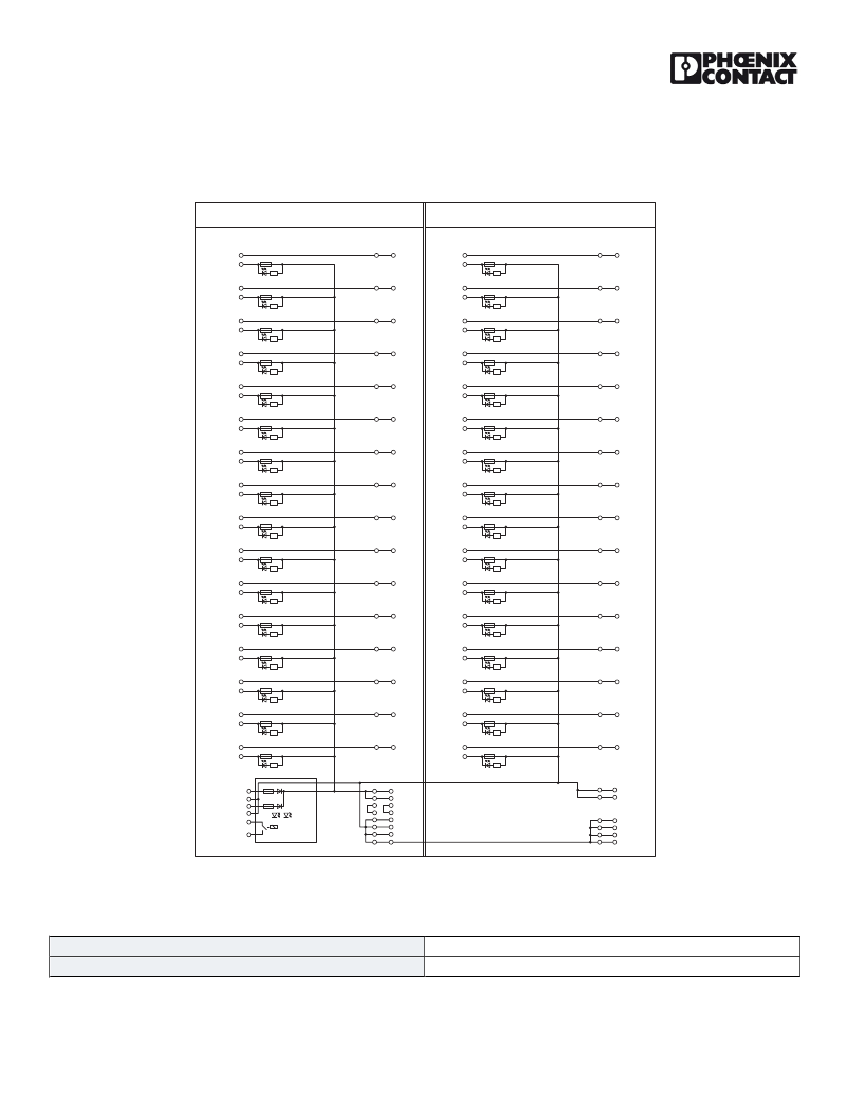

Circuit diagram
Channels 1... 16
Field
X10
1A
1B
Channels 17... 32
X1B X1A Ch.
50
50
Field
X10
17A
17B
X1B X1A
49
49
Ch.
1
48
17
47
2A
2B
48
18A
2
46
18B
47
18
45
3A
3B
46
19A
3
44
19B
45
19
43
4A
4B
44
20A
4
42
20B
43
20
41
5A
5B
42
21A
5
40
21B
41
21
39
6A
6B
40
22A
6
38
22B
39
22
37
7A
7B
38
23A
7
36
23B
37
23
35
8A
8B
36
24A
8
34
24B
35
24
33
9A
9B
34
25A
9
32
25B
33
25
31
10A
10B
32
26A
10
30
26B
31
26
29
11A
11B
30
27A
11
28
27B
29
27
27
12A
12B
28
28A
12
26
28B
27
28
25
13A
13B
26
29A
13
24
29B
25
29
23
14A
14B
24
30A
14
22
30B
23
30
21
15A
15B
22
31A
15
20
31B
21
31
19
16A
16B
20
32A
16
32B
19
32
X20
5(+)
6(-)
3(+)
4(-)
1
2
F100
F101
PW1 PW2
Power Supply
Monitoring
7
9
1
2
12
14
16
18
7
9
1
CBSE
2
12
14
COM
16
1-16
18
8
10
8
10
11
13
15
17
11
13
15
17
COM
17-32
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
27250313
27250313
