Spectre Network Gateway
Compatible with Wzzard Intelligent Edge Nodes
PRODUCT FEATURES
•
•
•
•
•
•
•
802.15.4e SmartMesh IP radio
10/100 Ethernet network interface
EV-DO/CDMA and HSPA+/GPRS/GSM cellular network interface
Communicates with Wzzard Intelligent Edge Nodes
Industrial design - wide operating range (-30 to +60 C)
10-30 VDC power
Class 1/Division 2 Certified
The Wzzard
™
Sensing Platform
The Wzzard intelligent wireless sensor platform makes it quick and easy to connect edge devices and
assets and communicate their data to your IoT application for visualization, analytics or integration
into business applications. The Wzzard platform connects to a vast range of industry-standard
sensors. It uses Wzzard Intelligent Edge Nodes and a wireless SmartMesh IP network to transmit
sensor data to the Spectre Network Gateway. The Spectre Network Gateway can connect to the
Internet via Ethernet connections or the 3G cellular data network.
The Spectre Network Gateway
The Spectre Network Gateway connects to the SmartMesh IP wireless mesh network and the Wzzard
Intelligent Edge nodes through an integrated 802.15.4e radio. The Spectre Network Gateway receives
the incoming data stream from edge nodes in MQTT-SN format and converts the information into
MQTT protocol for transport to an MQTT broker on your network or on the Internet. The leading IoT
applications providers include MQTT brokers in their solutions, and open source MQTT brokers are
available for installation on private networks.
The Spectre Network Gateway is built for plug-and-play simplicity with extensive remote
management, deployment and customization options. It connects Ethernet equipment and other
devices to the Internet or intranet via either 3G cellular or 10/100 wired Ethernet. The standard
configuration includes a 10/100 Ethernet port, USB host port, binary input/output (I/O) port and an
802.15.4e radio. It also has an auxiliary port that can be configured for other purposes, like Ethernet
or RS-232/485/422.
ORDERING INFORMATION
SPECTRE NETWORK GATEWAY MODEL NUMBERS
Ethernet Network Gateway with 2 Ethernet ports, wireless mesh
ERT351
802.15.4e, AC power adapter
Cellular/Ethernet Network Gateway with 1 Ethernet port, wireless
RT3G-350
mesh 802.15.4e, 3G cellular, AC power adapter
Cellular/Ethernet Network Gateway with 2 Ethernet ports, wireless
RT3G-351
mesh 802.15.4e, 3G cellular, AC power adapter
Cellular/Ethernet Network Gateway with 1 Ethernet port, 1 RS-232
RT3G-352
port, wireless mesh 802.15.4e, 3G cellular, AC power adapter
Cellular/Ethernet Network Gateway with 1 Ethernet port, 1 RS-485
RT3G-354
port, wireless mesh 802.15.4e, 3G cellular, AC power adapter
USA, Canada.
Check with your local distributor for availability and options.
Secure Connections
To ensure secure communications the Spectre Network Gateway supports the creation of VPN
tunnels using IPsec, OpenVPN and L2TP. The web interface provides detailed statistics about gateway
activities, signal strength, etc. The gateway supports DHCP, NAT, NAT-T, DynDNS, NTP, VRRP, control
by SMS, and many other routing functions. The Spectre Network Gateway also provides diagnostic
functions which include automatically monitoring the PPP connection, automatic restart in case of
connection losses, and a hardware watchdog that monitors the Spectre Network Gateway status.
ACCESSORIES
MDR-20-24
24VDC, 20W, 1A Power Supply
C5UMB3FBG
Category 5E Cable, UTP, 1 m (3 ft), Beige
C5UMB10FBL
Category 5E Cable, UTP, 3 m (10 ft), Blue
TRAB806/17103P Cellular Antenna, Multi-Band, Low Profile
RT3G-ANT001
3G Cellular Antenna, Penta-Band, Right-Angle SMA
RT3G-ANT002
3G Cellular Antenna, Penta-Band, Magnetic Mount SMA

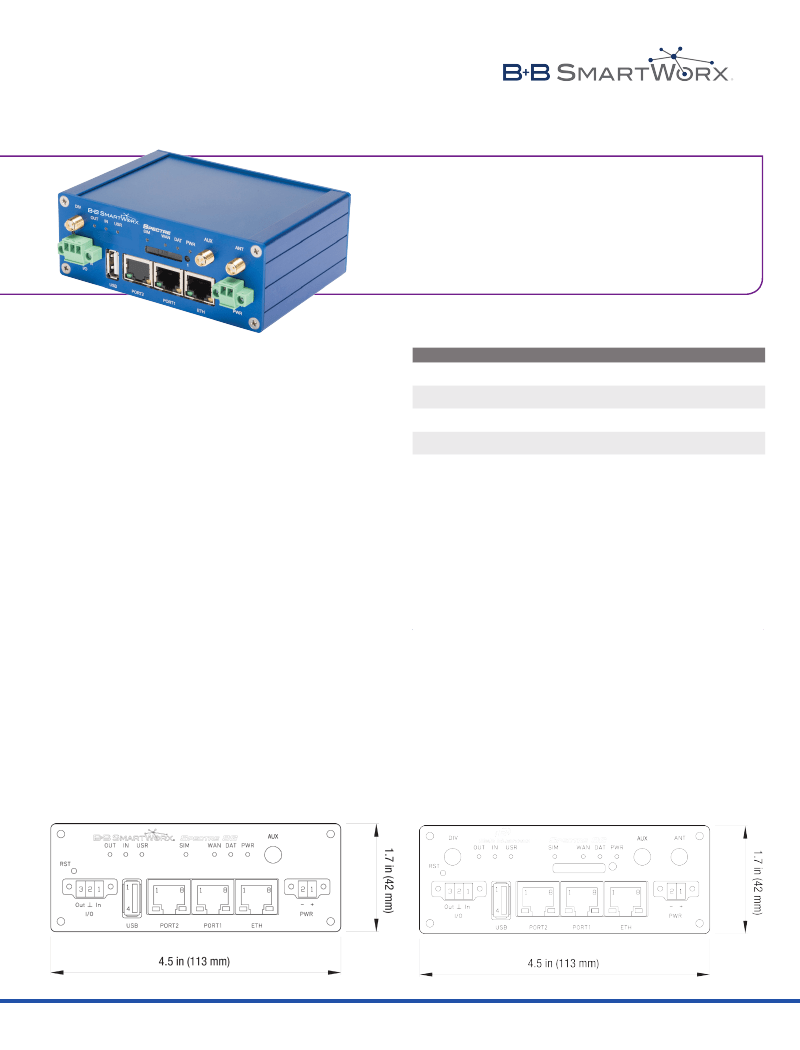

MECHANICAL DIAGRAM
SPECTRE (ETHERNET) ERT351

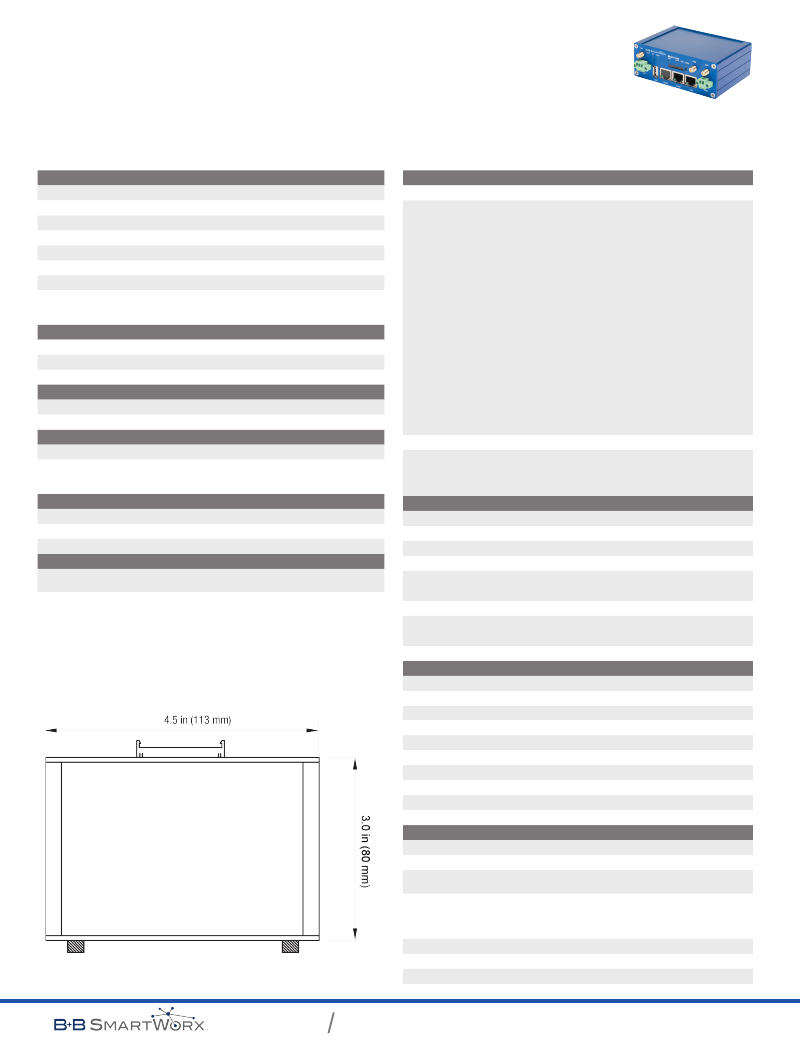

MECHANICAL DIAGRAM
SPECTRE (CELLULAR/ETHERNET) MODELS
Spectre_Network_Gateway_R2_2515ds
Spectre Network Gateway
SPECIFICATIONS
INTERFACES
Standard
Ethernet
10/100 Mbps
USB
USB Type A host
Binary I/O
1 input / 1 output
SIM Card
1 SIM card port
802.15.4E radio
Expansion Port Options
Ethernet 10/100 Mbps
RS-232
RS-422/485
ANTENNA:
SMA – 50 Ohms
3G: 2 dBi, penta band, right angle dipole (2 included)
802.15.4e, 2.4 GHz, 5 dBi (1 included)
3G CELLULAR FREQUENCY BANDS
Quad Band UMTS (WCDMA): 850, 900,1900 and 2100 MHz
Quad-Band GSM/GPRS/EDGE: 850, 900, 1800 and 1900 MHz
POWER
Source
10 – 30 VDC
2.3W receive mode
Consumption
Up to 3.5 W (GPRS transmission)
Up to 5.5 W (UMTS/HSDPA transmission)
MECHANICAL
Dimensions
1.7 x 3.0 x 4.5 in (42 x 80 x 113 mm), 35mm DIN rail
Enclosure
Metal
Weight
150 g
ENVIRONMENTAL
Operating
-30 to +60°C
Temperature
Storage Temperature -40 to +85°C
FEATURES -- SMARTMESH IP RADIO -- 802.15.4E -- 2.4 GHZ
Conditions
Min Typ
Max
Units
Parameter
2400
2.4835 GHz
Frequency Band
15
Number of Channels
5
MHz
Channel Separation
Channel Clear
2405 +
MHz
Frequency
5*(k-11)
IEEE 802.15.4 Direct
Modulation
Sequence Spread
Spectrum (DSSS)
250
kbps
Raw Data Rate
25 °C, 50% RH, +2dBi m
Omni-Directional
Antenna, Antenna 2 m
Range
Indoor
100
m
Outdoor
300
m
1200
m
Free Space
Packet Data Error Rate
-93
dBm
Receiver Sensitivity
(PER) = 1%
PER = 50%
-95
dBm
Receiver Sensitivity
Output Power -- Delivered to a 50 Ω load
High Calibration
8
dBm
Setting
Low Calibration
0
dBm
Setting
NETWORKING AND SECURITY
DHCP – automatic IP addressing in LAN network
NAT – IP address and ports translation between inside/outside network
Firewall – filtering of addresses, ports, protocols
VRRP – virtual backup router function
DynDNS client – access to the router with a dynamic IP address
QoS – quality of service
Dial-in – Communicate via CSD call
PPPoE Bridge – PPP frames encapsulation inside ETH frames
IPsec, OpenVPN, L2TP – secure encrypted tunnels
GRE tunnel – simple tunnel without security measures
CONFIGURATION AND DIAGNOSTICS
HTTP server – configuration via web server
Telnet – configuration and access to the file system
SNMP – router diagnostics, communication with I/O and M-Bus
Cellular state signalization by LED
On-line info on cellular signal status (level, cell, neighbors)
SMS info – power on, cellular connection or disconnection
SMS control – on/off cellular connection, switch SIM, I/O, etc.
Transferred data counting, one more APN as backup
Remote router group configuration change, switching among configuration profiles
SSH – encrypted configuration and access to the file system
APPROVALS / CERTIFICATIONS
FCC Part 15, CE
Class 1/Division 2
AT&T, Verizon, PTCRB (
Contact B&B Electronics for the latest
Certifications
approvals.)
CE
Emission
Immunity
Safety
Isolation
orders@bb-smartworx.com
support@bb-smartworx.com
EN 301 511, v9.0.2
EN 301 908-1&2, v3.2.1
ETSI EN 301 489-1 V1.8.1
EN 60950-1:06 ed.2 + A11:09 + A1:10
EN 55022/B
ETS 300 342 immunity
EN 60950
EN 60747 isolation
