Ethernet-based, Modular
Media Converter Chassis
MediaConverter/12
www.advantech-bb.com
PRODUCT FEATURES
• Supports Ethernet, Fast Ethernet and Gigabit Ethernet
• Supports “Mc” modules
• Table-top and rack-mountable
• 12-slot chassis
• AC power (supports dual power supplies - includes one power supply)
• Modular, hot-swappable architecture reduces operational costs
associated with product installation, upgrades and maintenance
Your network is growing and many new access points, workstations,
etc. are required. However, legacy equipment, along with your existing
wiring infrastructure, must work with any new equipment you implement
in your network. When copper-to-fiber conversions are required, along
with advanced troubleshooting features, our MediaConverter/12 is the
perfect solution.
The unmanaged B+B SmartWorx’ MediaConverter/12 enables you to
install compact, horizontal modules that support speeds of 10/100Mbps,
100Mbps or gigabit. The twelve-slot chassis is one of four chassis that
can provide a low-cost solution for segments in a network that require a
copper to fiber conversion.
The modules available from B+B SmartWorx for this chassis are the
McLIM, McLIM-TP-TX/FX and McGigabit series.
The twelve-slot chassis has a reliable internal AC power supply, and
a country-specifc power cord is shipped with each chassis. A second
power supply for redundancy can also be purchased.
ORDERING INFORMATION
MODEL NUMBER
MediaConverter/8
851-10912
DESCRIPTION
12 Slot, AC Chassis
ACCESSORIES
806-10912 - Power Supply, 40x-AC (40 Watt, 100-240V AC)
All product specifications are subject to change without notice.
MediaConverter-12_4117ds
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
Ethernet-based, Modular
Media Converter Chassis
MediaConverter/12
SPECIFICATIONS
TECHNICAL
12 slot chassis can house the following modules:
McLIM, McLIM 10/100, McGigabit
AC power, dual. One power supply included; second power supply slot available to
populate with additional power supply for redundancy (sold separately)
Fits into a 19” Rack
MECHANICAL
4.36H x 44.19W x 22.86D cm
Dimensions
(1.72H x 17.4W x 9.0D in)
Shipping Weight
5.0 kg (11.0 lbs)
POWER AC
115/230 or 120/240 VAC, 50/60Hz, 1.2A/0.6A
ENVIRONMENTAL
Storage Temperature:
Operating Humidity
REGULATORY APPROVALS
FCC Class A, UL/CUL, CE, CSA
MEANTIME BEFORE FAILURE
MTBF = 681931 hours
-25° to +70° C (13° to +158° F)
5% to 95% (non-condensing),
0 – 10000 ft. altitude

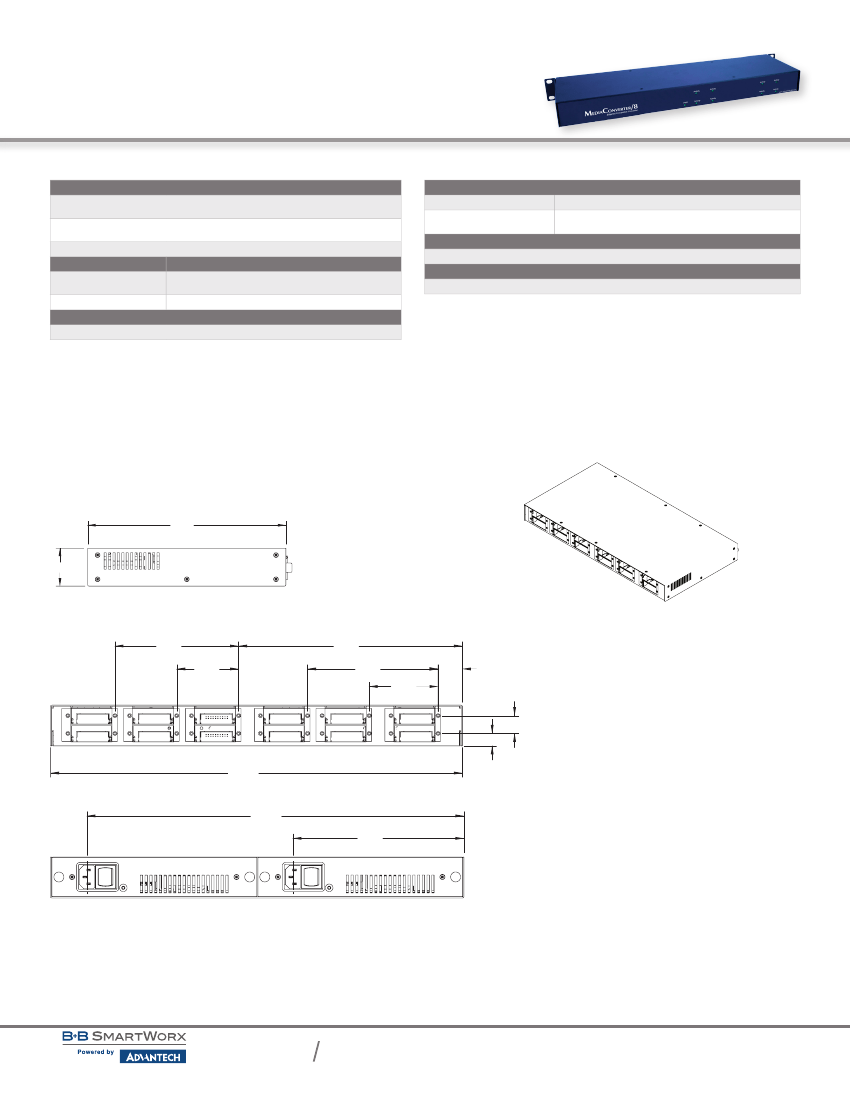

MECHANICAL DIAGRAM
units - inches
9.00
1.72
5.22
2.61
9.45
5.51
2.91
1.03
.75
.53
17.40
15.86
7.20
orders@advantech-bb.com
support@advantech-bb.com
Corporate Headquarters: 707 Dayton Road, PO Box 1040 Ottawa, IL 61350 USA 815-433-5100 Fax 433-5104
European Office: Westlink Commercial Park, Oranmore Co. Galway Ireland +353 91 792444 Fax +353 91 792445
