AXL F BK S3

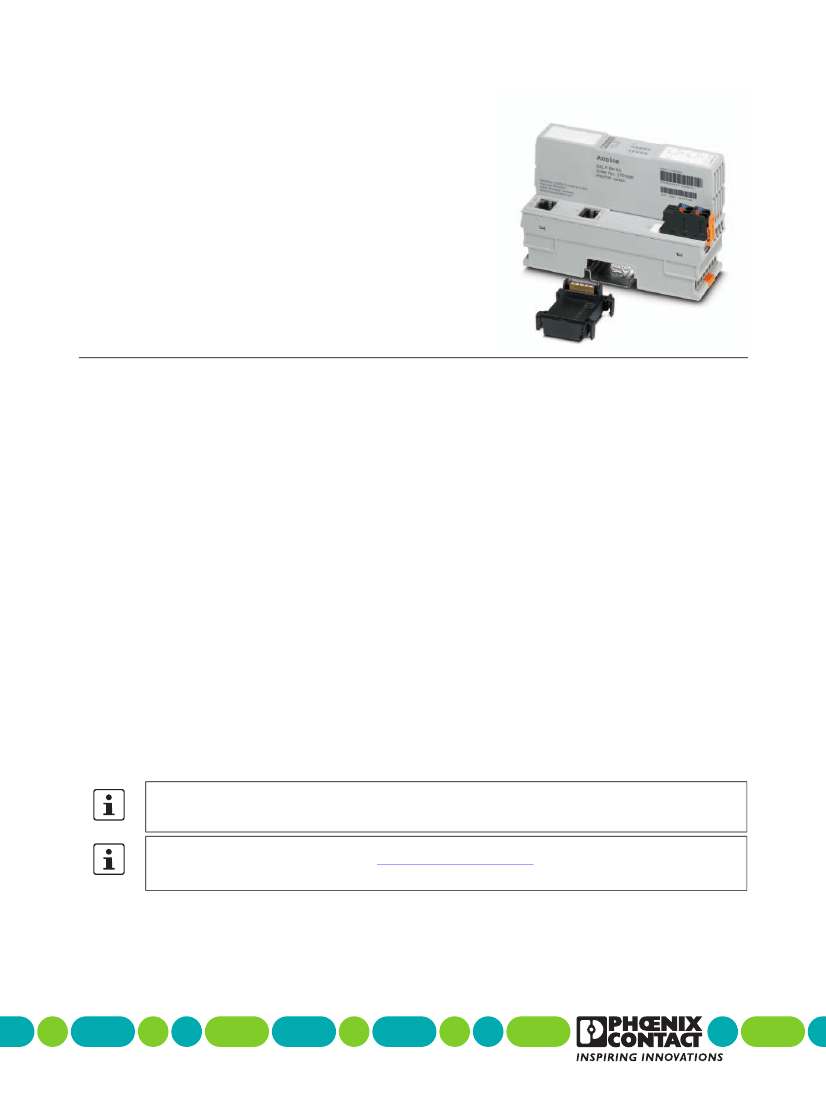

Axioline F bus coupler for Sercos
Data sheet
105610_en_02
1
Description
© PHOENIX CONTACT 2015-11-10
Valid from firmware version 1.10.
The bus coupler is intended for use within a third-generation
Sercos network and represents the link to the Axioline F
system.
Up to 63 Axioline F devices can be connected to an existing
Sercos network with the help of the bus coupler.
Features of Sercos
–
–
–
–
–
–
–
–
–
2 Ethernet-Ports
Rotary coding switches for setting the Sercos address
Transmission speed of 100 Mbps with a minimum Ser-
cos cycle time of 31.25 µs
Sercos diagnostic LED
Certified according to Sercos V1.12
Supports Sercos V1.31
FSP-IO (Function Specific Profile-IO) for modular I/O
devices
A maximum of 8 connections are supported (max. 4
consumer and max. 4 producer connections)
Cross communication is possible up to reaching the
maximum number of connections
–
Synchronization
Features of Axioline F
–
–
–
–
–
Up to 63 additional Axioline F devices can be connect-
ed
Typical cycle time of the Axioline F local bus is around
10 μs
Runtime in the bus coupler is negligible (goes to 0 µs)
Firmware can be updated
Diagnostic and status indicators
This data sheet is only valid in association with the UM EN AXL F SYS INST user manual.
You can find further information on Sercos in the UM DE SERCOS SYS user manual.
Make sure you always use the latest documentation.
It can be downloaded from the product at
phoenixcontact.net/products.
You will always find the current SDDML-files here.
AXL F BK S3
2
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
Table of contents
Description .............................................................................................................................. 1
Table of contents ..................................................................................................................... 2
Ordering data .......................................................................................................................... 3
Technical data ......................................................................................................................... 4
Internal circuit diagram ............................................................................................................ 6
Connection of Sercos and supply ............................................................................................ 7
Connection example................................................................................................................ 7
Configuration via rotary encoding switch ................................................................................. 8
Local status and diagnostic indicators ..................................................................................... 9
Sercos ................................................................................................................................... 12
Sercos parameter .................................................................................................................. 16
Access to PDI objects............................................................................................................ 20
Mapping method.................................................................................................................... 20
Tunnel method....................................................................................................................... 21
Reset button .......................................................................................................................... 25
Service interface.................................................................................................................... 26
Startup................................................................................................................................... 26
Firmware update.................................................................................................................... 28
105610_en_02
PHOENIX CONTACT
2
AXL F BK S3
3
Ordering data
Type
Order No.
2701686
Description
Pcs./Pkt.
1
Axioline F bus coupler for Sercos (including bus base module and connec- AXL F BK S3
tor)
Accessories
Axioline
F
bus base module for housing type BK (Replacement item)
Axioline F short power connector (for e.g., AXL F BK ...) (Replacement
item)
RJ45 connector, shielded, with bend protection sleeve, 2 pieces, gray for
straight cables, for assembly on site. For connections that are not crossed,
it is recommended that you use the connector set with gray bend protection
sleeve. (Connector/Adapter)
RJ45 connector, shielded, with bend protection sleeve, 2 pieces, green for
crossed cables, for assembly on site. For connections that are crossed, it
is recommended that the connector set with green bend protection sleeves
is used. (Connector/Adapter)
Type
AXL BS BK
AXL CN S/UL
FL PLUG RJ45 GR/2
Order No.
2701422
2701421
2744856
Pcs./Pkt.
5
5
1
FL PLUG RJ45 GN/2
2744571
1
CAT5-SF/UTP cable (J-02YS(ST)C HP 2 x 2 x 24 AWG), heavy-duty instal- FL CAT5 HEAVY
lation cable, 2 x 2 x 0.22 mm², solid conductor, shielded, outer sheath: 7.8
mm diameter, inner sheath: 5.75 mm ± 0.15 mm diameter (Cable/conduc-
tor)
CAT5-SF/UTP cable (J-LI02YS(ST)C H 2 x 2 x 26 AWG), light-duty, flexi-
ble installation cable 2 x 2 x 0.14 mm², stranded, shielded, outer sheath:
5.75 mm ± 0.15 mm diameter (Cable/conductor)
Crimping pliers, for assembling the RJ45 plugs FL PLUG RJ45..., for as-
sembly on site (Tools)
FL CAT5 FLEX
2744814
1
2744830
1
FL CRIMPTOOL
2744869
0829579
1
25
Zack marker strip for Axioline F (device labeling), in 2 x 20.3 mm pitch, un- ZB 20,3 AXL UNPRINTED
printed, 25-section, for individual labeling with B-STIFT 0.8, X-PEN, or
CMS-P1-PLOTTER (Marking)
Zack marker strip, flat, in 10 mm pitch, unprinted, 10-section, for individual
labeling with M-PEN 0,8, X-PEN, or CMS-P1-PLOTTER (Marking)
Insert label, Roll, white, unlabeled, can be labeled with: THERMOMARK
ROLL, THERMOMARK ROLL X1, THERMOMARK X, THERMOMARK
S1.1, Mounting type: snapped into marker carrier, Lettering field: 35 x 18.7
mm (Marking)
Connecting cable, for connecting the controller to a PC for PC Worx and
LOGIC+, USB A to micro USB B, 2 m in length. (Cable/conductor)
ZBF 10/5,8 AXL UNPRINTED
EMT (35X18,7)R
0829580
0801831
50
1
CAB-USB A/MICRO USB B/2,0M
2701626
1
Documentation
User manual, English, Axioline F: System and installation
Type
UM EN AXL F SYS INST
Order No.
-
-
-
-
Pcs./Pkt.
-
-
-
-
User manual, English, Axioline F: Diagnostic registers, and error messages UM EN AXL F SYS DIAG
User manual, English, Sercos system manual for I/O devices
Application note, English,
Updating the firmware of an Axioline F bus coupler
UM EN SERCOS SYS
AH EN TFTP FIRMWARE UPDATE
AXL F BK
105610_en_02
PHOENIX CONTACT
3
AXL F BK S3
4
Technical data
Dimensions (nominal sizes in mm)
45
74
122,4
Width
Height
Depth
Note on dimensions
125,9
45 mm
125.9 mm
74 mm
The depth is valid when a TH 35-7.5 DIN rail is used (according to EN 60715).
General data
Color
Weight
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
Protection class
Mounting position
traffic grey A RAL 7042
177 g (with connector and bus base module)
-25 °C ... 60 °C (Mounting position: wall mounting on horizontal DIN rail)
-25 °C ... 55 °C (Mounting position: any)
-40 °C ... 85 °C
5 % ... 95 % (non-condensing)
5 % ... 95 % (non-condensing)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
III, IEC 61140, EN 61140, VDE 0140-1
Any (observe temperature derating)
Connection data
Designation
Connection method
Conductor cross section solid / stranded
Conductor cross section [AWG]
Stripping length
Axioline F connector
Push-in connection
0.2 mm² ... 1.5 mm² / 0.2 mm² ... 1.5 mm²
24 ... 16
8 mm
Please observe the information provided on conductor cross sections in the “Axioline F: system and installation” user manual.
105610_en_02
PHOENIX CONTACT
4
AXL F BK S3
Interface Sercos
Number
Connection method
Transmission speed
Cycle Time
Transmission physics
Transmission length
2
RJ45 socket, auto negotiation and auto crossing
100 MBit/s (Full duplex)
31.25 µs
Ethernet in RJ45 twisted pair
max. 100 m
Interface Axioline F local bus
Connection method
Transmission speed
Bus base module
100 MBit/s
Interface Service
Number
Connection method
1
Micro USB type B
System limits
Number of supported devices
NOTE: Electronics may be damaged when overloaded
Observe the logic current consumption of each device when configuring an Axioline F station. It is specified in every module-specific data
sheet. The current consumption can differ depending on the individual module. The permissible number of devices that can be connected
therefore depends on the specific station structure.
max. 63 (per station)
Sercos
Equipment type
Device profile
Update rate
Sercos protocols
Specification
Sercos slave
FSP_IO
31.25 µs
Sercos
Sercos specification 1.31
Supply of the bus coupler
Supply of communications power U
L
Maximum permissible voltage range
Current supply at U
Bus
Current consumption from U
L
Power consumption at U
L
NOTE: Electronics may be damaged when overloaded
Provide external fuses for the 24 V U
L
area. The power supply unit must be able to supply four times the nominal current of the external fuse
to ensure that it blows in the event of an error.
24 V DC
19.2 V DC ... 30 V DC (including all tolerances, including ripple)
2A
typ. 105 mA (without I/Os and U
L
= 24 V)
max. 570 mA (with 2 A at U
Bus
for the I/Os and U
L
= 24 V)
typ. 2.5 W (without I/Os)
max. 13.7 W (with 2 A load at U
Bus
for the I/Os)
Error messages to the higher level control or computer system
None
Mechanical tests
Vibration resistance in acc. with EN 60068-2-6/IEC 60068-2-6
Shock in acc. with EN 60068-2-27/IEC 60068-2-27
Continuous shock according to EN 60068-2-27/IEC 60068-2-27
5g
30g
10g
105610_en_02
PHOENIX CONTACT
5
