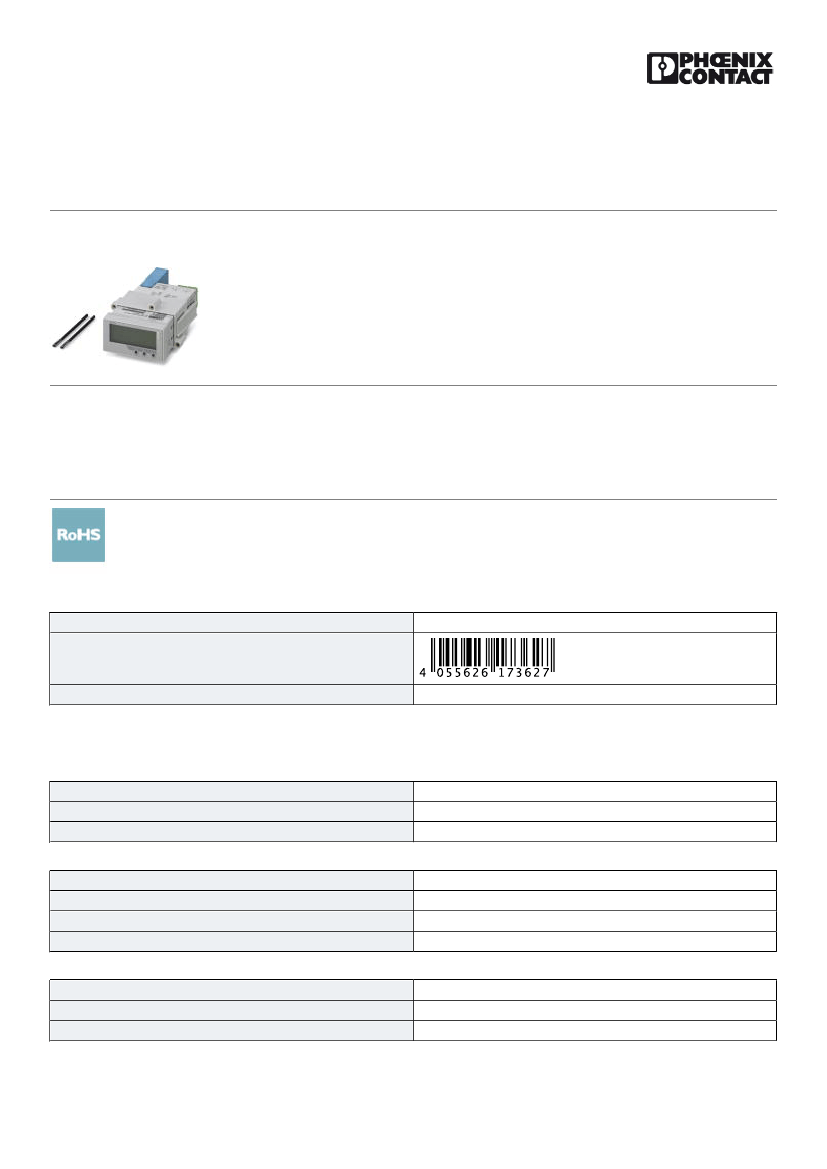

Digital display - FA MCR-EX-D-TUI-UI-2REL-UP - 2907216
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Multifunctional Ex i process indicator inside the control panel housing for monitoring and displaying analog
measurement data. Universal inputs permit connection of current, voltage, RTDs, and TCs. Two relay change-
over contact outputs and one analog output.
Product Description
Multifunctional Ex i process indicator in control panel housing for monitoring, displaying, and transmitting analog measurement data from the Ex
area to the safe area. Dual-conductor sensors can be powered with the integrated measuring transducer supply. Universal inputs permit connection
of current, voltage, RTDs, and TCs. Limit values can be monitored and relays can be switched. The analog output allows you to transmit process
signals. A color change in the event of a fault supports the detection of alarm conditions. 5-digit, 7-segment LC display, with backlight, 1 universal
input, 2 relays, min./max. value memory, linearization table, digital status output (open collector)
Key Commercial Data
Packing unit
GTIN
GTIN
4055626173627
1 pc
Technical data
Dimensions
Width
Height
Depth
96 mm
48 mm
175 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Maximum altitude
Degree of protection
-20 °C ... 60 °C
-40 °C ... 85 °C
< 2000 m (Above sea level)
IP65 from the front
Input data
Description of the input
Number of inputs
Current input signal
Universal input
1
0 mA ... 20 mA +10 %
10/03/2018 Page 1 / 5
https://www.phoenixcontact.com/pi/products/2907216
Digital display - FA MCR-EX-D-TUI-UI-2REL-UP - 2907216
Technical data
Input data
4 mA ... 20 mA +10 %
Max. input current
Input signal
Input resistance current input
Transmitter supply voltage
Transmitter supply voltage range
Transmitter supply current
Available input sources
Sensor types (RTD) that can be used
Connection technology
Description of the input
Voltage input signal
< 150 mA
Current
10 Ω
> 14 V (22 mA)
22.8 V ... 27.6 V (No-load)
< 30 mA (Short-circuit and overload protection)
Resistance thermometers
Pt, Ni, Cu sensors
2, 3, 4-wire
Universal input
0 V ... 10 V
2 V ... 10 V
0 V ... 5 V
0 V ... 1 V
1 V ... 5 V
-1 V ... 1 V
-10 V ... 10 V
-30 V ... 30 V
-100 mV ... 100 mV
max. input voltage
Input signal
Input resistance of voltage input
Available input sources
Sensor types that can be used (TC)
± 35 V (≥ 1 V)
Voltage
> 1 MΩ
Thermocouples
J, K, T, N, B, S, R, U. L, C, D
Output data
Output name
Number of outputs
Configurable/programmable
Current output signal
Max. output current
Load/output load current output
Ripple
D/A resolution
Output name
Voltage output signal
Current output
1
Yes
0 mA ... 20 mA
4 mA ... 20 mA
< 22 mA
≤ 500 Ω (22 mA)
< 10 mV
PP
(500 Ω)
13 bit
Voltage output
0 V ... 10 V
2 V ... 10 V
0 V ... 5 V
1 V ... 5 V
10/03/2018 Page 2 / 5
https://www.phoenixcontact.com/pi/products/2907216
Digital display - FA MCR-EX-D-TUI-UI-2REL-UP - 2907216
Technical data
Output data
Max. output voltage
Ripple
D/A resolution
< 11 V
< 10 mV
PP
(1000 Ω)
13 bit
Switching output
Output name
Contact type
Minimum switching voltage
Maximum switching voltage
Min. switching current
Output name
Output description
Number of outputs
Contact type
Maximum switching voltage
Max. switching current
Relay output
2 PDT
12 V
30 V DC (3 A)
230 V AC (3 A)
10 mA
Transistor output, active
Open collector output
1
Transistor
28 V
3A
200 mA
Power supply
Supply voltage range
Power consumption
24 V AC/DC ... 230 V AC/DC (-20 % ... +10 %, 50 Hz ... 60 Hz)
≤ 6.9 W
General
Test voltage
Protection class
Overvoltage category
Degree of pollution
Test voltage input/output
Test voltage input/power supply
Test voltage output/power supply
Noise emission
Noise immunity
Housing material
Mounting position
Conformance
ATEX
UL, USA/Canada
FM approval
CSA
GL
2500 V
I
II
2
1500 V
2500 V
2500 V
IEC 61326, class A
IEC 61326 / NAMUR NE 21
PC-GF10
Max. viewing angle range +/- 45° from the centre line of the display in
every direction
CE-compliant
II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
UL 61010 Recognized
AIS, NI/I/2/ABCDEFG/T4
AIS, NI/I/2/ABCDEFG/T4
EMC1 C
10/03/2018 Page 3 / 5
https://www.phoenixcontact.com/pi/products/2907216
Digital display - FA MCR-EX-D-TUI-UI-2REL-UP - 2907216
Technical data
Standards and Regulations
Noise emission
Noise immunity
Conformance
ATEX
UL, USA/Canada
FM approval
CSA
GL
Group
IEC 61326, class A
IEC 61326 / NAMUR NE 21
CE-compliant
II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
UL 61010 Recognized
AIS, NI/I/2/ABCDEFG/T4
AIS, NI/I/2/ABCDEFG/T4
EMC1 C
Ex ia IIC
Ex ia IIB
Ex ia IIA
Ex ia IIC
Ex ia IIB
Ex ia IIA
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings

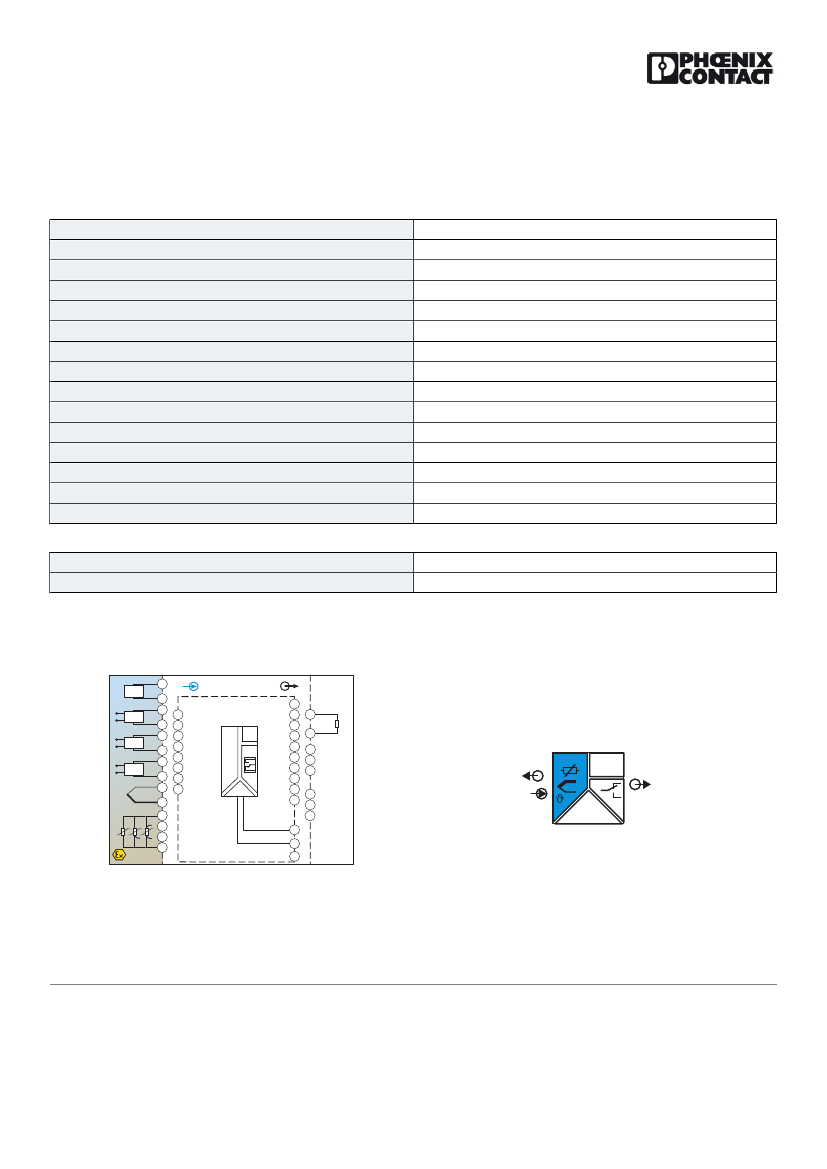

Block diagram
Sensor / Field
Pictogram
PWR 1.1
IN+
IN
OUT
4.1
2-wire
1.4
Out I-
Out I+ 1.4
4-wire
Out I- 2.4
>1V Out U+ 1.3
4-wire
2.4
Out U-
Out U+
2.3
4-wire
Out U- 2.4
2.3
2.4
2.1
2.2
2.3
2.4
Power
24V...230V AC/DC
L/+
N/-
PE
U
S
1.1
1.2
1.3
1.4
2x
2.1
2.2
2.3
2.4
4.2
4.3
4.4
4.3
+
Passive
4.4
-
DI
U
S
R.12 R.12
R.11 R.11
R.13 R.13
R.22
R.21
R.22
R.23
R.21
R.23
U
S
POWER U,I
IN
U,I
OUT
DI
2x
POWER
Zone
Block diagram FA MCR-EX-D-TUI-UI-2REL-UP
Approvals
Approvals
Approvals
CSA / UL Recognized / cUL Recognized / cULus Recognized
10/03/2018 Page 4 / 5
https://www.phoenixcontact.com/pi/products/2907216
Digital display - FA MCR-EX-D-TUI-UI-2REL-UP - 2907216
Approvals
Ex Approvals
CSA
Approval details
CSA
http://www.csagroup.org/services-industries/product-listing/
2879105
UL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 198586
cUL Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
FILE E 198586
cULus Recognized
http://database.ul.com/cgi-bin/XYV/template/LISEXT/1FRAME/index.htm
