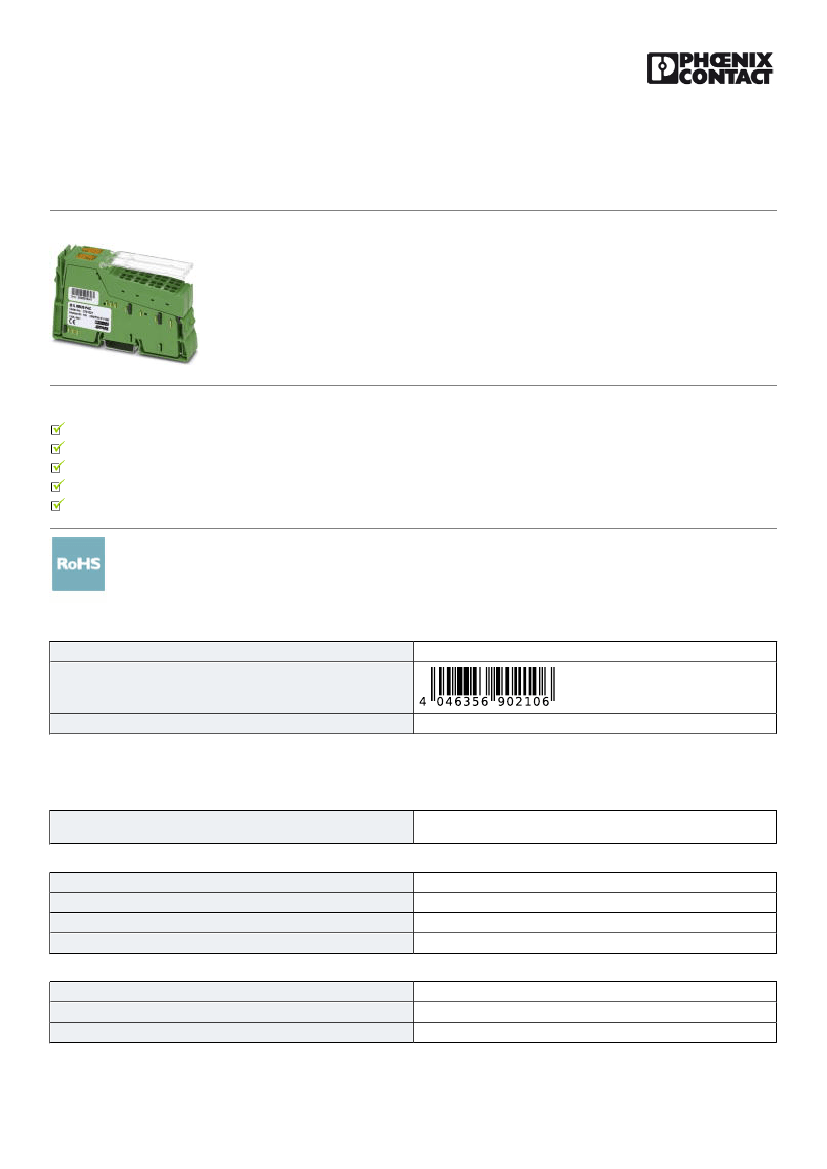

Inline function terminal - IB IL MBUS-PAC - 2701927
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Inline M-Bus master terminal, for connecting M-Bus devices, complete with accessories (connector and
marking field)
Why buy this product
M-Bus connection for up to 30 devices
Transmission speed can be set from 300 baud to 19,200 baud
Parameterization via process data
Process data width: 16 words
Diagnostic and status indicators
Key Commercial Data
Packing unit
GTIN
GTIN
4046356902106
1 pc
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
Note on dimensions
24.4 mm
119.8 mm
71.5 mm
Housing dimensions
Connection data
Designation
Connection method
Conductor cross section solid min.
Inline connector
Spring-cage connection
0.08 mm²
10/03/2018 Page 1 / 3
https://www.phoenixcontact.com/pi/products/2701927
Inline function terminal - IB IL MBUS-PAC - 2701927
Technical data
Connection data
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
1.5 mm²
0.08 mm²
1.5 mm²
28
16
8 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Permissible humidity (operation)
Permissible humidity (storage/transport)
Air pressure (operation)
Air pressure (storage/transport)
Degree of protection
-25 °C ... 55 °C
-25 °C ... 85 °C
10 % ... 95 % (non-condensing)
10 % ... 95 % (non-condensing)
70 kPa ... 106 kPa (up to 3000 m above sea level)
70 kPa ... 106 kPa (up to 3000 m above sea level)
IP20
General
Mounting type
Net weight
DIN rail
125 g
Interfaces
Designation
Connection method
Transmission speed
Interface
Connection method
Transmission physics
Inline local bus
Inline data jumper
500 kbps
M-Bus
Inline connector
Copper
Inline potentials
Designation
Supply voltage
Current consumption
Designation
Supply voltage
Current consumption
Communications power (U
L
)
7.5 V DC (via voltage jumper)
typ. 65 mA
max. 90 mA
Main circuit supply (U
M
)
24 V DC (via voltage jumper)
typ. 56 mA (for 10 unit loads; see example calculation)
max. 160 mA
Electrical isolation
Test section
M-Bus / 7.5 V supply (bus logic) 500 V AC 50 Hz 1 min.
M-Bus / 24 V supply U
M
500 V AC 50 Hz 1 min.
M-Bus/functional earth ground 500 V AC 50 Hz 1 min.
7.5 V supply (bus logics) / functional earth ground 500 V AC 50 Hz 1
min.
10/03/2018 Page 2 / 3
https://www.phoenixcontact.com/pi/products/2701927
Inline function terminal - IB IL MBUS-PAC - 2701927
Technical data
Electrical isolation
24 V supply (U
M
)/functional earth ground 500 V AC 50 Hz 1 min.
Standards and Regulations
Protection class
III, IEC 61140, EN 61140, VDE 0140-1
Environmental Product Compliance
China RoHS
Environmentally friendly use period: unlimited = EFUP-e
No hazardous substances above threshold values
Drawings
Connection diagram
Dimensional drawing
140,5
1.1
2.1
1.1
2.1
119,8
M+
1.2
2.2
1.2
2.2
1.3
2.3
1.3
2.3
M-
1.4
2.4
1.4
2.4
M-Bus
