Temperature measuring transducer - MACX PL-EX-T-UIREL-UP-
SP - 2904912
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Programmable temperature transducer with analog output and 3 limit value relays, intrinsically safe signal inputs,
resistance thermometer in 2-, 3-, or 4-wire technology, thermocouples, electrical isolation, wide-range power
supply, spring-cage connection, PLd

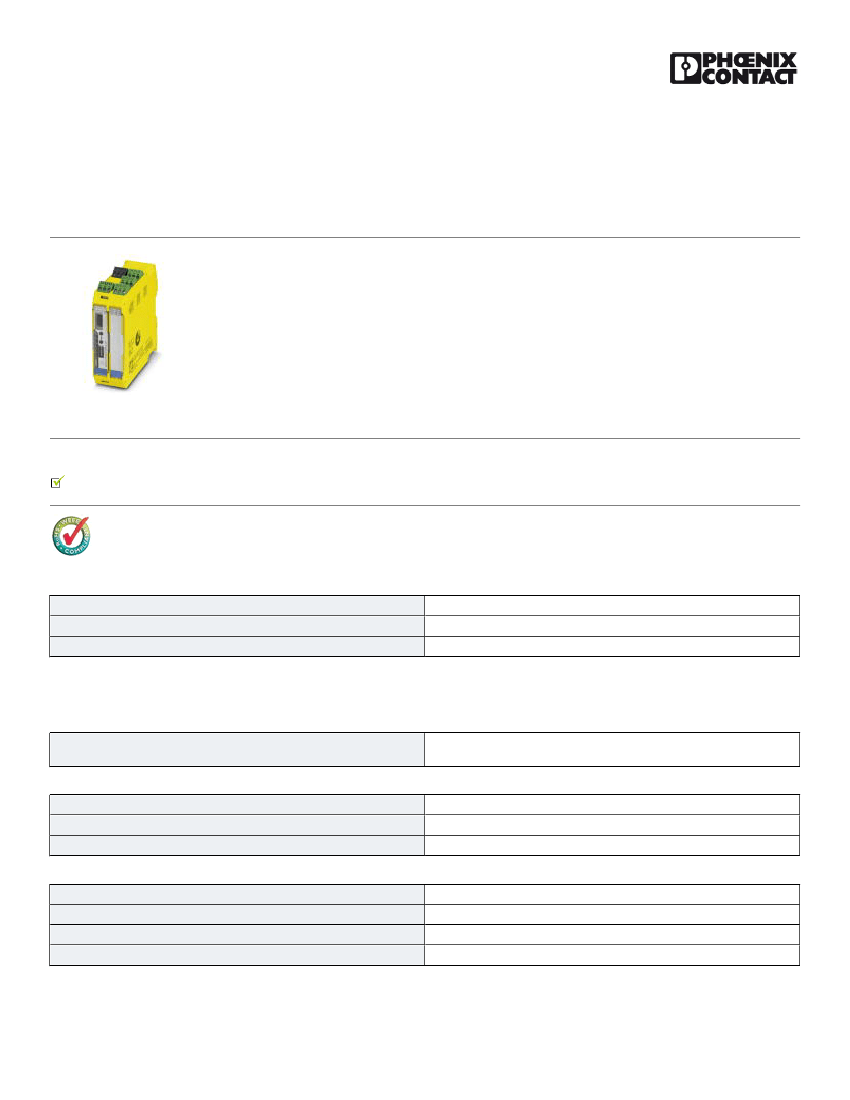

The figure shows a version with a
screw connection
Product Features
Key commercial data
Packing unit
Custom tariff number
Country of origin
1 pc
85437090
Germany
Technical data
Note
Utilization restriction
EMC: class A product, see manufacturer's declaration in the download
area
Dimensions
Width
Height
Depth
35 mm
99 mm
114.5 mm
Ambient conditions
Ambient temperature (operation)
Ambient temperature (storage/transport)
Maximum altitude
Permissible humidity (operation)
-20 °C ... 65 °C
-40 °C ... 85 °C
≤ 2000 m
typ. 5 % ... 95 % (non-condensing)
05/18/2015 Page 1 / 6
https://www.phoenixcontact.com/us/products/2904912
Temperature measuring transducer - MACX PL-EX-T-UIREL-UP-
SP - 2904912
Technical data
Ambient conditions
Noise immunity
Shock
Vibration (operation)
Degree of protection
EN 61000-6-2 When being exposed to interference, there may be minimal
deviations.
15g, according to IEC 60068-2-27
5g, accordance to IEC 60068-2-6
IP20
Input data
Sensor types (RTD) that can be used
Sensor types that can be used (TC)
Temperature measuring range
Input signal range
Potentiometer resistance range
Input signal range
Pt, Ni, Cu sensors: 2, 3, 4-wire
B, E, J, K, N, R, S, T, L, U, CA, DA, A1G, A2G, A3G, MG, LG
-200 °C ... 850 °C
0 Ω ... 50 kΩ
0 Ω ... 50 kΩ
-1000 mV ... 1000 mV
Output data
Current output signal
Max. current output signal
Load/output load current output
Behavior in the event of a sensor error
Output name
Output description
Contact type
Contact material
Maximum switching voltage
Maximum inrush current
4 mA ... 20 mA
22 mA
≤ 600 Ω (at 20 mA)
according to NE 43 or freely configurable
Relay output
1 SIL/PL
2 PDT
AgSnO
2
, hard gold-plated
250 V AC (250 V DC)
2 A (250 V AC)
2 A (28 V DC)
0.2 A (120 V DC)
Mechanical service life
1 x 10 cycles
5
Power supply
Supply voltage range
Typical current consumption
Power consumption
24 V ... 230 V AC/DC (-20 %/+10 %, 50/60 Hz)
< 100 mA (24 V DC)
< 2.4 W
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
0.2 mm²
1.5 mm²
0.2 mm²
05/18/2015 Page 2 / 6
https://www.phoenixcontact.com/us/products/2904912
Temperature measuring transducer - MACX PL-EX-T-UIREL-UP-
SP - 2904912
Technical data
Connection data
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
Connection method
1.5 mm²
24
16
8 mm
Push-in connection
General
Maximum transmission error
Maximum temperature coefficient
Step response (0–99%)
Status display
0.1 % (e.g. for Pt 100, 300 K span, 4 ... 20 mA)
0.01 %/K
typ. 1000 ms (With SIL)
typ. 700 ms (Without SIL)
Green LED (supply voltage, PWR)
Red LED, flashing (line, sensor error, ERR)
Red LED (module error, ERR)
Yellow LED (switching output)
Inflammability class according to UL 94
Pollution degree
Surge voltage category
Electromagnetic compatibility
Housing material
Color
Designation
Electrical isolation
Designation
Electrical isolation
Designation
Electrical isolation
Designation
Electrical isolation
Designation
Electrical isolation
Conformance
ATEX
V0
2
II
Conformance with EMC Directive 2004/108/EC
PA 66-FR
yellow
Input/output/power supply
2.5 kV (50 Hz, 1 min., test voltage)
Input/output
375 V (Peak value in accordance with EN 60079-11)
Input/power supply
375 V (Peak value in accordance with EN 60079-11)
Input/switching output
375 V (Peak value in accordance with EN 60079-11)
Output/supply
300 V
rms
(Rated insulation voltage (surge voltage category II; pollution
degree 2, safe isolation as per EN 61010-1))
CE-compliant
II (1) G [Ex ia Ga] IIC
II (1) D [Ex ia Da] IIIC
II 3 G Ex nA nC ic IIC T4 Gc X
IECEx
[Ex ia Ga] IIC
05/18/2015 Page 3 / 6
https://www.phoenixcontact.com/us/products/2904912
Temperature measuring transducer - MACX PL-EX-T-UIREL-UP-
SP - 2904912
Technical data
General
[Ex ia Da] IIIC
Ex nA nC ic IIC T4 Gc X
UL, USA / Canada
Functional Safety (SIL)
UL 508 Listed
SIL 2
Safety data
Max. internal inductance L
i
Max. internal capacitance C
i
Max. output voltage U
o
Max. output current I
o
Max. output power P
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Group
Max. external inductivity L
o
Max. external capacity C
o
Safety-related maximum voltage U
m
negligible
44 nF
6V
7.4 mA
11 mW
IIC
100 mH
1.3 µF
IIC
10 mH
1.7 µF
IIC
1 mH
2.6 µF
IIC
0 mH
10 µF
IIB
100 mH
6.8 µF
IIB
10 mH
9.2 µF
253 V AC/DC
EMC data
Designation
Standards/regulations
Typical deviation from the measuring range final value
Designation
Electromagnetic RF field
EN 61000-4-3
2%
Fast transients (burst)
05/18/2015 Page 4 / 6
https://www.phoenixcontact.com/us/products/2904912
Temperature measuring transducer - MACX PL-EX-T-UIREL-UP-
SP - 2904912
Technical data
EMC data
Standards/regulations
Typical deviation from the measuring range final value
Designation
Standards/regulations
Typical deviation from the measuring range final value
EN 61000-4-4
2%
Conducted interferences
EN 61000-4-6
2%
Classifications
eCl@ss
eCl@ss 5.1
eCl@ss 6.0
27200206
27200206
ETIM
ETIM 4.0
ETIM 5.0
EC002653
EC002653
Approvals
Approvals
Approvals
UL Listed / cUL Listed / GL / Functional Safety / cULus Listed
Ex Approvals
IECEx / ATEX / UL Listed / cUL Listed / EAC Ex / cULus Listed
Approvals submitted
Approval details
UL Listed
05/18/2015 Page 5 / 6
