3200W Power Supply with Single Output
DPU-3200
series
Dimension
L
* W * H
325.8 * 107 * 41 (1U)
12.8 * 4.21 * 1.61 (1U)
mm
inch
Bauar t gepruft
Sicherheit
egel ma ge
od
o s
be wac
g
www. tuv.com
ID 2000000000
■
Features
Universal AC input
/
Full range
Built-in active PFC function
High efficiency up to 94.5%
Forced air cooling by built-in DC fan
Output voltage and constant current level programmable
Active current sharing up to 16000W (4+1)
Protections: Short circuit / Overload / Over voltage /
Over temperature
Optional conformal coating
Optional PMBus or CANBus protocol
5 years warranty
■
Certificates
Safety: UL/EN/IEC 62368-1
EMC: EN 55032 / 55024
■
Applications
Factory control or automation apparatus
Test and measurement instrument
Laser related machine
Aging facility
Digital broadcasting
Constant current source
Redundant system
■
Description

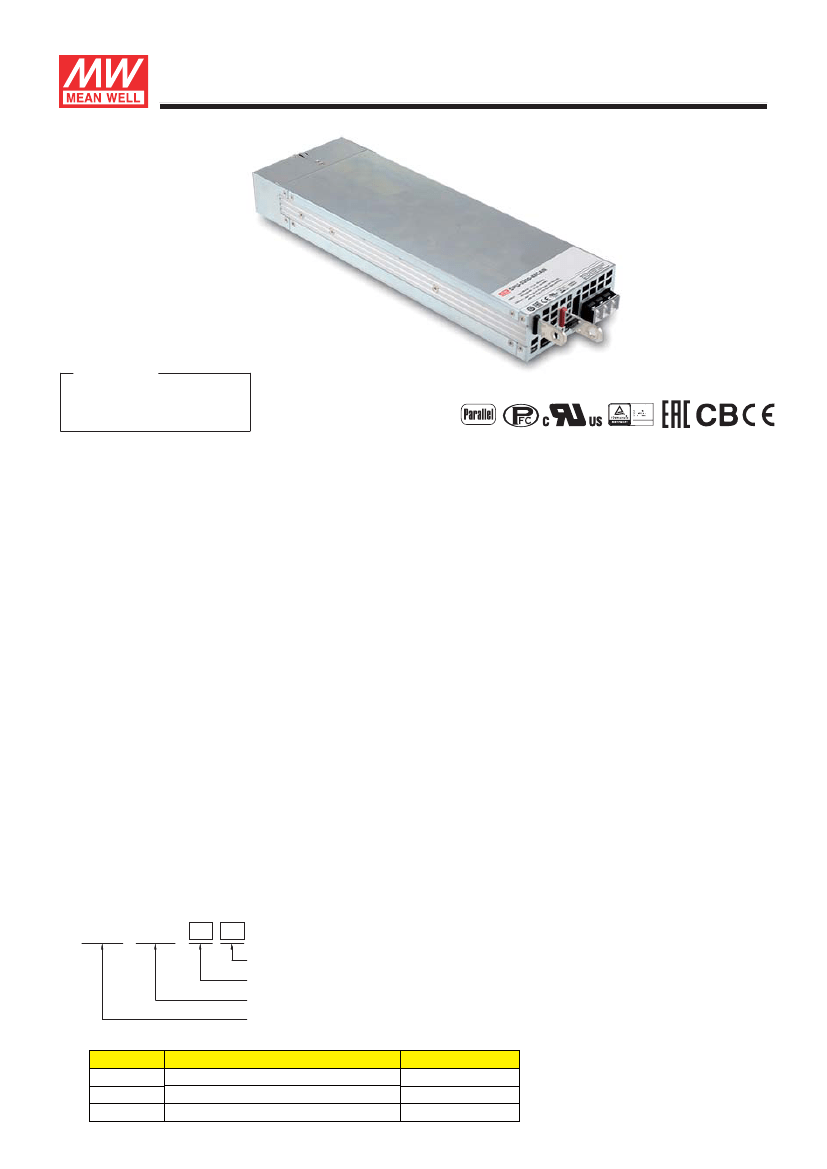

DPU-3200 is a 3.2KW single output enclosed type AC/DC power supply with 1U low profile and a high
power density up to 37W/inch
3
. This series operates for 90~264VAC input voltage and offers the models
with the DC output mostly demanded by the industry. Each model is cooled by the thermostatically
controlled fan. Moreover, DPU-3200 provides vast design flexibility by equipping various built-in functions
such as output programming, active current sharing, remote ON-OFF control, auxiliary power, and etc.
■
Model Encoding / Order Information
DPU - 3200 - 24
Communication protocol option
Output voltage(24V/48V)
Output wattage
Series name
Type
Blank
PM
CAN
Communication Protocol
None
PMBus protocol
CANBus protocol
Note
In Stock
By request
By request
File Name:DPU-3200-SPEC 2018-05-18
3200W Power Supply with Single Output
SPECIFICATION
MODEL
DC VOLTAGE
RATED CURRENT
CURRENT RANGE
RATED POWER
OUTPUT
VOLTAGE ADJ. RANGE
LINE REGULATION
LOAD REGULATION
SETUP, RISE TIME
HOLD UP TIME (Typ.)
VOLTAGE RANGE
FREQUENCY RANGE
POWER FACTOR (Typ.)
EFFICIENCY (Typ.)
INPUT
DPU-3200-24
24V
133A
0 ~ 133A
3192W
23.5 ~ 30V
±0.5%
±0.5%
1500ms, 60ms/230VAC at full load
16ms / 230VAC at 75% load
Note.5
90 ~ 264VAC
DPU-3200
DPU-3200-48
48V
67A
0 ~ 67A
3216W
480mVp-p
47.5 ~ 58.8V
±1.0%
±0.5%
±0.5%
series
RIPPLE & NOISE (max.)
Note.2
300mVp-p
VOLTAGE TOLERANCE
Note.4
±1.0%
9ms / 230VAC at full load
127 ~ 370VDC
47 ~ 63Hz
0.97/230VAC at full load
Note.6
93.5%
94.5%
AC CURRENT (Typ.)
Note.5
17A/230VAC
INRUSH CURRENT (Typ.)
COLD START 55A/230VAC
LEAKAGE CURRENT
OVERLOAD
<2mA / 230VAC
105 ~ 115% rated output power
Protection type : Constant current limiting, shut down O/P voltage 5 sec. after O/P voltage is down low, re-power on to recover
31.5 ~ 37.5V
63 ~ 75V
Protection type : Shut down o/p voltage, re-power on to recover
Shut down o/p voltage, recovers automatically after temperature goes down
PROTECTION
OVER VOLTAGE
OVER TEMPERATURE
FUNCTION
Adjustment of output voltage is allowable to 50 ~ 125% of nominal output voltage
OUTPUT VOLTAGE PROGRAMMABLE(PV)
Please refer to the Function Manual in following pages
CONSTANT CURRENT LEVEL PROGRAMMABLE(PC)
Adjustment of constant current level is allowable to 20 ~ 100% of rated current. Please refer to the Function Manual in following pages
REMOTE ON-OFF CONTROL
By electrical signal or dry contact Power ON:short Power OFF:open. Please refer to the Function Manual in following pages
REMOTE SENSE
AUXILIARY POWER
ALARM SIGNAL
WORKING TEMP.
Compensate voltage drop on the load wiring up to 0.5V. Please refer to the Function Manual in following pages
5V @ 0.3A, tolerance
±
10%, ripple 150mVp-p, 12V @ 0.8A, tolerance
±
10%, ripple 450mVp-p
Isolated TTL signal output for T-Alarm and DC-OK. Please refer to the Function Manual in following pages
-30 ~ +70
℃
(Refer to "Derating Curve")
20 ~ 90% RH non-condensing
-40 ~ +85
℃
, 10 ~ 95% RH non-condensing
±
0.03%/
℃
(0 ~ 50
℃
)
10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
UL62368-1, TUV EN62368-1, EAC TP TC 004 approved
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25
℃
/ 70% RH
Parameter
Standard
Conducted
EMC EMISSION
Radiated
Harmonic Current
Voltage Flicker
EN55024 , EN61204-3, EN61000-6-2
Parameter
ESD
Radiated
EMC IMMUNITY
EFT / Burst
Surge
Conducted
Magnetic Field
Voltage Dips and Interruptions
MTBF
168K hrs min.
Standard
EN61000-4-2
EN61000-4-3
EN61000-4-4
EN61000-6-2
EN61000-4-6
EN61000-4-8
EN61000-4-11
Test Level / Note
Level 3, 8KV air ; Level 2, 4KV contact
Level 3
Level 3
2KV/Line-Line 4KV/Line-Earth
Level 3
Level 4
>95% dip 0.5 periods, 30% dip 25 periods,
>95% interruptions 250 periods
MIL-HDBK-217F (25
℃
)
Test Level / Note
WORKING HUMIDITY
ENVIRONMENT STORAGE TEMP., HUMIDITY
TEMP. COEFFICIENT
VIBRATION
SAFETY STANDARDS
WITHSTAND VOLTAGE
ISOLATION RESISTANCE
EN55032 (CISPR32) / EN55011 (CISPR11) Class B
EN55032 (CISPR32) / EN55011 (CISPR11) Class A
EN61000-3-2
EN61000-3-3
-----
-----
SAFETY &
EMC
(Note 9)
Telcordia SR-332 (Bellcore) ; 44.9K hrs min.
OTHERS
DIMENSION
PACKING
325.8*107*41mm (L*W*H)
2.76Kg;4pcs/12Kg/0.81CUFT
NOTE
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25
℃
of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Under parallel operation ripple of the output voltage may be higher than the SPEC at light load condition. It will go back to normal ripple level once the
output load is more than 5%.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. Derating may be needed under low input voltages. Please check the derating curve for more details.
6. The efficiency is measured at 75% load.
7. If use PV signal to adjust Vo, under certain operating conditions, ripple noise of Vo might slightly go over rating defined in this specification.
8. When 2 or more PSUs are in parallel connection, long cable(s) used for parallel connection might generate higher noise to communication signal. Thus, we
suggest using proper filtering part(s) to avoid interference on communication .
9. The power supply is considered a component which will be installed into a final equipment. All the EMC tests are been executed by mounting the unit on
a 600mm*900mm metal plate with 1mm of thickness. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to
perform these EMC tests, please refer to EMI testing of component power supplies. (as available on http://www.meanwell.com)
10. The ambient temperature derating of 3.5
℃
/1000m with fanless models and of 5
℃
/1000m with fan models for operating altitude higher than 2000m(6500ft).
File Name:DPU-3200-SPEC 2018-05-18
3200W Rack Mountable Front End Rectifier
FUNCTION MANUAL

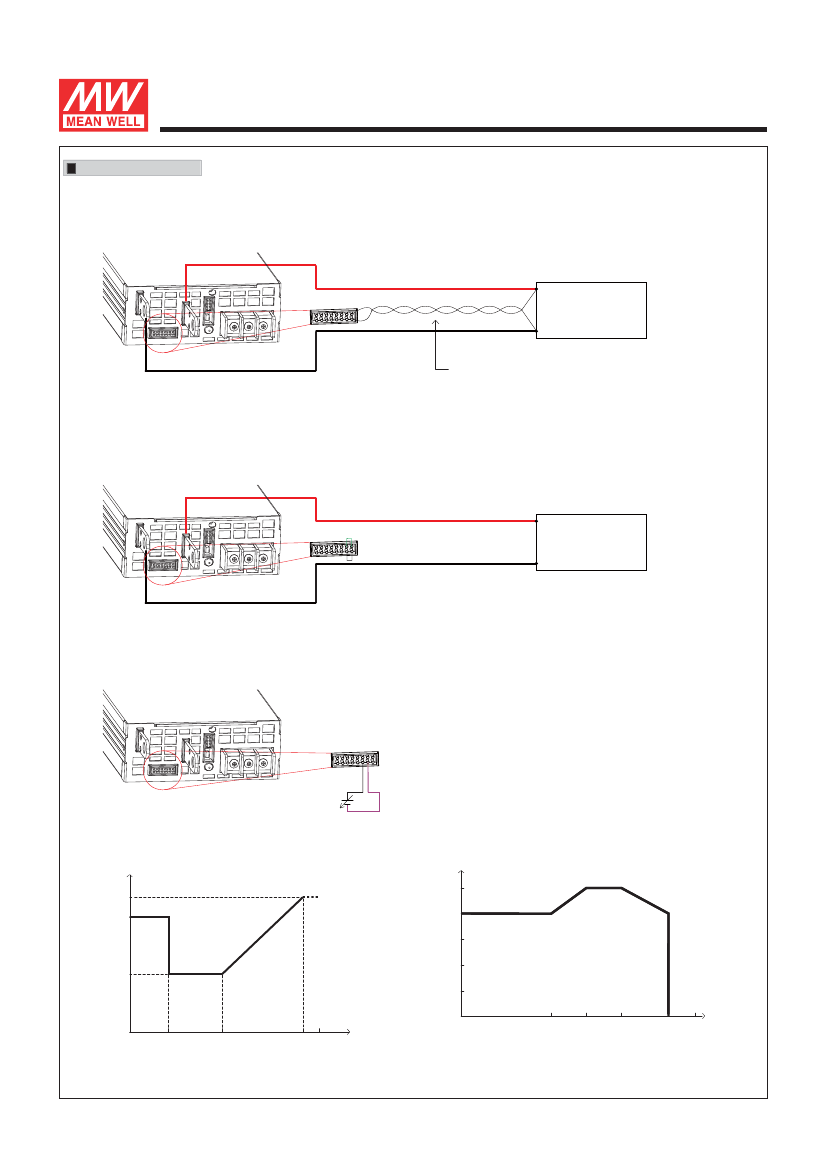

1. Voltage Drop Compensation
1.1 Remote Sense
※
The Remote Sense compensates voltage drop on the load wiring up to 0.5V
DPU-3200
series
PIN15 +S
PIN16
-S
+V
LOAD
-V
-V
CN1
+V
Sense lines should be twisted in pairs to minimize noise pick-up.
◎
The +S signal should be connected to the positive terminal of the load whereas -S signal to the negative terminal.
1.2 Local Sense
※
The +S,-S have to be connected to the +V(signal), -V(signal), respectively, as the following diagram, in order to get the correct output voltage if
Remote Sense is not used.
+V
PIN13 +V(signal)
PIN15 +S
PIN14 -V(signal)
PIN16 -S
-V
LOAD
-V
CN1
+V
2. Output Voltage Programming (or, PV / remote voltage programming / remote adjust / margin programming / dynamic voltage trim)
※
In addition to the adjustment via the built-in potentiometer, the output voltage can be trimmed to 50~125% of the nominal voltage by applying
EXTERNAL VOLTAGE.
PIN12 PV
PIN14
-V(signal)
-V
CN1
+V
EXTERNAL VOLTAGE (DC)
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
Vout
100
125
OUTPUT CURRENT (%)
OUTPUT VOLTAGE(%)
100
80
60
40
20
50
50
0
0.4
1
4.7
5
90
95
100
125
V
V
OUTPUT VOLTAGE (%)
EXTERNAL VOLTAGE (DC)
◎
The rated current should change with the Output Voltage Programming accordingly.
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
File Name:DPU-3200-SPEC 2018-05-18
3200W Power Supply with Single Output
DPU-3200
series

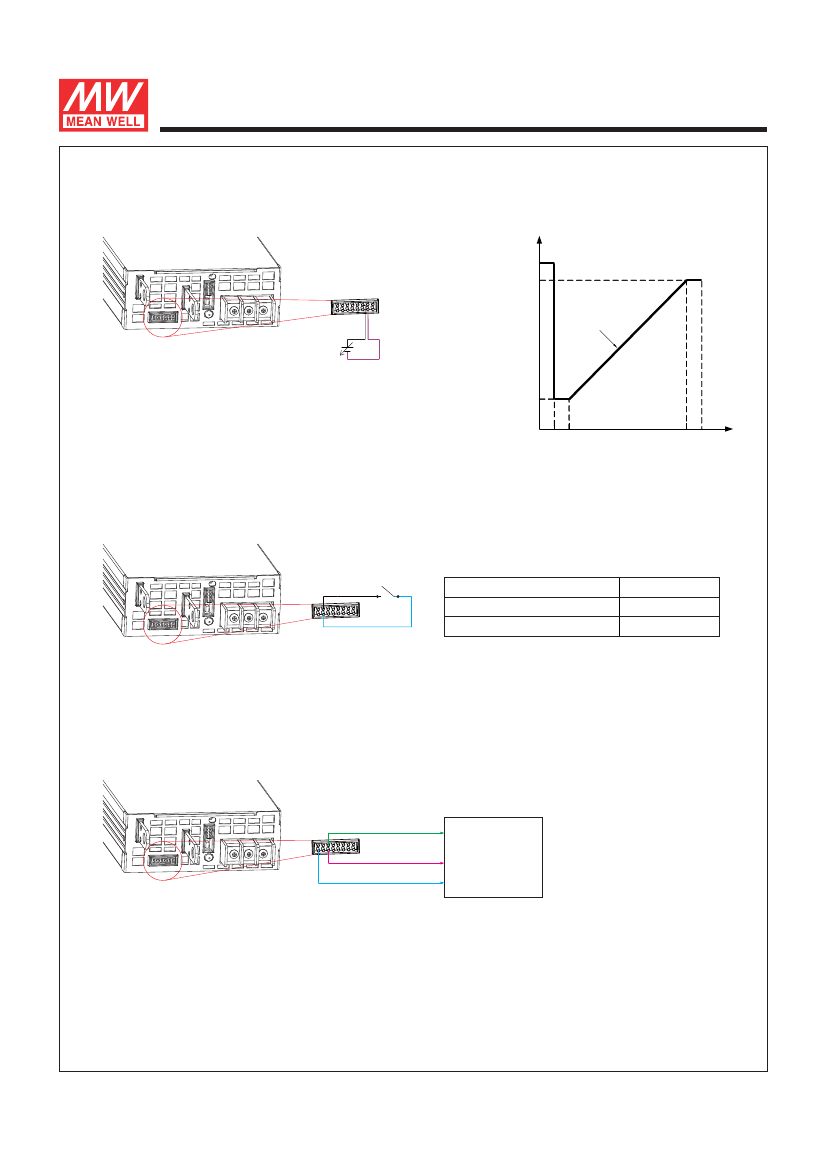

3. Constant Current Level Programming (or, PC / remote current programming / dynamic current trim)
※
The constant current level can be trimmed to 20~100% of the rated current by applying EXTERNAL VOLTAGE.
Iout
110
OUTPUT CURRENT (%)
100
PIN11 PC
PIN14
-V(signal)
Non-Linear
-V
CN1
+V
EXTERNAL VOLTAGE (DC)
◎
For Remote Sense / Local Sense, please refer to “Voltage Drop Compensation” section.
※
If setting output current to a much lower level, as output status turns to constant current
mode, it might cause higher current ripple under such condition.
20
0.4 1
4.7 5
EXTERNAL VOLTAGE (VDC)
V
4. Remote ON-OFF Control
※
The power supply can be turned ON/OFF individually or along with other units by using the "Remote ON-OFF" function.
PIN3 +5V-AUX
switch
Between Remote ON-OFF and +5V-AUX
Switch Short
Power Supply Status
ON
OFF
PIN4 Remote ON-OFF
Switch Open
-V
CN1
+V
5. Alarm Signal Output
※
There are 2 alarm signals, DC OK and T-ALARM, in TTL signal form, on CN1. These signals are isolated from output. The maximum sink current
is 10mA.
PIN5 DC OK
Application
Circuit
PIN6 T-ALARM
-V
CN1
+V
PIN2 GND-AUX
File Name:DPU-3200-SPEC 2018-05-18
