HMC713LP3E
v01.1009
54 dB, LOGARITHMIC
DETECTOR / CONTROLLER, 50 - 8000 MHz
Features
wide Dynamic range: up to 54 dB
High Accuracy:
±1 dB with 54 dB range Up to 2.7 GHz
Fast output response time
supply Voltage: +2.7 to +5.5V
Power-Down Mode
excellent stability over temperature
16 Lead 3x3 mm sMt Package: 9mm²
Typical Applications
the HMc713LP3e is ideal for:
• cellular Infrastructure
• wiMAX, wiBro & Lte/4G
• Power Monitoring & control circuitry
• receiver signal strength Indication (rssI)
• Automatic Gain & Power control
• Military, ecM & radar
11
Power Detectors - sMt

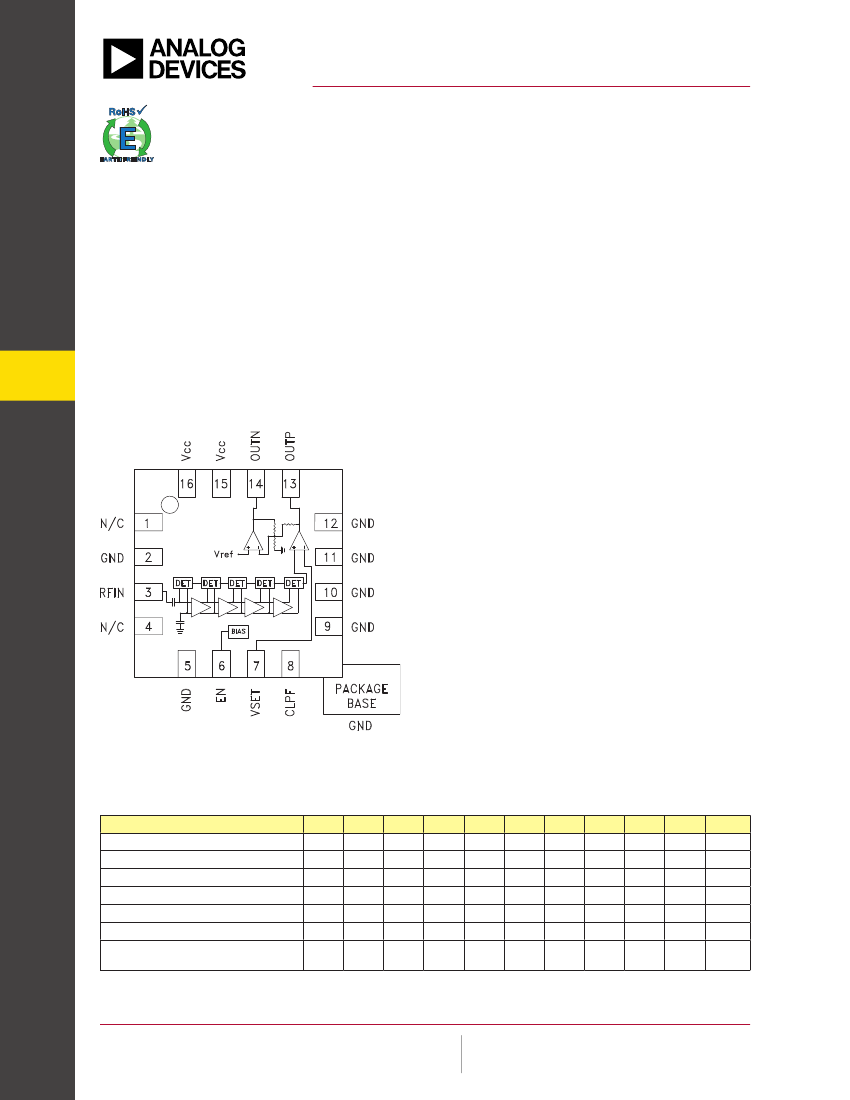

Functional Diagram
General Description
the HMc713LP3e Logarithmic Detector/controller
is ideal for converting the power of rF signals with
frequencies in the 50 MHz to 8000 MHz range, to a
Dc voltage, proportional to input power, at its output.
the HMc713LP3e employs a successive compression
technology which delivers 54 dB of dynamic range
with high measurement accuracy over a wide input
frequency range. As the input signal is increased,
successive amplifiers move into saturation one by one
creating an accurate approximation of the logarithm
function. the outputs of a series of detectors are
summed, converted into voltage domain and buffered
to drive the oUtP output.
For detection mode, the oUtP pin is connected to
the Vset input and will provide a nominal logarithmic
slope of 17 mV/dB and an intercept of -68 dBm. the
HMc713LP3e can also be used in the controller mode
where an external voltage is applied to the Vset pin to
create an AGc or APc feedback loop.
Electrical Specifications,
T
A
= +25 °C, Vcc = +3V, EN = +3V
[1]
Parameter
Input Frequency
±3 dB Dynamic range
±3 dB Dynamic range center
±1 dB Dynamic range
oUtP slope
oUtP Intercept
Variation of oUtP with temperature
from -40°c to +85°c @ -20 dBm Input
typ.
50
61
-27
54
17.2
-67.9
-1.3
typ.
100
61
-27
53
17.2
-68.1
-1.3
typ.
500
61
-27
53
17.2
-68.6
-1.2
typ.
900
62
-28
54
17.1
-68.9
-1.2
typ.
1900
62
-28
55
17
-69.5
-1.1
typ.
2700
61
-28
54
17.2
-69.2
-1.1
typ.
3900
58
-26
49
18.3
-65.3
-1.2
typ.
5800
50
-23
39
21.2
-55.9
-2.1
typ.
7000
44
-20
33
23.8
-48.8
-2.8
typ.
8000
40
-17
31
25.5
-44.2
-3.5
Units
MHz
dB
dBm
dB
mV/dB
dBm
dB
[1] Detector mode measurements; oUtP (Pin 13) is connected to Vset (Pin 7) through an rc network.
11 - 1
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC713LP3E
v01.1009
54 dB, LOGARITHMIC
DETECTOR / CONTROLLER, 50 - 8000 MHz
Electrical Specifications,
(continued)
Parameter
Power Down (EN) Input
Voltage range for Normal Mode
Voltage range for Powerdown Mode
Power Supply (Vcc)
operating Voltage range
supply current in Normal Mode
supply current in Power Down Mode
OUTP Output
rise time
Fall time
output Video Bw
Voltage range
Voltage range
current Drive source / sink
OUTN Output
current Drive source / sink
output Voltage range
RF Input
Input return Loss (s11)
VSET Input
Input Impedance
Input Voltage range
Low Frequency Gain
open Loop corner Frequency
eval Board
Vset to oUtP
1
0.2 - 1.2
64
11
MΩ
V
dB
kHz
F= 50 MHz to 8 GHz
Z
0
= 50Ω, see plot
10
dB
4.0 / 0.43
0.2 - 2.1
mA
V
cLPF= 0, No Power to -10 dBm, 10% - 90%
cLPF= 0, -10 dBm to No Power, 90% - 10%
50mV reduction in output voltage swing
(3 dB referred to the input)
[1]
closed Loop (eval Board setup)
open Loop
24
36
16
0.2 - 1.2
0.1 to
(Vcc -0.1)
4.2 / 0.48
ns
ns
MHz
V
V
mA
eN Input at Vcc
eN Input at GND
2.7 - 5.5
17
0.4
V
mA
mA
0.8 x Vcc
Vcc/2
Vcc/2
0.2 x Vcc
V
V
conditions
Min.
typ.
Max.
Units
11
Power Detectors - sMt
11 - 2
[1] two tone test: Frequency = 900 MHz, tone 1 Power = -20 dBm, tone 2 Power = -28 dBm
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC713LP3E
v01.1009
54 dB, LOGARITHMIC
DETECTOR / CONTROLLER, 50 - 8000 MHz

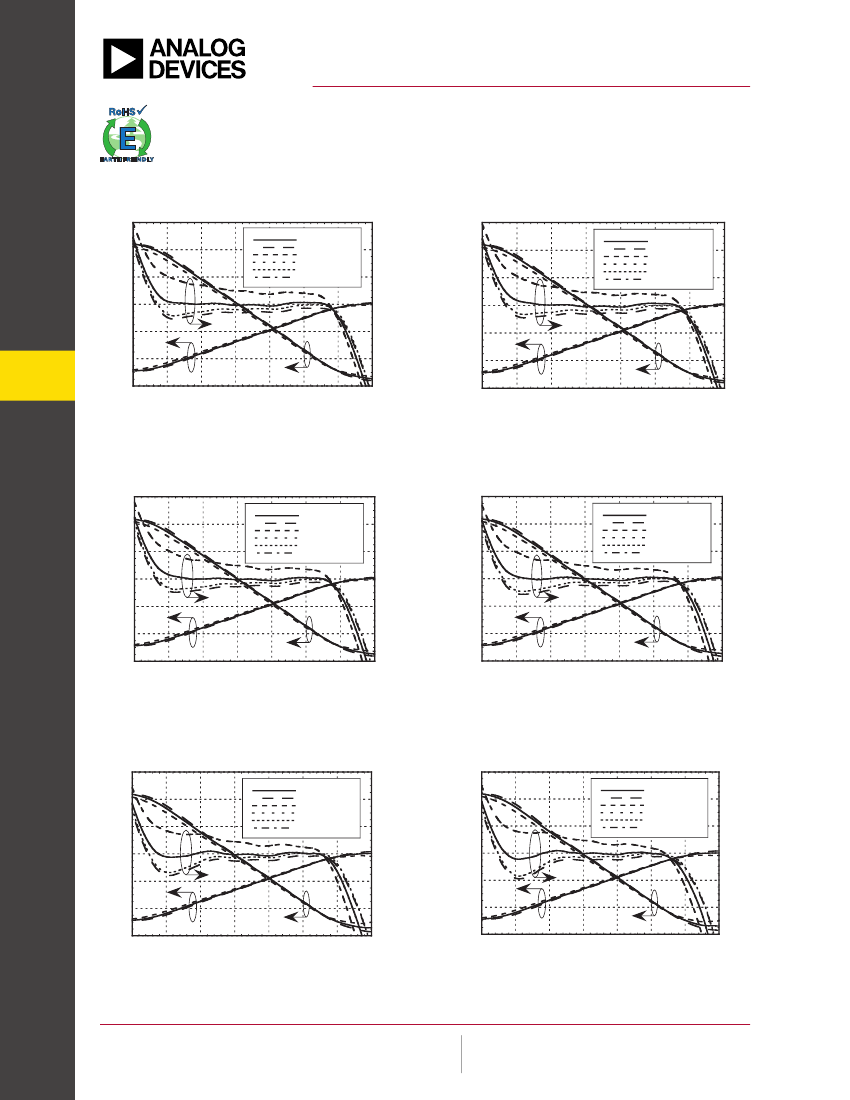

Output Voltage & Error
vs. Input Power, Fin = 100 MHz
6
Output Voltage & Error
vs. Input Power, Fin = 50 MHz
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
6
4
2
ERROR (dB)
0
-2
OUTN
4
2
ERROR (dB)
0
-2
OUT[P,N] (V)
11
Power Detectors - sMt
0.4
0
-60
-50
-40
-30
OUTN
-4
-6
OUT[P,N] (V)
0.4
0
-60
-50
-40
-30
-4
-6
-20
-10
0
10
INPUT POWER (dBm)
-20
-10
0
10
INPUT POWER (dBm)
Output Voltage & Error
vs. Input Power, Fin = 500 MHz
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
Output Voltage & Error
vs. Input Power, Fin = 900 MHz
6
4
2
ERROR (dB)
0
-2
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
6
4
2
ERROR (dB)
0
-2
OUTN
OUT[P,N] (V)
OUT[P,N] (V)
0.4
0
-60
-50
-40
-30
OUTN
-4
-6
0.4
0
-60
-50
-40
-30
-4
-6
-20
-10
0
10
-20
-10
0
10
INPUT POWER (dBm)
INPUT POWER (dBm)
Output Voltage & Error
vs. Input Power, Fin = 1900 MHz
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
Output Voltage & Error
vs. Input Power, Fin = 2700 MHz
6
4
2
ERROR (dB)
0
-2
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
6
4
2
ERROR (dB)
0
-2
OUTN
OUT[P,N] (V)
OUT[P,N] (V)
0.4
0
-60
-50
-40
-30
OUTN
-4
-6
0.4
0
-60
-50
-40
-30
-4
-6
-20
-10
0
10
-20
-10
0
10
INPUT POWER (dBm)
INPUT POWER (dBm)
11 - 3
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC713LP3E
v01.1009
54 dB, LOGARITHMIC
DETECTOR / CONTROLLER, 50 - 8000 MHz
Output Voltage & Error
vs. Input Power, Fin = 5800 MHz
6
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
Output Voltage & Error
vs. Input Power, Fin = 3900 MHz
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
6
4
2
ERROR (dB)
0
-2
-4
OUTN
4
2
ERROR (dB)
0
-2
OUT[P,N] (V)
OUT[P,N] (V)
0.4
0
-60
-50
-40
-30
OUTN
-4
-6
0.4
0
-50
-40
-30
-20
-10
0
INPUT POWER (dBm)
-6
10
-20
-10
0
10
11
Power Detectors - sMt
11 - 4
INPUT POWER (dBm)

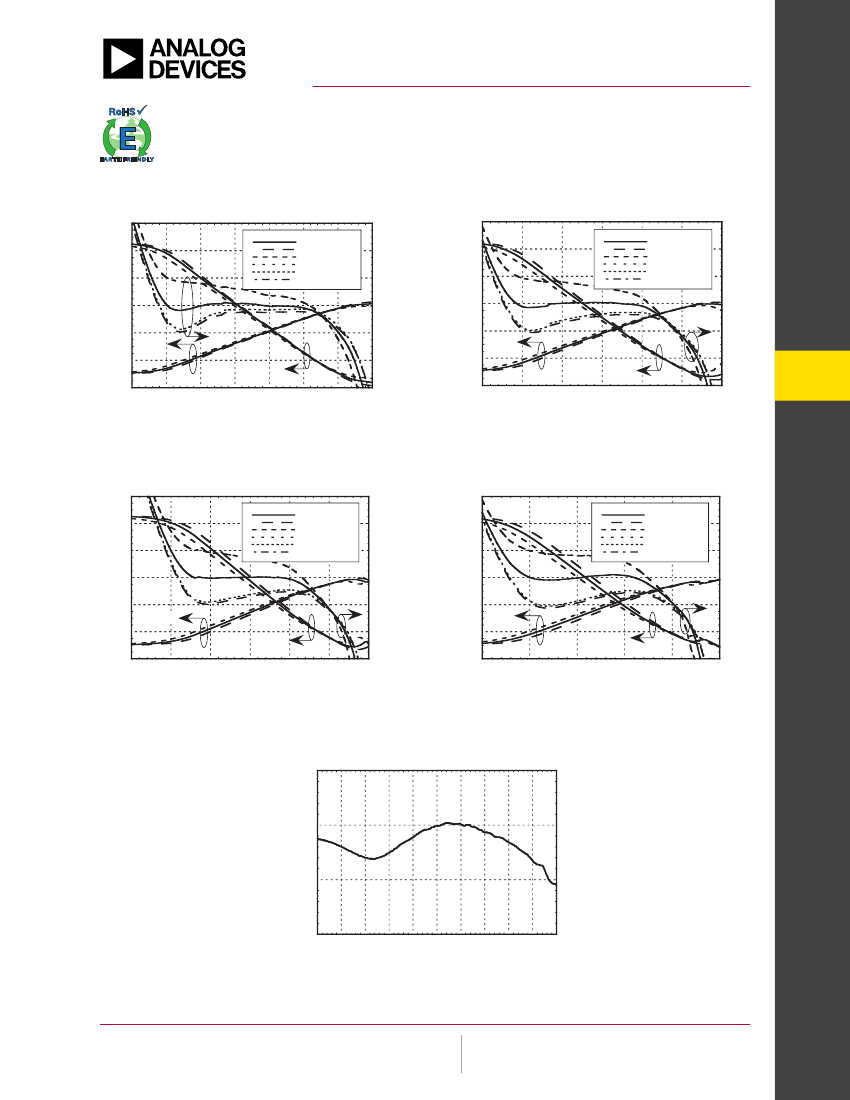

Output Voltage & Error
vs. Input Power, Fin = 7000 MHz
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
Output Voltage & Error
vs. Input Power, Fin = 8000 MHz
6
4
2
ERROR (dB)
0
-2
-4
2.4
2
1.6
1.2
0.8
OUTP
OUTP Err +25C
OUTP Err +85C
OUTP Err -40C
OUTN Err +25C
OUTN Err +85C
OUTN Err -40C
6
4
2
ERROR (dB)
0
-2
-4
-6
-30
-20
-10
0
10
INPUT POWER (dBm)
OUT[P,N] (V)
0.4
OUTN
OUT[P,N] (V)
0.4
0
-40
OUTN
0
-50
-40
-30
-20
-10
0
INPUT POWER (dBm)
-6
10
Input Return Loss
0
RETURN LOSS (dB)
-10
-20
-30
0
1
2
3
4
5
6
7
FREQUENCY (GHz)
8
9
10
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
HMC713LP3E
v01.1009
54 dB, LOGARITHMIC
DETECTOR / CONTROLLER, 50 - 8000 MHz

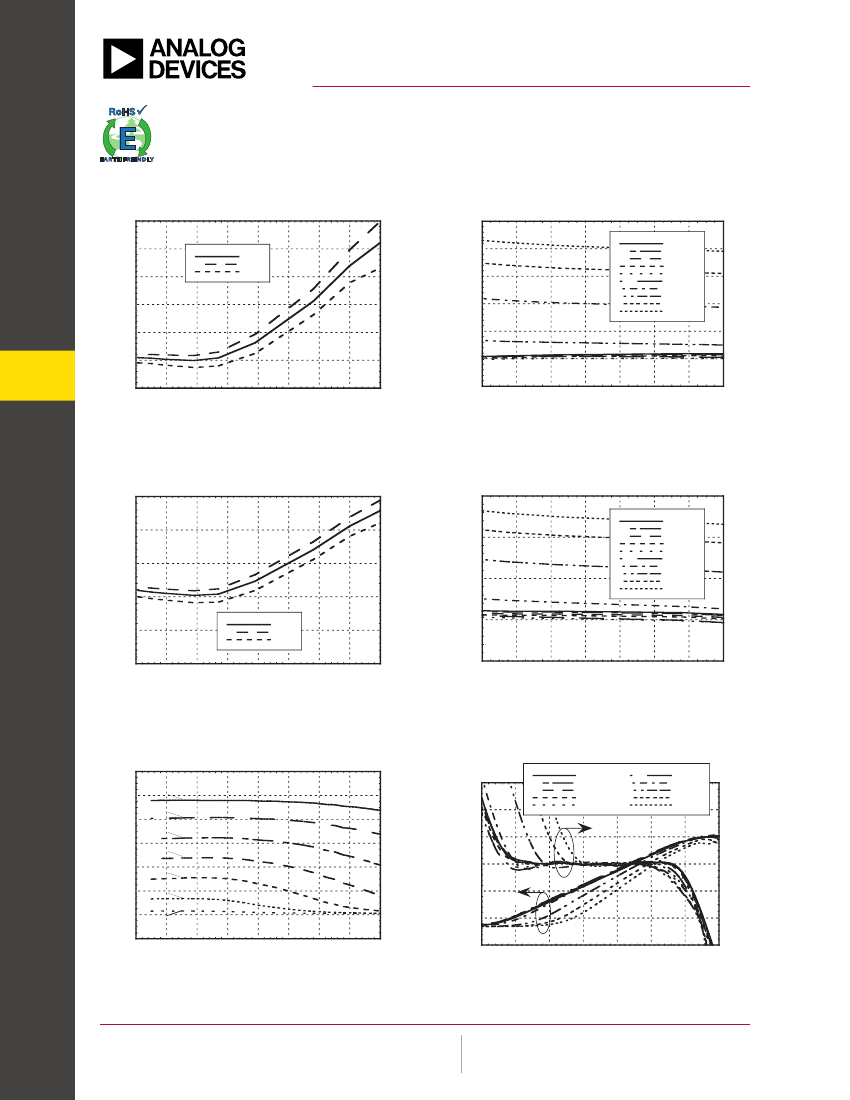

OUTP Slope vs. Supply Voltage
27
25
SLOPE (mV/dB)
0.05GHz
0.1GHz
0.5GHz
0.9GHz
1.9GHz
2.7GHz
5.8GHz
3.9GHz
7GHz
8GHz
OUTP Slope vs. Frequency
27
25
SLOPE (mV/dB)
23
21
19
17
15
0
1
2
3
4
5
FREQUENCY (GHz)
6
7
8
+25C
+85C
-40C
23
21
19
17
15
2.7
3.1
3.5
3.9
4.3
4.7
11
Power Detectors - sMt
5.1
5.5
VOLTAGE SUPPLY (V)
OUTP Intercept vs. Frequency
-40
OUTP Intercept vs. Supply Voltage
-40
0.05GHz
0.1GHz
0.5GHz
0.9GHz
1.9GHz
2.7GHz
3.9GHz
5.8GHz
7GHz
8GHz
-50
INTERCEPT (dBm)
INTERCEPT (dBm)
+25C
+85C
-40C
-50
-60
-60
-70
-70
-80
-90
0
1
2
3
4
5
FREQUENCY (GHz)
6
7
8
-80
2.7
3.1
3.5
3.9
4.3
4.7
5.1
5.5
VOLTAGE SUPPLY (V)
OUTP vs. Frequency & Input Power
1.4
1.2
1
OUTP (V)
0.8
0.6
0.4
0.2
0
0
1
2
3
4
5
FREQUENCY (GHz)
6
7
8
0dBm
-10dBm
-20dBm
-30dBm
-40dBm
-50dBm
-60dBm
OUTP Voltage & Error vs. Frequency
1.8
1.5
1.2
OUTP (V)
0.9
0.6
OUTP
0.05GHz
0.1GHz
0.5GHz
0.9GHz
1.9GHz
ERROR
2.7GHz
3.9GHz
5.8GHz
7GHz
8GHz
6
4
2
ERROR (dB)
0
-2
-4
-6
0.3
0
-60
-50
-40
-30
-20
-10
0
INPUT POWER (dBm)
10
11 - 5
Information furnished by Analog Devices is believed to be accurate and reliable. However, no
For price, delivery, and to place orders: Analog Devices,
For price, delivery and to
for its use, nor for any infringements of patents or
Corporation, 20 Alpha Road, Chelmsford, MA 01824
Inc.,
responsibility is assumed by Analog Devices
place orders: Hittite Microwave
other
One Technology Way, P.O. Box 9106, Norwood, MA 02062-9106
rights of third parties that may result from its use. Specifications subject to change without notice. No
Phone: 978-250-3343
Fax: 978-250-3373
Order On-line at www.hittite.com
Phone: 781-329-4700 • Order online at www.analog.com
license is granted by implication or otherwise under any patent or patent rights of Analog Devices.
Application Support: Phone: 1-800-ANALOG-D
Trademarks and registered trademarks are the property of their respective owners.
Application Support: Phone: 978-250-3343 or apps@hittite.com
京公网安备 11010802033920号
EEWORLD
