GE
HIGH PERFORMANCE IEC
SERIES
CONNECTOR FILTERS

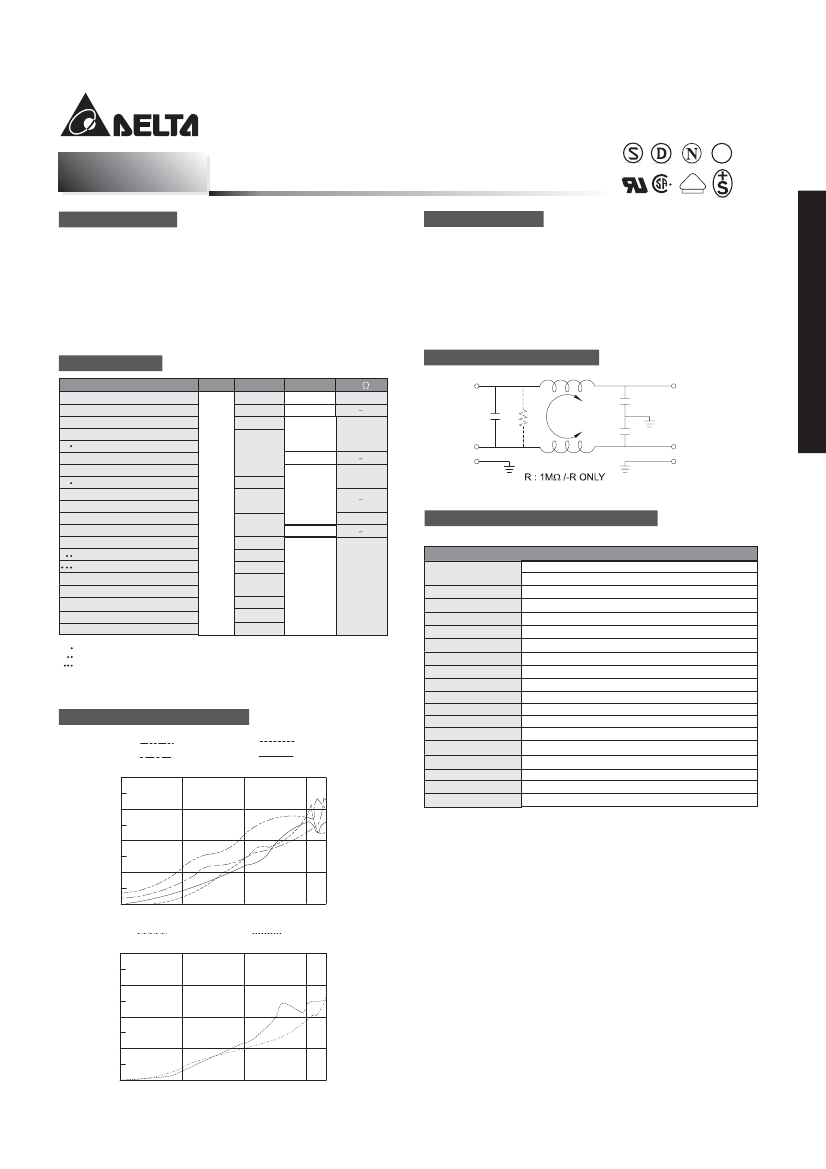

SPECIFICATIONS
1. Maximum leakage current each
line-to-ground @ 115VAC 60Hz: 0.25mA
@ 250VAC 50Hz: 0.45mA
2. Hipot rating (one minute)
line-to-ground: 2250VDC
line-to-line: 1450VDC
3. Operating frequency: 50/60Hz
4. Rated voltage: 115/250VAC
FI
V
D E
INTRODUCTIONS
1. A high performance general purpose filter with an IEC
connector providing effective EMI suppression.
2. Bleeder resistor can be added for "G3E", "W3E", "G3S"
& "G3C" types with suffix "-R" on part numbers.
3. Safety Approval: EG3H, EW3V: UL, CSA, VDE & SEV
EG3V & EG3Q: UL, CSA & VDE
HG3J: UL, CSA, VDE & SEMKO
20GE: UL, CSA & VDE
4. With optional Y-Cap 3300pF.
COMPONENTS
PART NO.
Cx (uF)
01GEEG3E/W3E/-R
01GEEG3H/G3V/W3V
01GEEG3S/-R
03GEEG3E/W3E/W3ES/-R
03GEEW3ES/-R
03GEEG3H/G3V/W3V
03GEEG3S/-R
03GEEG3Q/W3Q-R
03GEEW3J
0.1
03GEHG3J
06GEEG3E/W3E/W3ES/-R
06GEEG3H/G3V/W3V
06GEEG3S/-R
06GEEG3Q/W3Q-R
10GEEG3C/W3C/-R
10GEEG3E/W3E/W3ES/-R
10GEEG3S/-R
*
10GEEG3Q/W3Q/-R
**
15GEEG3E/W3E/-R
***
20GEEG3E/W3E/-R
UL, CSA approved to 4A 115/250V
UL, CSA approved to 8A 115/250V
VDE approved to 8A/250V
ELECTRICAL SCHEMATIC
L (mH)
6.5
3
10.5
Cy (pF)
2200
3300
2200
2.5
4
2.4
0.8
1.05
1.5
0.4
0.2
0.3
0.2
0.3
to 13A 115/250V
*
UL, CSA approved10A/250V
VDE approved to
**
***
VDE approved to 16A/250V
R( )
1M
1M
L
L
I
N
E
N
G
Cx
R
L
Cy
L'
L
O
A
D
N'
G'
Cy
3300
1M
2200
1M
3300
MINIMUM INSERTION LOSS IN dB
COMMON MODE (L-G) IN 50 OHM SYSTEM
CURRENT
FREQUENCY-MHz
RATING
.15
.50
1.0
5.0
10
1A(E)(S)
28
35
38
38
40
1A(H)
26
36
44
54
55
1A(G3V)
20
30
35
40
40
1A(W3V)
24
35
42
50
55
3A(E)(S)(Q)
20
25
30
38
40
3A(H)
24
30
38
50
55
3A(G3J,W3J)
20
25
30
38
40
3A(G3V)(W3V)
20
29
36
48
46
6A(E)(S)
12
18
24
35
40
6A(H)
15
25
32
45
50
6A(Q)
15
20
20
35
40
6A(G3V)(W3V)
14
23
30
42
35
10A(E)(S)
4
10
13
28
35
10A(C)
10
15
15
25
30
10A(Q)
10
12
15
30
32
15A(E)
4
10
13
28
35
20A
8
10
15
25
30
2200
1M
INSERTION LOSS (TYPICAL)
03GEEG3E
06GEEG3E
80 dB
COMMON MODE
COMMON MODE
DIFF. MODE
DIFF. MODE
30
40
55
40
55
40
55
40
50
40
50
55
40
40
35
45
40
35
60 dB
40 dB
20 dB
0 dB
10K
100K
1M
10M
20GEEG3E
80 dB
COMMON MODE
DIFF. MODE
60 dB
40 dB
20 dB
0 dB
10K
100K
1M
10M
2-4

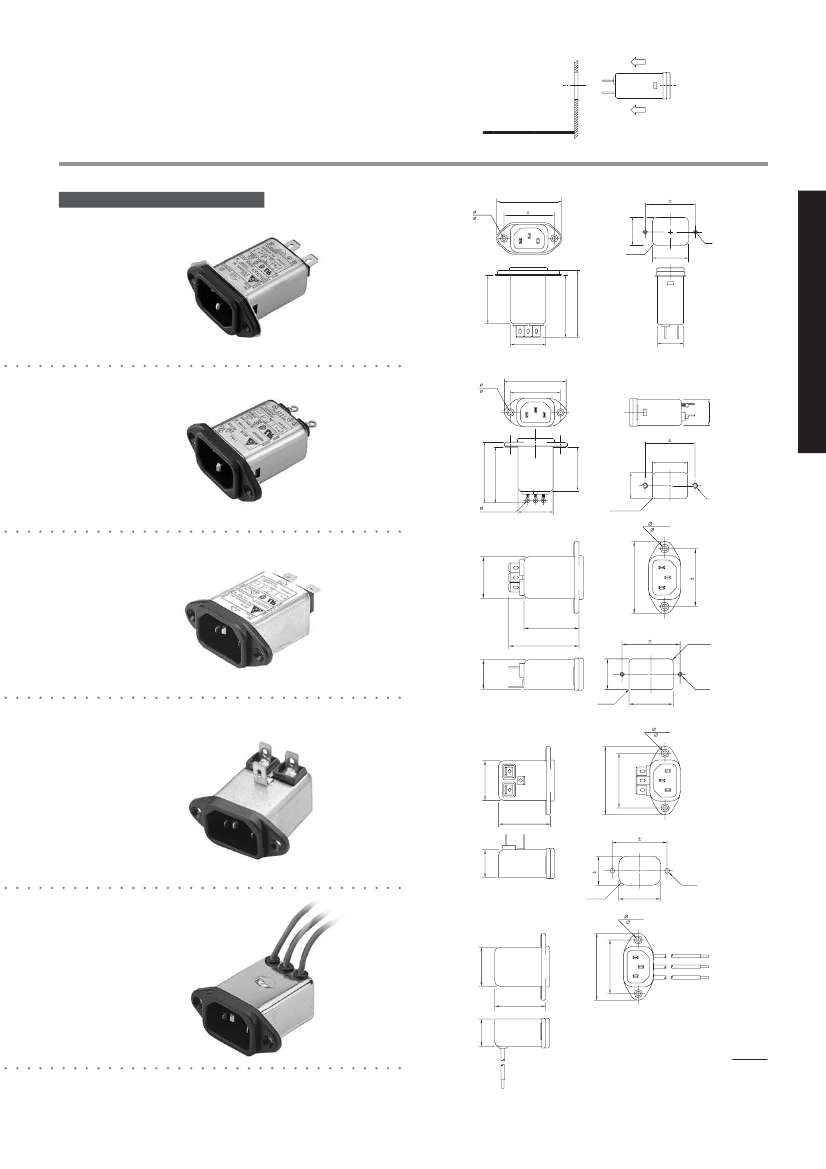

IEC INLET FILTERS
PANEL
PCB
ASSEMBLY FROM FRONT
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM FRONT)
MECHANICAL CONSTRUCTION
0.130
3.3
2.05
52.1
1.575 0.02
40.01
0.85
-0
+0.02
1.575 0.005
40.01
L
G
N
21.6
M3
+0.02
1.12
-0
R0.12
R3.0
28.45
1.12
EG3E, EG3Q
(Optional soldering lug or wire type)
28.4
0.84
21.3
1.99
0.130
3.3
50.5
1.575
40.01
0.84
21.3
L
G
N
1.575 0.005
40.01
+0.02
1.34
49.27
1.79
45.46
1.94
34.0
1.12
-0
28.45
+0.02
0.85
-0
21.6
M3
EG3S
0.079(3X)
2.0
1.12
28.4
R0.12 (4X)
3.0
0.13
3.3
L
1.55
39.4
1.97
50.04
+0.012
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM FRONT)
1.575 0.005
40.01
R0.098
R2.49
EG3H
0.835
-0
21.21
0.83
21.1
R0.04
1.0
1.20
-0.
30.5
+0.02
0.13
3.3
1.5750.02
40.01
1.18
30.0
1.99
50.5
N
1.55
39.4
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM BEHIND)
1.575 0.005
40.01
0.90 0.004
22.9
0.83
21.1
EG3V
L
G
0.14
3.5
1.20
-0
30.5
0.13
3.3
+0.02
R0.234
R5.94
BROWN
1.575 0.02
40.01
1.18
30.0
1.99
50.5
G
N
M3
L
3
GREEN/YELLOW
G
1.5750.02
40.01
1.18
30.0
1.99
50.5
G
N
4
BLUE
1.55
39.4
EW3V
ALL WIRE LEADS 4.0" LONG MIN.
0.83
21.1
SUGGESTED MOUNTING CUTOUT
(SAME AS ABOVE)
UNIT: INCH
mm
2-5

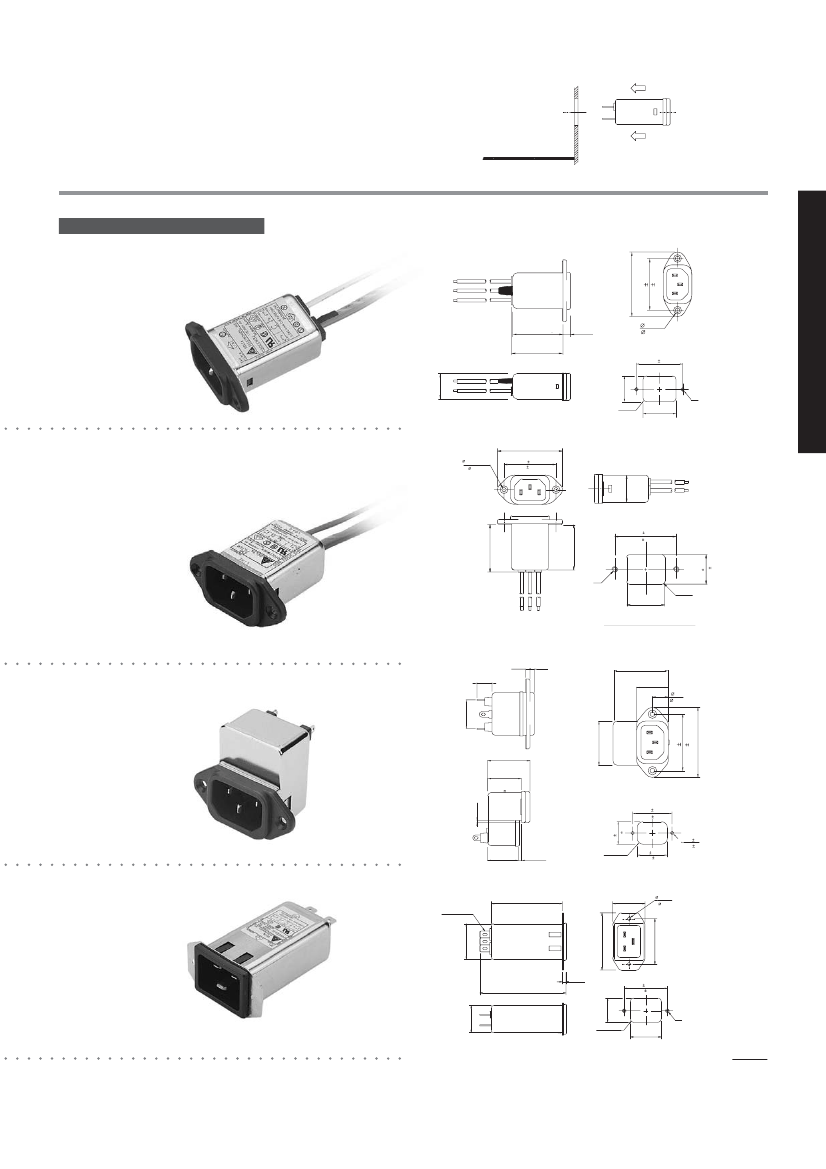

IEC INLET FILTERS
1.52
38.6
1.95
49.5
2.10
53.3
PANEL
PCB
ASSEMBLY FROM FRONT
MECHANICAL CONSTRUCTION
0.130
1.67
42.3
1.77
45.0
1.575 0.005
40.01
0.24
6.0
3.3
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM FRONT)
0.84MAX
21.3MAX
0.85
-0
+0.02
21.6
M3
+0.02
1.12
-0
EW3J
R0.12
R3.0
28.45
1.99 MAX.
50.5 MAX.
0.13(2X)
3.3
1.575 0.02
40.0 10.5
0.84MAX.
1
5
2
1.45 MAX.
36.8 MAX.
1.425
36.2
21.3MAX.
1.575 0.005
40.0 10.13
0.85 0.004
M3
BROWN
BLUE
G/Y
1.12
-0
+0.02
+0.5
R0.12
R3.0
28.45
-0
SUGGESTED MOUNTING CUTOUT
EW3ES
0.14
3.5
0.42
10.6
0.12
3.0
1.56
39.5
0.88
22.3
0.44
11.15
0.81
20.5
0.02
1.23
31.25
0.5
1.18
30.0
0.94
24.0
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM BEHIND)
0.06
1.6
1.575 0.004
40.0 0.1
0.9 0.004
HG3J
0.87
22.0
0.08
2.0
22.8 60.1
R0.236(4X)
R6.0(4X)
1.2 0.004
30.5 0.1
0.248X0.031
6.3X0.8
2.60 MAX.
66.0 MAX.
1.18
30.0
0.138
3.5
1.36 MAX.
34.5 MAX.
0.138
3.5
3.19 MAX.
81.0 MAX.
+0.02
1.043-0
+0.5
26.5-0
1.654 0.004
42.0 0.1
1.04 MAX.
26.5 MAX.
1.654
42.0
2.09
53.0
M3
+0.5
34.5-0
+0.02
1.358-0
20GEEG3E
(Optional wire type)
R0.157 MAX.
R4.0 MAX.
ALL WIRE LEADS 4.0" LONG MIN.
SUGGESTED MOUNTING CUTOUT
(MOUNTING FROM REVERSE)
1.575
0.142 0.007
3.6 0.2
40.0
2-6
1.95
49.5
UNIT: INCH
mm
21.6
0.1
IEC INLET FILTERS
1.575 0.02
40.0 0.5
1.95
49.5
G
N
L
