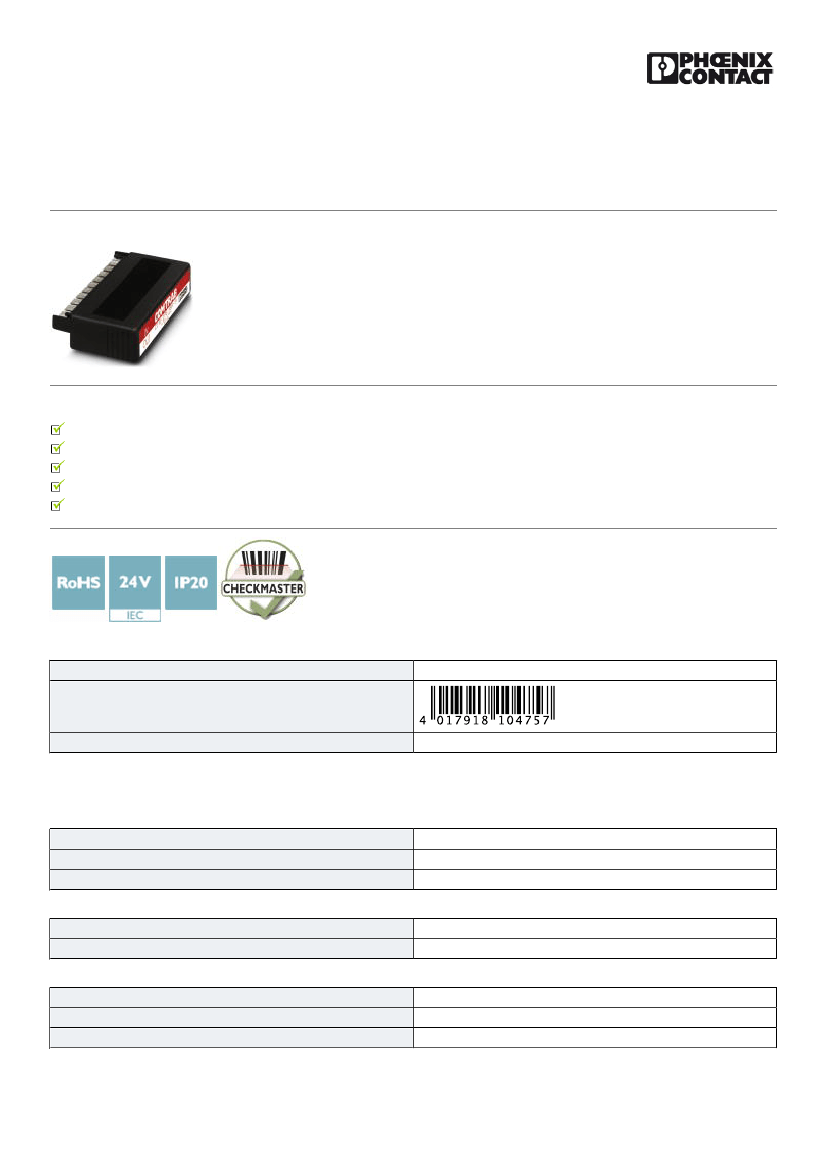

Surge protection plug - CT 10-2PE/FSR-24 - 2807968
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
LSA-PLUS plug (COMTRAB CT 10) with coarse/fine surge protection and decoupling resistor for 10 floating
signal circuits. Nominal voltage: 24 V DC. Version: 10 double wires.
Why buy this product
For use with CT-TERMIBLOCK and with LSA-PLUS and LSA-PROFIL disconnect and control strips
Multi-position, plug-in modular design
Applications include systems with higher signal voltages
Combined protective circuits
Protection modules must be inserted in the correct direction
Key Commercial Data
Packing unit
GTIN
GTIN
4017918104757
1 pc
Technical data
Dimensions
Height
Width
Depth
22 mm
111 mm
68.5 mm
Ambient conditions
Ambient temperature (operation)
Degree of protection
-25 °C ... 75 °C
IP20
General
Housing material
Flammability rating according to UL 94
Color
PBT
V0
black
10/03/2018 Page 1 / 4
https://www.phoenixcontact.com/pi/products/2807968
Surge protection plug - CT 10-2PE/FSR-24 - 2807968
Technical data
General
Standards for cearances and creepage distances
Mounting type
Type
Direction of action
Arrester can be tested with CHECKMASTER from software version:
VDE 0110-1
IEC 60664-1
On CT-TERMIBLOCK and LSA-PLUS disconnect strip
LSA-PLUS module
Line-Line & Line-Earth Ground
From SW rev. 1.00
Protective circuit
IEC test classification
C1
C2
C3
D1
Nominal voltage U
N
Maximum continuous voltage U
C
Rated current
Operating effective current I
C
at U
C
Residual current I
PE
Nominal discharge current I
n
(8/20) µs (line-line)
Nominal discharge current I
n
(8/20) µs (line-earth)
Total discharge current I
total
(8/20) µs
Max. discharge current I
max
(8/20) µs maximum (line-line)
Max. discharge current I
max
(8/20) µs maximum (line-earth)
Output voltage limitation at 1 kV/µs (line-line) spike
Output voltage limitation at 1 kV/µs (line-earth) spike
Output voltage limitation at 1 kV/µs (line-line) static
Output voltage limitation at 1 kV/µs (line-earth) static
Residual voltage at I
n
(line-line)
Response time t
A
(line-line)
Response time t
A
(line-earth)
Input attenuation aE, sym.
24 V DC
40 V DC
28 V AC
200 mA (25 °C)
≤ 5 µA (a-b)
≤ 1 µA (per path)
5 kA
5 kA
10 kA
5 kA
5 kA
≤ 95 V
≤ 650 V
≤ 60 V
≤ 650 V
≤ 55 V
≤ 1 ns
≤ 100 ns
1.5 dB (Typ. up to 2 MHz / 50 Ω)
0.6 dB (Typ. up to 1 MHz / 150 Ω)
0.2 dB (Typ. up to 100 kHz / 600 Ω)
Cut-off frequency fg (3 dB), sym. in 50 Ohm system
Cut-off frequency fg (3 dB), sym. in 150 Ohm system
Cut-off frequency fg (3 dB), sym. in 600 Ohm system
Capacity (line-line)
Capacity (line-earth)
Resistance in series
Surge protection fault message
7 MHz (typ.)
4 MHz (typ.)
900 kHz (typ.)
1.1 nF (f=1 MHz / V
R
= 0 V)
1 pF (typ.)
10 Ω ±10 %
none
10/03/2018 Page 2 / 4
https://www.phoenixcontact.com/pi/products/2807968
Surge protection plug - CT 10-2PE/FSR-24 - 2807968
Technical data
Protective circuit
Max. required back-up fuse
Impulse durability (line-line)
200 mA
C1 - 1 kV/500 A
C2 - 10 kV/5 kA
C3 - 100 A
Impulse durability (line-earth)
C1 - 1 kV/500 A
C2 - 10 kV/5 kA
C3 - 100 A
D1 - 2.5 kA
Connection data
Connection method
Connection method IN
Connection method OUT
can be plugged into COMTRAB-TERMIBLOCK and LSA-PLUS
disconnect and switching strips
COMTRAB plug-in system
COMTRAB plug-in system
Standards and Regulations
Standards/regulations
Standards/specifications
IEC 61643-21
IEC 61643-21 2000
Drawings
Dimensional drawing
111
22
1.../19
Circuit diagram
1'.../19’
68,5
IN
OUT
2.../20
2'.../20’
Approvals
Approvals
Approvals
EAC / EAC
Ex Approvals
Approval details
10/03/2018 Page 3 / 4
https://www.phoenixcontact.com/pi/products/2807968
Surge protection plug - CT 10-2PE/FSR-24 - 2807968
Approvals
EAC
RU C-
DE.A*30.B01561
EAC
EAC-Zulassung
