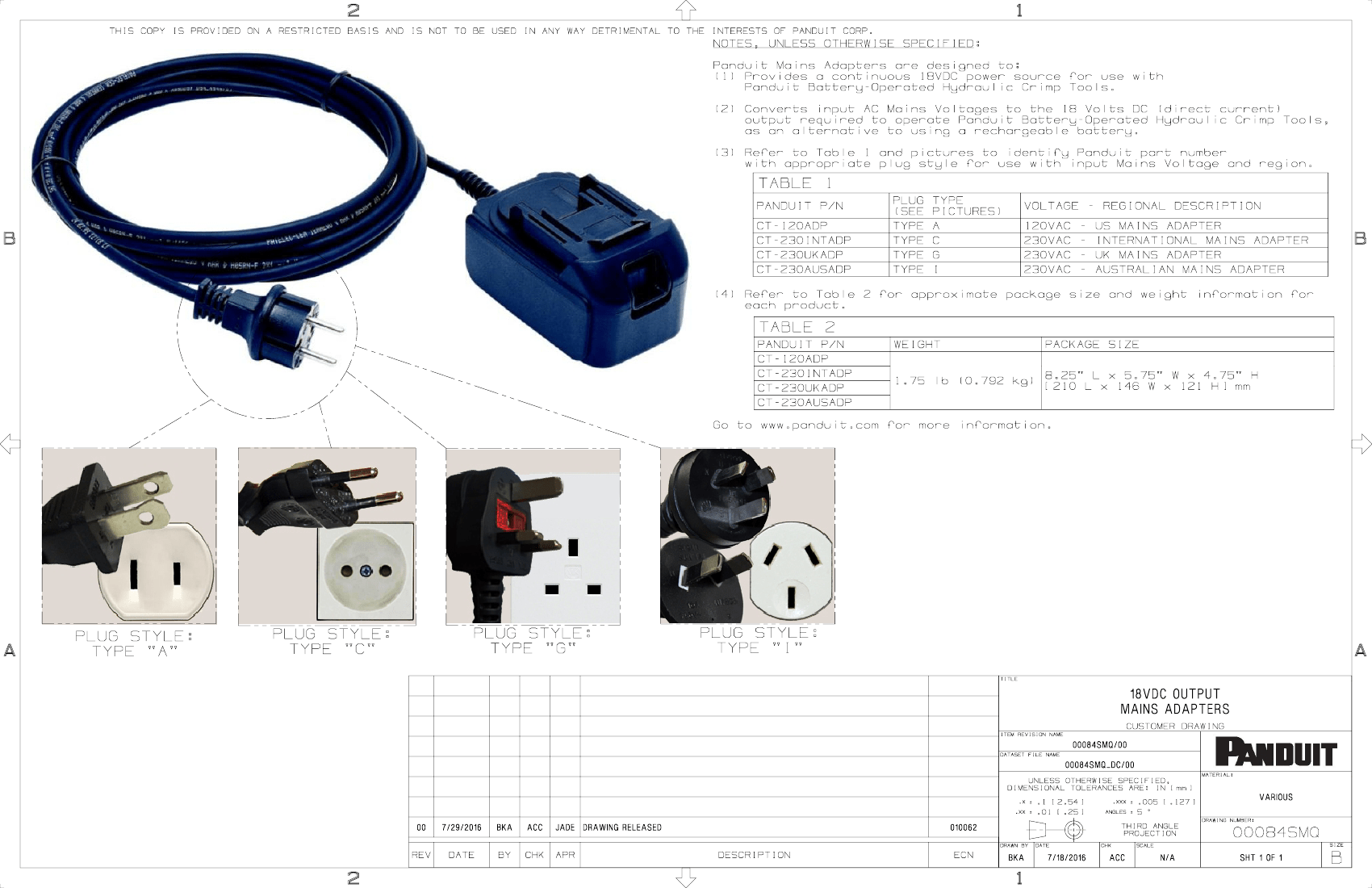

NOTES, UNLESS OTHERWISE SPECIFIED:
Panduit Mains Adapters are designed to:
(1) Provides a continuous 18VDC power source for use with
Panduit Battery-Operated Hydraulic Crimp Tools.
(2) Converts input AC Mains Voltages to the 18 Volts DC (direct current)
output required to operate Panduit Battery-Operated Hydraulic Crimp Tools,
as an alternative to using a rechargeable battery.
(3) Refer to Table 1 and pictures to identify Panduit part number
with appropriate plug style for use with input Mains Voltage and region.
TABLE 1
PANDUIT P/N
CT-120ADP
CT-230INTADP
CT-230UKADP
CT-230AUSADP
PLUG
(SEE
TYPE
TYPE
TYPE
TYPE
TYPE
PICTURES)
A
C
G
I
VOLTAGE - REGIONAL DESCRIPTION
120VAC
230VAC
230VAC
230VAC
-
-
-
-
US MAINS ADAPTER
INTERNATIONAL MAINS ADAPTER
UK MAINS ADAPTER
AUSTRALIAN MAINS ADAPTER
B
B
(4) Refer to Table 2 for approximate package size and weight information for
each product.
TABLE 2
PANDUIT P/N
CT-120ADP
CT-230INTADP
CT-230UKADP
CT-230AUSADP
WEIGHT
1.75 lb (0.792 kg)
PACKAGE SIZE
8.25" L x 5.75" W x 4.75" H
[210 L x 146 W x 121 H] mm
Go to www.panduit.com for more information.
A
PLUG STYLE:
TYPE "A"
PLUG STYLE:
TYPE "C"
PLUG STYLE:
TYPE "G"
PLUG STYLE:
TYPE "I"
