FB6S025JA1R3000 datasheet, PDF

Datasheet> All Categories > The connector> FB6S025JA1R3000

FB6S025JA1R3000: DescriptionCONN FPC BOTTOM 25POS 0.30MM R/A; CategoryThe connector; File Size142KB，1 Pages; ManufacturerJAE Electronics; Environmental Compliance

Download Datasheet Parametric Compare View All

FB6S025JA1R3000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	FB6S025JA1R3000	-	-	View	Buy Now

FB6S025JA1R3000 Overview

CONN FPC BOTTOM 25POS 0.30MM R/A

FB6S025JA1R3000 Parametric

Parameter Name	Attribute value
Flat flexible type	FPC
Installation type	Surface mount, right angle
Connector/contact type	contact, bottom
Number of pins	25
spacing	0.012"（0.30mm）
Termination	welding
FFC, FCB thickness	0.15mm
board height	0.047"（1.20mm）
Lock function	trigger lock
Cable end type	tapered
Contact material	copper alloy
Contact plating	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Low insertion force (LIF)
Rated voltage	50V
Operating temperature	-40°C ~ 85°C
Material flammability rating	UL94 V-0
Rated current	0.35A/contact
Contact plating thickness	-
Shell color	beige
Actuator color	black
Number of patches	20

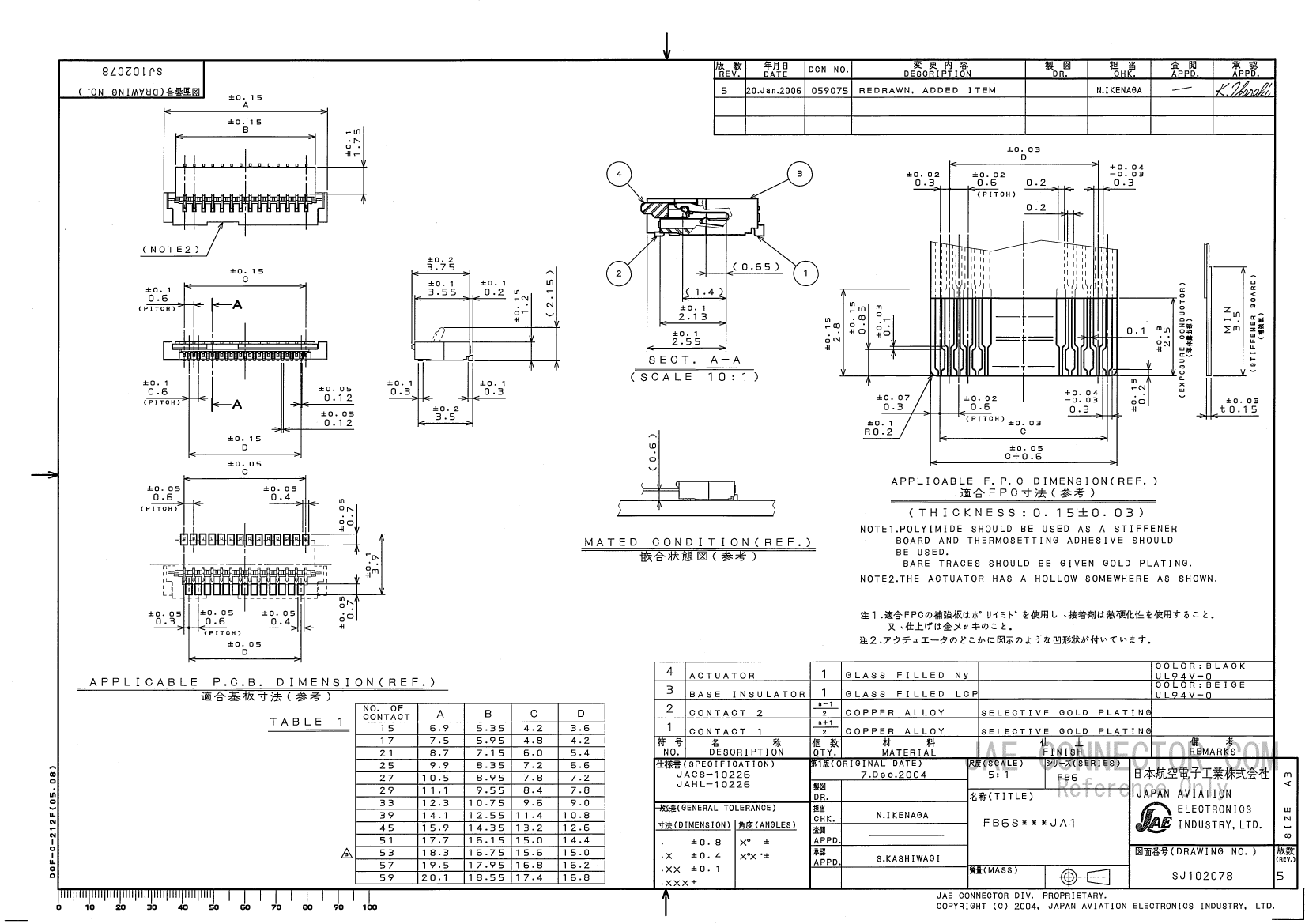

Preview

Download Datasheet

View All

FB6S025JA1R3000 Related Products

	FB6S025JA1R3000	FB6S015JA1R3000	FB6S021JA1R3000	FB6S029JA1R3000	FB6S051JA1R3000
Description	CONN FPC BOTTOM 25POS 0.30MM R/A	CONN FPC BOTTOM 15POS 0.30MM R/A	CONN FPC BOTTOM 21POS 0.30MM R/A	CONN FPC BOTTOM 29POS 0.30MM R/A	CONN FPC BOTTOM 51POS 0.30MM R/A
Flat flexible type	FPC	FPC	FPC	FPC	FPC
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle
Connector/contact type	contact, bottom	contact, bottom	contact, bottom	contact, bottom	contact, bottom
Number of pins	25	15	21	29	51
spacing	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）	0.012"（0.30mm）
Termination	welding	welding	welding	welding	welding
FFC, FCB thickness	0.15mm	0.15mm	0.15mm	0.15mm	0.15mm
board height	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）	0.047"（1.20mm）
Lock function	trigger lock	trigger lock	trigger lock	trigger lock	trigger lock
Cable end type	tapered	tapered	tapered	tapered	tapered
Contact material	copper alloy	copper alloy	copper alloy	copper alloy	copper alloy
Contact plating	gold	gold	gold	gold	gold
Shell material	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced	Liquid crystal polymer (LCP), glass fiber reinforced
Actuator material	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced	Polyamide (PA), nylon, glass fiber reinforced
characteristic	Low insertion force (LIF)	Low insertion force (LIF)	Low insertion force (LIF)	Low insertion force (LIF)	Low insertion force (LIF)
Rated voltage	50V	50V	50V	50V	50V
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Material flammability rating	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0	UL94 V-0
Rated current	0.35A/contact	0.35A/contact	0.35A/contact	0.35A/contact	0.35A/contact
Shell color	beige	beige	beige	beige	beige
Actuator color	black	black	black	black	black
Number of patches	20	20	20	20	20
