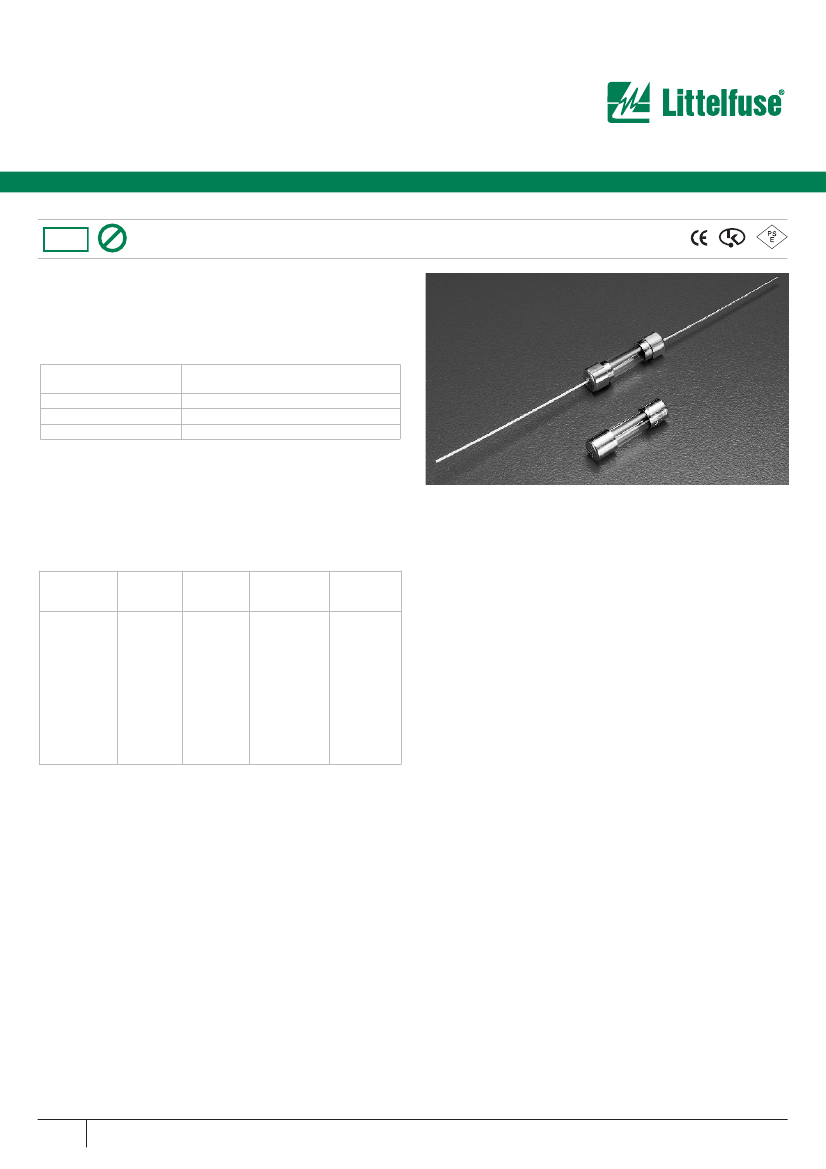

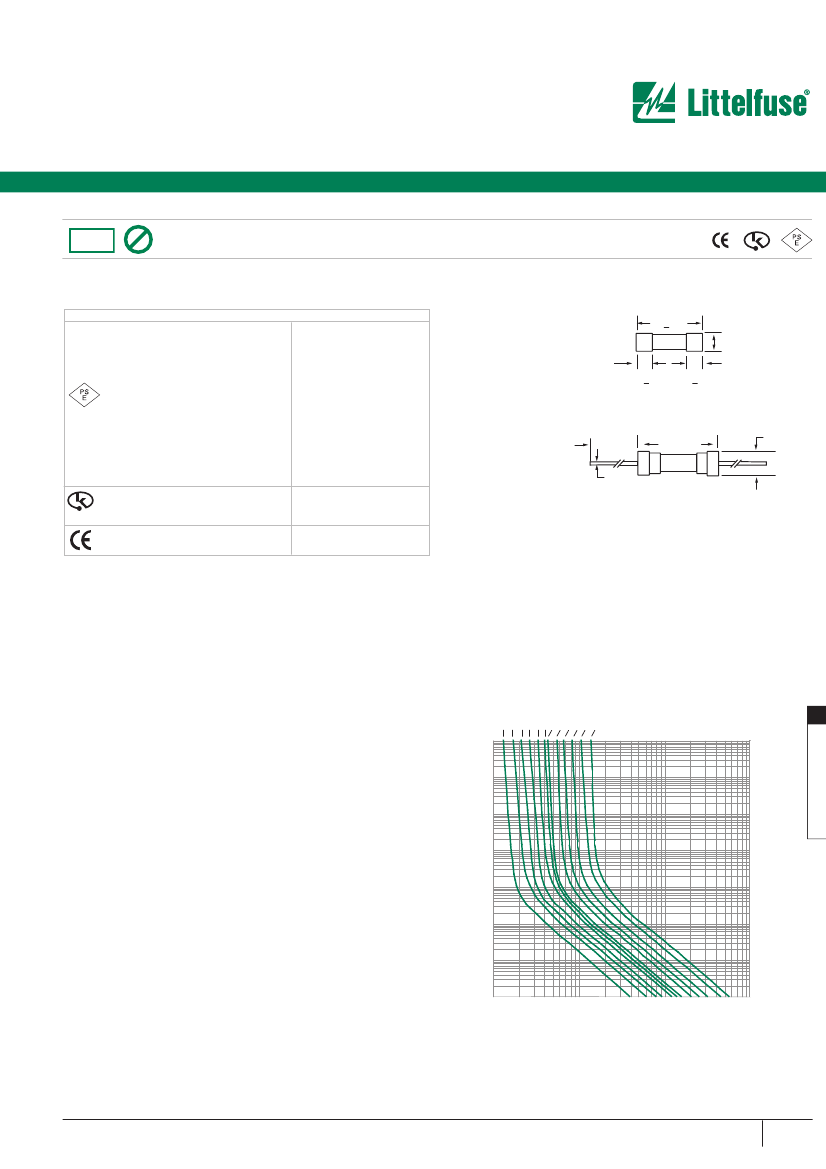

Axial Lead and Cartridge Fuses
Designed to METI Standard
5 x 20 mm
Medium-Acting Fuse 232 Series
• Designed to Japanese Standard JIS C6575.
• Available in Cartridge, Axial and Radial Lead Format.
• Available in ratings of 1A to 10A.
• Improved I
2
t
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
130%
160%
200%
Opening
Time
1 hour,
Minimum
1 hour,
Maximum
2 minutes,
Maximum
INTERRUPTING RATING:
1A-5A 10,000A @ 125VAC, 0.7-0.8 power factor
6.3A-10A 300A @ 125VAC, 0.7-0.8 power factor
100 amperes @ 250 VAC, 0.7-0.8 power factor
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
cycles –65°C to +125°C)
ORDERING INFORMATION:
Catalog
Number
0232
001.
0232
1.25
0232
01.6
0232
002.
0232
02.5
0232
003.
0232
3.15
0232
004.
0232
005.
0232
06.3
0232
008.
0232
010.
Ampere
Rating
1
1.25
1.6
2
2.5
3
3.15
4
5
6.3
8
10
Voltage
Rating*
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
Nominal
Resistance
Cold Ohms
0.092
0.069
0.054
0.037
0.029
0.023
0.022
0.017
0.013
0.010
0.0076
0.006
Nominal
Melting I
2
t
A
2
Sec
1.373
4.114
6.957
8.253
13.876
17.187
21.958
37.733
56.721
90.413
182.578
290.664
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
PHYSICAL SPECIFICATIONS:
Material:
Body: Glass
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Terminal Strength:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
*
To order 125V rating, add part number suffix X125
434
w w w. l i t t e l f u s e . c o m

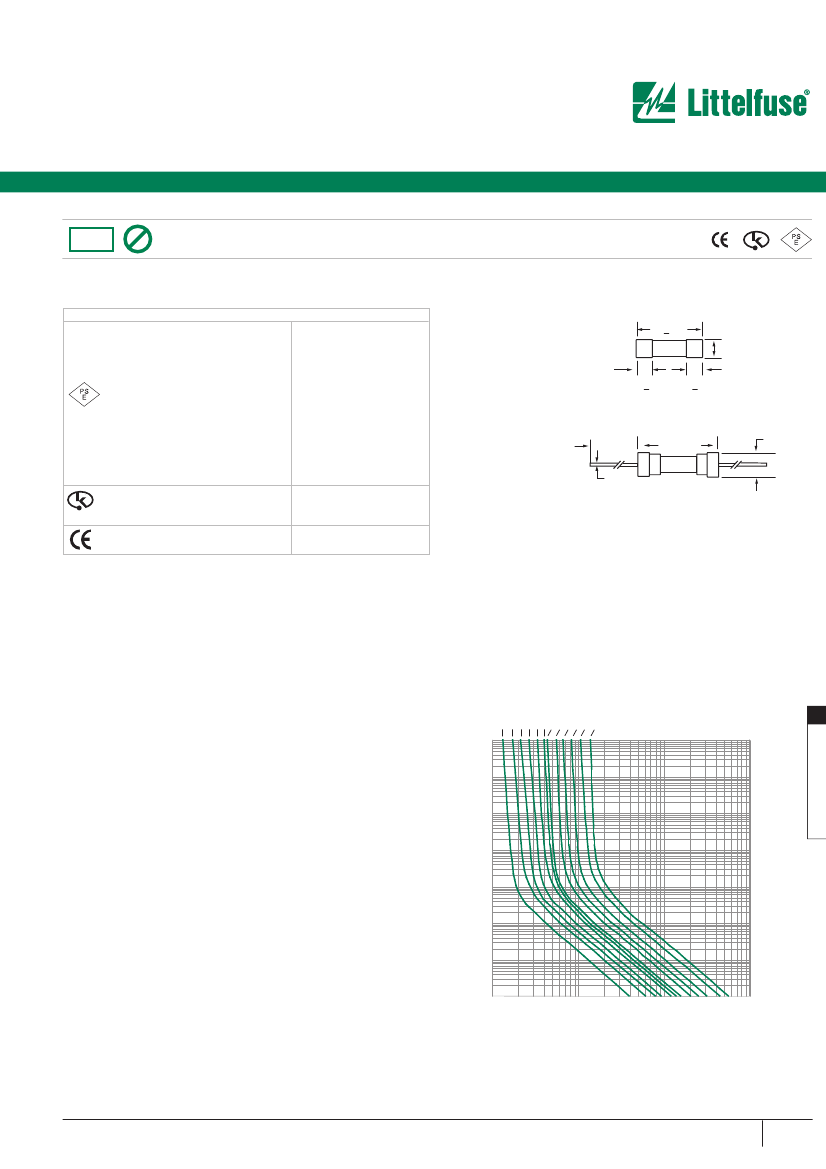

Axial Lead and Cartridge Fuses
RoHS
Pb
5 x 20 mm
Medium-Acting Fuse 232 Series
Ampere Range
20+0.5
Agency Approvals
Agency Approvals
Certificate No.
Cartridge
NBK010702-E10480 A
NBK290502-E10480 C
Leaded
NBK010702-E10480 B
NBK290502-E10480 E
Cartridge
NBK260202-E10480 B
NBK290502-E10480 D
Leaded
NBK290502-E10480 B
NBK290502-E10480 F
Certificate No.
SU05001-2001
SU05001-2015
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 10A (125V)
1A – 10A (250V)
1A – 10A
0232
000
5.2+0.1
-0.2
5.1+0.6
5.1+0.6
40
22.5 MAX
5.8 MAX
0232
000
XE
0.65*
All dimensions in mm
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
Average Time Current Curves
1A
1.25A
1.6A
2A
2.5A
3A
3.15A
4A
5A
6.3A
8A
10A
11
AXIAL LEAD AND
10000
1000
11
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
1
10
CURRENT IN AMPERES
100
1000
w w w. l i t t e l f u s e . c o m
435
Axial Lead and Cartridge Fuses
Designed to METI Standard
RoHS
Pb
5 x 20 mm
Medium-Acting Fuse 232P Series
• Designed to Japanese Standard JIS C6575.
• Available in Cartridge, Axial and Radial Lead Format.
• Available in ratings of 1A to 10A.
• RoHS compliant and Lead-Free
• Improved I
2
t
ELECTRICAL CHARACTERISTICS:
% of Ampere
Rating
130%
160%
200%
Opening
Time
1 hour,
Minimum
1 hour,
Maximum
2 minutes,
Maximum
INTERRUPTING RATING:
1A-5A 10,000A @ 125VAC, 0.7-0.8 power factor
6.3A-10A 300A @ 125VAC, 0.7-0.8 power factor
100 amperes at 250 VAC, 0.7-0.8 power factor
ENVIRONMENTAL SPECIFICATIONS:
Operating temperature:
-55˚C to 125˚C
Thermal Shock:
MIL-STD-202F Method 107G, Test Condition B: (5
cycles –65°C to +125°C)
Vibration:
MIL-STD-202F Method 201A
Humidity:
MIL-STD-202F Method 103B, Test Condition A. high relative
humidity (95%) and elevated temperature (40°C) for 240 hours.
Salt Spray:
MIL-STD-202F Method 101D, Test Condition B
ORDERING INFORMATION:
Catalog
Number
0232
001.P
0232
1.25P
0232
01.6P
0232
002.P
0232
02.5P
0232
003.P
0232
3.15P
0232
004.P
0232
005.P
0232
06.3P
0232
008.P
0232
010.P
Ampere
Rating
1
1.25
1.6
2
2.5
3
3.15
4
5
6.3
8
10
Voltage
Rating*
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
125/250
Nominal
Resistance
Cold Ohms
0.092
0.069
0.054
0.037
0.029
0.023
0.022
0.017
0.013
0.010
0.0076
0.006
Nominal
Melting I
2
t
A
2
Sec
1.373
4.114
6.957
8.253
13.876
17.187
21.958
37.733
56.721
90.413
182.578
290.664
PHYSICAL SPECIFICATIONS:
Material:
Body: Glass
Cap: Nickel Plated Brass
Leads: Tin Plated Copper
Terminal Strength:
MIL-STD-202F Method 211A,
Test Condition A
Solderability:
Reference IEC 60127 Second Edition 2003-01 Annex A
Product Marking:
Cap 1: current and voltage rating.
Cap 2: Agency approval markings.
Packaging:
Available in Bulk (V=5, H=100, M=1000 pcs/pkg) or on
Tape/Reel (MRET1=1000 pcs/reel).
*
To order 125V rating, add part number suffix X125
436
w w w. l i t t e l f u s e . c o m
Axial Lead and Cartridge Fuses
Designed to METI Standard
RoHS
Pb
5 x 20 mm
Medium-Acting Fuse 232P Series
Ampere Range
Agency Approvals
Agency Approvals
Certificate No.
Cartridge
NBK010702-E10480 A
NBK290502-E10480 C
Leaded
NBK010702-E10480 B
NBK290502-E10480 E
Cartridge
NBK260202-E10480 B
NBK290502-E10480 D
Leaded
NBK290502-E10480 B
NBK290502-E10480 F
Certificate No.
SU05001-2001
SU05001-2015
20+0.5
0232
000P
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 5A
125V 10,000A
6.3A – 10A 125V 300A
1A – 5A
250V 10,000A
6.3A – 10A 250V 300A
1A – 5A
250V 10,000A
6.3A – 10A 250V 300A
1A – 10A (125V)
1A – 10A (250V)
1A – 10A
Notes:
* Ratings above 6.3A
have 0.8 mm dia lead
5.1+0.6
5.1+0.6
5.2+0.1
-0.2
40
22.5 MAX
5.8 MAX
0232
000
XEP
0.65*
All dimensions in mm
Average Time Current Curves
1A
1.25A
1.6A
2A
2.5A
3A
3.15A
4A
5A
6.3A
8A
10A
11
AXIAL LEAD AND
10000
1000
100
TIME IN SECONDS
10
1
0.1
0.01
0.001
1
10
CURRENT IN AMPERES
100
1000
w w w. l i t t e l f u s e . c o m
437
