MP35005/W–MP3510/W
Vishay Lite–On Power Semiconductor
35A Bridge Rectifier
Features
D
D
D
D
D
D
Diffused junction
Low reverse leakage current
Surge overload rating to 400A peak
Low power loss, high efficiency
Case to terminal isolation voltage 2500V
UL Listed under recognized component index,
file number E95060
MP – W
14 454
MP
Absolute Maximum Ratings
T
j
= 25
_
C
Parameter
Repetitive peak reverse voltage
g
=Working peak reverse voltage
=DC Bl ki voltage
DC Blocking lt
Test Conditions
Type
MP35005/W
MP3501/W
MP3502/W
MP3505/W
MP3506/W
MP3508/W
MP3510/W
Symbol
V
RRM
=V
RWM
=V
R
V
Value
50
100
200
400
600
800
1000
400
35
–65...+125
Unit
V
V
V
V
V
V
V
A
A
°
C
Peak forward surge current
Average forward current
T
C
=55
°
C
Junction and storage temperature range
I
FSM
I
FAV
T
j
=T
stg
Electrical Characteristics
T
j
= 25
_
C
Parameter
Forward voltage
Reverse current
I
2
t Rating for fusing
Diode capacitance
Thermal resistance junction to case
Test Conditions
17.5A DC
T
C
=25
°
C
T
C
=100
°
C
V
R
=4V, f=1MHz
mounted on heatsink
Type
Symbol Min
V
F
I
R
I
R
I
2
t
C
D
R
thJC
Typ
Max
1.1
10
0.5
664
Unit
V
m
A
mA
A
2
s
pF
K/W
400
3.8
Rev. A2, 24-Jun-98
1 (4)
MP35005/W–MP3510/W
Vishay Lite–On Power Semiconductor
Characteristics
(T
j
= 25
_
C unless otherwise specified)
I
FSM
– Peak Forward Surge Current ( A )
50
I
FAV
– Average Forward Current ( A )
400
T
j
= 50°C
Single Half Sine–Wave
(JEDEC Method)
40
30
300
200
20
10
0
Resistive or inductive load
100
0
1.0
10
Number of Cycles at 60 Hz
100
25
15733
50
75
100
125
150
15735
T
amb
– Ambient Temperature (
°C
)
Figure 1. Max. Average Forward Current vs.
Ambient Temperature
1000
Figure 3. Max. Peak Forward Surge Current vs.
Number of Cycles
10
I
R
– Reverse Current (
m
A )
I
F
– Forward Current ( A )
100
1.0
T
j
= 25°C
10
0.1
T
j
= 25°C
1.0
0.2
15734
0.01
0
15736
0.6
1.0
1.4
1.8
V
F
– Forward Voltage ( V )
40
80
120
Percent of Rated Peak Reverse Voltage (%)
Figure 2. Typ. Forward Current vs. Forward Voltage
Figure 4. Typ. Reverse Current vs. Percent of
Rated Peak Reverse Voltage
2 (4)
Rev. A2, 24-Jun-98
MP35005/W–MP3510/W
Vishay Lite–On Power Semiconductor

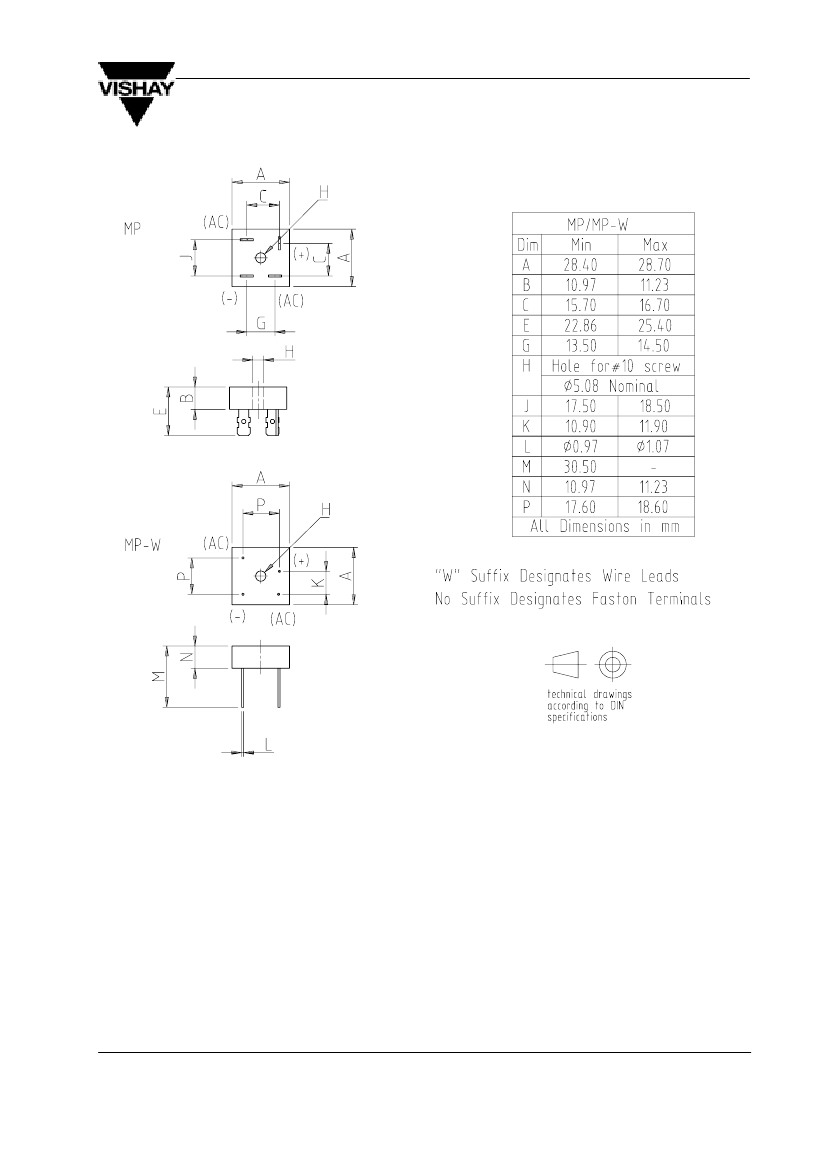

Dimensions in mm
14480
Case: molded plastic with heatsink internally mounted in the bridge encapsulation
Terminals: plated leads solderable per MIL–STD–202, method 208
Polarity: symbols marked on case
Approx. weight: MP
24 grams,
MP–W 21 grams
Mounting: through hole for #10 screw
Mounting torque: 8.0 in–lbs maximum
Mounting position: any
Marking: type number
Rev. A2, 24-Jun-98
3 (4)
MP35005/W–MP3510/W
Vishay Lite–On Power Semiconductor
Ozone Depleting Substances Policy Statement
It is the policy of
Vishay Semiconductor GmbH
to
1. Meet all present and future national and international statutory requirements.
2. Regularly and continuously improve the performance of our products, processes, distribution and operating
systems with respect to their impact on the health and safety of our employees and the public, as well as
their impact on the environment.
It is particular concern to control or eliminate releases of those substances into the atmosphere which are known
as ozone depleting substances ( ODSs ).
The Montreal Protocol ( 1987 ) and its London Amendments ( 1990 ) intend to severely restrict the use of ODSs and
forbid their use within the next ten years. Various national and international initiatives are pressing for an earlier ban
on these substances.
Vishay Semiconductor GmbH
has been able to use its policy of continuous improvements to eliminate the use
of ODSs listed in the following documents.
1. Annex A, B and list of transitional substances of the Montreal Protocol and the London Amendments respectively
2 . Class I and II ozone depleting substances in the Clean Air Act Amendments of 1990 by the Environmental
Protection Agency ( EPA ) in the USA
3. Council Decision 88/540/EEC and 91/690/EEC Annex A, B and C ( transitional substances ) respectively.
Vishay Semiconductor GmbH
can certify that our semiconductors are not manufactured with ozone depleting
substances and do not contain such substances.
We reserve the right to make changes to improve technical design and may do so without further notice.
Parameters can vary in different applications. All operating parameters must be validated for each customer
application by the customer. Should the buyer use Vishay-Telefunken products for any unintended or unauthorized
application, the buyer shall indemnify Vishay-Telefunken against all claims, costs, damages, and expenses, arising out
of, directly or indirectly, any claim of personal damage, injury or death associated with such unintended or
unauthorized use.
Vishay Semiconductor GmbH, P.O.B. 3535, D-74025 Heilbronn, Germany
Telephone: 49 ( 0 ) 7131 67 2831, Fax number: 49 ( 0 ) 7131 67 2423
4 (4)
Rev. A2, 24-Jun-98
