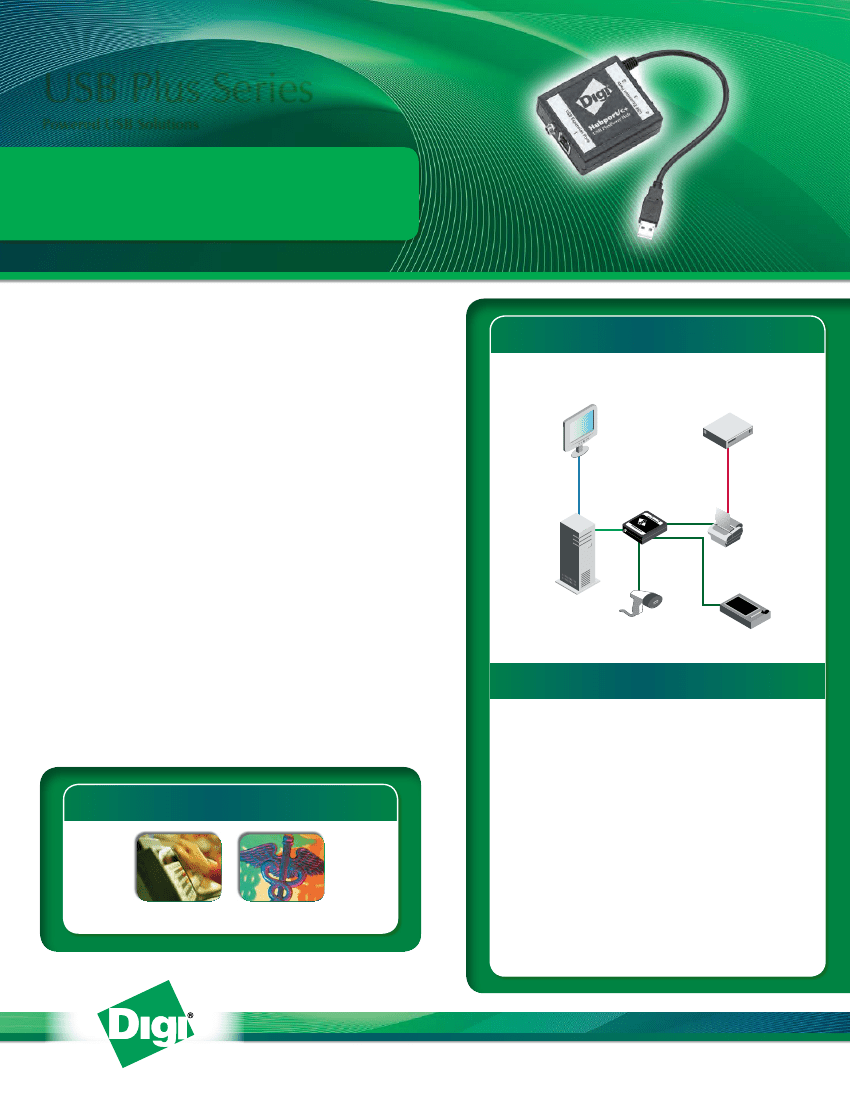

USB Plus Series
Powered USB Solutions
USB PlusPower technology saves space and simplifies retail
and medical system architecture by eliminating individual
power supply bricks for USB peripheral devices.
Overview
USB peripheral devices such as bar-code scanners, receipt
printers and signature capture devices are common elements of
traditional retail/POS systems. Many of these devices require
external power supply bricks, which can create a tangled mess
of cables and power strips. This takes up valuable space and
creates more potential points of failure. USB PlusPower, or
powered USB technology, was developed to eliminate external
power supply bricks for USB devices. Its unique cabling allows
USB devices to receive power from the USB PlusPower device
instead of external power supplies.
Migrating to USB PlusPower devices traditionally required a
specialized, expensive retail system. The USB Plus Series makes
it easy to connect powered USB peripheral devices to a basic
PC. The USB Plus Series can save space and simplify system
architecture by transforming a low-cost PC into a high-perfor-
mance, powered USB-compatible retail system. Each product
offers four powered USB ports with cable locking mechanisms,
which are also compatible with standard USB devices.
Application Highlight
Touch Screen
Monitor
Retail/POS
Cash Drawer
RS-232
CAT5
Hubport
®
+
/4c
ort
bp
Hu
USB
Powered
USB
Printer
PC
Bar-Code
Scanner
Signature Pad
Features/Benefits
•
•
Eliminate individual power supply bricks for USB
peripheral devices
Supplies power and communication signals over
hot-pluggable USB cable
Enables a low-cost, standard PC to become a high
performance POS/POC system
Cable locking mechanism ensures secure connection
Compatible with standard and powered USB
peripheral devices
Retail/POS
Medical/Healthcare
Target Applications
image to
come
•
•
•
•
Power balancing technology provides maximum
power to 12-volt and 24-volt peripherals, without
exhausting the PC’s 5- or 12-volt power
www.digi.com
Specifications
Interfaces
USB PlusPower Ports
USB PlusPower Data Rates
General Features
Form Factor
LEDs
Operating Systems
Dimensions (L x W x H)
Weight
Cables
Other
Power Requirements
Power Input
Power Output
Power Features
Environmental
Operating Temperature
Relative Humidity
Regulatory Approvals
Safety
Emissions/Immunity
Hubport®/4c+
Port 1 supplies 24 VDC, and Ports 2 through 4 supply 12 VDC
Active
External hub
Tri-state LED for device status and port activity
Windows® 8, Windows 2012, Windows 7, Windows Vista®, Windows Server® 2008, Windows XP®, Windows XP Embedded,
Windows CE, Windows Server® 2003 and Windows 2000
2.61 in x 3.00 in x 1.00 in
(6.63 cm x 7.62 cm x 2.54 cm)
4.20 oz (118.00 g)
10 in (25.4 cm) captive cable
Compatible with standard (type A) and locking powered USB connectors; Locking power connector;
Plug and Play; Convection cooled design; Full hardware and software flow control
Standard external power supply included: 72 watt avg., 90 watt peak 100-240V, 50/60 Hz, 1.6 Amp
12V: up to 30 watts; 24V: up to 60 watts; All combined: up to 72 watts
Power balancing technology for efficient power management; Port level power management (toggles 12V/24V power);
Meets power switching requirements of USB 1.1 specification
0° C to 65° C (32° F to 149° F)
0% to 95% (non-condensing)
EN60950, UL 1950, CSA 2.2 No. 950, IEC 950
CE, FCC Part 15 Class B, EN55022, EN55024
You can purchase with confidence knowing that Digi is always available to serve you with expert technical
support and our industry leading warranty. For detailed information visit www.digi.com/support
Digi International
Worldwide HQ
877-912-3444
952-912-3444
www.digi.com
Digi International
France
+33-1-55-61-98-98
www.digi.fr
Digi International
Japan
+81-3-5428-0261
www.digi-intl.co.jp
Digi International
Singapore
+65-6213-5380
Digi International
China
+86-21-50492199
www.digi.com.cn
www.digi.com
91001221
H4/613
© 1996-2015 Digi International Inc.
All rights reserved. All other trademarks are the property of their respective owners.
