301-9007-01: DescriptionHUBPORT/4C+ POWER SUPPLY; CategoryPower/power management; File Size64KB，1 Pages; ManufacturerDigi International; Environmental Compliance

Download Datasheet Parametric View All

301-9007-01 Overview

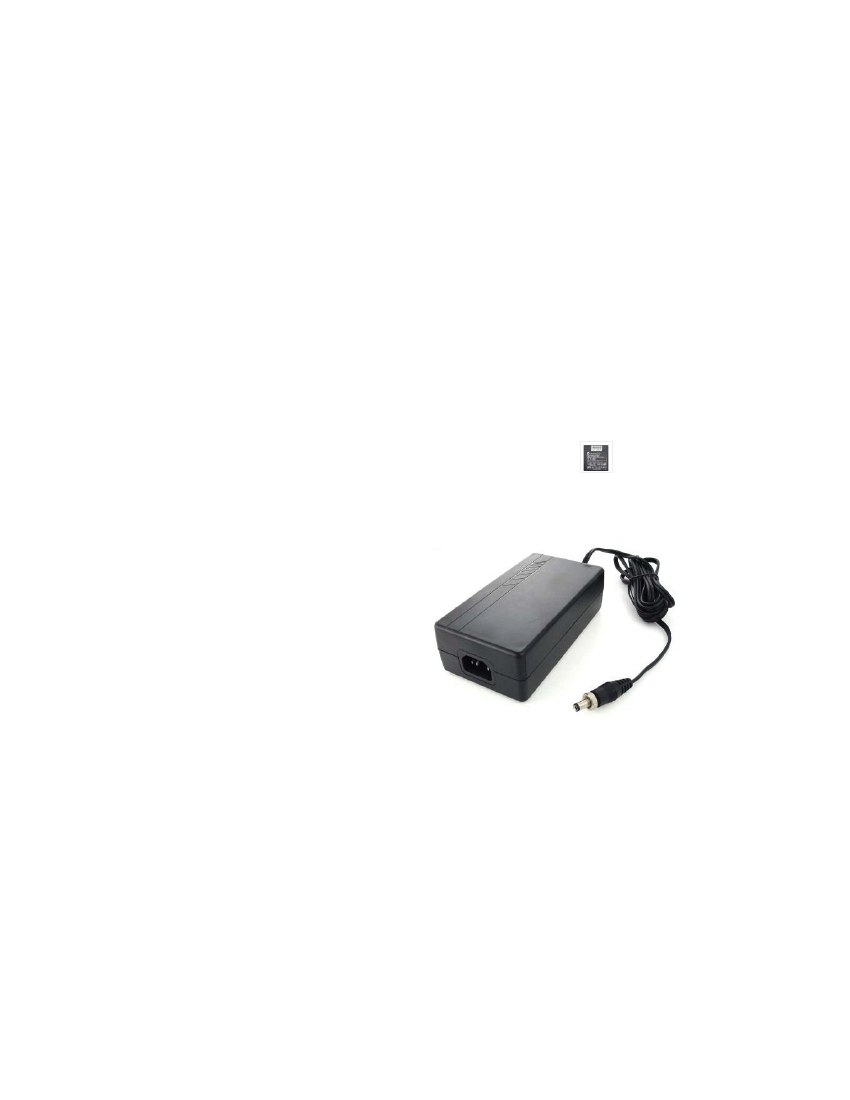

HUBPORT/4C+ POWER SUPPLY

301-9007-01 Parametric

Parameter Name	Attribute value
Use area	internationality
form	Desktop (Class I)
input type	Cable (sold separately)
Voltage - input	90 ~ 264 VAC
Voltage - Output	24V
Current - Output (maximum)	3A
Power (W)	72W
No-load power consumption	-
polarization	-
application	-
efficiency	-
Operating temperature	0°C ~ 40°C
Output connector	Round tube plug, 2.5mm inner diameter x 5.5mm outer diameter
size/dimensions	5.57" long x 2.99" wide x 1.69" high (141.5mm x 76.0mm x 43.0mm)
Approval	CE，cUL，TUV，UL
input connector	IEC 320-C14
Wire length	72"（1.83m）
weight	-

Preview

Download Datasheet

View All

Hubport/PCI+ Power Supply (optional power supply for

301-1149-01)

PART NUMBER:

301-9007-01

Input Specifications:

Rated input voltage range:

90VAC - 264VAC

Input fequency:

47Hz - 63Hz

Rated input current:

<1.6A @ 90VAC

Max. in-rush current:

20A

Input Plug Type:

IEC320 / C14

Output Specifications:

Output Voltage:

24VDC

Max. load current:

3.0A

Min. load current:

0A

Output Power:

72W

Output Plug:

Connector Type: Barrel plug

Outer Diameter: 5.5mm

Inner Diameter: 2.5mm

Environment:

Operating Temperature:

0° C to 40° C

Storage Temperature:

-40° C to 80° C

Dimensions:

Size (LxHxW):

141.5 x 43 x 76mm

Weight:

NA

Cord Length:

1830mm

Certifications:

UL, cUL, TUV, CE

http://www.digi.com/products/models/301-9007-01

8/31/2015
