INTEGRATED CONNECTOR MODULES
2 x n Multi-port Gigabit belStack™
BM02832
•
Multi-port shielded RJ-45 connector with integrated
Gigabit Ethernet magnetics
Compatible with a variety of Gigabit Ethernet
transceiver ICs and 10/100Base-TX transceiver ICs
Operating temperature 0° to +70° C
•
Complies with IEEE 802.3ab standards and all Gigabit
Ethernet specifications
Integrated design conserves valuable board space
Minimum interwinding breakdown voltage of 1500 Vrms
Adaptable, modular design provides higher reliability
•
•
•
•
•
•
Storage temperature -40° to +85° C
ELECTRICAL SPECIFICATIONS AT 25° C
Common to
Differential
Mode Rejection
dB min
100KHz to
100MHz
-35
Common to
Common Mode
Rejection
dB min
100KHz to
100MHz
-30
-33 + 20 log
(f/100MHz)
-33 + 20 log
(f/100MHz)
-33 + 20 log
(f/100MHz)
-33 + 20 log
(f/100MHz)
-33 + 20 log
(f/100MHz)
-33 + 20 log
(f/100MHz)
1500
Insertion Loss
dB max
Part Number
0.1MHz
to 100MHz
0833-2X4R-33
-0.8
100MHz to
125MHz
-1.2
Return Loss
dB min
Crosstalk
dB min
Hipot
Vrms
min
0.5MHz
to 40MHz
-18
40MHz
to 100MHz
-12 + 20 log
(f/80 MHz)
-12 + 20 log
(f/80 MHz)
-12 + 20 log
(f/80 MHz)
-12 + 20 log
(f/80 MHz)
-12 + 20 log
(f/80 MHz)
-12 + 20 log
(f/80 MHz)
0833-2X6R-33
-0.8
-1.2
-18
-35
-30
1500
0833-2X8R-33
-0.8
-1.2
-18
-35
-30
1500
0833-2X4R-54
-0.8
-1.2
-18
-35
-30
1500
0833-2X6R-54
-0.8
-1.2
-18
-35
-30
1500
0833-2X8R-54
-0.8
-1.2
-18
-35
-30
1500
Available Options
• Various transformer turns ratios
• Various high voltage capacitor values
©2002 Bel Fuse Inc.
Specifications subject to change without notice. 07.04
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 1
INTEGRATED CONNECTOR MODULES
BM02832
2 x n Multi-port Gigabit belStack™

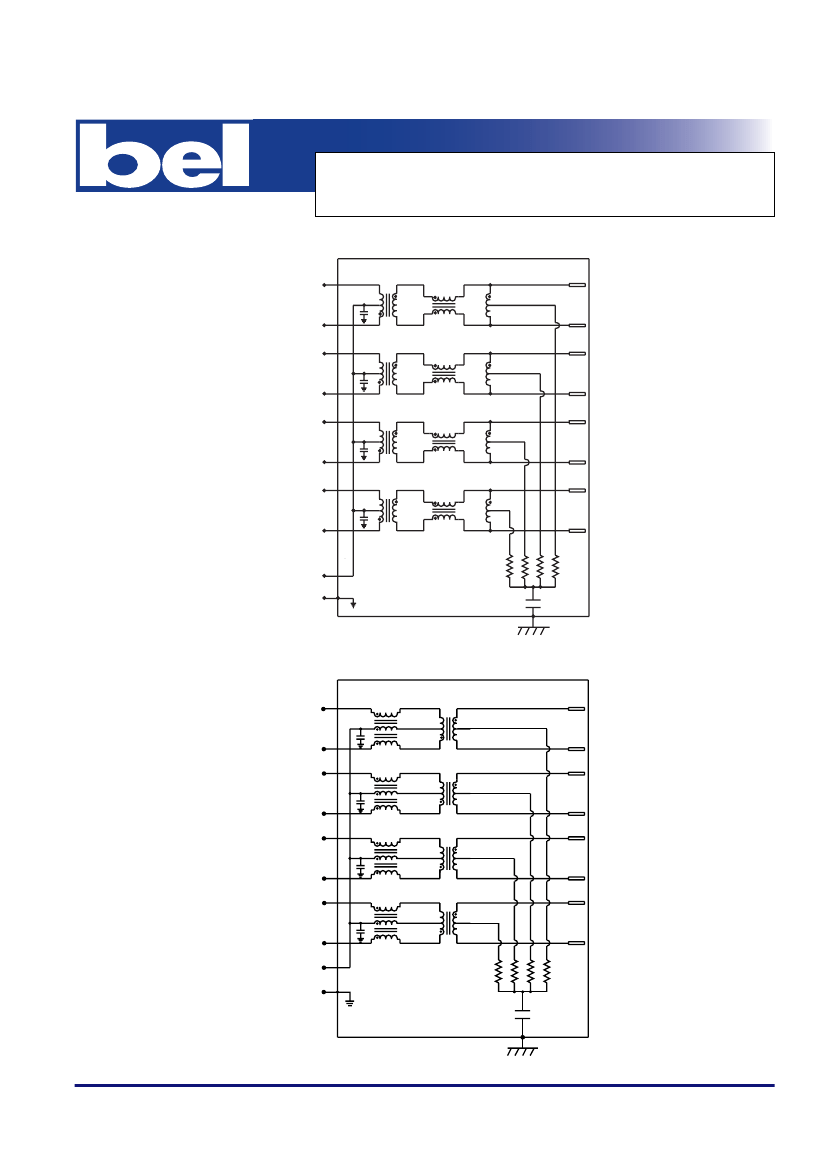

SCHEMATICS
1
0833-2X4R-33
0833-2X6R-33
0833-2X8R-33
1CT : 1CT
RJ45
1
2
2
3
4
5
6
7
8
0.1µF
x4
75Ω
x4
1000pF
2kV
1CT : 1CT
3
6
1CT : 1CT
4
5
1CT : 1CT
7
8
9
10
Shield
0833-2X4R-54
0833-2X6R-54
0833-2X8R-54
1
2
3
4
5
6
7
8
9
10
0.1µF
x4
1CT : 1CT
RJ45
1
2
1CT : 1CT
3
6
1CT : 1CT
4
5
1CT : 1CT
7
8
75Ω
x4
1000pF
2kV
Shield
©2002 Bel Fuse Inc.
Specifications subject to change without notice. 07.04
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 2
INTEGRATED CONNECTOR MODULES
2 x n Multi-port Gigabit belStack™

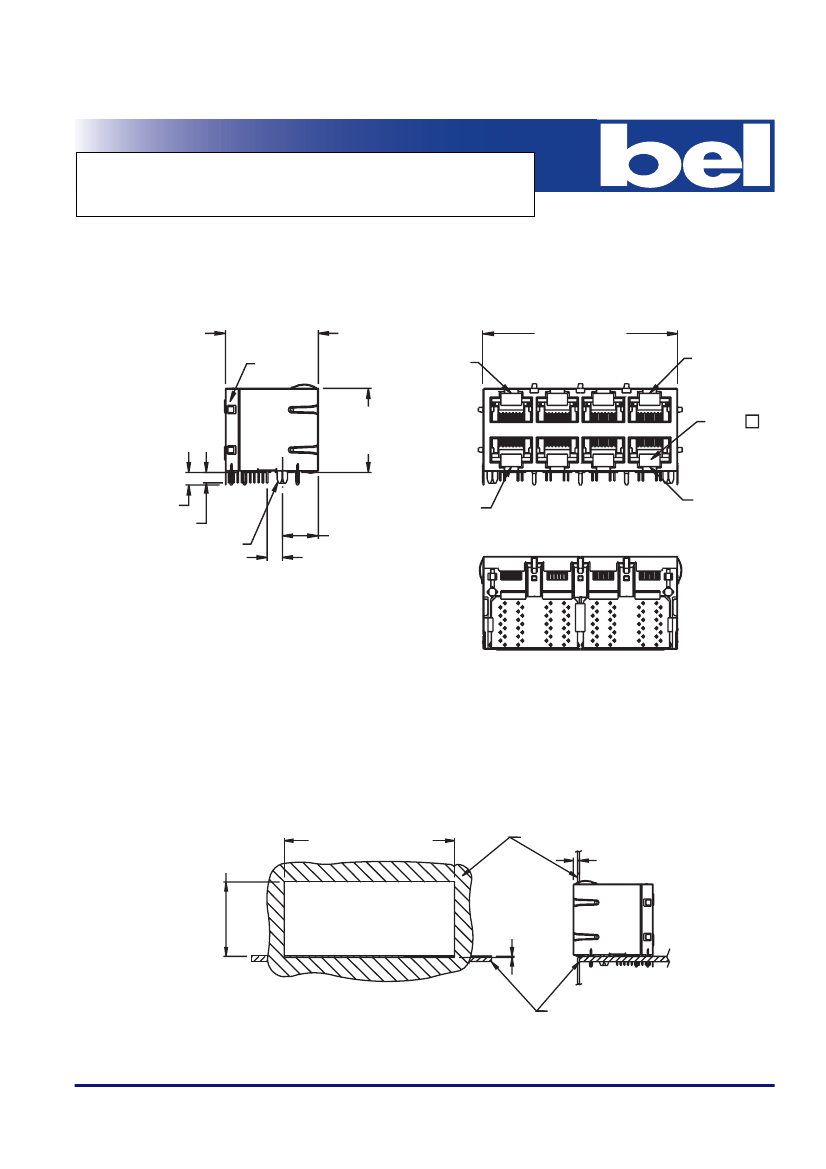

MECHANICAL
0833-2X4R-33
0833-2X4R-54
BM02832
1.210 [30.73]
max
Outer
Shield
1.004
[25.50]
max
2.330 [59.18]
Port 2
Port 8
Note
*
0.150 [3.81]
0.125 [3.18]
Housing
0.425 [10.80]
0.185 [4.70]
Port 1
Port 7
Dimensions are in inches [millimeters].
Standard dimension tolerance is
±0.010 [0.25] unless otherwise noted.
Notes
Plastic Housing
Contacts
Pins
Solderability
Metal Shield
Thermoplastic, flammability rating UL 94V-0
50 micro-inch hard gold plating
Tin-coated copper wire, DIA 0.018" [0.46]
Per MIL Std. 202, Method 208
Nickel plated copper alloy
Packing Quantity
20 pieces finished goods per tray
7 trays per carton box for a total of
140 pieces of finished goods
*
Jack cavity conforms to FCC rules and regulations, part 68, subpart F.
1.030 +0.010/-0.005
[26.16 +0.25/-0.13]
2.365 +0.010/-0.005
[60.07 +0.25/-0.13]
Metal Panel
0.085 ±0.010
[2.16 ±0.25]
0.015
[0.38]
Suggested Panel Opening
PCB
©2002 Bel Fuse Inc.
Specifications subject to change without notice. 07.04
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 3
INTEGRATED CONNECTOR MODULES
BM02832
2 x n Multi-port Gigabit belStack™

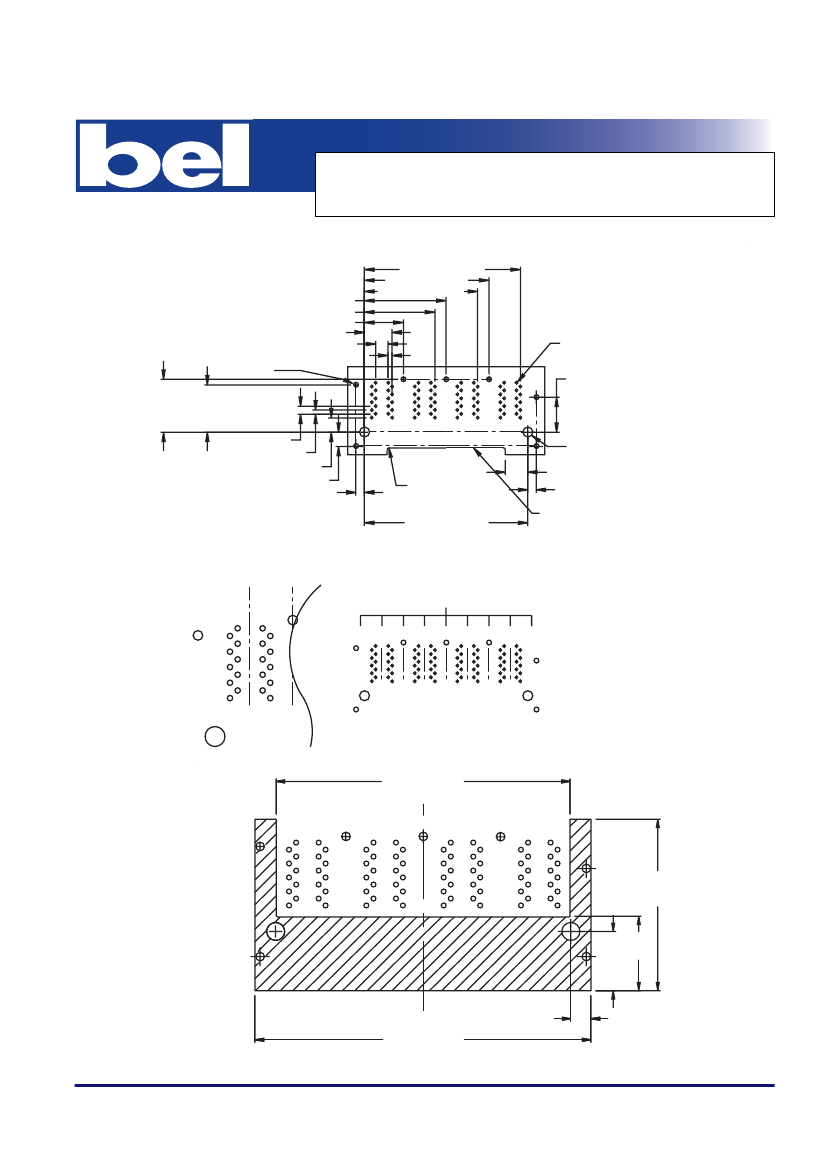

PAD LAYOUT
0833-2X4R-33
0833-2X4R-54
1.050 [26.67]
0.905 [22.99]
0.500 [12.70]
0.355 [9.02]
ø0.062 0.160 [4.06]
[ø1.57]
0.050 [1.27]
7 places
2.005 [50.93]
1.600 [40.64]
1.455 [36.96]
ø0.035 [ø0.89]
80 places
0.450 [11.43]
0.680 0.610
[17.27] [15.49]
0.100 [2.54]
0.050 [1.27]
0.185 [4.70]
0.180 [4.57]
0.110 [2.79]
ø0.128 [ø3.25]
2 places
0.290 [7.37]
R0.030 [R0.76]
2.100 [53.34]
Suggested PCB Pad Layout
Component Side View
Port
10
9
7
5
3
1
10
9
7
5
3
1
0.110 [2.79]
Recommended PCB front edge
cutout. The bottom shield ground
tabs (front) should not be seated
on the top of the PCB.
1
2
3
4
5
6
7 8
88
66
44
2.090 [53.09]
Note
The shaded area of bottom
side of part may be covered
by metal shield.
1.230
[31.24]
0.535
[13.59]
0.425
[10.80]
0.145 [3.68]
2.390 [60.71]
©2002 Bel Fuse Inc.
Specifications subject to change without notice. 07.04
Bel Fuse Inc.
206 Van Vorst Street, Jersey City, NJ 07302 • Tel 201-432-0463 • Fax 201-432-9542 • www.belfuse.com
page 4
INTEGRATED CONNECTOR MODULES
BM02832
2 x n Multi-port Gigabit belStack™

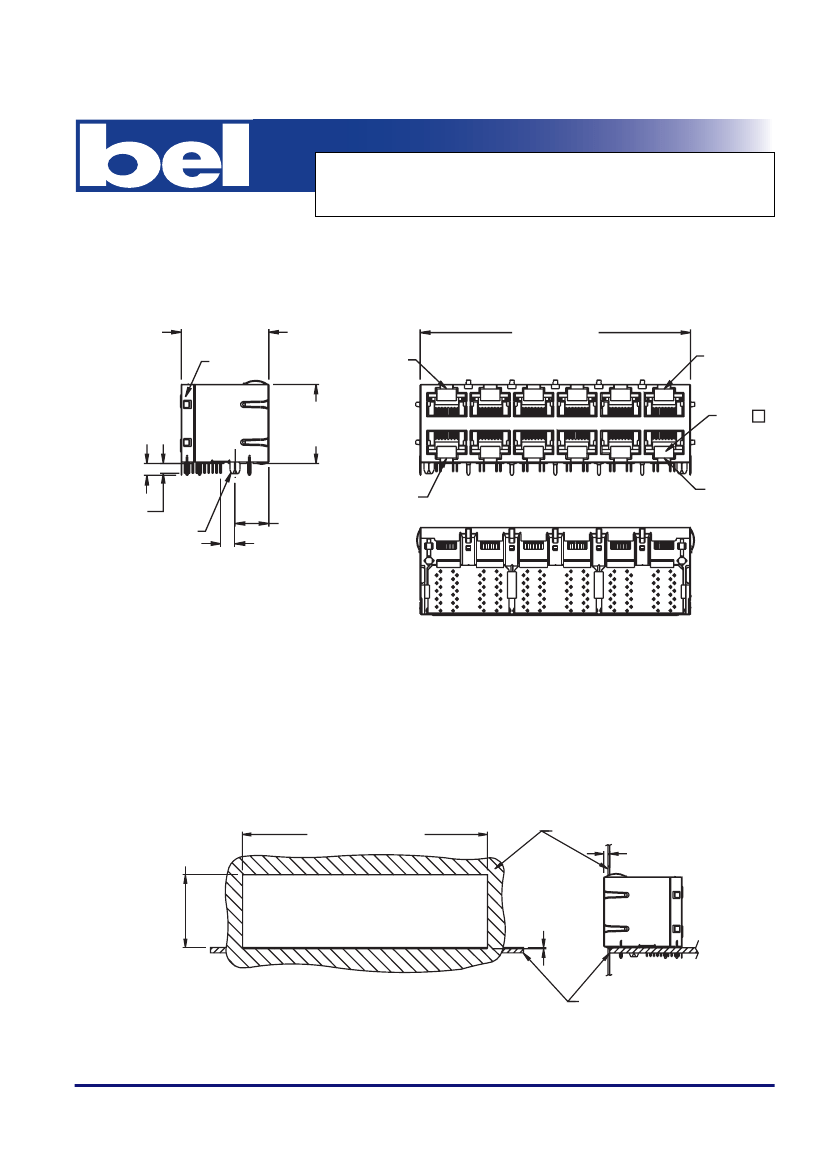

MECHANICAL
0833-2X6R-33
0833-2X6R-54
1.210 [30.73]
max
Outer
Shield
1.004
[25.50]
max
Port 2
3.430 [87.12]
Port 12
0.150
[3.81]
Note
*
0.125
[3.18]
Port 1
Housing
0.425 [10.80]
0.185 [4.70]
Port 11
Dimensions are in inches [millimeters].
Standard dimension tolerance is
±0.010 [0.25] unless otherwise noted.
Notes
Plastic Housing
Contacts
Pins
Solderability
Metal Shield
Thermoplastic, flammability rating UL 94V-0
50 micro-inch hard gold plating
Tin-coated copper wire, DIA 0.018" [0.46]
Per MIL Std. 202, Method 208
Nickel plated copper alloy
Packing Quantity
15 pieces finished goods per tray
7 trays per carton box for a total of
105 pieces of finished goods
*
Jack cavity conforms to FCC rules and regulations, part 68, subpart F.
1.030 +0.010/-0.005
[26.16 +0.25/-0.13]
3.465 +0.010/-0.005
[88.01 +0.25/-0.13]
Metal Panel
0.085 ±0.010
[2.16 ±0.25]
0.015
[0.38]
Suggested Panel Opening
PCB
