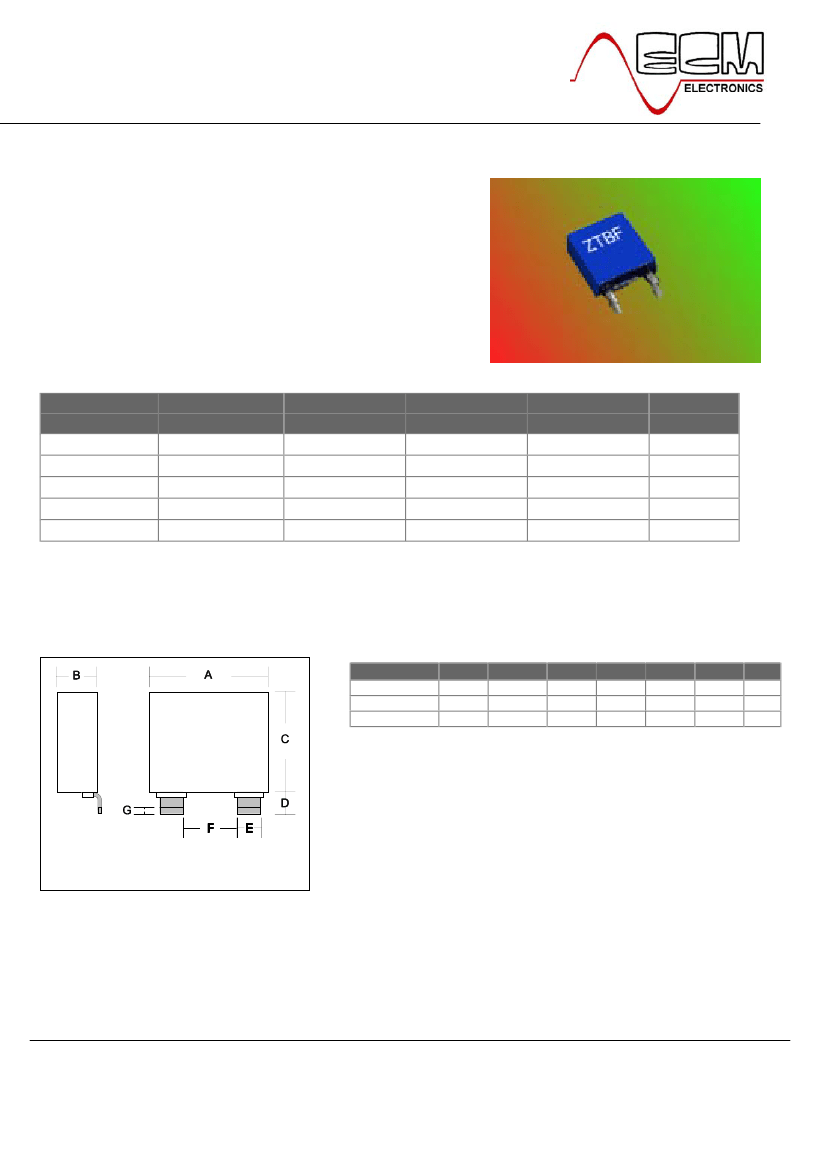

ECM Electronics Ceramic Resonator
ZTBF Series
Surface Mount
Fast Delivery
Tape & Reel or Bulk Packaging
Highly Competitive Prices for Volume Users
Series
ZTBF---P
ZTBF---E
ZTBF---P
ZTBF---J
ZTBF---MJ
Frequency
Range
375 -440kHz
441 -509kHz
510 -699kHz
700 -999kHz
1.0 – 1.25MHz
Frequency
Tolerance
+/-2.0kHz
+/-2.0kHz
+/-2.0kHz
+/- 0.5%
+/- 0.5%
ESR
20Ω
20Ω
20Ω
70Ω
100Ω
Temperature
Tolerance
+/- 0.3%
+/- 0.3%
+/- 0.3%
+/- 0.3%
+/- 0.3%
Aging
+/- 0.5%
+/- 0.5%
+/- 0.5%
+/- 0.5%
+/- 0.5%
Series
ZTBF--P
ZTBF--E
ZTBF—J/MJ
Dimensions in mm
A
7.9
7.0
5.0
B
3.6
3.5
2.2
C
9.3
9.0
6.0
D
0.9
0.9
0.6
E
1.0
0.9
0.8
F
3.6
3.5
2.2
G
0.7
0.6
0.6
ECM Electronics Limited, Penmaen House, Ashington, West Sussex, RH20 3JR, UK
Tel: +44(0)1903 892810: Fax: +44(0)1903 892738. Email: sales@ecmelectronics.co.uk
Although we have attempted to accurately reflect the products we market. ECM reserve the right without prior notice to
discontinue any product or make design changes we believe necessary.
Issue 1
