LH1525ACD-TR datasheet, PDF - EEWORLD Datasheet

LH1525ACD-TR: DescriptionTransistor Output SSR, 1-Channel, 1500V Isolation; Categoryphotoelectric Solid state relay; File Size127KB，3 Pages; ManufacturerSIEMENS; Websitehttp://www.infineon.com/

Download Datasheet Parametric Compare View All

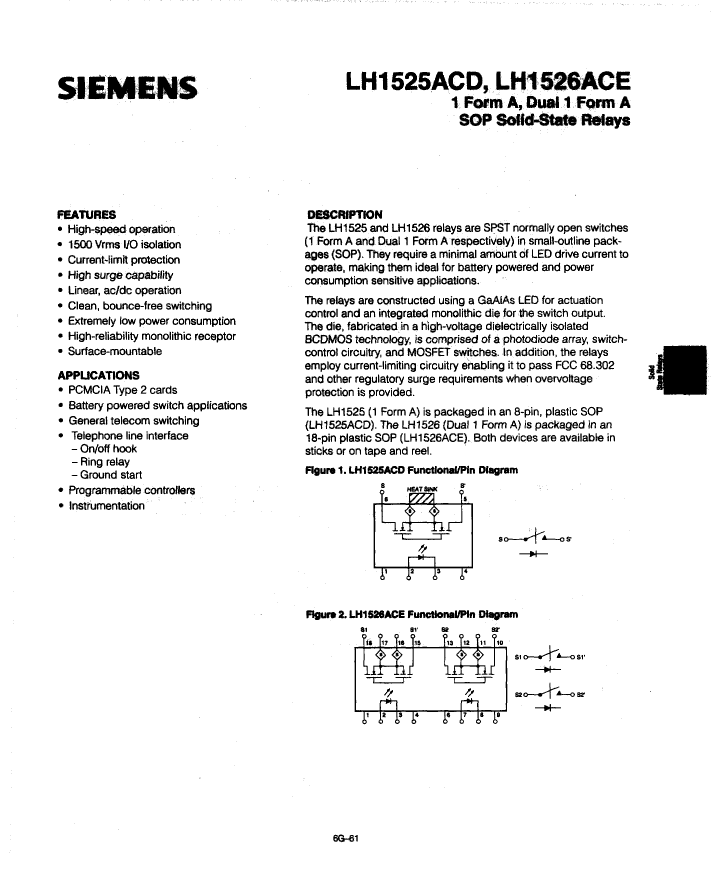

LH1525ACD-TR Overview

Transistor Output SSR, 1-Channel, 1500V Isolation

Parameter Name	Attribute value
Maker	SIEMENS
Reach Compliance Code	unknown
Is Samacsys	N
Other features	HIGH RELIABILITY
Configuration	SINGLE

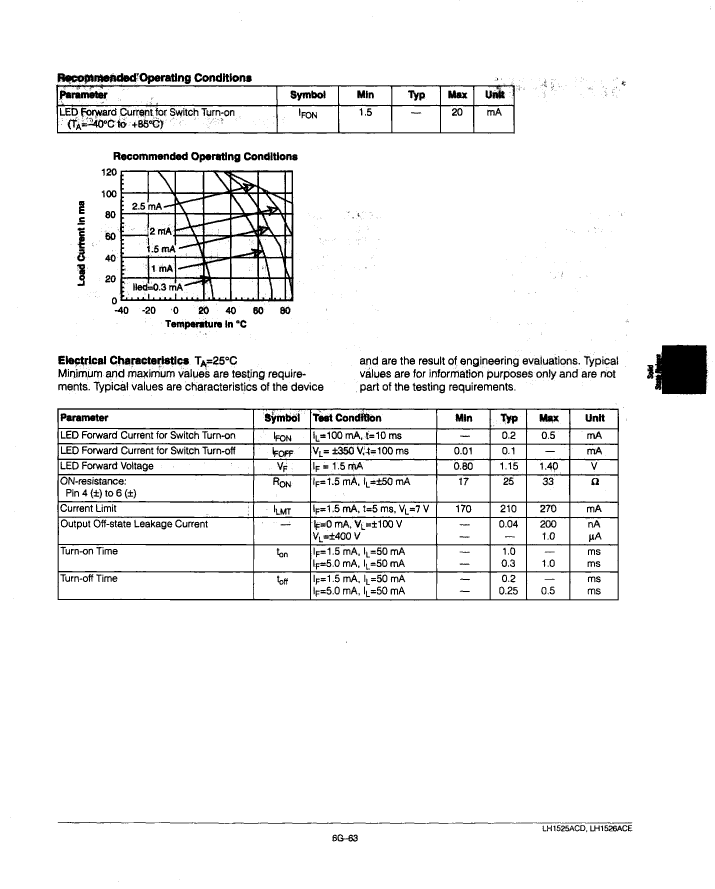

Maximum forward current	0.05 A

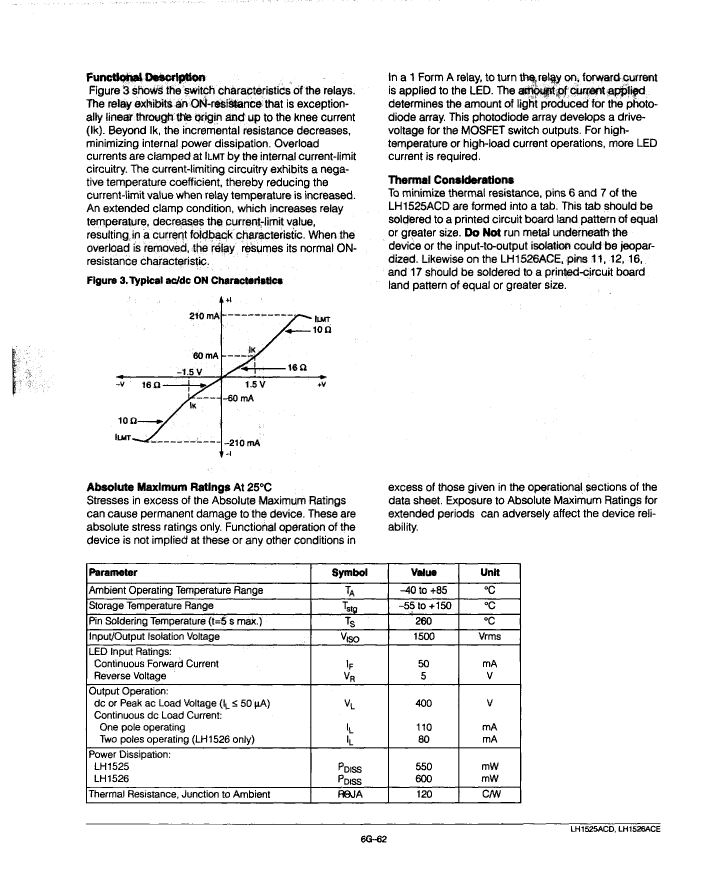

Maximum insulation voltage	1500 V
Number of components	1
Maximum on-state current	0.11 A
Maximum on-state resistance	33 Ω
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	TRANSISTOR OUTPUT SSR
Base Number Matches	1

	LH1525ACD-TR	LH1526ACE	LH1526ACE-TR
Description	Transistor Output SSR, 1-Channel, 1500V Isolation	Transistor Output SSR, 2-Channel, 1500V Isolation	Transistor Output SSR, 2-Channel, 1500V Isolation
Maker	SIEMENS	SIEMENS	SIEMENS
Reach Compliance Code	unknown	unknown	unknown
Configuration	SINGLE	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Maximum insulation voltage	1500 V	1500 V	1500 V
Number of components	1	2	2
Maximum on-state current	0.11 A	0.08 A	0.08 A
Maximum on-state resistance	33 Ω	33 Ω	33 Ω
Optoelectronic device types	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR	TRANSISTOR OUTPUT SSR
Other features	HIGH RELIABILITY	-	HIGH RELIABILITY
Maximum forward current	0.05 A	-	0.05 A
Maximum operating temperature	85 °C	-	85 °C
Minimum operating temperature	-40 °C	-	-40 °C
