NC7SZ32M5 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> NC7SZ32M5

NC7SZ32M5: DescriptionIC GATE OR 1CH 2-INP SOT23-5; Categorylogic logic; File Size650KB，12 Pages; ManufacturerON Semiconductor; Websitehttp://www.onsemi.cn

Download Datasheet Parametric Compare View All

NC7SZ32M5 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	NC7SZ32M5	-	-	View	Buy Now

NC7SZ32M5 Overview

IC GATE OR 1CH 2-INP SOT23-5

NC7SZ32M5 Parametric

Parameter Name	Attribute value
Brand Name	ON Semiconductor
Is it lead-free?	Lead free
Maker	ON Semiconductor
package instruction	1.60 MM, MO-178, SOT-23, 5 PIN
Manufacturer packaging code	527AH
Reach Compliance Code	compliant
ECCN code	EAR99
Factory Lead Time	1 week
series	LVC/LCX/Z
JESD-30 code	R-PDSO-G5
JESD-609 code	e3
length	2.9 mm
Load capacitance (CL)	15 pF
Logic integrated circuit type	OR GATE
MaximumI(ol)	0.024 A
Humidity sensitivity level	1
Number of functions	1
Number of entries	2
Number of terminals	5
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	LSSOP
Encapsulate equivalent code	TSOP5/6,.11,37
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, LOW PROFILE, SHRINK PITCH
method of packing	TAPE AND REEL
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	3.3 V
Prop。Delay @ Nom-Sup	5.5 ns
propagation delay (tpd)	12.7 ns
Certification status	Not Qualified
Schmitt trigger	NO
Maximum seat height	1.4 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	1.65 V
Nominal supply voltage (Vsup)	1.8 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal surface	Tin (Sn)
Terminal form	GULL WING
Terminal pitch	0.95 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	1.6 mm
Base Number Matches	1

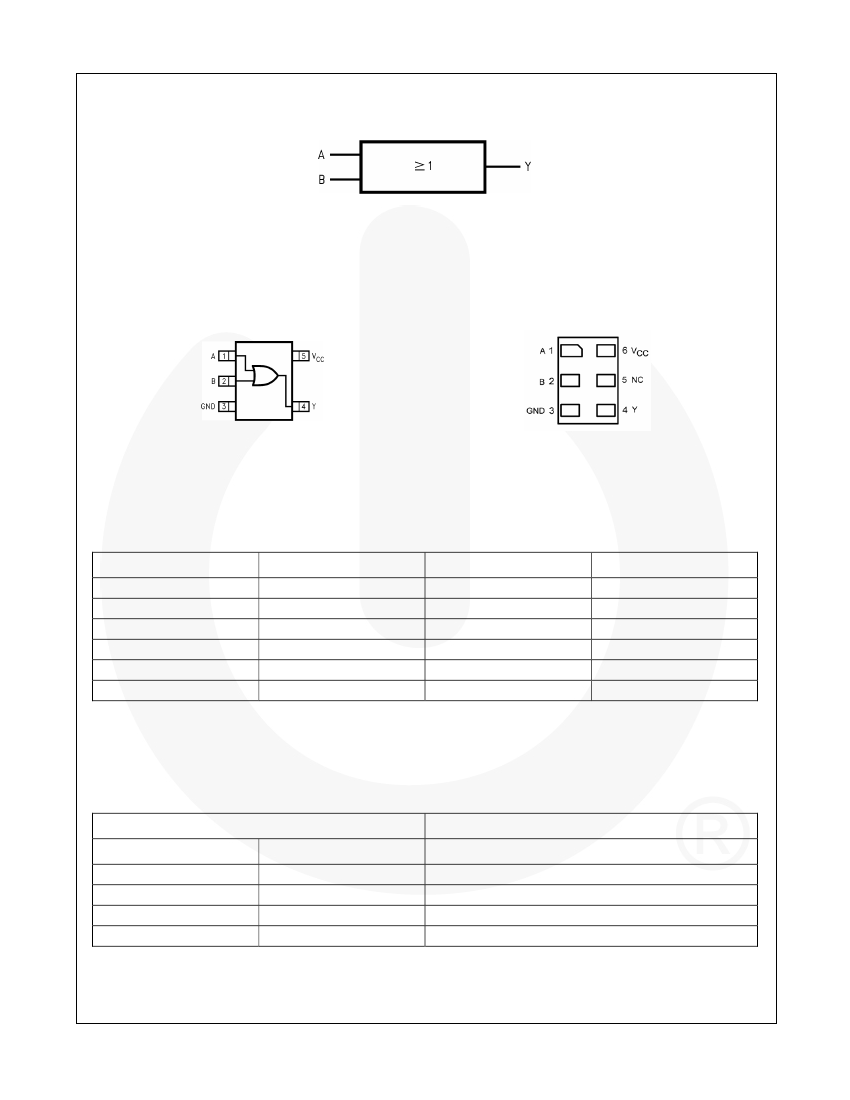

Preview

Download Datasheet

View All

Is Now Part of

To learn more about ON Semiconductor, please visit our website at

www.onsemi.com

Please note: As part of the Fairchild Semiconductor integration, some of the Fairchild orderable part numbers

will need to change in order to meet ON Semiconductor’s system requirements. Since the ON Semiconductor

product management systems do not have the ability to manage part nomenclature that utilizes an underscore

(_), the underscore (_) in the Fairchild part numbers will be changed to a dash (-). This document may contain

device numbers with an underscore (_). Please check the ON Semiconductor website to verify the updated

device numbers. The most current and up-to-date ordering information can be found at

www.onsemi.com.

Please

email any questions regarding the system integration to

Fairchild_questions@onsemi.com.

ON Semiconductor and the ON Semiconductor logo are trademarks of Semiconductor Components Industries, LLC dba ON Semiconductor or its subsidiaries in the United States and/or other countries. ON Semiconductor owns the rights to a number

of patents, trademarks, copyrights, trade secrets, and other intellectual property. A listing of ON Semiconductor’s product/patent coverage may be accessed at www.onsemi.com/site/pdf/Patent-Marking.pdf. ON Semiconductor reserves the right

to make changes without further notice to any products herein. ON Semiconductor makes no warranty, representation or guarantee regarding the suitability of its products for any particular purpose, nor does ON Semiconductor assume any liability

arising out of the application or use of any product or circuit, and specifically disclaims any and all liability, including without limitation special, consequential or incidental damages. Buyer is responsible for its products and applications using ON

Semiconductor products, including compliance with all laws, regulations and safety requirements or standards, regardless of any support or applications information provided by ON Semiconductor. “Typical” parameters which may be provided in ON

Semiconductor data sheets and/or specifications can and do vary in different applications and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s

technical experts. ON Semiconductor does not convey any license under its patent rights nor the rights of others. ON Semiconductor products are not designed, intended, or authorized for use as a critical component in life support systems or any FDA

Class 3 medical devices or medical devices with a same or similar classification in a foreign jurisdiction or any devices intended for implantation in the human body. Should Buyer purchase or use ON Semiconductor products for any such unintended

or unauthorized application, Buyer shall indemnify and hold ON Semiconductor and its officers, employees, subsidiaries, affiliates, and distributors harmless against all claims, costs, damages, and expenses, and reasonable attorney fees arising out

of, directly or indirectly, any claim of personal injury or death associated with such unintended or unauthorized use, even if such claim alleges that ON Semiconductor was negligent regarding the design or manufacture of the part. ON Semiconductor

is an Equal Opportunity/Affirmative Action Employer. This literature is subject to all applicable copyright laws and is not for resale in any manner.
