IN-S63ASR datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> IN-S63ASR

IN-S63ASR: DescriptionLED RED CLEAR 0603 SMD R/A; CategoryLED optoelectronic/LED; File Size2MB，15 Pages; ManufacturerInolux; Environmental Compliance

Download Datasheet Parametric Compare View All

IN-S63ASR Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	IN-S63ASR	-	-	View	Buy Now

IN-S63ASR Overview

LED RED CLEAR 0603 SMD R/A

IN-S63ASR Parametric

Parameter Name	Attribute value
color	red
Configuration	-
Lens color	transparent
Lens transparency	transparent
millicandela level	150mcd
Lens style/size	Rectangular, with flat top, 1.20mm x 0.60mm
Voltage - Forward (Vf) (Typical)	2.2V
Current - Test	20mA
perspective	120°
Installation type	Surface mount, right angle
Wavelength - Main	622nm
Wavelength - Peak	630nm
characteristic	-
Package/casing	2-SMD, no leads
Supplier device packaging	603
size/dimensions	1.70mm length x 1.10mm width
Height (maximum value)	0.60mm

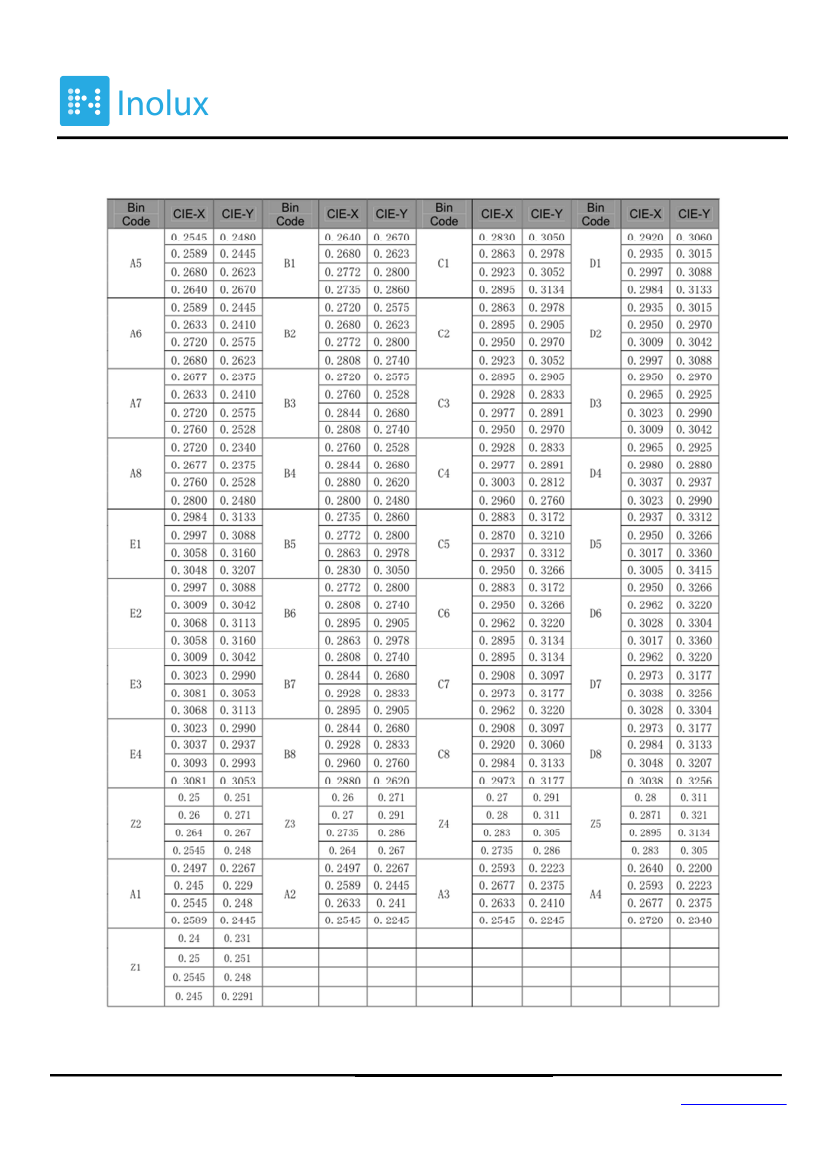

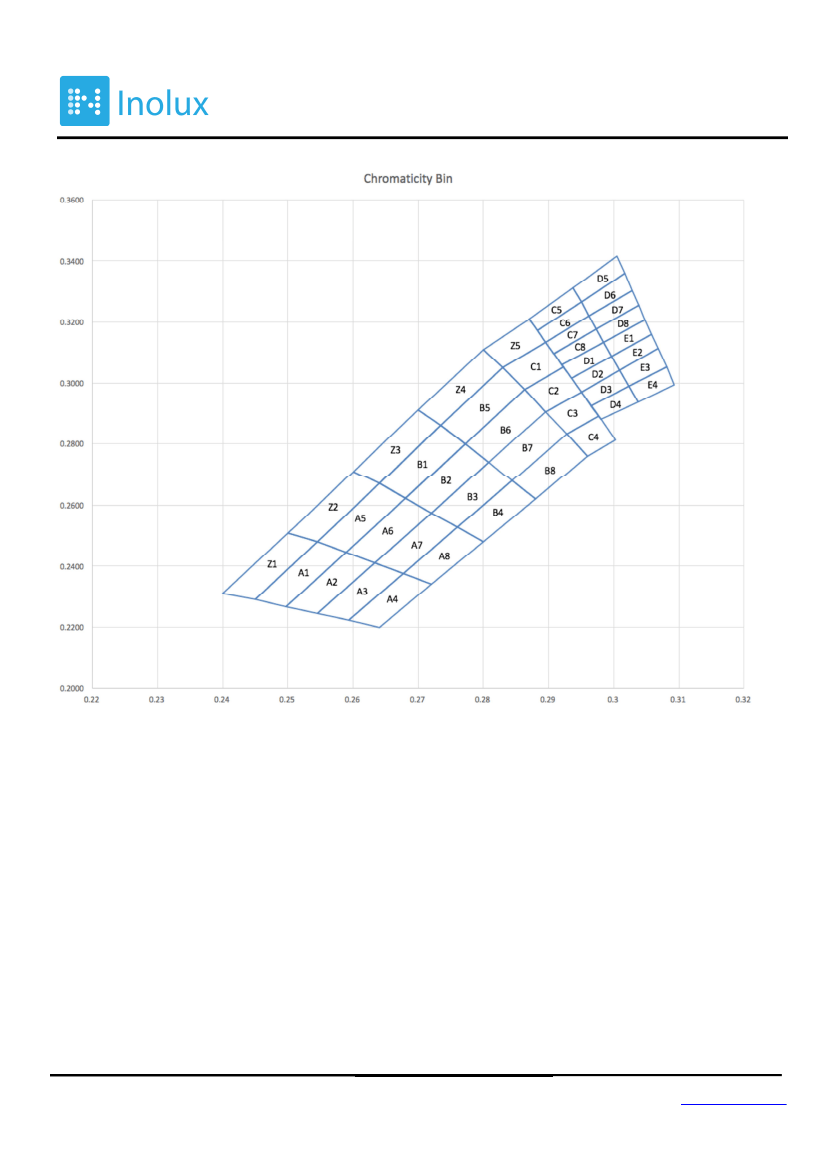

Preview

Download Datasheet

View All

IN-S63AS series

Side View SMD LED 0603 0.6mm PCB Type

Features

•

0603 0.6 mm side view SMD LED

High Brightness

AlInGaP / InGaN Technology

Description

The IN-S63AS series is a popular low profile 0603

package with versatile design capabilities. It is a PCB

type molding style LED which can be used in various

Small package

High reliability

Clear Lens

applications.

Recommended Solder Pattern

Applications

•

Consumer Electronics

Wearable

Automobile After Market

Industrial Equipment

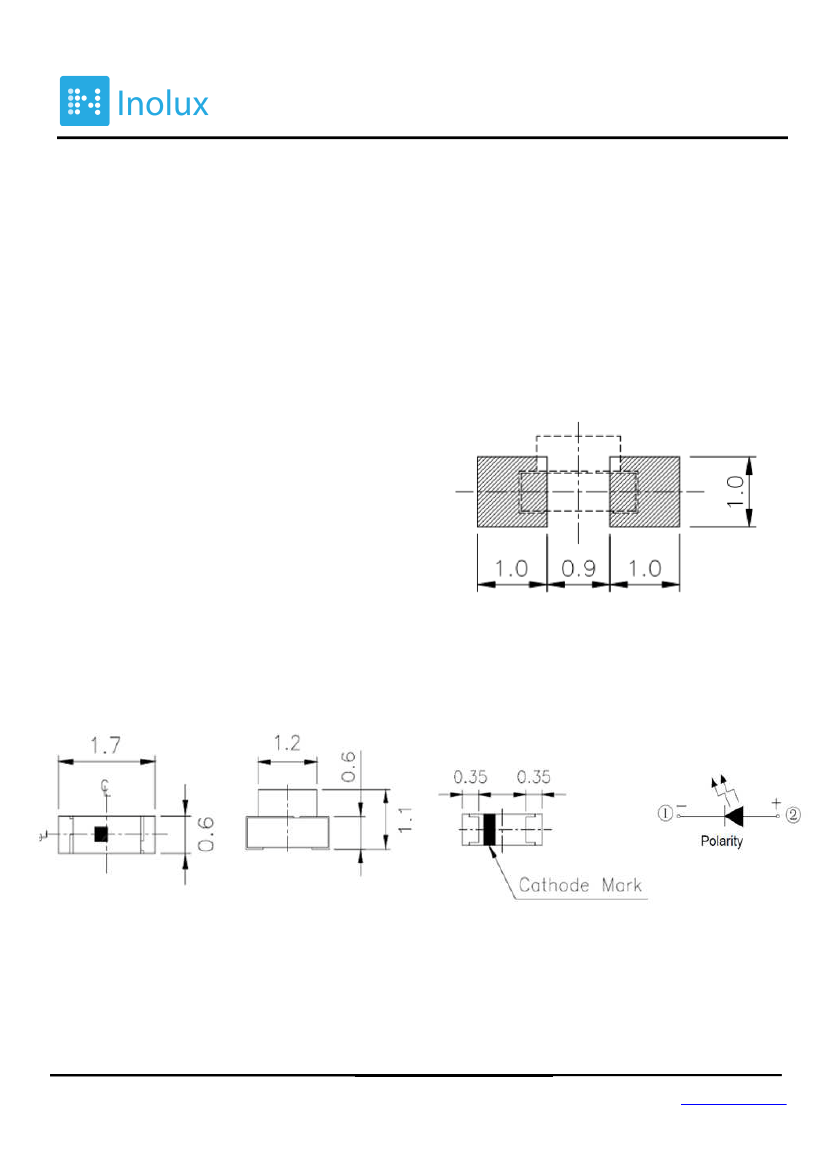

Figure 1. IN-S63AS Solder Pattern

Package Dimensions

in mm

Figure 2. IN-S63AS Package Dimensions

Inolux Corporation

Proprietary & Confidential

March 16, 2017

Page 1

www.inolux-corp.com

IN-S63ASR Related Products

	IN-S63ASR	IN-S63AS5A	IN-S63AS5Y	IN-S63AS5B	IN-S63ASG	IN-S63AS5YG	IN-S63AS5UW
Description	LED RED CLEAR 0603 SMD R/A	LED AMBER CLEAR 0603 SMD R/A	LED YELLOW CLEAR 0603 SMD R/A	747537476, 602, 204155021, IN-S63AS5B, Single Color LED, Blue, Clear, 1.2mm,, [INS63AS5], active, 2024-05-01 20:10:47, Contact Manufacturer, https://4donline.ihs.com/images/VipMasterIC/IC/LUXO/LUXO-S-A0017032369/LUXO-S-A0017032369-1.pdf?hkey=EF798316E3902B6ED9A73243A3159BB0, Optoelectronics, Visible LEDs, 145635630455, INS63AS5, false, Optoelectronics Visible LEDs, unknown, Inolux, 7710, 0.1042458816490128, 325, 325, 2.462121212121212, 832, 6.303030303030303, 26.25, false, true, true, false, false, 0.0494132187268615, 0.297854480543102, 0.1042458816490128, false, 4.66, 4, Released, https://componentsearchengine.com/symbol.php?partID=1169096, https://componentsearchengine.com/footprint.php?partID=1169096, 1169096, https://componentsearchengine.com/Thumbnails/9/IN-S63AS5B.JPG, 2, LED, Other, IN-S63AS5B-2, 2019-01-17 15:28:56, N, Standard LEDs - SMD Blue LED, Inolux, 2023-03-07 16:10:32, HIGH RELIABILITY, BLUE, SINGLE, 0.025, 3.1, CLEAR, 80.0, SURFACE MOUNT, 1, 2, 85, -30, SINGLE COLOR LED, 0.6, TR, 7 INCH, 468, 5, RECTANGULAR, 1.2, YES, 1.35, 120	LED GREEN CLEAR 0603 SMD R/A	LED YLW/GRN CLEAR 0603 SMD R/A	750105393, 602, 204155021, IN-S63AS5UW, Single Color LED, White, Diffused, 1.2mm,, [INS63AS5], active, 2024-05-01 20:04:09, Contact Manufacturer, https://4donline.ihs.com/images/VipMasterIC/IC/LUXO/LUXO-S-A0017032369/LUXO-S-A0017032369-1.pdf?hkey=EF798316E3902B6ED9A73243A3159BB0, Optoelectronics, Visible LEDs, 145635630456, INS63AS5, false, Optoelectronics Visible LEDs, unknown, Inolux, 2393, 0.1360419261114069, 507, 507, 3.840909090909091, 832, 6.303030303030303, 25, false, true, true, false, false, 0.07197079599567097, 0.3622706202910082, 0.1360419261114069, false, 4.66, 3, Released, https://componentsearchengine.com/2D/0/1647026.png, https://componentsearchengine.com/symbol.php?partID=1647026, https://componentsearchengine.com/footprint.php?partID=1647026, https://componentsearchengine.com/viewer/3D.php?partID=1647026, 1647026, https://componentsearchengine.com/Thumbnails/1/IN-S63AS5UW.jpg, 2, LED, Other, 1.7mm x 1.1mm x 0.7mm, 2022-02-17 07:04:34, N, Standard LEDs - SMD White LED, Inolux, 2024-02-23 17:33:44, HIGH RELIABILITY, WHITE, SINGLE, 0.025, 3.1, DIFFUSED, 285.0, SURFACE MOUNT, 1, 2, 85, -30, SINGLE COLOR LED, 0.6, TR, 7 INCH, 5, RECTANGULAR, 1.2, YES, 1.35, 120
color	red	amber	yellow	BLUE	green	Yellow green	WHITE
perspective	120°	120°	120°	120 deg	120°	120°	120 deg
Lens color	transparent	transparent	transparent	-	transparent	transparent	-
Lens transparency	transparent	transparent	transparent	-	transparent	transparent	-
millicandela level	150mcd	45mcd	30mcd	-	450mcd	11.5mcd	-
Lens style/size	Rectangular, with flat top, 1.20mm x 0.60mm	Rectangular, with flat top, 1.20mm x 0.60mm	Rectangular, with flat top, 1.20mm x 0.60mm	-	Rectangular, with flat top, 1.20mm x 0.60mm	Rectangular, with flat top, 1.20mm x 0.60mm	-
Voltage - Forward (Vf) (Typical)	2.2V	2V	2V	-	3.2V	2V	-
Current - Test	20mA	5mA	5mA	-	20mA	5mA	-
Installation type	Surface mount, right angle	Surface mount, right angle	Surface mount, right angle	-	Surface mount, right angle	Surface mount, right angle	-
Wavelength - Main	622nm	605nm	588nm	-	522nm	573nm	-
Wavelength - Peak	630nm	608nm	590nm	-	527nm	576nm	-
Package/casing	2-SMD, no leads	2-SMD, no leads	2-SMD, no leads	-	2-SMD, no leads	2-SMD, no leads	-
Supplier device packaging	603	603	603	-	603	603	-
size/dimensions	1.70mm length x 1.10mm width	1.70mm length x 1.10mm width	1.70mm length x 1.10mm width	-	1.70mm length x 1.10mm width	1.70mm length x 1.10mm width	-
Height (maximum value)	0.60mm	0.60mm	0.60mm	-	0.60mm	0.60mm	-
