FDZ5.1
Zener Diode
●Outline
P
D
100
mW
Data sheet
●Features
High reliability
High Protection Level
±8kV(IEC61000-4-2
Contact)
Dimension tolerance±10um
●Inner
Circuit
(2)
(1)Cathode
(1) (2)Anode
●Application
ESD Protection
●Packaging
Specifications
Packing
Reel Size(mm)
Taping Width(mm)
Embossed Tape
180
4
40000
T40RB
DA
●Structure
Lateral
Basic Ordering Unit(pcs)
Taping Code
Marking
●Absolute
Maximum Ratings (Ta=25℃)
Parameter
Symbol
Power dissipation
Junction temperature
Storage temperature
P
D
T
j
T
stg
Limits
100
150
-55
½
150
Unit
mW
℃
℃
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
1/6
2016/8/30_Rev.001
FDZ Series
●Characteristics
(Ta=25ºC)
Symbol
P/N
MIN.
FDZ5.1
FDZ5.6
FDZ6.2
FDZ6.8
FDZ7.5
FDZ8.2
Vz test time is 40ms
4.840
5.310
5.860
6.470
7.060
7.760
Data sheet
Zener Voltage：V
Z
(V)
Reverse Current：I
R
(μA)
MAX.
5.370
5.920
6.530
7.140
7.840
8.640
I
z
(mA)
5.0
5.0
5.0
5.0
5.0
5.0
MAX.
2.0
1.0
1.0
0.5
0.5
0.5
V
R
(V)
1.5
2.5
3.0
3.5
4.0
5.0
●Marking
TYPE
FDZ5.1
FDZ5.6
FDZ6.2
FDZ6.8
Marking
DA
EA
FA
HA
TYPE
FDZ7.5
FDZ8.2
Marking
JA
KA
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
2/6
2016/8/30_Rev.001
FDZ Series

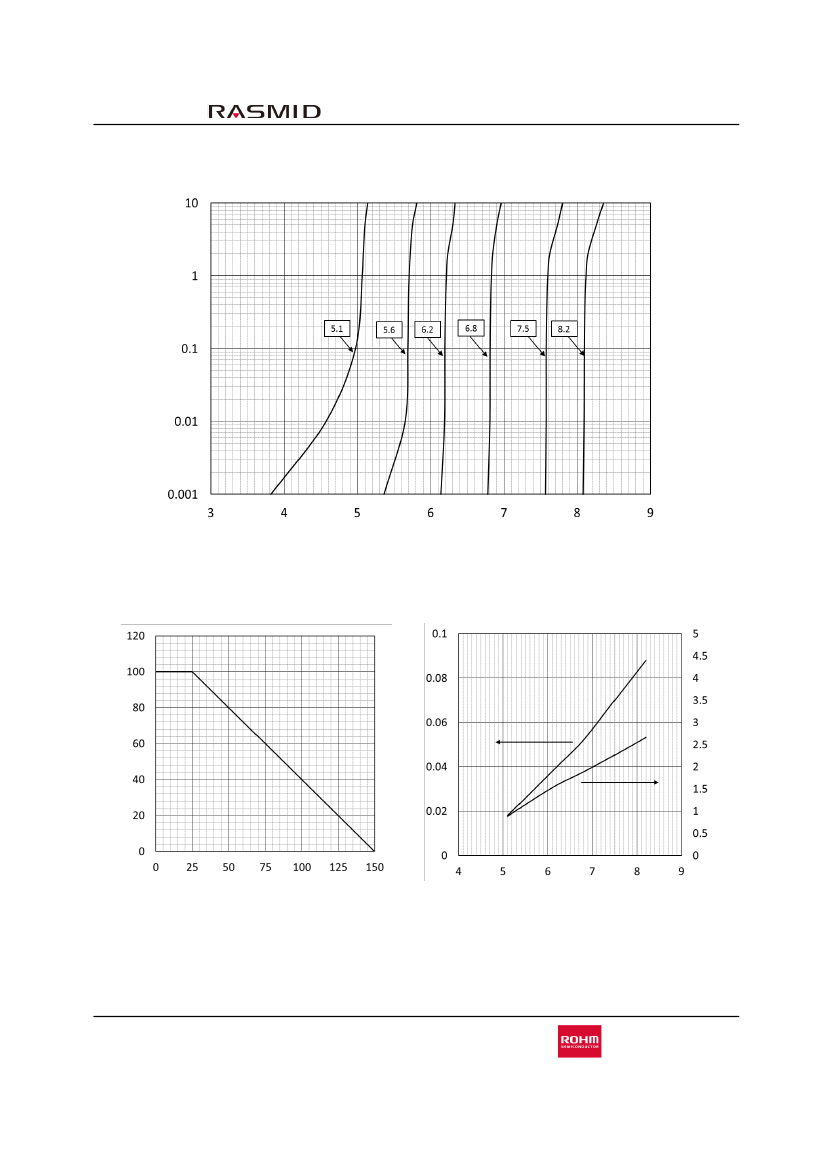

●Characteristic
Curves
Data sheet
ZENER CURRENT:I
z
(mA)
ZENER VOLTAGE:V
z
(V)
V
z
-I
z
CHARACTERISTICS
AMBIENT TEMPERATURE:T
a
(℃)
P
D
-T
a
CHARACTERISTICS
ZENER VOLTAGE:V
z
(V)
γ
z
-V
z
CHARACTERISTICS
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
3/6
2016/8/30_Rev.001
TEMP.COEFFICIENCE:γ
z
(mV/℃)
TEMP.COEFFICIENCE:γ
z
(%/℃)
POWER DISSIPATION:P
D
(%)
FDZ5.1

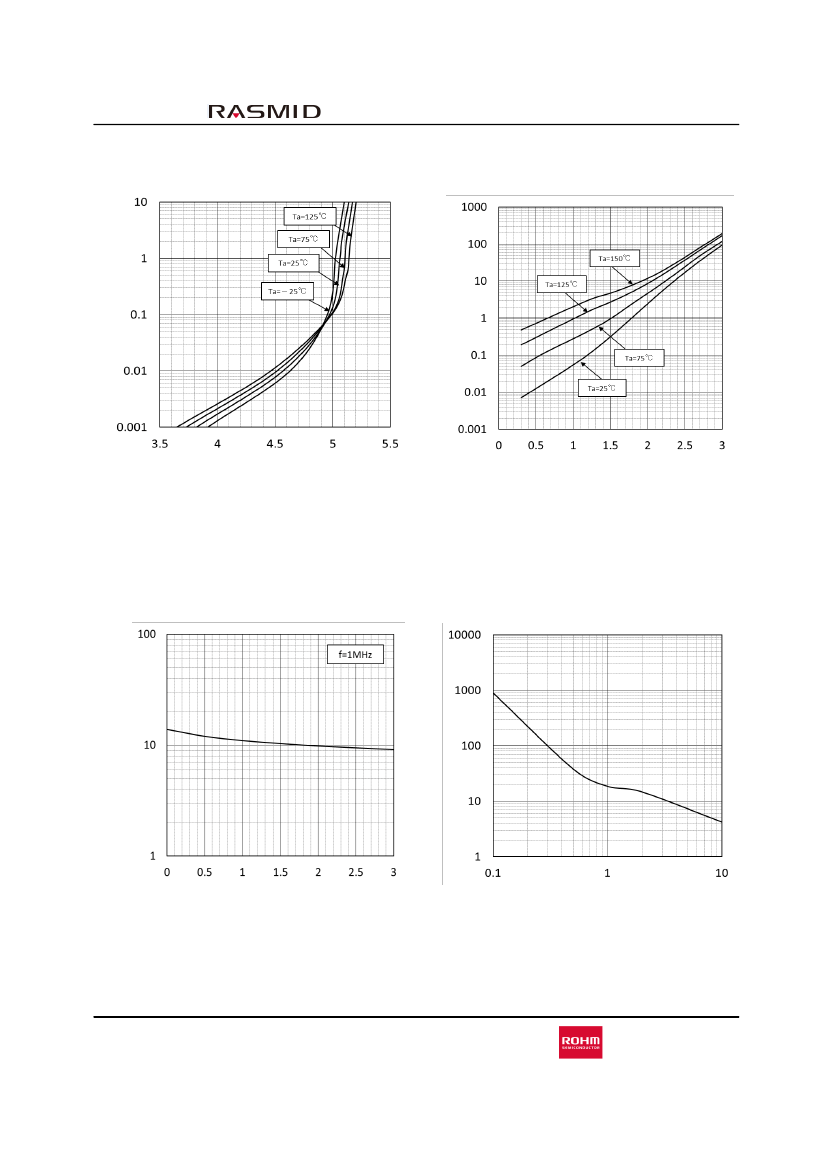

●Characteristic
Curves
Data sheet
REVERSE CURRENT:I
R
(nA)
ZENER CURRENT:I
z
(mA)
ZENER VOLTAGE:V
z
(V)
V
z
-I
z
CHARACTERISTICS
REVERSE VOLTAGE:V
R
(V)
V
R
-I
R
CHARACTERISTICS
DYNAMIC IMPEDANCE:Z
z
(Ω)
CAPACITANCE BETWEEN
TERMINALS:C
t
(pF)
REVERSE VOLTAGE:V
R
(V)
V
R
-C
t
CHARACTERISTICS
ZENER CURRENT:I
z
(V)
I
z
-Z
z
CHARACTERISTICS
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
4/6
2016/8/30_Rev.001
FDZ5.1

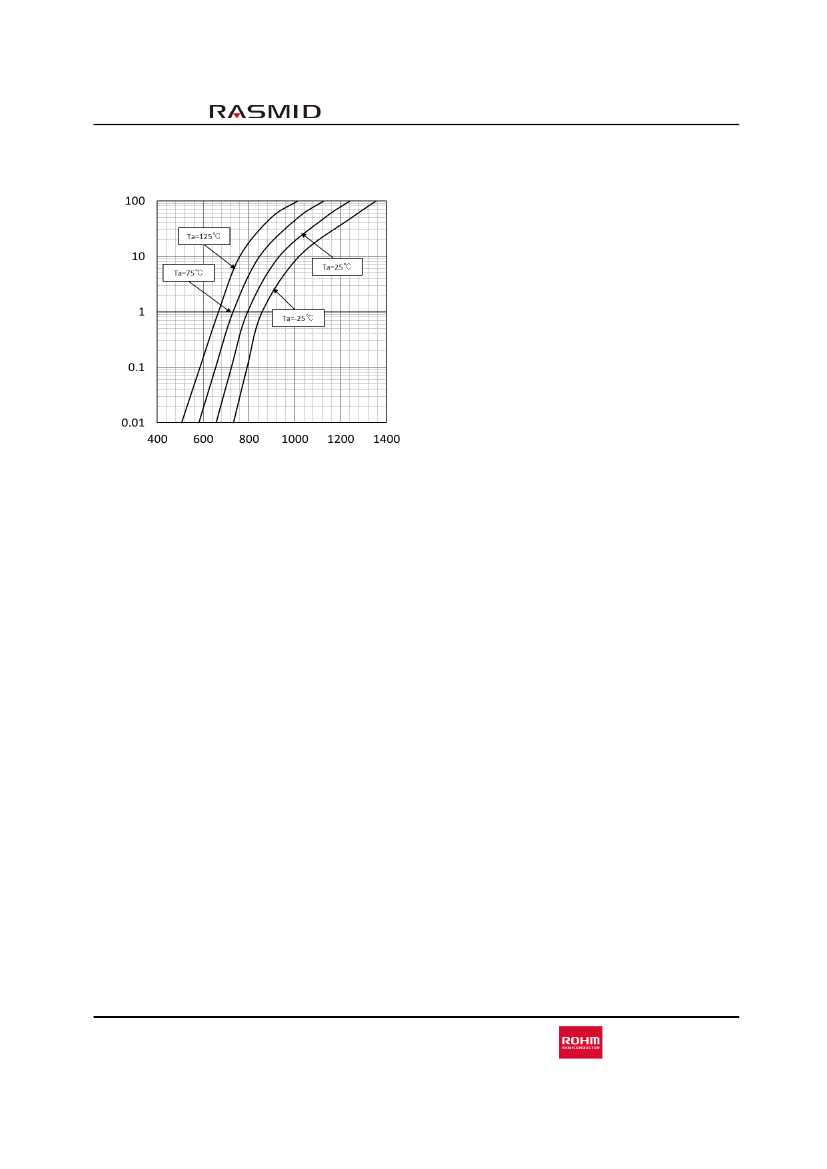

●Characteristic
Curves
Data sheet
FORWARD CURRENT:I
F
(mA)
FORWARD VOLTAGE:V
F
(mV)
V
F
-I
F
CHARACTERISTICS
www.rohm.com
© 2016 ROHM Co., Ltd. All rights reserved.
5/6
2016/8/30_Rev.001
