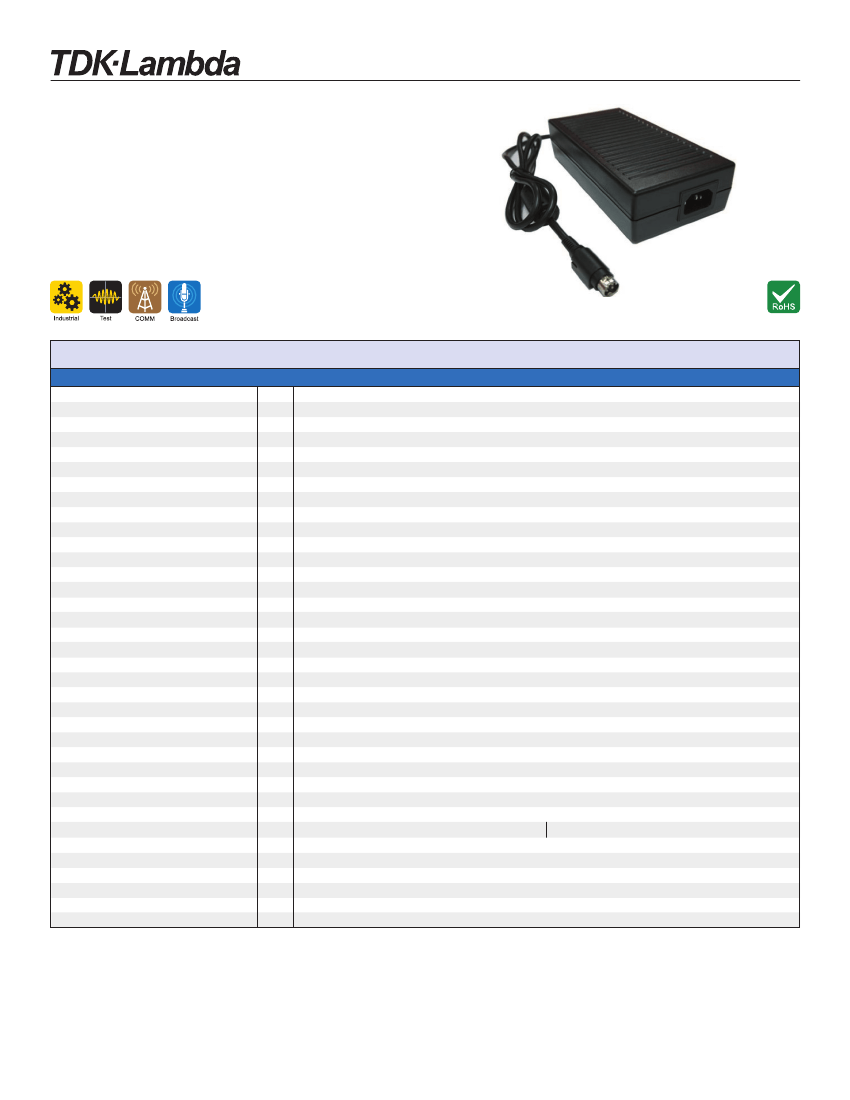

DT100/150-C Series
100-150W AC-DC External Power Supplies
Features
CEC, EISA
1
& ErP Stage 2 Compliant
Wide Range AC Input
Power Factor Correction
Low Profile & Lightweight
87% Avg. Active Efficiency
Key Market Segments & Applications
Specifications
Model
Input Voltage range
Inrush Current
Input Current (Maximum)
Power Factor
Leakage Current
Hold Up Time (Typ)
Temperature Coefficient
Voltage Accuracy
Adjustment Range
Minimum Load
Total Regulation
Ripple & Noise
Short Circuit Protection
Overvoltage Protection
Efficiency
Operating Temperature
Storage Temperature
Humidity (non condensing)
Cooling
Withstand Voltage
Isolation Resistance
Vibration (non operating)
Shock
Safety Agency Approvals
California Energy Commission (CEC)
EISA
Offload Power Consumption
Conducted & Radiated EMI
Immunity
Weight (Typ)
Size (WxLxH)
Cable Length & Thickness
AC Input Connector
Output Connector
MTBF
Warranty
DT100PWxxx-C
DT150PWxxx-C
-
90 - 264VAC (47 - 63Hz)
A
<60A at 230VAC input, 25°C ambient cold start
A
2.5A
-
Typically 0.9 at full load (Meets EN61000-3-2)
μA
<600uA at 264VAC 60Hz
ms
16ms at 115VAC input
-
±0.05%/°C
%
±1%
-
None
A
None
-
+5% / -2%
%
See model selector
-
Continuous - hiccup mode
V
110 - 130% of nominal (Cycle input power to reset)
%
≥87%
Avg. Active Efficiency
°C
0 to +60°C (Derate linearly 2.5% per °C from 41 to 60°C), -20°C startup
°C
-10 to +70°C
-
20 - 90% RH
-
Convection
-
Input to Ground 1.5kVAC, Input to Output 3kVAC for 1 min. (Output is connected to Ground internally)
-
>20M at 25°C & 70%RH, Output to Ground 500VDC
-
23.52m/s
2
(10 - 55Hz: constant sweep 1 min X, Y, Z for 1 hour)
-
< 196.1 m/s
2
(20G)
-
UL60950-1, EN609501-1, IEC60950-1
-
Efficiency Mark V
-
Efficiency Mark V
-
< 0.5W
-
EN55022-B, FCC Class B
-
EN55024
g
730g
780g
in
3.35 x 6.7 x 1.73”
mm
1050mm; 12 to 24V Models: #14 AWG, 36 to 48V Models: #16 AWG
-
IEC 320-C14 (Accepts IEC 320-C13)
-
Kycon KPPx-4P or equivalent Pins 1 & 2: -Vout, Pins 3 & 4: +Vout
-
140,000 hours, 100% load, 25°C ambient, MIL-HNBK
yr
One Year
(1) EISA - Energy Independence and Security Act of 2007
1-800-526-2324 • www.us.tdk-lambda.com/lp/
135
Disclaimer: us.tdk-lambda.com/lp/legal.htm
DT100/150-C Series
Output Ratings
Model
DT100PW120C
DT100PW160C
DT100PW190C
DT100PW240C
DT100PW360C
DT100PW480C
DT150PW120C
DT150PW160C
DT150PW190C
DT150PW240C
DT150PW360C
DT150PW480C
Output (V)
12
16
19
24
36
48
12
16
19
24
36
48
Maximum
Output (A)
8.34
6.25
5.27
4.17
2.78
2.09
11.67
9.38
7.90
6.25
4.17
3.13
Maximum
Power (W)
100
100
100
100
100
100
140
150
150
150
150
150
Ripple &
Noise (mV)
240
320
380
480
480
480
240
320
380
480
480
480
CEC
V
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
EISA
Efficiency Level V
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Y
Outline Drawing
Note:
1. AC INLET: IEC320-C14 STANDARD
2. CASE COLOR: BLACK
3. TOLERANCE: ±0.5mm
4. UNIT: mm
