Data SheeT
Intel® Enpirion® Power Solutions
EM2260P01QI 60A PowerSoC
Step-Down DC-DC Switching Converter with Integrated Inductor, Featuring
Digital Control with PMBus
TM
V1.3 Compliant Interface
Description
The EM2260 is a fully integrated 60A PowerSoC
synchronous dual-phase buck converter. It features
an advanced digital controller, gate drivers,
synchronous MOSFETs, and high-performance
inductors. Only input and output filter capacitors
and a few small signal components are required for
a complete solution. A PMBus version 1.3 compliant
interface provides setup, control, and telemetry.
Differential remote sensing and ±0.5% set-point
accuracy provides precise regulation over line, load
and temperature variation. Very low ripple further
reduces accuracy uncertainty to provide best in
class static regulation for today’s FPGAs, ASICs,
processors, and DDR memory devices.
The EM2260 can be configured and controlled in
any application by two methods, either in pin-strap
mode using onboard resistors, or using the PMBUS
interface. The customer can also configure the
device during engineering evaluation using the
PMBUS interface, which offers a high degree of
flexibility and programmability, and then use the pin
strap mode when devices are deployed in
production. Advanced digital control techniques
ensure
stability
and
excellent
dynamic
performance, and eliminate the need for external
compensation components. The Intel Enpirion
Digital Power Configurator provides a user-friendly
and easy-to-use interface for communicating with
and configuring the device.
The EM2260 features high conversion efficiency
and superior thermal performance to minimize
thermal de-rating limitations, which is key to
product reliability and longevity.
Page 1
13507
April 6, 2018
Rev C
Features
Integrated digital controller, inductors and FETs
Wide 4.5V to 16V V
IN
range
0.5V to 1.3V V
OUT
range
60A continuous current with no thermal de-
rating at 80ºC (12Vin, 0.9Vout)

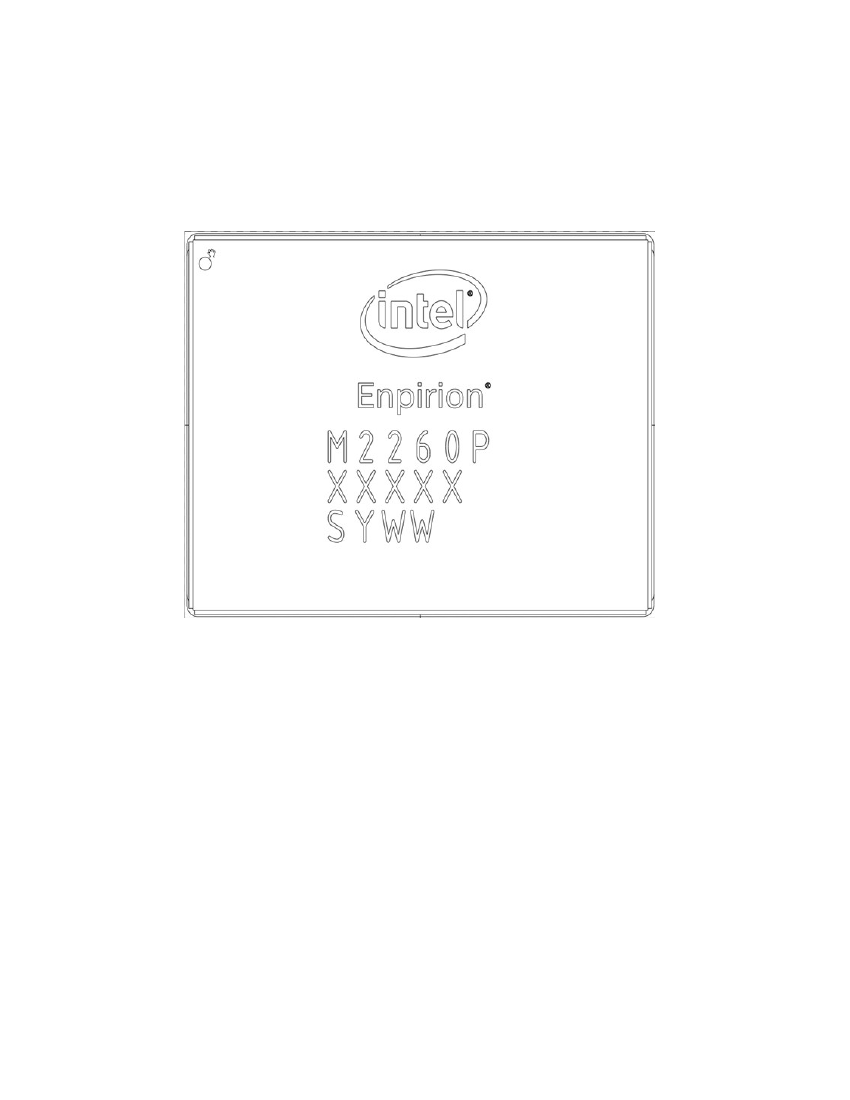

23mm x 18mm x 5.0mm QFN package
88% efficiency at V
IN
= 12V
,
V
OUT
= 1.2V
Meets all high-performance FPGA requirements
o
Digital loop for best in class transient response
o
0.5% set-point over line, load, temperature
o
Output ripple as low as 10 mV peak-peak
o
Differential remote sensing
o
Monotonic startup into pre-bias output
o
Optimized FPGA configs stored in NVM
Programmable through PMBus
o
V
OUT
margining, startup and shutdown delays
o
Programmable warnings, faults and response
Operational without PMBus
o
RVSET resistor for setting V
OUT
o
RTUNE resistor for single resistor based
compensation
Programmable Overcurrent Response
o
Latch Off (default)
o
Hiccup
Tracking pin for complex sequencing
RoHS compliant, MSL level 3, 260
C reflow
Applications
High performance FPGA Core Supply
ASIC and processor supply rails
Data Sheet | Intel Enpirion Power Solutions: EM2260

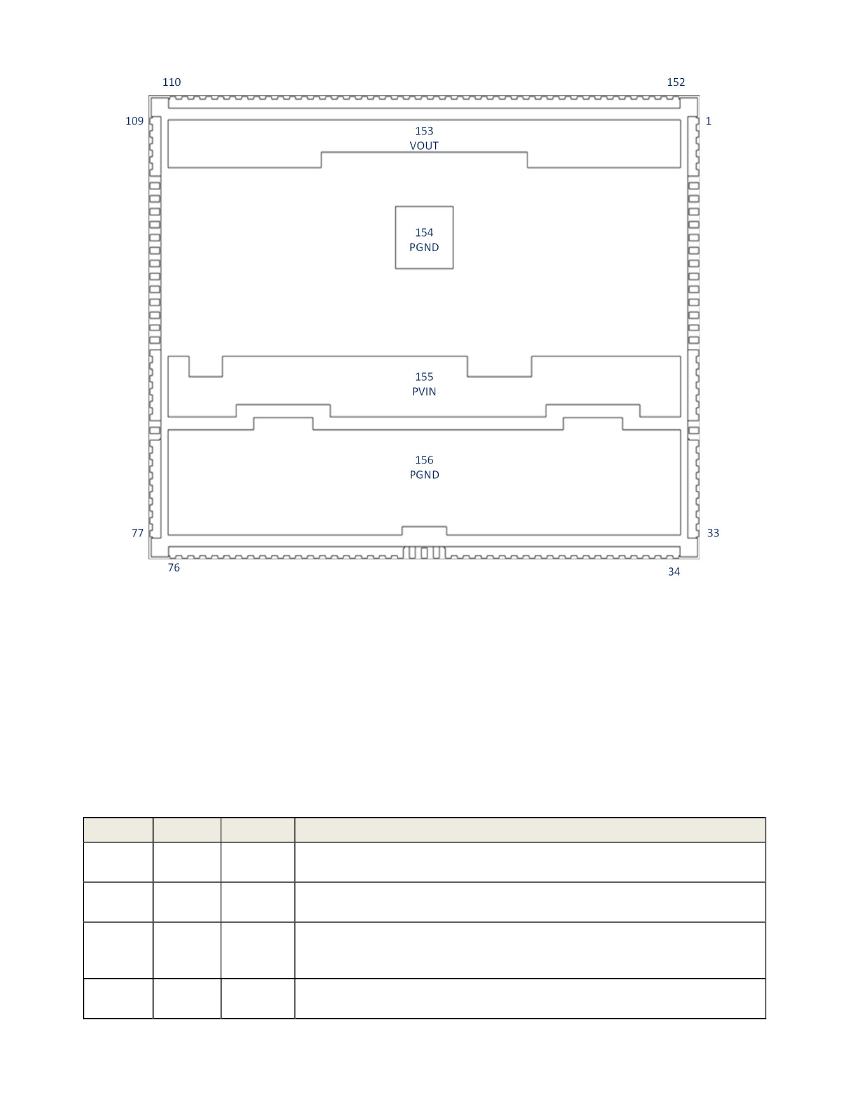

PIN
9
10
11
12
15
13-14,
16-18,
25, 55,
85, 92,
93, 95,
96
19-24,
86-91,
155
26-53,
57-84,
154,156
54
56
94
97
98
NAME
VDD33
VCC
SDA
SCL
PWM0
I/O
Output
Input
Supply
Digital I/O
Digital
Input
PWM
FUNCTION
3.3V output of the internal LDO. May be used as pull-up supply for PMBus™
pins and CTRL pin.
5.0V supply voltage for analog circuitry.
PMBus™ serial data I/O.
PMBus™ serial clock input.
Phase 0 PWM signal test pin.
NC
NC
No connect. Do not connect to any signal, supply, or ground.
PVIN
Input
Supply
Input supply for MOSFET switches. Decouple to PGND with appropriate filter
capacitors. Refer to Recommended Application Circuit section for more
details.
Power ground. Ground for MOSFET switches.
PHASE 0 signal test pin.
PHASE 1 signal test pin.
Phase 1 PWM signal test pin.
Differential output voltage sense input (positive).
Differential output voltage sense input (negative).
Voltage tracking reference input VTRACK, which is not enabled in the default
configuration and may remain floating if not used (default configuration).
If voltage tracking mode is used (or enabled), please refer to Functional
Description Section.
A resistor from ADDR0 to PGND can be used to set the PMBus™ address. Use
a 1% tolerance or better resistor.
A resistor from ADDR1 to PGND can be used to set the PMBus™ address. Use
a 1% tolerance or better resistor.
A resistor from RVSET to PGND can be used to program the V
OUT
set-point.
Using 1% tolerance or better resistor.
A resistor from RTUNE to PGND can be used to tune the transient
compensator for output capacitance. Using 1% tolerance or better resistor.
SYNC is not enabled in the default configuration. May remain floating if not
used (default configuration). If SYNC is used (or enabled), please refer to
Functional Description Section.
PGND
PH0
PH1
PWM1
VSENP
VSENN
Ground
PHASE
PHASE
PWM
Analog
Input
Analog
Input
Analog
Input
Analog
I/O
Analog
I/O
Analog
I/O
Analog
I/O
Digital I/O
99
VTRACK
100
101
102
103
104
ADDR0
ADDR1
RVSET
RTUNE
SYNC
Page 5
13507
April 6, 2018
Rev C
