1. Product Introduction
1.1 Product summary
It is suitable for measuring soil temperature and water content. It is calibrated by
comparison with Germany original high precision sensor and soil drying drying weighing method.
It has high precision, quick response and stable output. By the soil salt content of small, suitable
for all kinds of soil. Long-term buried in the soil, resistant to long-term electrolysis, corrosion
resistance, vacuum potting, completely waterproof.
1.2 Scope of application
Widely used in scientific experiments, water-saving irrigation, greenhouses, flowers and
vegetables, grassland ranch, soil speed measurement, plant culture, sewage treatment, grain
storage and a variety of particulate matter moisture and temperature measurement.
1.3 Main technology parameter
Supply power：10~30V DC
Power consumption: 0.4W
Moisture measurement range
：0~100%
RH
Temperature measurement range：-40℃~80℃(personal)
Moisture accuracy：±
3%RH(default)
Temperature accuracy：±
0.5℃(default)
Work environment：-20℃~60℃,0~80%RH
Output signal：RS485
Parameter configuration：software
(Measured frozen ice layer, the water value will be low is not accurate, the need for user
compensation)
1.4 Physical parameters
Probe length: 70 mm
Probe diameter: 3 mm
Probe material: 304 stainless steel
Sealing material: Epoxy resin (black flame retardant)
Cable length: standard two meters (RVV 4 * 0.3)
Protection class: IP68
Shandong RenKe Control Technology Co.,Ltd.
3
www.temperaturehumiditysensor.com
Soil moisture transmitter（485
Type）

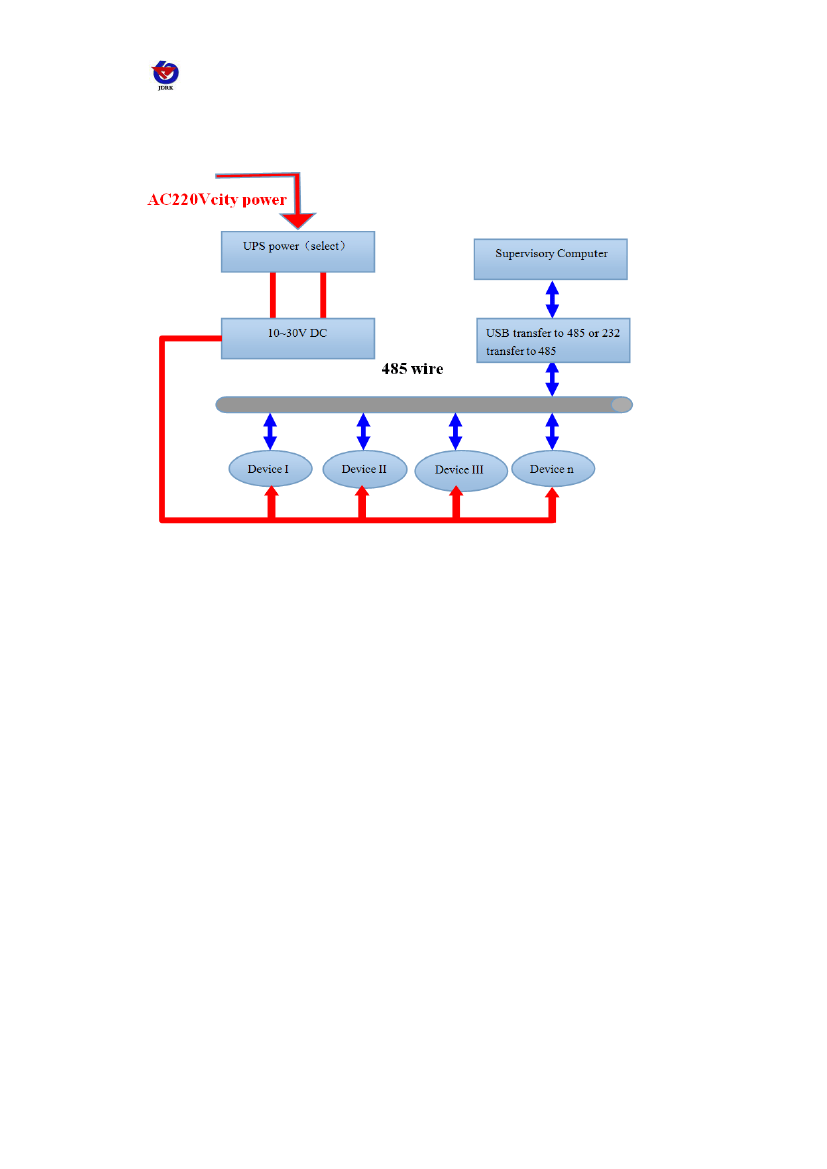

1.5 System frame diagram
2. How to use
2.1 speed measurement method:
Select the appropriate measurement location, to avoid the stones, to ensure that the needle
does not touch a hard object, according to the required depth of measurement to put aside the
topsoil, to maintain the original soil below the tightness of the sensor vertically insert the soil,
insert Can not be left and right shaking, a small measuring point within the recommended average
of several measurements.
2.2 Buried measurement method:
Vertical digging diameter> 20cm pits, the depth of the probe will be the level of the probe
inserted into the pit wall, the pit filled with strict, stable for some time, you can for several days,
months and even longer measurement and recording.
2.3 Note:
1, the measurement must be fully inserted into the soil needle.
2, to avoid direct sunlight to the strong sunlight caused by the sensor temperature is too high.
Note the use of wild lightning.
3, do not violent bending steel needle, do not pull the sensor pull lead wire, do not beat or
violent impact sensor.
4, the sensor protection class IP68, the sensor can be soaked in water.
Shandong RenKe Control Technology Co.,Ltd.
4
www.temperaturehumiditysensor.com
Soil moisture transmitter（485
Type）
5, due to the presence of radio frequency electromagnetic radiation in the air, not a long time
in the air in the power state.
3. Device Installation Instruction
3.1 Check before the device installation
Device list:
■One
transmitter equipment
■Certificate,
warranty card, and after sales service card and so on
■one
12V/2A waterproof power（select）
■USB
transfer to 485（select）
■485terminal
resistance（select）
3.2 Joggle instruction
3.2.1 Power and 485 signals
Range 5V-24V of wide voltage is available in power input, the A wire and B wire can not be
connected contrary when connecting to 485 signal, and the address among several devices on the
total wire can not be conflicted.

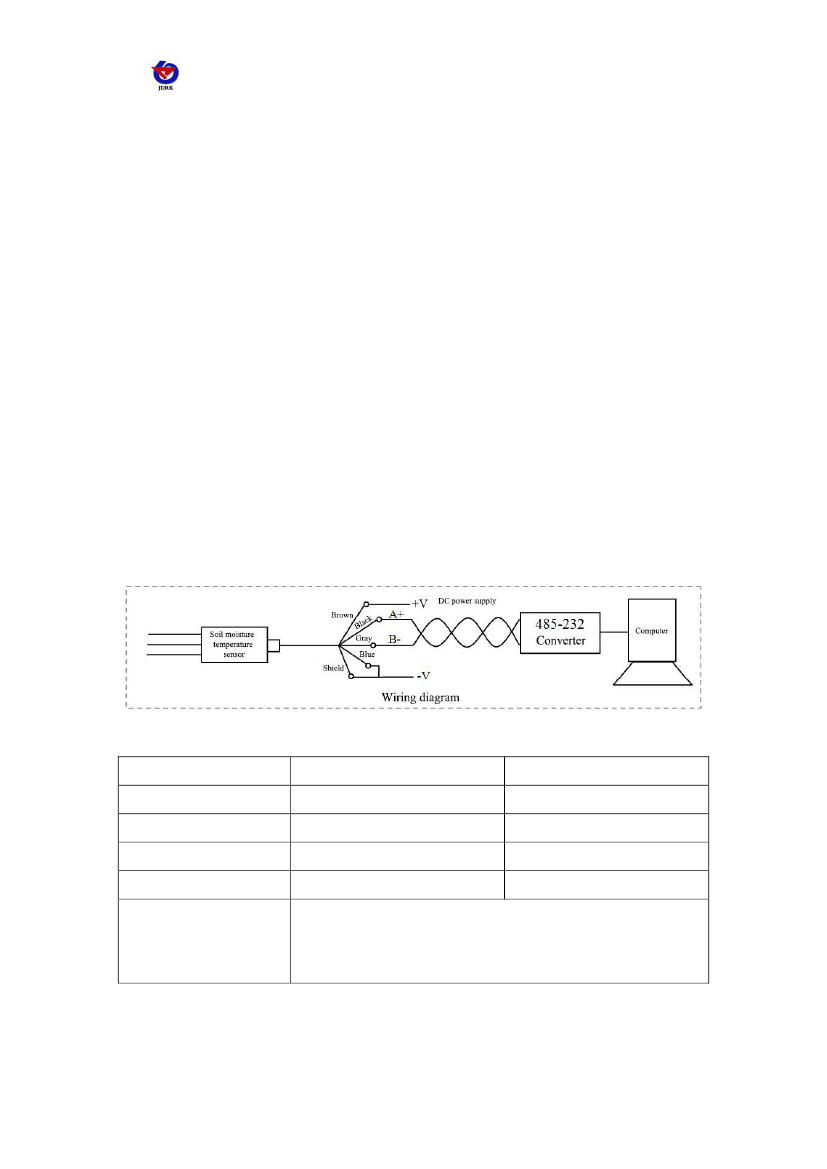

3.3 specific model wiring
Line color
Brown
Blue
Black
Gray
Shield
Description
Power supply
power ground
485-A
485-B
Remark
5 ~ 24V DC
GND
485-A
485-B
Connect the negative pole of the power supply to the
acquisition mode, and connect the positive pole of the power supply
to the setting mode
Shandong RenKe Control Technology Co.,Ltd.
5
www.temperaturehumiditysensor.com
