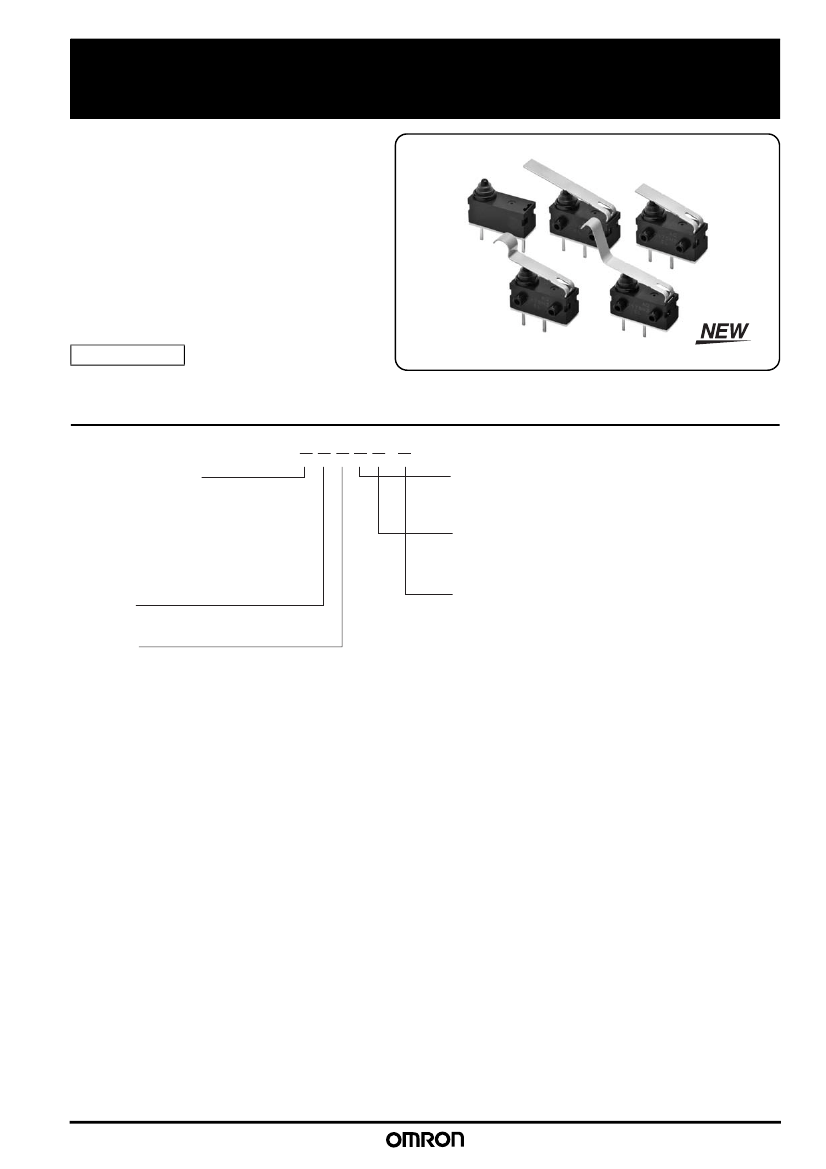

D2AW
Sealed Ultra Subminiature Basic Switch
Long stroke seal switch with
high reliability and high
insulation performance
●
<Clipping contact> Double reliability by twin
contacts (=Clipping contact). Foreign materials
are cleaned out by the sliding contacts.
●
<Quiet operation> Quiet operating sound by
sliding contact construction is needed for high
grade car.
●
<High insulation performance> High performance
of Insulation resistance by unique contact structure.
RoHS Compliant
Model Number Legend
D2AW-
@ @ @ @ @
-
@
1
2
3
4
5
6
1. Mounting Structure
A: Without posts
BR: Long post on right
BL: Long post on left
C: M3-screw mounting model
ER: Short post on right
EL: Short post on left
4. Contact Form
2: SPST-NC
3: SPST-NO
5. Terminals
D: Straight PCB terminals
H: Solder terminals
6. Option Code
2. Ratings
0: 0.1 A at 12 VDC
3. Actuator
0: Pin plunger
5: Long straight leaf lever
6: Leaf lever
7: Simulated roller leaf lever
8: Long leaf lever
Customized Code
1
D2AW
List of Models
Model
Without posts
Long post on
right
Sealed Ultra Subminiature Basic Switch
Due to the idiosyncrasies of the automotive parts industry, a business decision is required on individual items
to determine when to start supply. Contact your OMRON representative for information on individual models.
Long post on
left
M3-screw
Short post on
mounting model
right
Short post on
left
Terminals
Actuator
Pin plunger
Solder
terminals
PCB terminals
Long straight leaf
lever
Solder
terminals
Contact Form
SPST-NC
SPST-NO
SPST-NC
SPST-NO
SPST-NC
SPST-NO
SPST-NC
D2AW-A002H
D2AW-A003H
D2AW-A002D
D2AW-A003D
D2AW-A052H
D2AW-A053H
D2AW-A052D
D2AW-A053D
D2AW-A062H
D2AW-A063H
D2AW-A062D
D2AW-A063D
D2AW-A072H
D2AW-A073H
D2AW-A072D
D2AW-A073D
D2AW-A082H
D2AW-A083H
D2AW-A082D
D2AW-A083D
D2AW-BR002H
D2AW-BR003H
D2AW-BR002D
D2AW-BR003D
D2AW-BR052H
D2AW-BR053H
D2AW-BR052D
D2AW-BR053D
D2AW-BR062H
D2AW-BR063H
D2AW-BR062D
D2AW-BR063D
D2AW-BR072H
D2AW-BR073H
D2AW-BR072D
D2AW-BR073D
D2AW-BR082H
D2AW-BR083H
D2AW-BR082D
D2AW-BR083D
D2AW-BL002H
D2AW-BL003H
D2AW-BL002D
D2AW-BL003D
D2AW-BL052H
D2AW-BL053H
D2AW-BL052D
D2AW-BL053D
D2AW-BL062H
D2AW-BL063H
D2AW-BL062D
D2AW-BL063D
D2AW-BL072H
D2AW-BL073H
D2AW-BL072D
D2AW-BL073D
D2AW-BL082H
D2AW-BL083H
D2AW-BL082D
D2AW-BL083D
D2AW-C002H
D2AW-C003H
D2AW-C002D
D2AW-C003D
D2AW-C052H
D2AW-C053H
D2AW-C052D
D2AW-C053D
D2AW-C062H
D2AW-C063H
D2AW-C062D
D2AW-C063D
D2AW-C072H
D2AW-C073H
D2AW-C072D
D2AW-C073D
D2AW-C082H
D2AW-C083H
D2AW-C082D
D2AW-C083D
D2AW-ER002H
D2AW-ER003H
D2AW-ER002D
D2AW-ER003D
D2AW-ER052H
D2AW-ER053H
D2AW-ER052D
D2AW-ER053D
D2AW-ER062H
D2AW-ER063H
D2AW-ER062D
D2AW-ER063D
D2AW-ER072H
D2AW-ER073H
D2AW-ER072D
D2AW-ER073D
D2AW-ER082H
D2AW-ER083H
D2AW-ER082D
D2AW-ER083D
D2AW-EL002H
D2AW-EL003H
D2AW-EL002D
D2AW-EL003D
D2AW-EL052H
D2AW-EL053H
D2AW-EL052D
D2AW-EL053D
D2AW-EL062H
D2AW-EL063H
D2AW-EL062D
D2AW-EL063D
D2AW-EL072H
D2AW-EL073H
D2AW-EL072D
D2AW-EL073D
D2AW-EL082H
D2AW-EL083H
D2AW-EL082D
D2AW-EL083D
PCB terminals
Leaf lever
SPST-NO
SPST-NC
SPST-NO
SPST-NC
SPST-NO
SPST-NC
SPST-NO
SPST-NC
Solder
terminals
PCB terminals
Simulated roller
leaf lever
Solder
terminals
PCB terminals
Long leaf lever
SPST-NO
SPST-NC
SPST-NO
SPST-NC
SPST-NO
Solder
terminals
PCB terminals
Contact Specifications
Contact
Specification
Material
Slide
Sliver Plated
5 VDC 1 mA
Minimum applicable load ( see note )
Note:
For more information on the minimum applicable load, refer to
Using Micro Loads.
Ratings
Rating voltage
12 VDC
Resistive load
0.1 A
Note:
The rating values apply under the following test conditions.
1. Ambient temperature: 20
±
2°C
2. Ambient humidity: 65
±
5%
3. Operating frequency: 20 operations/min
2
D2AW

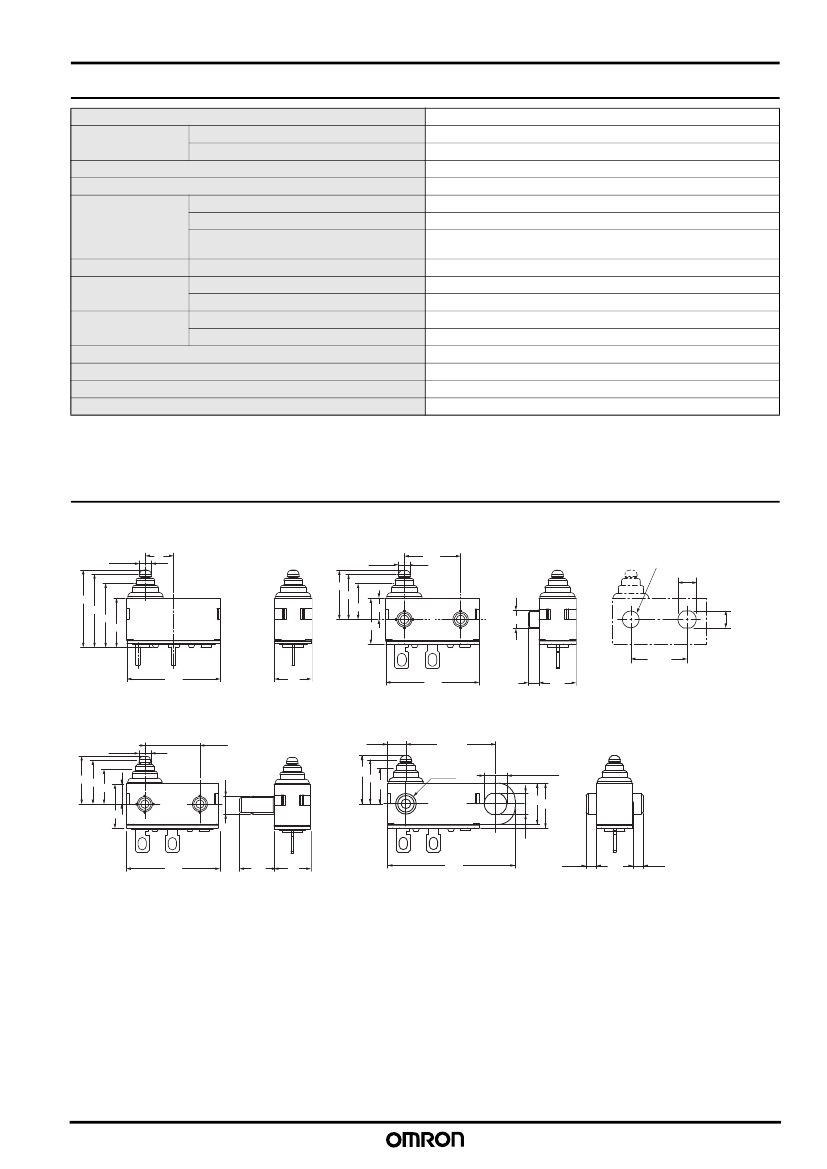

Characteristics
Permissible operating speed
Permissible operating
frequency
Insulation resistance
Contact resistance (initial value)
Between terminals of the same polarity
Dielectric strength *1
Between current-carrying metal parts and ground
Between terminals and non-current-carrying
metal parts
Vibration resistance
Shock resistance
Durability *2
Degree of protection
Ambient operating temperature
Ambient operation humidity
Weight
Note:
The data given above are initial values.
*1.
The values for dielectric strength shown are for models with a Separator.
Refer to your OMRON website.
*2.
For testing conditions, consult your OMRON sales representative.
Malfunction
Destruction
Malfunction
Mechanical
Electrical
Mechanical
Electrical
Sealed Ultra Subminiature Basic Switch
30 mm to 500 mm/s (pin plunger models)
30 operations/min max.
20 operations/min max
100 MΩ min. (at 500 VDC)
100 mΩ max.
600 VAC 50/60 Hz 1min
1,500 VAC 50/60 Hz 1min
1,500 VAC 50/60 Hz 1min
10 to 55 Hz, 1.5 mm double amplitude
1,000 m/s
2
max.
300 m/s
2
max.
200,000 operations min. (30 operations/min)
200,000 operations min. (20 operations/min)
IEC IP67
-40 to 85°C (at 60%RH max.) (with no icing or condesenation)
95%RH max. (for +5 to +35°C)
Approx. 0.7 g (for pin plunger models with terminals)
Mounting Structure and Reference Positions for Operating Characteristics
(Unit: mm)
●
Without posts
D2AW-A@
1.7 dia.
4
●
Short post
D2AW-E@
1.7 dia.
FP
OP
8
±0.1
Mounting Hole Dimensions (Reference)
2.4
+0.1
dia. holes
0
(depth:
D2AW-E@: 1.5 mm min.
D2AW-B@: 5 mm min.)
2.6
FP
OP
TTP
7
TTP
6.5
3
2.6
±0.05
2.4
+0.1
0
8
±0.1
13.3
5.3
13.3
0
1.5
–0.2
5.3
●
Long post
D2AW-B@
8±0.1
1.7 dia.
●
M3-screw Mounting Models
D2AW-C@
2.65
13±0.1
FPOP
TTP
3
2.6±0.05
FP
OP
TTP
0
3 dia.
-0.1
3.3 dia. ±0.15
6 6.5
6.5
3.1
+0.13
-0.03
0
1.5
-0.1
0
1.5
-0.1
13.3
0
5
-0.2
5.3
18.5
5.3
3
D2AW
Terminals
(Unit: mm)
●
PCB terminals
SPST-NO
SPST-NC
Sealed Ultra Subminiature Basic Switch
<PCB Mounting Dimensions
(Reference)>
SPST-NO
2-1
+0.1
dia. holes
0
SPST-NC
2-1
+0.1
dia. holes
0
2.5
5.08
2-0.6
0.4
10.16
2.5
2-0.6
0.4
5.08
±0.1
10.16
±0.1
●
Solder terminals
SPST-NO
SPST-NC
1.8
2-2
4.38
2-1.2
0.4
1.8
2-2
2-1.2
8.76
3.5
0.4
4
D2AW
Dimensions
(Unit: mm)
/ Operating Characteristics
Sealed Ultra Subminiature Basic Switch
The following illustrations and drawings are for solder terminal models. PCB terminal models are omitted from the drawings. Refer to
Terminals
for these terminals.
When ordering, replace
@
with the code for the rating that you need. For the combination of models, refer to
List of Models.
●

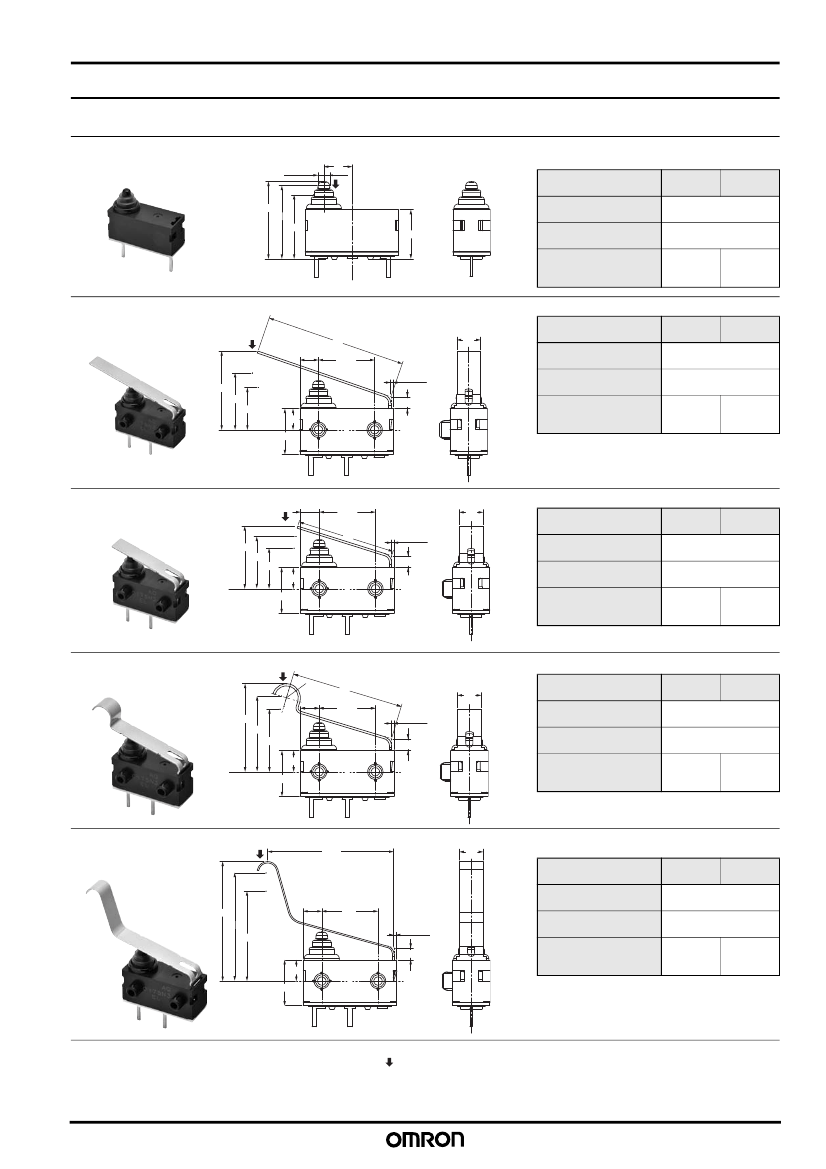

Pin plunger
D2AW-@00@@
FP
1.7 dia.
4
A
Operating
characteristics
Operating Force
Releasing Force
7
Type
OF
RF
Max.
Min.
Without
posts
Models with
Posts
OP
TTP
1.00N {101 gf}
0.10N {10 gf}
Overtravel
OT
1.4 mm (reference value)
Movement Differential MD Max.
0.25 mm
Free Position
Operating Position
Total Travel Position
FP Max.
11.2 mm
OP
10.4 ± 0.3 mm
TTP
9.1 mm
7.2 mm
6.4 ± 0.3 mm
5.1 mm
●Long
straight leaf lever
D2AW-@05@@
A
2.65
Operating characteristics
20
8
±0.1
(0.35)
3.4
Type
OF
RF
Max.
Min.
Without
posts
Models with
Posts
Operating Force
Releasing Force
1.50N {152 gf}
0.10N {10 gf}
FP
OP
TTP
3
6.5
(1.7)
Overtravel
OT
2.5 mm (reference value)
Movement Differential MD Max.
0.7 mm
Free Position
Operating Position
Total Travel Position
FP Max.
15.9 mm
OP
12.1
±
0.8 mm
TTP
10.0 mm
11.9 mm
8.1
±
0.8 mm
6.0 mm
●Leaf
lever
D2AW-@06@@
FP
OP
TTP
A
2.65
8
±0.1
14
3.4
(0.35)
(1.7)
Operating
characteristics
Operating Force
Releasing Force
OF
RF
Type
Max.
Min.
Without
posts
Models with
Posts
2.00N {203 gf}
0.20N {20 gf}
3
6.5
Overtravel
OT
1.8 mm (reference value)
Movement Differential MD Max.
0.5 mm
Free Position
Operating Position
Total Travel Position
FP Max.
13.3 mm
OP
11.4
±
0.5 mm
TTP
9.8 mm
9.3 mm
7.4
±
0.5 mm
5.8 mm
●Simulated
roller leaf lever
D2AW-@07@@
FP
OP
TTP
A
R2
2.65
16
3.4
(0.35)
(1.7)
Operating
characteristics
Operating Force
Releasing Force
OF
RF
Type
Max.
Min.
Without
posts
Models with
Posts
8
±0.1
1.80N {183gf}
0.20N {20 gf}
Overtravel
OT
2.0 mm (reference value)
Movement Differential MD Max.
0.5 mm
Free Position
Operating Position
Total Travel Position
FP Max.
17.0 mm
OP
14.8
±
0.5 mm
TTP
12.9 mm
13.0 mm
10.8
±
0.5 mm
8.9 mm
3
6.5
●Long
leaf lever
D2AW-@08@@
A
(18)
3.4
Operating
characteristics
2.65
FP
OP
TTP
(1.7)
3
6.5
Type
OF
RF
Max.
Min.
Without
posts
Models with
Posts
8
±1
(0.45)
Operating Force
Releasing Force
0.90N {91 gf}
0.05N {5 gf}
Overtravel
OT
2.8 mm (reference value)
Movement Differential MD Max.
0.7 mm
Free Position
Operating Position
Total Travel Position
FP Max.
23.0 mm
OP
19.4
±
1.5 mm
TTP
16.8 mm
19.0 mm
15.4
±
1.5 mm
12.8 mm
Note1. Unless otherwise specified, a tolerance of
±0.2
mm applies to all dimensions.
Note2. The operating characteristics are for operation in the A direction ( ).
