Test conditions of Electrical Properties: +20 °C, 33% RH if not specified differently

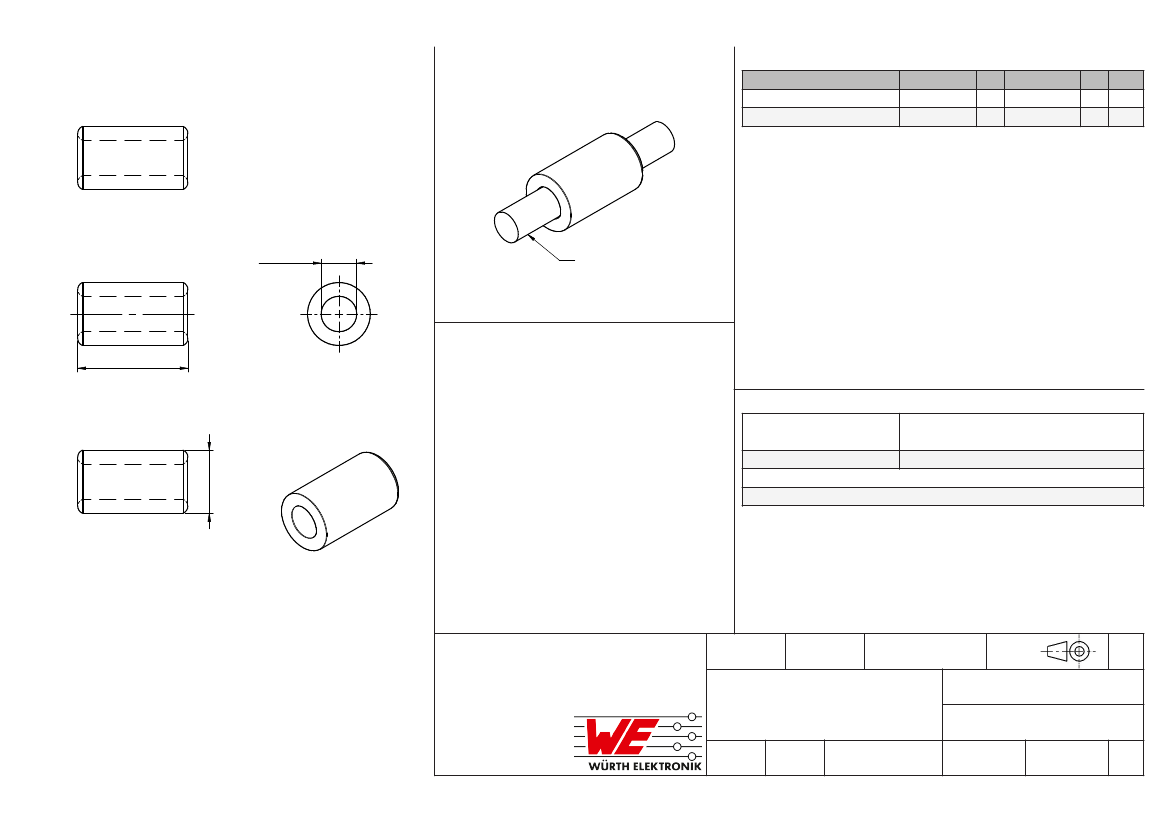

Scale - 1:1
Würth Elektronik eiSos GmbH & Co. KG
EMC & Inductive Solutions
Max-Eyth-Str. 1
74638 Waldenburg
Germany
Tel. +49 (0) 79 42 945 - 0
www.we-online.com
eiSos@we-online.com
CREATED
CHECKED
GENERAL TOLERANCE
PROJECTION
METHOD
KaS
DESCRIPTION
PJo
DIN ISO 2768-1m
WE-AEFA Axial EMI Suppression
Ferrite
REVISION
STATUS
ORDER CODE
782013086280
DATE (YYYY-MM-DD)
BUSINESS UNIT
PAGE
001.004
Valid
2018-04-18
eiSos
1/4
This electronic component has been designed and developed for usage in general electronic equipment only. This product is not authorized for use in equipment where a higher safety standard and reliability standard is especially required or where a failure of the product is reasonably expected to cause severe personal injury or death, unless the parties have executed an agreement specifically governing such use. Moreover Würth Elektronik eiSos GmbH
& Co KG products are neither designed nor intended for use in areas such as military, aerospace, aviation, nuclear control, submarine, transportation (automotive control, train control, ship control), transportation signal, disaster prevention, medical, public information network etc.. Würth Elektronik eiSos GmbH & Co KG must be informed about the intent of such usage before the design-in stage. In addition, sufficient reliability evaluation checks for safety
must be performed on every electronic component which is used in electrical circuits that require high safety and reliability functions or performance.
General Properties:
Properties
Cable Diameter Max.
Material
Initial Permeability
Test Cable
Test Cable Length
µ
i
Value
8.6
1E04_620
620
AWG26
100
mm
typ.
Unit
mm
Tol.
Typical Impedance Characteristics:
1000
100
Impedance [Ω]
10
1
1
10
100
1000
Frequency [MHz]
1 Turn
