101990062: DescriptionCURR SENSE XFMR 25A CHAS MNT; CategoryPower/power management; File Size443KB，1 Pages; ManufacturerFREESCALE (NXP); Environmental Compliance

Download Datasheet Parametric Compare View All

101990062 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	101990062	-	-	View	Buy Now

101990062 Overview

CURR SENSE XFMR 25A CHAS MNT

101990062 Parametric

Parameter Name	Attribute value
Frequency Range	-
type	Non-invasive type (split core)
Rated current	25A
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	-
Current ratio	-
DC resistance (DCR)	-
grade	-
Installation type	Base installation
size/dimensions	-
Height - Installation (maximum)	-
Terminal type	Wire leads with connectors
weight	-

Preview

Download Datasheet

View All

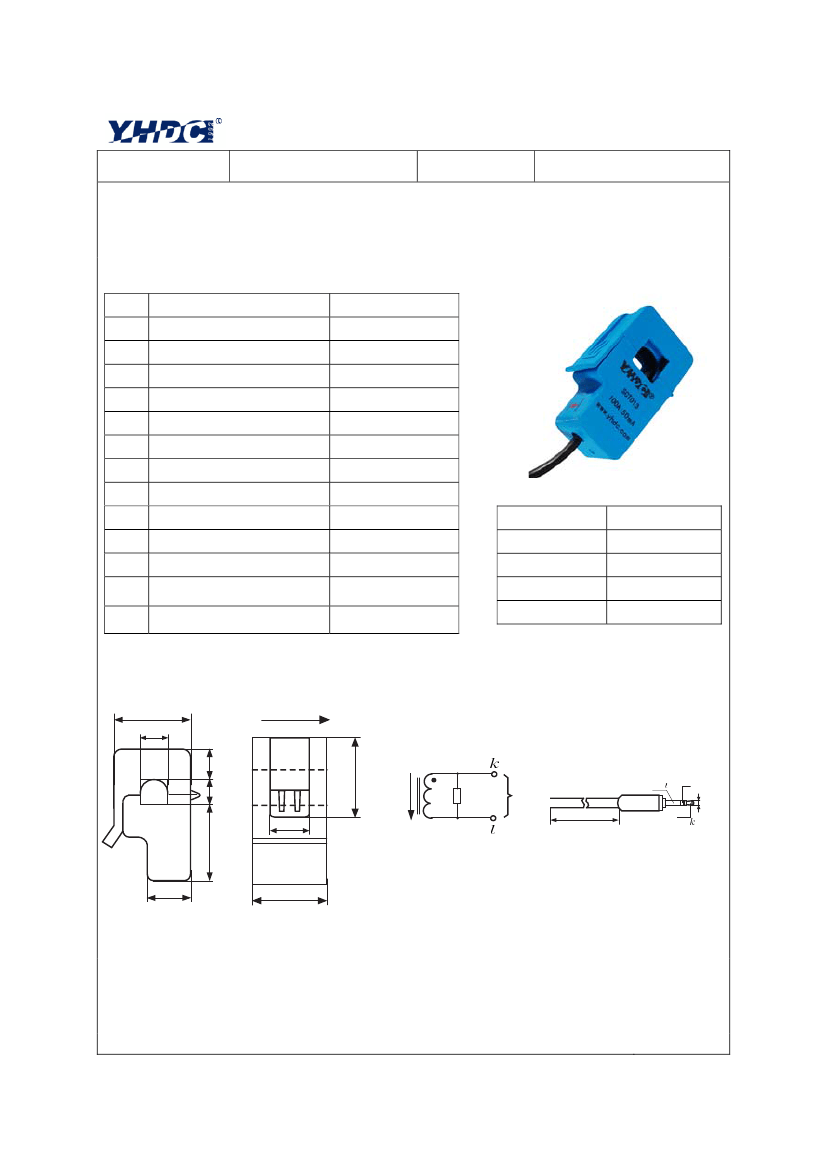

Product Specification

Product Name

Current transformer

Model

Date:2015-8-7

SCT013-060

Characteristics:Openning

size 13mm*13mm,1m leading wire, standard Φ3.5 three-core plug output.

voltage output type.

Purpose：

Used for current measurement, monitor and protection for AC motor,lighting equipment, air compressor etc.

Patent No.：ZL 2015 3 0060067. X

Technical Data

I

PN

I

PM

I

OUT

X

Rated input

Max. detection input

Rated output

Accuracy

Linearity

Turns ratio

Phase shift

Max.Sampling resistance

Work voltage

Work frequency

Operating temperature

Storage temperature

Dielectric strength,

50 Hz, 1 min

660V

50-1KHz

-25..+70℃

-40..+85℃

3KV

Fire resistance

Material of core

Mounting type

Weight

UL94-V0

Ferrite

Suspension

55g

0-1V

±1%

≤0.2%

1:1800

0-60A

ε

L

N

Φ

R

L

V

PN

f

T

A

T

S

Vd

Dimension ( mm(in). 1 mm= 0.0394 inch)

13(0.51) 10(0.39)

32(1.26)

13(0.51)

Ip

31(1.22)

Ip

R

Vout

1m

output

empty

3.5mm

34(1.34)

11.

5(0.45)

putput

voltage output type

22(0.87)

（can

provide other wiring way）

23.

5(0.93)

Front view

Side view

Schematic diagram

Standard three-core pligs

schematic diagram

http://www.yhdc.com
