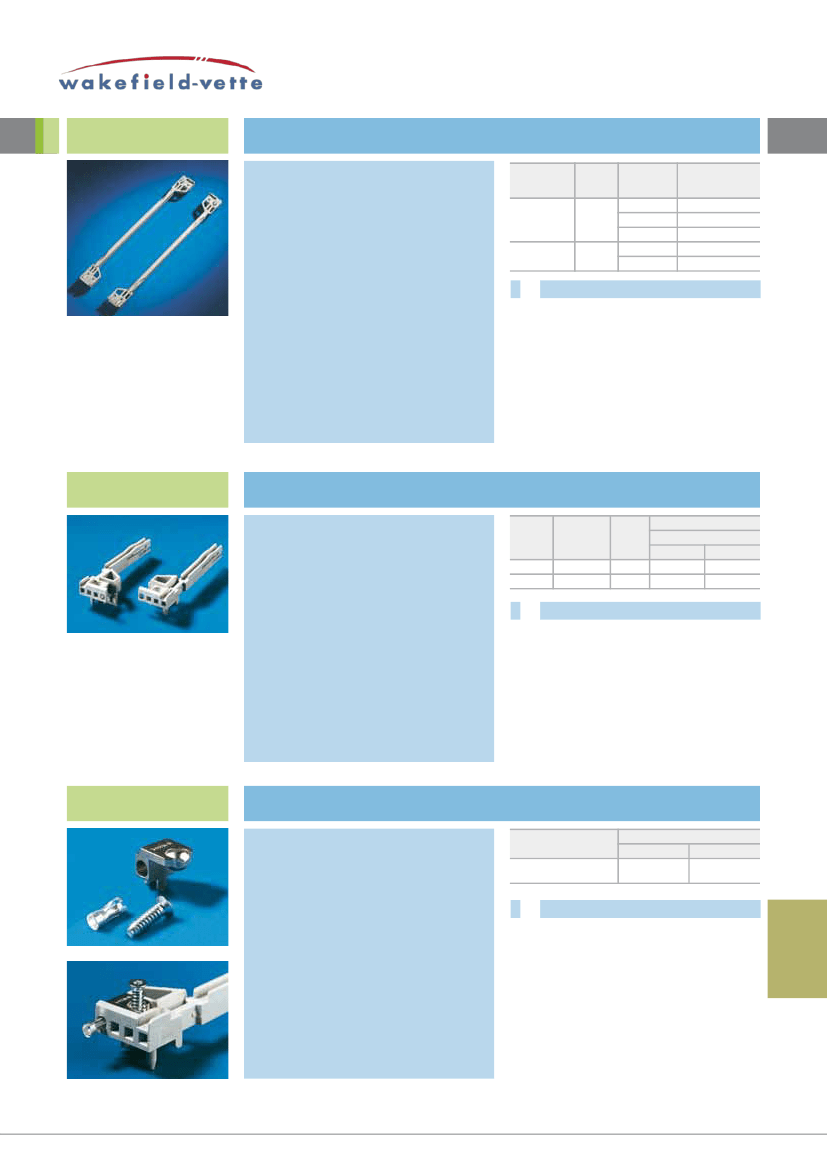

COMPONENTS / ACCESSORIES
GuiDe rails
keyable guide rails
With ½ Hp offset
Guide rails with ½ HP offset for use in telecom
applications. This allows PCBs to be populated on
both sides. Green guide rails with offset are
prescribed in the CompactPCI specification
(PICMG 2.11) for the installation of power supply
units.
•
•
•
•
•
For 1.6 – 2.0 mm PCB thickness
4 HP x 160/220 mm
Narrow design for maximum air flow
Chambers for the installation of keys
Option of installing ESD contacts to discharge
static charges
For
PCB depth
mm
160
Packs of
Color
grey
order no.
3686.137
3689.090
3687.832
3686.136
3689.092
1
yellow
green
grey
yellow
220
1
+
accessories:
material:
Polycarbonate, base material to UL 94-V0
note:
Only suitable for use in conjunction with extractor
handles type IV, IVs, VII with ½ HP offset.
Keys, see page 124
ESD contact, see page 123
Extractor handles Type IVs, VII
with ½ HP offset,
see page 138 – 140
keyable guide rails
For rear i/o assemblies
Guide rails 4 HP, keyable to IEEE 1101.10.
Prepared to accommodate a ground contact for
assembly of a plug-type connection.
•
•
•
•
For 1.6 – 2.0 mm nominal thickness
For 80 mm deep PCBs
Chambers for the installation of keys
Option of installing ESD contacts to discharge
static charges
•
Narrow design for maximum air flow
•
For CPCI or VME applications
material:
Polycarbonate, base material to UL 94-V0
note:
Only for use in conjunction with type IV, IVs,
VII injector/extractor handles.
For PCB
depth
mm
80
80
order no.
Packs of
1
1
guide rails
top
3687.936
3689.097
bottom
3687.937
3689.098
Color
grey
yellow
+
accessories:
Keys, see page 124
ESD contact, see page 123
Ground contact, see page 121
Extractor handles type IV, IVs, VII,
see pages 138 – 140
Ground contact
Ensures a plug-in ground connection.
UL-approved.
material:
Die-cast zinc
supply includes:
grounding bush and contact spring.
note:
Only suitable for use in conjunction with keyable
guide rails for I/O assemblies.
grounding bush and
contact spring
order no.
1 set
3689.036
50 set
3687.951
!
also required:
Assembly screws 3.5 x 12 mm,
packs of 50, order no. 3684.109,
see page 165
121
