Overview

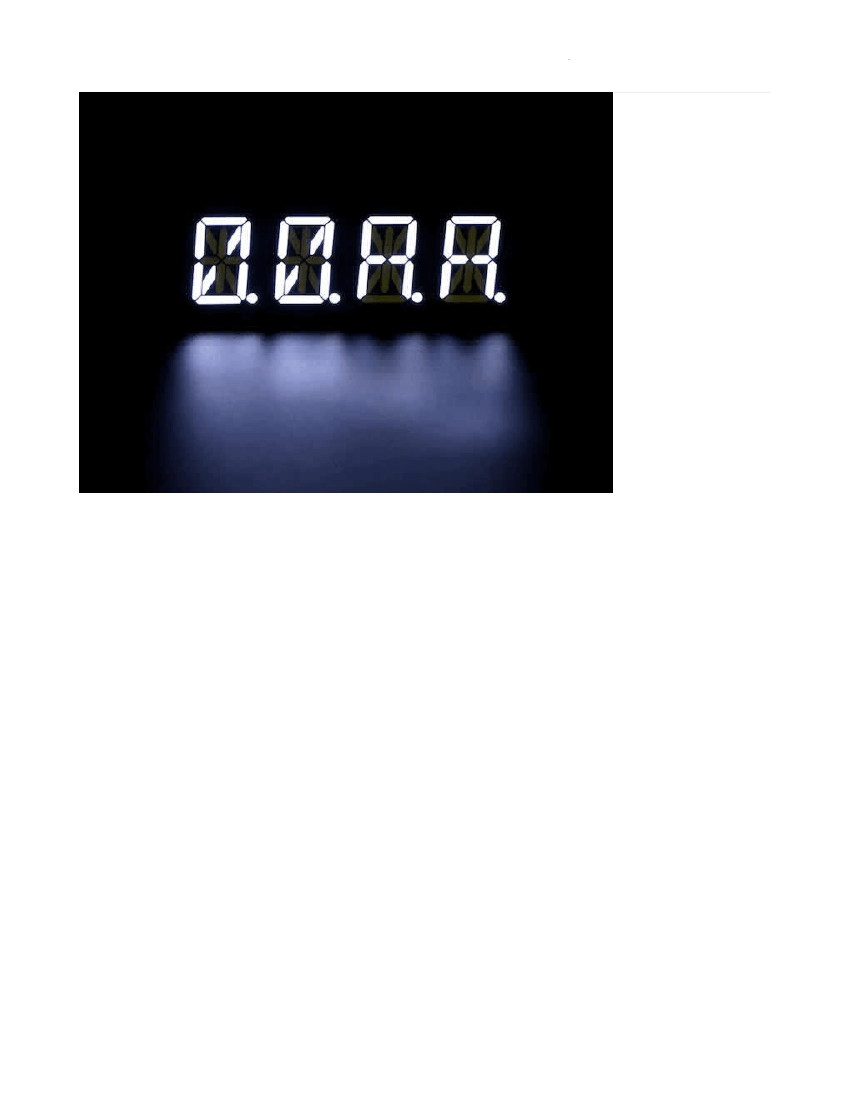

Display, elegantly, 012345678 or 9! Gaze, hypnotized, at ABCDEFGHIJKLM - well it can display the whole alphabet.
You get the point.

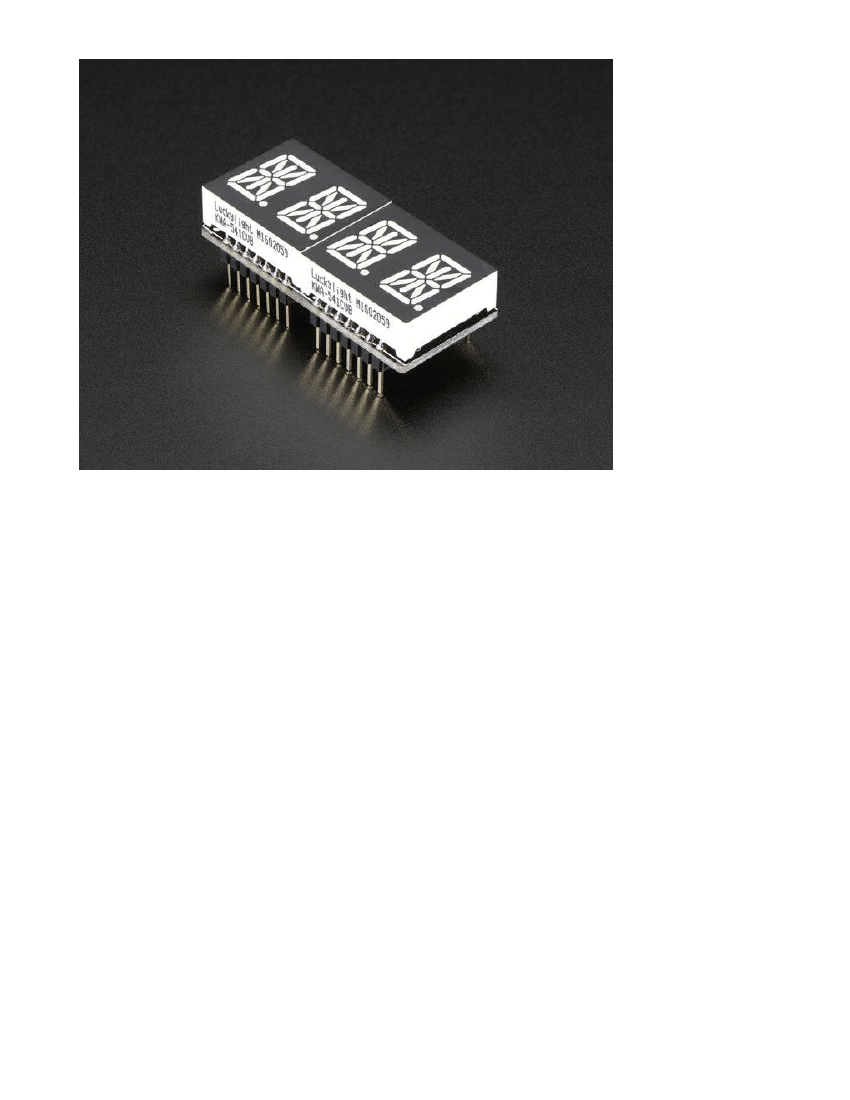

This is the Adafruit 0.56" 4-Digit 14-Segment Display w/ FeatherWing Combo Pack! Available in Blue, Green, Red,
White, and Yellow. It is a nice, bright alphanumeric display that shows letters and numbers in a beautiful hue. It's super
bright and designed for viewing from distances up to 23 feet (7 meters) away. Each of the digit sets have 14 segments
on a dark background and we give you a set of two alphanumeric displays as well as a Featherwing driver board so
you can make a clock or a four letter word.
Works with any and all Feathers!
© Adafruit Industries
https://learn.adafruit.com/14-segment-alpha-numeric-led-featherwing
Page 3 of 36
14-Segment Matrices like these are 'multiplexed' - so to control all the seven-segment LEDs you need 18 pins. That's a
lot of pins, and there are
driver chips like the MAX7219
(http://adafru.it/453)
that can control a matrix for you but there's
a lot of wiring to set up and they take up a ton of space. Wouldn't it be awesome if you could control a matrix without
tons of wiring? That's where these Alphanumeric LED Matrix FeatherWings come in, they make it really easy to add a
4-digit alphanumeric display with decimal points.
© Adafruit Industries
https://learn.adafruit.com/14-segment-alpha-numeric-led-featherwing
Page 4 of 36
The LEDs themselves do not connect to the Feather. Instead, a matrix driver chip (HT16K33) does the multiplexing for
you. The Feather simply sends i2c commands to the chip to tell it what LEDs to light up and it is handled for you. This
takes a lot of the work and pin-requirements off the Feather. Since it uses only I2C for control, it works with any
Feather and can share the I2C pins for other sensors or displays.

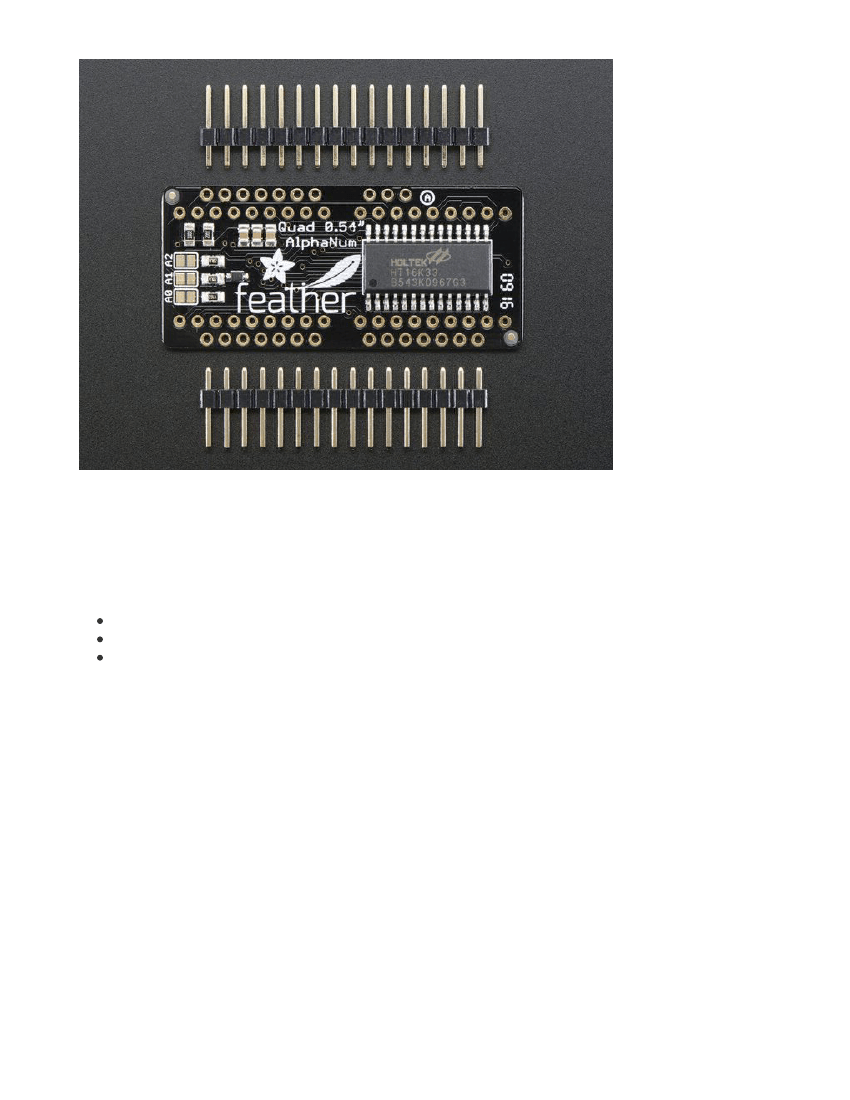

The product kit comes with:
A fully tested and assembled Adafruit 4-Digit 14-Segment LED Matrix Display FeatherWing
Ultra-bright 4-digit 0.54" tall segmented display
Two sixteen pin headers
A bit of soldering is required to attach the matrix onto the FeatherWing but its very easy to do and only takes about 5
minutes!
© Adafruit Industries
https://learn.adafruit.com/14-segment-alpha-numeric-led-featherwing
Page 5 of 36
