251I,GY datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> 251I,GY

251I,GY: DescriptionBOX ABS GRAY 5.62"L X 3.25"W; CategoryTopical application Mechanical and electrical/engineering/automation; File Size791KB，2 Pages; ManufacturerSERPAC; Environmental Compliance

Download Datasheet Parametric View All

251I,GY Overview

BOX ABS GRAY 5.62"L X 3.25"W

251I,GY Parametric

Parameter Name	Attribute value
Container type	box
size/dimensions	5.620" long x 3.250" wide (142.75mm x 82.55mm)
high	1.500"（38.10mm）
Area (L x W)	18.3 in²（118 cm²）
design	Handheld, split-sided
Material	Plastic - ABS
color	grey
thickness	0.100"（2.54mm）
characteristic	Battery box, 9V, PCB support
grade	IP40，NEMA 1
Material flammability rating	UL94 HB
delivery information	Shipping from Digi-Key
weight	0.263 lbs (119.29g)

Preview

Download Datasheet

View All

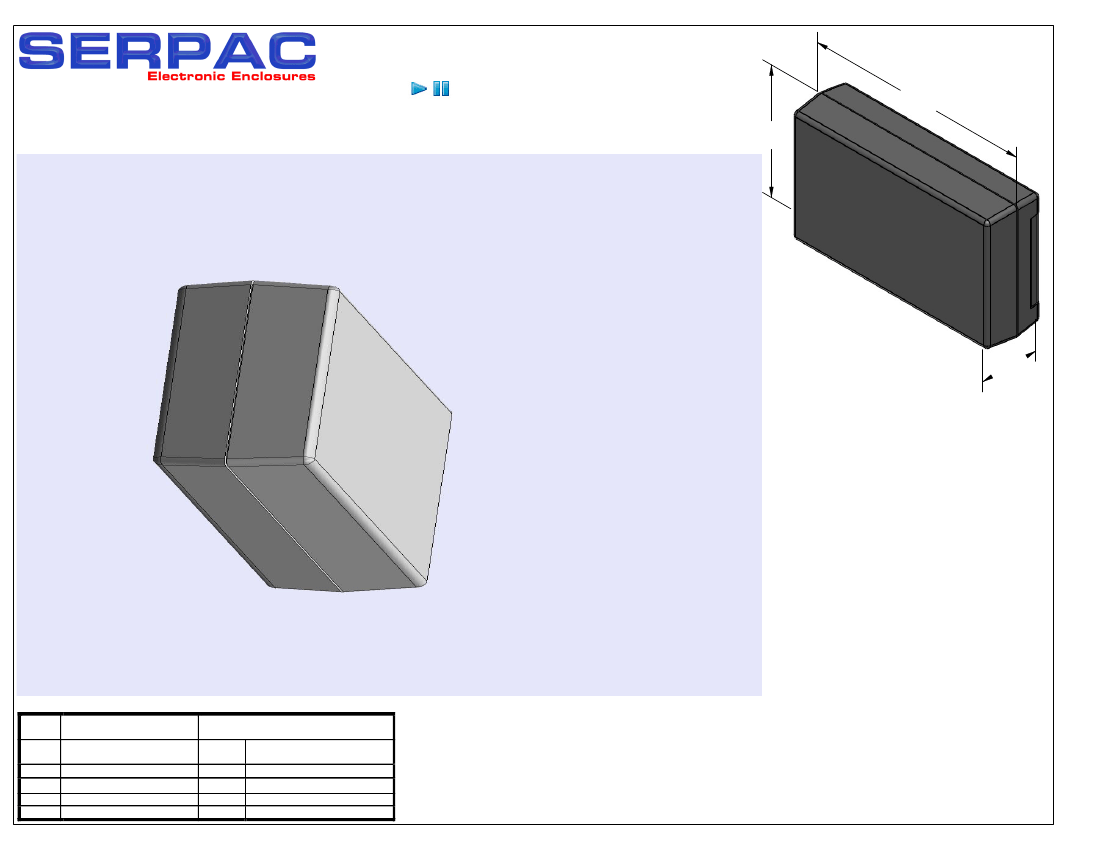

251

(3D exploded)

-Click on image to show toolbar. Use

to Play/Pause Animation.

-Left click and drag on image to move 3D model.

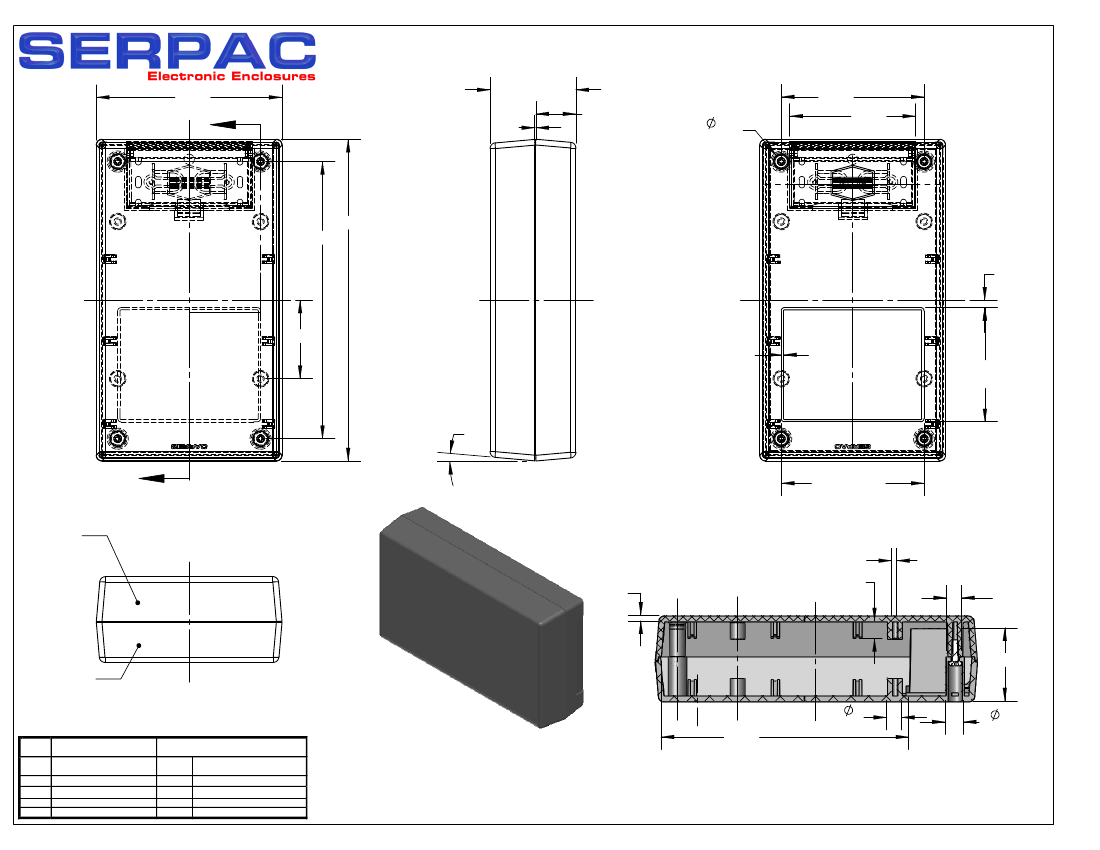

3.25

5.63

1.50

PART

NO.

5-1

1025

6005

DESCRIPTION

(Included)

TOP

BOTTOM

Battery Cover

#4X3/8” Self tapping (4)

ACCSESSORIES

(Optional)

PART

NO.

359

459

DESCRIPTION

Prototype grid board

Prototype clad board

Non-skid feet

3D model options:

a) Zoom in & out with center wheel.

b) Pause at any moment to view and or print views.

c) Change the views to ortho and section views if needed from the Views pull down menu.

d) Explore options included in the tool bar like: Views, Transparency of model, Lighting type, etc.

Notes:

(Enclosure weight 0.26 lb / 118 gm)

1) Enclosure meets or exceeds IP40 and NEMA 1

2) Circuit Board drawings can be download at:

http://www.serpac.com/Accessories/CircuitBoard/drawings/359-459-cbg.pdf

ALL DIMENSIONS ARE ± .010"

4/12/10

(1 of 2)

619 Commercial Ave. Covina, CA 91723

3) All components are RoHS Compliant.

Ph. (626) 331-0517 Fx. (626) 331-8584 serpac.com
