DAC8228FPZ

Description
IC DAC 8BIT DUAL V-OUT 20DIP
CategoryAnalog mixed-signal IC    converter
File Size431KB,12 Pages
ManufacturerADI
Websitehttps://www.analog.com
Environmental Compliance
Download Datasheet Download user manual Parametric Compare View All

DAC8228FPZ Online Shopping

Suppliers Part Number Price MOQ In stock
DAC8228FPZ - - View Buy Now

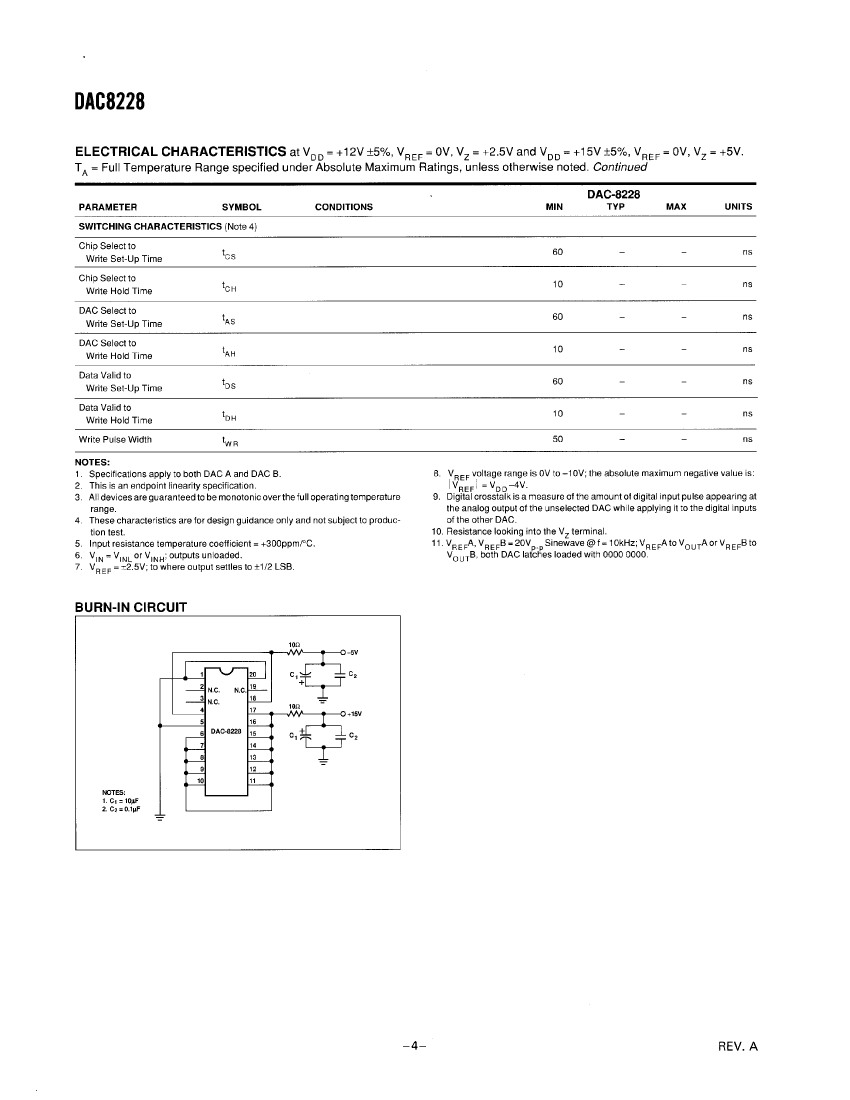

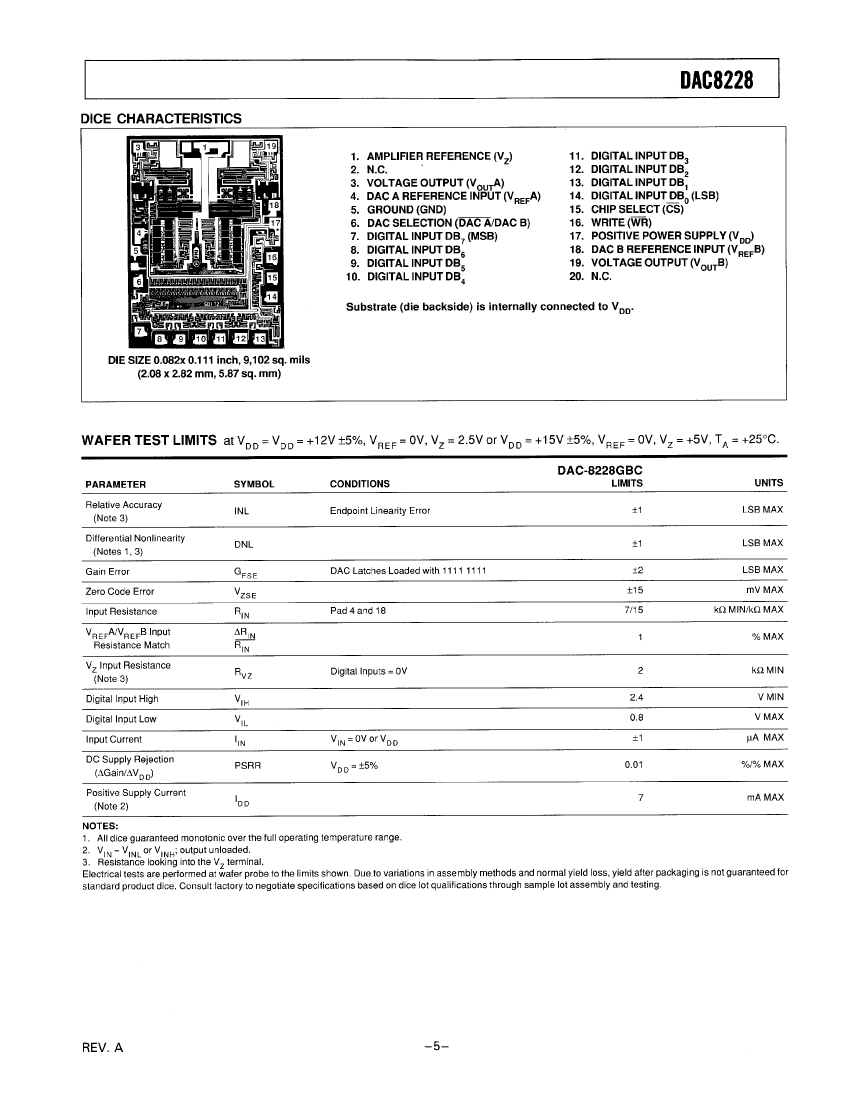

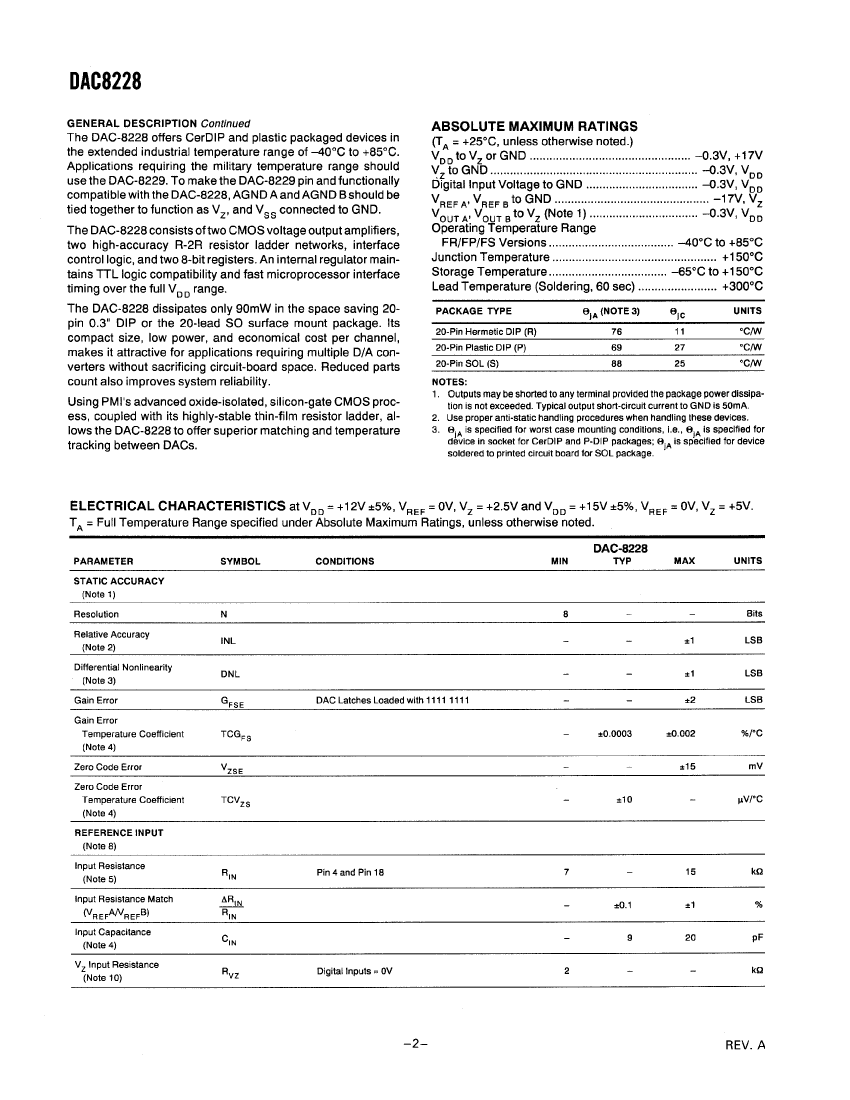

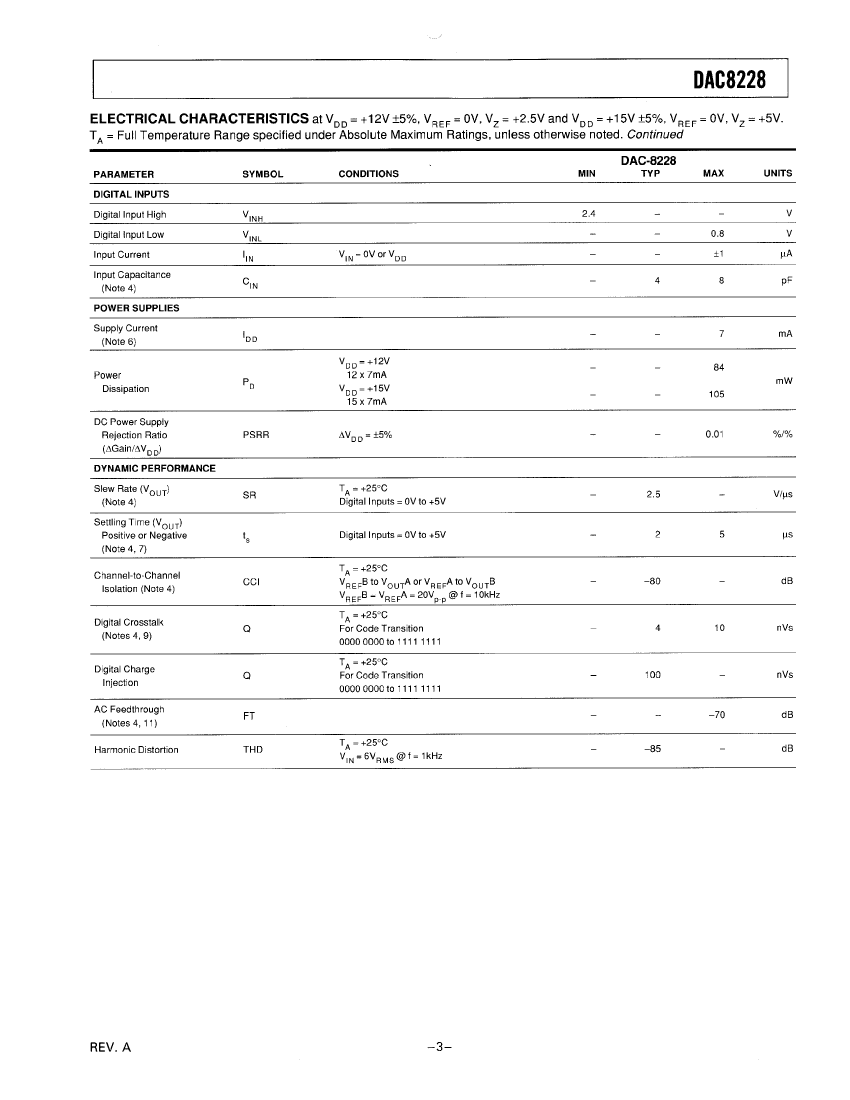

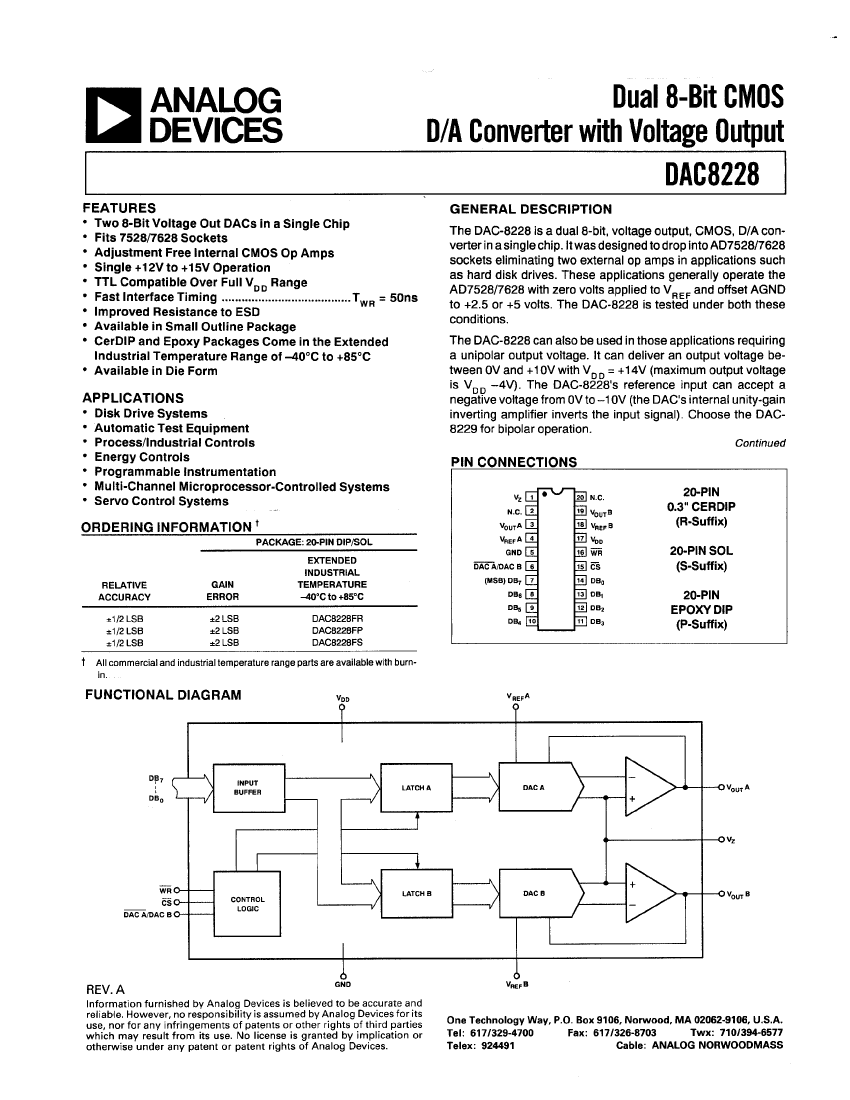

DAC8228FPZ Overview

IC DAC 8BIT DUAL V-OUT 20DIP

DAC8228FPZ Parametric

Parameter NameAttribute value
Brand NameAnalog Devices Inc
Is it lead-free?Contains lead
Is it Rohs certified?conform to
MakerADI
Parts packaging codeDIP
package instructionDIP,
Contacts20
Manufacturer packaging codeN-20
Reach Compliance Codecompliant
ECCN codeEAR99
Samacsys DescriptionAnalog Devices DAC8228FPZ, 2-channel 8 bit Parallel DAC, 500ksps, 20-Pin PDIP
Maximum analog output voltage10 V
Minimum analog output voltage
Converter typeD/A CONVERTER
Enter bit codeBINARY
Input formatPARALLEL, 8 BITS
JESD-30 codeR-PDIP-T20
JESD-609 codee3
length24.51 mm
Maximum linear error (EL)0.3906%
Number of digits8
Number of functions2
Number of terminals20
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeDIP
Package shapeRECTANGULAR
Package formIN-LINE
Peak Reflow Temperature (Celsius)NOT APPLICABLE
Certification statusNot Qualified
Maximum seat height4.57 mm
Maximum stabilization time5 µs
Nominal settling time (tstl)2 µs
Nominal supply voltage12 V
surface mountNO
technologyCMOS
Temperature levelINDUSTRIAL
Terminal surfaceMatte Tin (Sn)
Terminal formTHROUGH-HOLE
Terminal pitch2.54 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT APPLICABLE
width7.62 mm
Base Number Matches1

DAC8228FPZ Related Products

DAC8228FPZ DAC8228FS DAC8228FP DAC8228FSZ
Description IC DAC 8BIT DUAL V-OUT 20DIP IC dac 8bit dual V-out 20-soic IC dac 8bit dual V-out 20-dip IC DAC 8BIT DUAL V-OUT 20SOIC
Is it Rohs certified? conform to incompatible incompatible conform to
Maker ADI ADI ADI ADI
Parts packaging code DIP SOIC DIP SOIC
package instruction DIP, SOL-20 PLASTIC, DIP-20 SOP,
Contacts 20 20 20 20
Reach Compliance Code compliant not_compliant not_compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99
Maximum analog output voltage 10 V 10 V 10 V 10 V
Converter type D/A CONVERTER D/A CONVERTER D/A CONVERTER D/A CONVERTER
Enter bit code BINARY BINARY BINARY BINARY
Input format PARALLEL, 8 BITS PARALLEL, 8 BITS PARALLEL, 8 BITS PARALLEL, 8 BITS
JESD-30 code R-PDIP-T20 R-PDSO-G20 R-PDIP-T20 R-PDSO-G20
JESD-609 code e3 e0 e0 e3
length 24.51 mm 12.8 mm 24.51 mm 12.8 mm
Maximum linear error (EL) 0.3906% 0.3906% 0.3906% 0.3906%
Number of digits 8 8 8 8
Number of functions 2 2 2 2
Number of terminals 20 20 20 20
Maximum operating temperature 85 °C 85 °C 85 °C 85 °C
Minimum operating temperature -40 °C -40 °C -40 °C -40 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code DIP SOP DIP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR RECTANGULAR
Package form IN-LINE SMALL OUTLINE IN-LINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) NOT APPLICABLE 240 NOT SPECIFIED 260
Certification status Not Qualified Not Qualified Not Qualified Not Qualified
Maximum seat height 4.57 mm 2.65 mm 4.57 mm 2.65 mm
Maximum stabilization time 5 µs 5 µs 5 µs 5 µs
Nominal settling time (tstl) 2 µs 2 µs 2 µs 2 µs
Nominal supply voltage 12 V 12 V 12 V 12 V
surface mount NO YES NO YES
technology CMOS CMOS CMOS CMOS
Temperature level INDUSTRIAL INDUSTRIAL INDUSTRIAL INDUSTRIAL
Terminal surface Matte Tin (Sn) Tin/Lead (Sn85Pb15) Tin/Lead (Sn85Pb15) Matte Tin (Sn)
Terminal form THROUGH-HOLE GULL WING THROUGH-HOLE GULL WING
Terminal pitch 2.54 mm 1.27 mm 2.54 mm 1.27 mm
Terminal location DUAL DUAL DUAL DUAL
Maximum time at peak reflow temperature NOT APPLICABLE 30 NOT SPECIFIED 40
width 7.62 mm 7.5 mm 7.62 mm 7.5 mm
Base Number Matches 1 1 1 1
