DELTA12B/X/SMAM/S/S/17 HIGH GAIN

Description
ANT WHIP SMA MALE CONNCT MNT
CategoryTopical application    Wireless rf/communication
File Size212KB,2 Pages
ManufacturerTrompeter (Cinch Connectivity Solutions)
Environmental Compliance
Download Datasheet Parametric Compare View All

DELTA12B/X/SMAM/S/S/17 HIGH GAIN Overview

ANT WHIP SMA MALE CONNCT MNT

DELTA12B/X/SMAM/S/S/17 HIGH GAIN Parametric

Parameter NameAttribute value
frequency groupUHF(300 MHz ~ 1 GHz)
Frequency (center/band)869MHz
Frequency Range-
Antenna typeWhip-shaped, straight
Number of frequency bands1
VSWR2
Return loss-
Gain3dBi
Power - Max50W
characteristic-
TerminationConnector, SMA male
Intrusion protection-
Installation typeConnector installation
Height (maximum value)5.118"(130.00mm)
applicationISM

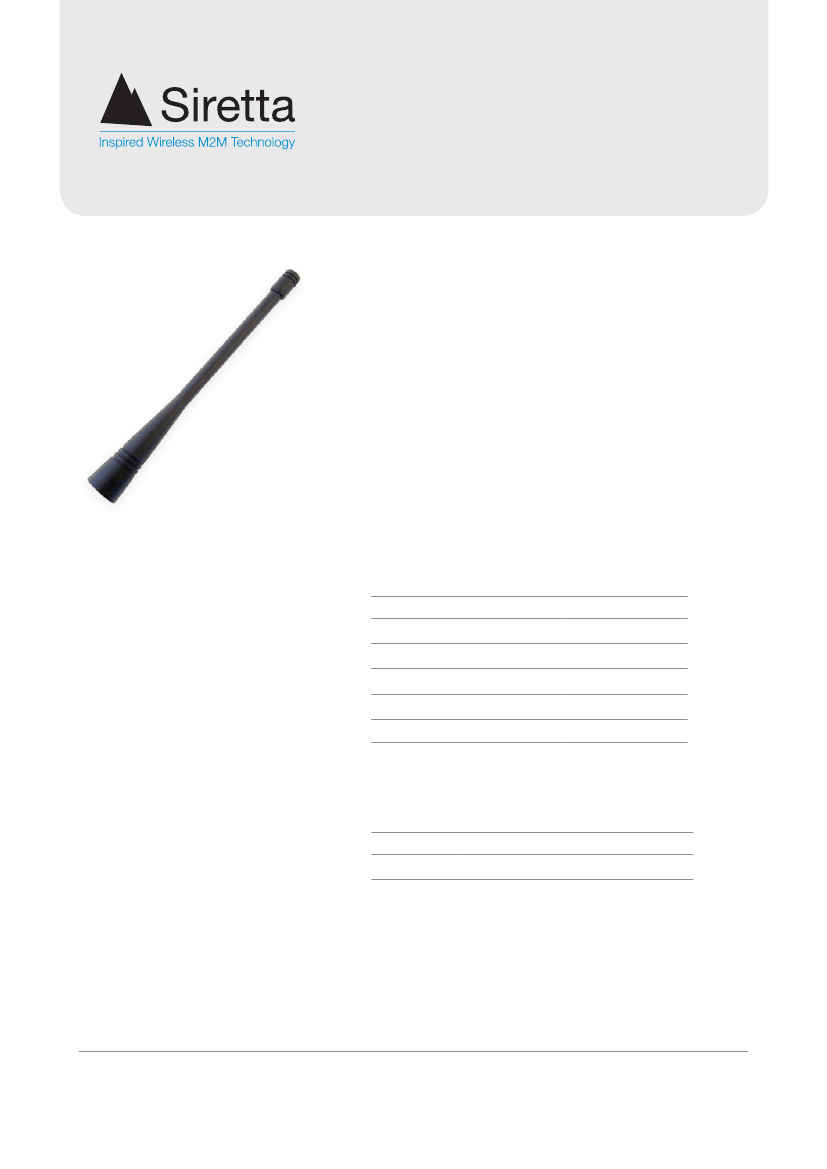

Delta 12
ISM Whip Antenna
Key Features
Range of ISM frequency bands available
3dBi gain
¼ wave radiating element
130mm whip antenna
General Description
The Delta 12s are a range of ¼ wave ISM
whip antennas. This style of antenna is
offered in a number of different frequencies
that meets all the popular ISM bands. Great
quality and affordable pricing, this antenna
is perfect for high volume ISM applications
within the mobile applications world.
The Delta 12s can be tuned to the ISM
(Industrial, Scientific and Medical) radio
frequency bands of 151/173, 433/458,
869 and 915MHz. 151/173MHz and
433/458MHz dictate combined frequencies
into one antenna. The same style and
dimensions of the housing/casing is
used for each antenna regardless of its
frequency.

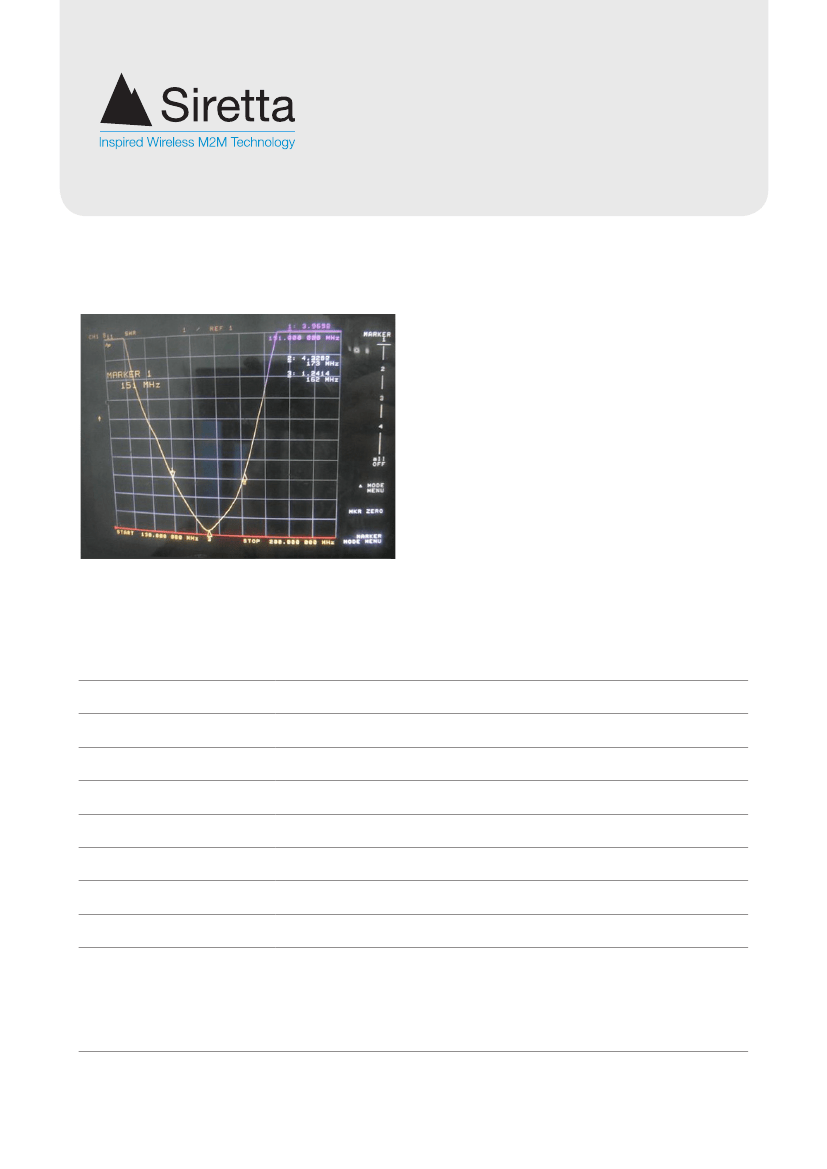

Key Specifications - Electrical
Frequency:
Impedance:
VSWR:
Gain:
Polarization:
Radiation:
Max input power:
151/173, 433/458, 869, 915MHz
50 ohm
<2
3dBi
Vertical ¼ wave
Omnidirectional
50W
Key Specifications - Mechanical
Dimensions:
Connector:
Mounting method:
130mm (Length)
SMA male
Direct connect
Rev 1.6
Siretta Ltd
Basingstoke Road
Spencers Wood
Reading
Berkshire RG7 1PW
sales
fax
email
web
+44(0)118 976 9014
+44(0)118 976 9020
sales@siretta.co.uk
www.siretta.co.uk
A member of the Olancha Group Ltd
Registered in England No. 08405712
VAT Registration No. GB163 04 0349

DELTA12B/X/SMAM/S/S/17 HIGH GAIN Related Products

DELTA12B/X/SMAM/S/S/17 HIGH GAIN DELTA12C/X/SMAM/S/S/17 HIGH GAIN
Description ANT WHIP SMA MALE CONNCT MNT ANT WHIP SMA MALE CONNCT MNT
frequency group UHF(300 MHz ~ 1 GHz) UHF(300 MHz ~ 1 GHz)
Frequency (center/band) 869MHz 915MHz
Antenna type Whip-shaped, straight Whip-shaped, straight
Number of frequency bands 1 1
VSWR 2 2
Gain 3dBi 5dBi
Power - Max 50W 50W
Termination Connector, SMA male Connector, SMA male
Installation type Connector installation Connector installation
Height (maximum value) 5.118"(130.00mm) 5.118"(130.00mm)
application ISM ISM
