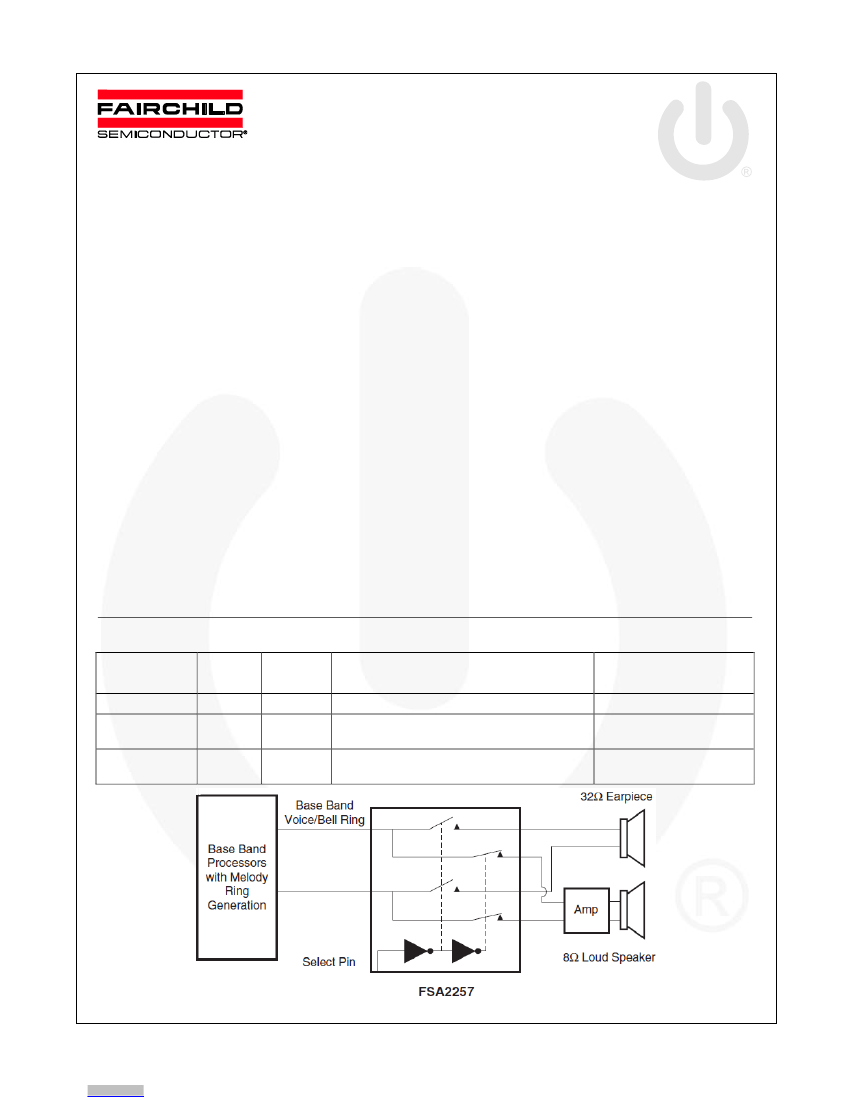

FSA2257— Low R
ON
, Low-Voltage Dual SPDT Bi-Directional Analog Switch
May 2013
FSA2257
Low R
ON
, Low-Voltage Dual SPDT Bi-Directional
Analog Switch
Features
Maximum 1.15
On Resistance (R
ON
) at 4.5 V V
CC
0.3
Maximum R
ON
Flatness at +5 V V
CC
Space-Saving MicroPak™
Broad V
CC
Operating Range: 1.65 V to 5.50 V
Fast Turn-On and Turn-Off Time
Break-Before-Make Enable Circuitry
Over-Voltage Tolerant TTL-Compatible Control
Input
Description

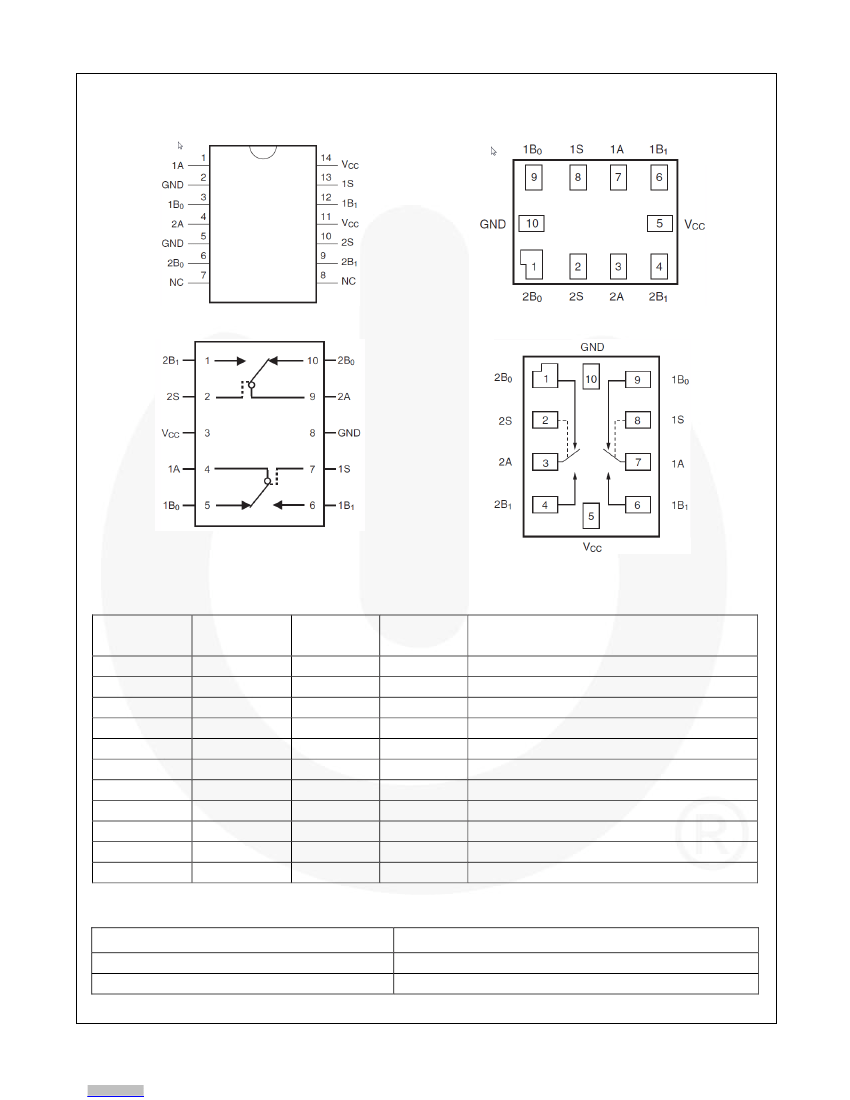

The FSA2257 is a high-performance bi-directional dual
Single-Pole/Double-Throw (SPDT) analog switch. This
switch can be configured as either a multiplexer or a de-
multiplexer by select pins. The device features ultra-low
R
ON
of 1.3
maximum at 4.5 V V
CC
and operates over
the wide V
CC
range of 1.65 V to 5.50 V. The device is
fabricated with submicron CMOS technology to achieve
fast switching speeds and is designed for break-before-
make operation. The select input is TTL-level compatible.
