12
11
10
9
8
7
6
5
4
3
2
1
PLUG
PART NO.
ENG. NO.
RECEPTACLE
PART NO.
ENG. NO.
LEGEND: PLUG
1261 - P * * * - * * *
P = PLUG
LEGEND: RECEPTACLE
1261 - R * * * - * * *
R = RECEPTACLE
BLANK = WITH STD. MOUNTING EARS, WITH LOCK RAMPS
1 = WITH STD. MOUNTING EARS, WITHOUT LOCK RAMPS
2 = WITHOUT MOUNTING EARS, WITHOUT LOCK RAMPS
3 = WITHOUT MOUNTING EARS, WITH LOCK RAMPS
4 = WITH PREBENT MOUNTING EARS, WITH LOCK RAMPS
5 = WITH PREBENT MOUNTING EARS, WITHOUT LOCK RAMPS
03-09-2061
H
03-09-2062
1261-P
1261-P1
7
03-09-1061
03-09-1062
03-09-1063
03-09-1064
46999-0809
46999-0810
1261-R
1261-R1
1261-R2
1261-R3
1261-R4
1261-R5
H
BLANK = PLUG WITH PREBENT MOUNTING EARS
1 = PLUG WITHOUT MOUNTING EARS
COLOR: BLANK = NATURAL COLOR
AM= AMBER
BK= BLACK BU= BLUE
BN= BROWN
GY= GRAY GN= GREEN
OR= ORANGE
RD= RED
YW= YELLOW
MATERIAL: BLANK = NYLON 6/6, UL94V-2
G
COLOR: BLANK = NATURAL COLOR
AM= AMBER
BK= BLACK BU= BLUE
BN= BROWN
GY= GRAY GN= GREEN
OR= ORANGE
RD= RED
YW= YELLOW
G
MATERIAL: BLANK = NYLON 6/6, UL94V-2
F
F
H
.210
5.33
E
.093
2.36
SCALE 2:1
DETAIL
H
SCALE 4:1
.093/(2.36) STANDARD MOUNTING EAR
E
MOUNTING HOLE CUTOUT
D
DIM. "A"
DIM. "B" DIM. "C" (STD. EAR)
DIM. C (PREBENT)
HOUSING
PLUG
.750/(19.05) .695/(17.65)
.39/(9.9)
.40/(10.1)
RECEPTACLE
.718/(18.24) .600/(15.24)
.40/(10.1)
.41/(10.3)
.563
REF.
14.30
.180
4.57
D
2017/03/09
2017/04/06
2017/04/07
NOTES:
1. MATERIAL: SEE LEGEND
2. FINISH: NONE
C
3. PRODUCT SPECIFICATION: PS-43660-9999
4. PACKAGING INFORMATION: PK-1261-001
5. HOUSINGS FOR USE WITH MOLEX .093/(2.36) PIN AND SOCKET TERMINALS.
6. CIRCUIT I.D. NUMBERS ON SIDE OF HOUSING APPEAR ON PARTS FROM
TOOLS BUILT AFTER 9/3/91.
7. WHERE DENOTED IN CHART, TOOLS ARE BUILT WITH PREBENT MOUNTING EARS
PER DETAIL E AND SUPERSEDE ALL TOOLS PREVIOUSLY BUILT WITH THE
STANDARD MOUNTING EARS.
B
8. TEXT AND CIRCUIT IDENTIFIERS ARE SHOWN IN APPROXIMATE LOCATION
BUT MAY VARY TO ACCOMODATE TOOLING.
9. THIS PART CONFORMS TO CLASS B REQUIREMENTS OF COSMETIC
SPECIFICATION PS-45499-002.
10. THIS DRAWING REPLACES SD-1261-*.
.093
2.36
C
DETAIL
G
SCALE 5:1
DETAIL
E
SCALE 4:1
.093/(2.36) PREBENT MOUNTING EAR
B
QUALITY THIS DRAWING CONTAINS INFORMATION THAT IS PROPRIETARY TO MOLEX ELECTRONIC TECHNOLOGIES, LLC AND SHOULD NOT BE USED WITHOUT WRITTEN PERMISSION
DIMENSION UNITS
SCALE
SYMBOLS
=
=
=
=
0
0
UPDATE VIEWS
GENERAL TOLERANCES
(UNLESS SPECIFIED)
IN/MM
DRWN BY
DATE
1:1
2017/01/11
DATE
MM
INCH
±
±
0.007
±
0.01
±
±
4 PLACES
3 PLACES
2 PLACES
±
±
±
0.18
±
0.25
±
BAPPELDORN
CHK'D BY
0
0
0
0
0
0

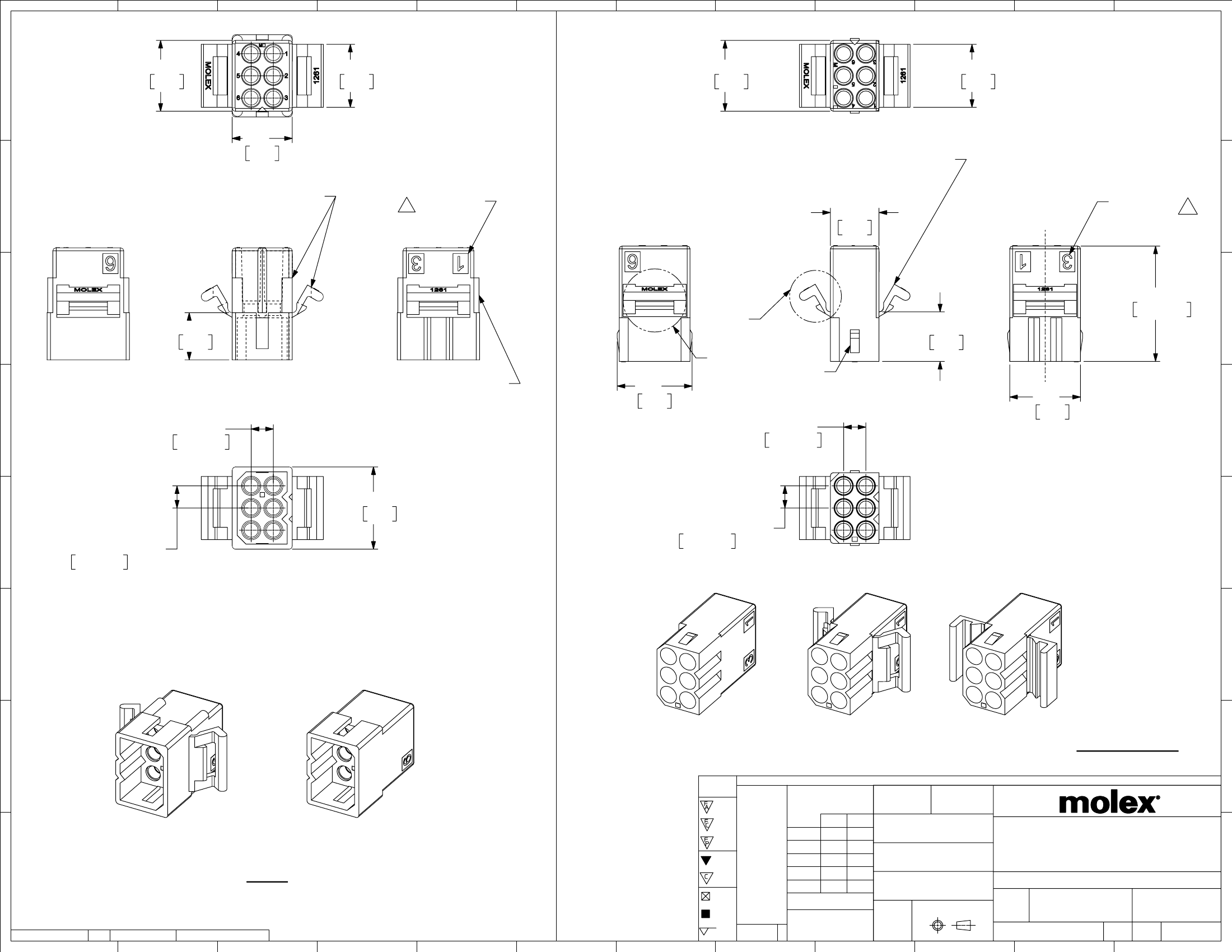

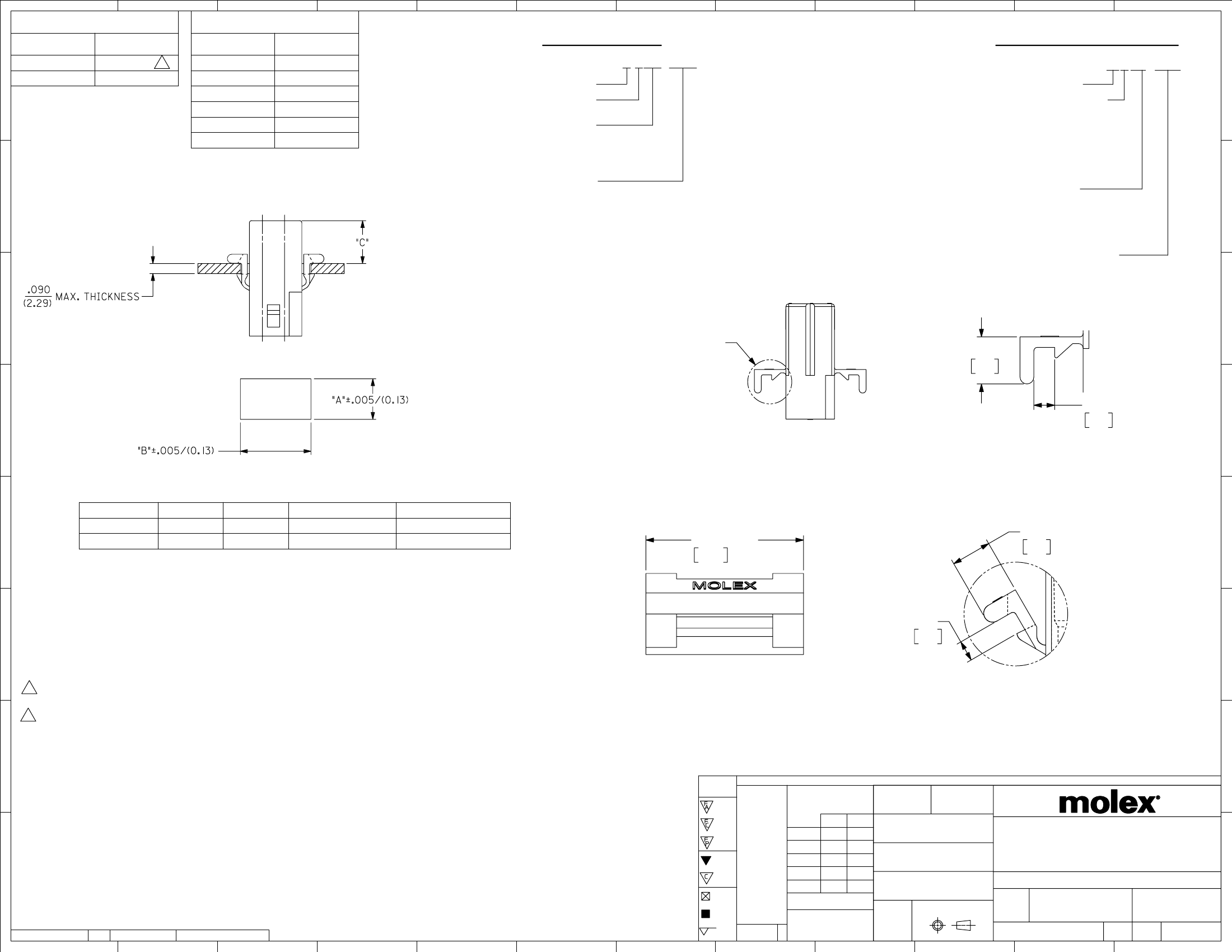

.093/2.36 PLUG AND RECEPTACLE HOUSING
2017/01/11
114311
MKIPPER
JDFOX
FSMITH
MKIPPER
APPR BY
DATE
A
=
=
=
1 PLACES
0 PLACES
PRODUCT CUSTOMER DRAWING
2017/01/18
SERIES
MATERIAL NUMBER
CUSTOMER
A
FSMITH
DRAWING SIZE
EC NO:
DRWN:
CHK'D:
APPR:
ANGULAR TOL
±
DRAFT WHERE APPLICABLE
MUST REMAIN
WITHIN DIMENSIONS
THIRD ANGLE PROJECTION
1261
DOCUMENT NUMBER
SEE CHART
GENERAL MARKET
DOC TYPE
DOC PART
SHEET NUMBER
RELEASE STATUS
FORMAT: Eng-lega-master-tb-prod-C
REVISION: C
DATE: 2016/02/04
P1
RELEASE DATE
07.04.2017
21:41:04
C
=
A1
5
REV
C
3
12610000-SD
PSD
000
2 OF 2
1
12
11
10
9
8
7
6
4
2
