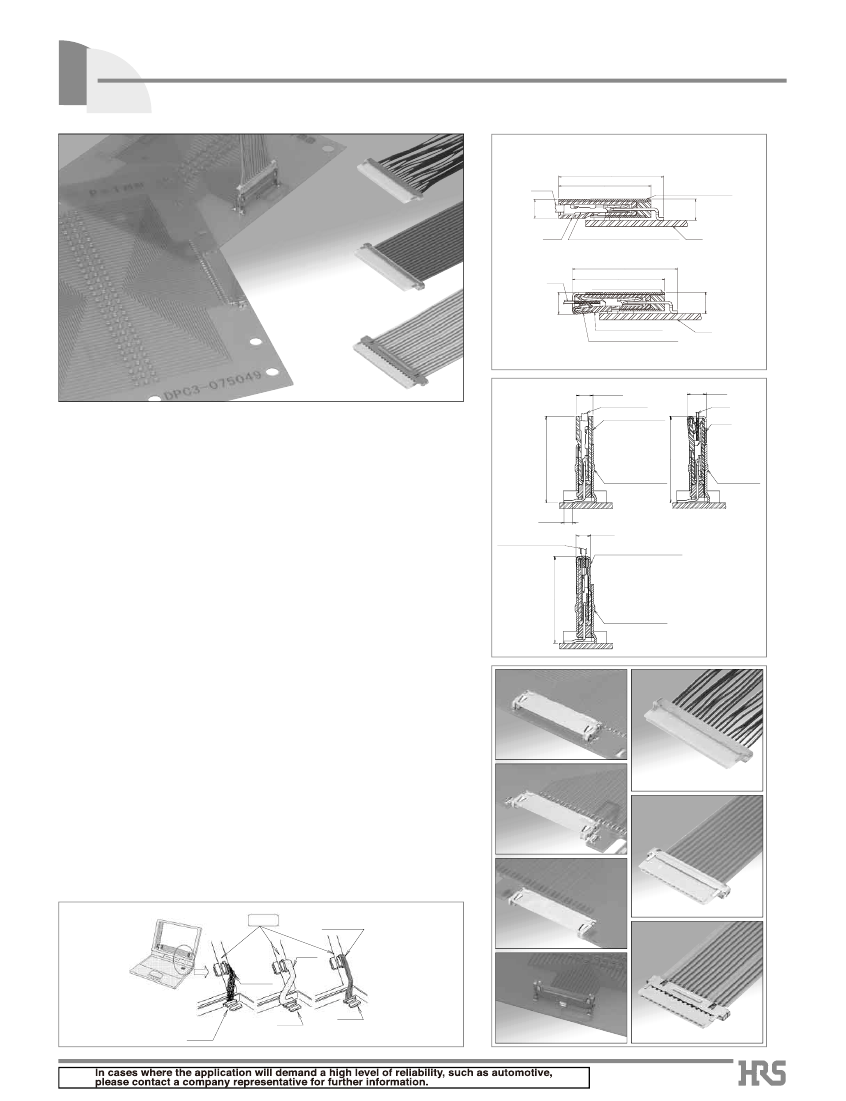

1mm Contact Pitch, Board-to-Cable, Board-to-FPC,
Board-to-Micro-coaxial Cable Connectors
DF19 Series
Small configuration and board space
8.2
7.2
DF19G-*P-1H(54)
1.65
Plug
DF19A-2830 / 3032 / 36SCFA
PCB
FPC
(1.7)
8.2
7.2
DF19G-*P-1H(54)
1.65
DF19G-*S-1F(05)
DF19G-*S-1F-GND(05)
PCB
1.5±0.1
Discrete wire
(1.7)
FPC
Plug
DF19G-*S-1C(05)
(7.7)
DF19-*P-1V(56)
Receptacle
1.3±0.2
DF19G-*S-1SD(05)
+DF19G-*S-1SD-GND
DF19-*P-1V(56)
(7.7)
(0.78)
Micro-coaxial cable
(7.7)
Cable
1.5
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
Horizontal mounting
■
Overview
Industry and market accepted as “De facto” standard for LCD panel
connections (panels under 12 inches).
High-performance connectors for LVDS high-speed differential
signals.
■Features
1. Small configuration and board space
Thin design accepts discrete wire, thin micro-coaxial cable
(Ø1.5mm, Ø1.6mm max.) and FPC 1.7mm maximum thick.
2. Common use of receptacle
The same receptacle will accept plugs terminated with discrete wire,
FPC or micro-coaxial cable.
Vertical mounting
3. Uniform external dimensions
The plug assembly external dimensions remain the same when is
terminated with discrete wire, FPC or micro-coaxial cable.
Top-board mounting
Discrete wire
4. Variety of mounting styles
Device design engineers have a choice of mounting styles : top-
board, offset, reverse mount offset and vertical.
5. Ground connection
Metal grounding plates connect with the common ground line.
Offset mounting
FPC
6. Glow wire compliance (Compliant with IEC60695-2-11)
■
Applications
LCD connections in small consumer devices : digital cameras,
notebook computers, PDA’s. Any device requiring high-density
interconnection for consistent high speed transmission data rates.
DF19
Micro-coaxial cable
Reverse, offset mounting
Micro-coaxial cable
Vertical mounting
FPC
Twisted
pair cable
Notebook PC
DF19
DF19
DF19
B253
DF19 Series●1mm Contact Pitch, Board-to-Cable, Board-to-FPC, Board-to-Micro-coaxial Cable Connectors
■Product
Specifications
Current rating 28 AWG : 1A
30 AWG : 0.9A
32 AWG : 0.8A
Rating
36 AWG : 0.5A
FPC
Voltage rating 100V AC
Item
Specification
500Mø min.
No flashover or insulation breakdown.
30mø max. (50mø max. for FPC)
Min. 0.2N, Max. 3N
Operating temperature range -35ç to 85ç Note 1
Storage temperature range
-10ç to 60ç Note 2
-35ç to 85ç
Note 2
Operating humidity range
-20%
to 80%
Storage humidity range
: 0.5A
-40%
to 70%
Micro-coaxial cable 40 AWG : 0.3A
Conditions
100 V DC
300 V AC / one minute
100 mA
Measured with a steel pin Ø0.2±0.005
Frequency : 10 to 55 Hz, single amplitude of 0.75mm,
2 hours in each of the 3 directions.
96 hours at temperature of 40±2ç and
humidity of 90% to 95%
Temperature : –55ç
➝
+5ç to +35ç
➝
+85ç
➝
+5ç to +35ç
Time (Minutes) :
–30
➝
+10
➝
+30
➝
+10
5 cycles
30 cycles
Re-flow soldering : At the recommended temperature profile
Manual soldering : Soldering iron temperature 300ç, 3 seconds
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1.Insulation resistance
2.Withstanding voltage
3.Contact resistance
4.Insertion-Extraction force
(per contact)
5.Vibration
6.Humidity
(Steady state)
7.Temperature cycle
No electrical discontinuity of 1μs or more.
Contact resistance : 30mø max. (50mø max. for FPC)
Insulation resistance : 500Mø min.
Contact resistance : 30mø max. (50mø max. for FPC)
Insulation resistance : 500Mø min.
8.Durability
(insertion/ withdrawal) Contact resistance : 30mø max. (50mø max. for FPC)
9.Resistance to
soldering heat
No deformation of the insulator parts affecting performance.
Note1 : Includes temperature rise caused by current flow.
Note2 : The term “storage” refers to connectors stored for long period of time prior to mounting and use. Operating Temperature
Range and Humidity range covers non-conducting condition of installed connectors in storage, shipment or during
transportation.
■
Materials / Finish
Product
Receptacle
Component
Insulator
Contacts
Grounding plate
Plug
Crimp contact
Plug for PPC
Grounding plate for PPC
Plug for micro-coaxial cable
Grounding plate for micro-coaxial cable
Insulator
Tin-lead plated
Contact
Insulator
Contact
Grounding plate
Insulator
Contact
Grounding plate
Grounding plate
Material
Polyamide
Phosphor bronze
Phosphor bronze
Polyamide
Stainless steel
Phosphor bronze
Polyamide
Phosphor bronze
Stainless steel
LCP
Phosphor bronze
Phosphor bronze
Phosphor bronze
Finish/Color
Black or Beige
Gold plated
Tin plated or Tin-copper plated
Beige
Tin-copper plated
Gold Plated
Beige
Gold plated
Tin-copper plated
Beige
Gold plated
Tin plated
Tin plated
Remarks
UL94V-0
----------
----------
----------
----------
----------
UL94V-0
----------
----------
UL94V-0
----------
----------
----------
B254
DF19 Series●1mm Contact Pitch, Board-to-Cable, Board-to-FPC, Board-to-Micro-coaxial Cable Connectors
■
Product Number Structure
Refer to the chart below when determining the product specifications from the product number.
Please select from the product numbers listed in this catalog when placing orders.
●
Connector
DF19 # -
*
P - 1 H
1
2
3
4
5
6
DF19 # -
*
S - 1 F - GND
1
2
3
4
5
6
7
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
: DF19
1
Series Name
2
Configuration
■
Receptacle
G : Top-board mounting (1.65mm high)
K : Offset mounting (1.0mm high)
L : Offset mounting (1.1mm high)
KR : Reverse offset mounting version of
DF19K (1.0mm high)
■
Plug for discrete wire
Blank : No grounding plate
G
: With grounding plate
■
Plug for FPC
G
G
G
G
: With grounding plate
: With grounding plate
: With grounding plate
: With grounding plate
3
Number of contacts : 8,14,20,30 (Note 1)
4
Connector type
S : Plug
P : Receptacle
5
Contact pitch : 1mm
6
Mounting type/Termination type
H
: Horizontal SMT
V
: Vertical SMT
C
: Plug – discrete wire (crimp contact)
F
: Plug – FPC
SD : Plug – micro-coaxial cable
7
Additional separate component
GND : Ground plate (Note 2)
■
Grounding plate for FPC
■
Plug for micro-coaxial cable
■
Grounding plate for micro-coaxial cable
Note 1 : Number of contacts will differ depending on the connector style.
Note 2 : Grounding plates are required when terminating with the FPC and micro-coaxial cable.
●
Contact
DF19A - 2830 SCF A (
* *
)
1
1
Conductor size
2830 : 28 to 30 AWG
3032 : 30 to 32 AWG
0036
: 36 AWG
2
Contact type
SCF : Plug contact, tape and reel
packaging
2
3
3
Plating
A : Gold
4
4
Packaging
Blank : 10,000 pcs/reel
(41) : 20,000 pcs/reel
B255
DF19 Series●1mm Contact Pitch, Board-to-Cable, Board-to-FPC, Board-to-Micro-coaxial Cable Connectors
■Right
angle receptacle, top-board mounting
2.375
P= 1
2.45
A
B
0.25
2.175
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
4.7
2
Contact No. 1 indicator
C
5.7
1.65
B
PCB mounting pattern
1.85±0.1
1
0
+0.1
B±0.05
P=1±0.05
0.55±0.05
1.65
1.65±0.1
2.5±0.05
2.5
+0.1
0
1.1
+0.1
0
Outline of the receptacle
No conductive traces
Specification
(54) : Tape & reel packaging
(1,000 pcs/reel)
Unit : mm
Part No.
DF19G-18P-1H (54)
DF19G-14P-1H (54)
DF19G-20P-1H (54)
DF19G-30P-1H (54)
HRS No.
685-0021-0 54
685-0004-0 54
685-0006-6 54
685-0015-7 54
No. of contacts
8
14
20
30
A
11.55
17.55
23.55
33.55
B
7
13
19
29
C
11.95
17.95
23.95
33.95
1.65mm high
YES
Remarks
RoHS
Note : Order by number of reels.
B256
DF19 Series●1mm Contact Pitch, Board-to-Cable, Board-to-FPC, Board-to-Micro-coaxial Cable Connectors
■Right
angle receptacle, offset mounting
2.375
P=1
2.45
A
B
0.25
2.175
4.7
DF19K
identification indicator
2
Contact No. 1 indicator
C
F
6.7
Oct.1.2018 Copyright 2018 HIROSE ELECTRIC CO., LTD. All Rights Reserved.
1
1.46
F
B
PCB mounting pattern
3.175±0.1
P=1±0.05
1.5
+0.1
0
0.55±0.05
1
+0.1
0
B±0.05
2.975±0.1
5.5±0.1
0.3
2.5
+0.1
0
Outline of the receptacle
D
+0.2
-0.1
E±0.1
Specification
(54) : Tape & reel packaging
(1,000 pcs/reel)
(2.2)
Outline of the plug
0.3
5.3±0.1
Unit : mm
Part No.
DF19K-20P-1H (54)
DF19K-30P-1H (54)
Part No.
DF19L-14P-1H (54)
DF19L-20P-1H (54)
DF19L-30P-1H (54)
HRS No.
685-0008-1 54
685-0032-6 54
HRS No.
685-0003-8 54
685-0019-8 54
685-0016-0 54
No. of contacts
20
30
No. of contacts
14
20
30
A
23.55
33.55
A
17.55
23.55
33.55
B
19
29
B
13
19
29
C
D
E
F
0.1
0.1
F
1.1
1.1
1.1
1.1mm high
YES
Remarks
1.0mm high
RoHS
YES
26.55 24.15 25.15
36.55 34.15 35.15
C
D
E
Remarks
RoHS
20.55 18.15 19.15
26.55 24.15 25.15
36.55 34.15 35.15
Note : Order by number of reels.
B257
