DESCRIPTION:
MODEL NUMBER:
APPLICATION:
CRIMP TOOL:
IMPEDANCE:
FREQUENCY RANGE:
MATERIAL:
RoHS COMPLIANCE:
TECHINCAL DETAIL:
CAT5E, RJ11 (4P4C) MODULAR PLUG, UNSHIELDED,
SOLID/STRANDED, FLAT/ROUND CABLE
32-5964UL
MODULAR PLUG
N/A
N/A
N/A
HOUSING
CLEAR POLYCARBONATE UL94-V0
CONTACT
PHOSPHOR BRONZE
SELECTIVE GOLD PLATING
YES
N/A
.022 [0.56] TYP
.040 [1.02]
.260 [6.60]
.020 [0.51]
.525 [13.33] REF
.300 [7.62]
.204 [5.18]
.110 [2.79]
.100 [2.54]
.196 [4.98]
3RD ANGLE PROJECTION
.294 [7.47] REF
.096 [2.44]
.045 [1.14]
.232 [5.89]
.485 [12.32]
.109 [2.77]
AIM-Cambridge
Title:
RoHS2
This PROPRIETARY Document
is property of Cinch Connectivity
Solutions. It is confidential in
nature, non-transferable, and
issued with the clear
understanding that it is not
traced or copied without
permission and is returnable
upon demand.
2011/65/EU
UNLESS OTHERWISE SPECIFIED
UNITS: INCH

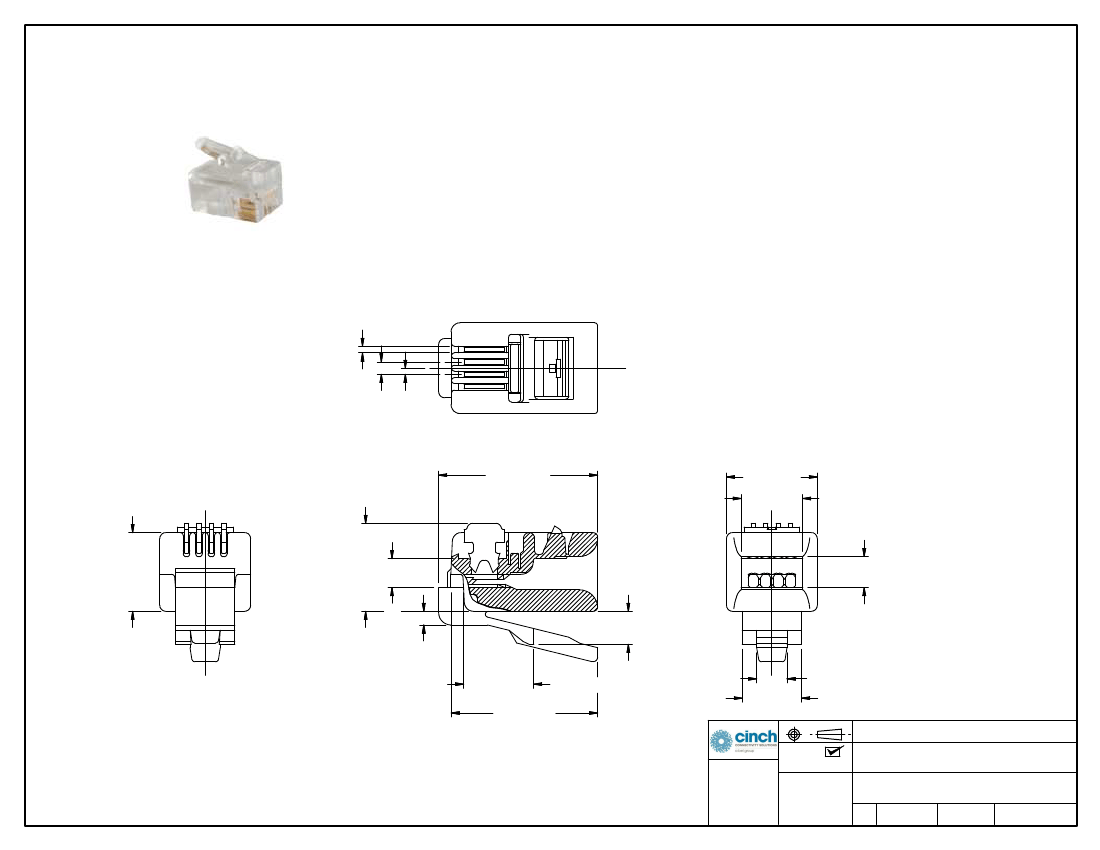

CAT5E, RJ11 (4P4C) Modular Plug,
Unshielded, Solid/Stranded, Flat/Round Cable
Model No.
INTERPRET DRAWING IN
ACCORDANCE W ITH ASME
Y14.5-2009.
.XX
u
.02
.XXX
u
.005
ANGLES
u
2
v
32-5964UL
Size
A
DO NOT SCALE
Date:
2015/12/9
DRAWING
Sheet 1 of 1
