8194 Overview

MAGNET ROUND NDFEB AXIAL

8194 Parametric

Parameter NameAttribute value
shapecylinder
magnetizationAxial
MaterialNeodymium Iron Boron (NdFeB)
surfaceNiCuNi
gradeN35
Gaussian intensity3356G (surface magnetic field strength)
size0.375" diameter x 0.125" height (9.53mm x 3.18mm)
Operating temperature-

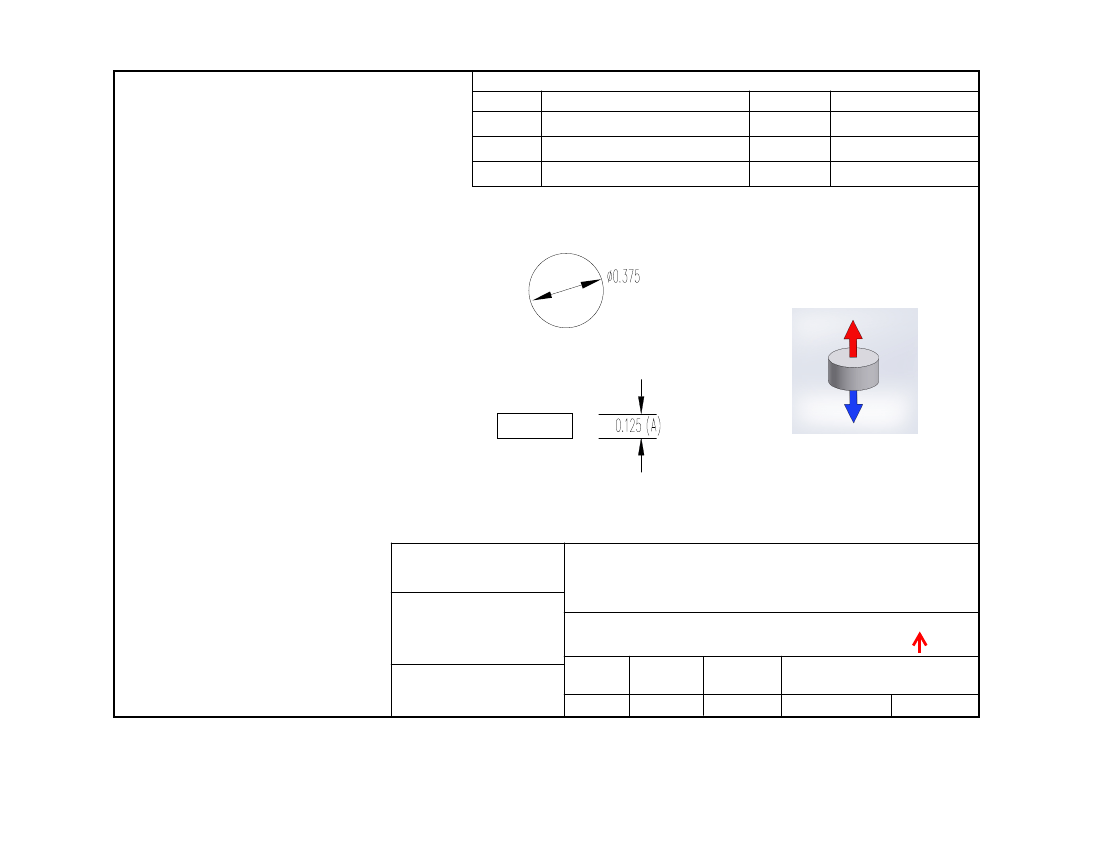

REVISIONS
LTR
DESCRIPTION
INITIAL RELEASE
DATE
APPROVED
H D
_
UNLESS OTHERWISE SPECIFIED
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTONS:
DECIMALS:
ANGLES:
± 1/64
± 0.015
±1°
SHAPE
RADIAL MAGNETS INC.
108B NW 20th St. BOCA RATON,FL 33431 (561)392-2103
STRENGTH
PLATING
NiCuNi
SIZE AND DIRECTION OF MAGNETIZATION (A)
DISC
SIZE
A
SCALE 2 : 1
N35
PART #
8194
D 3/8" x 1/8"
DRAWING #
RM8194
MATERIAL:
FINISH:
NdFeB
NiCuNi
REVISION
-
APPROVED:
HD
PAGE 1 OF
1
DRAWN: CG
CHECKED: HD
