INL-5AX30
5 mm Through Hole Lamp
Features
•
•
•
•
•
•
5mm Through hole, 8.65mm lens height
High Brightness
Water Clear lens
InGaN / AlInGaP Technology
Special packaging available upon request
High reliability
Description
The INL-5AX30 is high brightness 30 degrees
through-hole lamp. It is a 5mm epoxy type LED which
can be used in various applications.
Applications
•
•
•
•
•
Consumer Electronics
Variable Message Signs (VMS)
Automobile After Market
Industrial Equipment
Advertising Signs
Package Dimensions
in mm
Inolux Corporation
Proprietary & Confidential

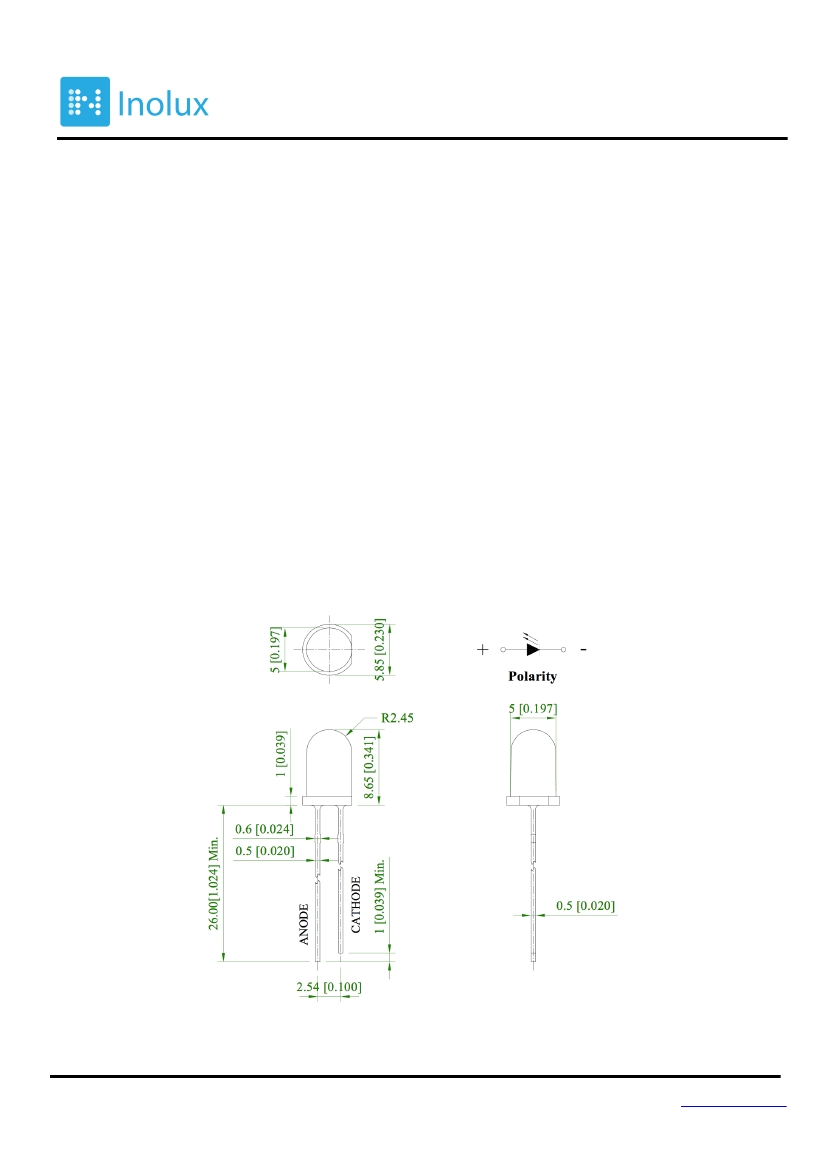

Figure 1. INL-5AX30 Package Dimensions
July 10, 2017
Page 1
www.inolux-corp.com
INL-5AX30
5 mm Through Hole Lamp
Absolute Maximum Rating at 25
o
C
(Note 1)
Emission
Color
Yellow Green
Yellow
65
INL5AA30
INL5AR30
INL5AB30
INL5AG30
INL5AW30
Amber
Red
Blue
Green
White
95
25
100
5
-40 C~+85 C
o
o
Product
INL-5AYG30
INL5AY30
P
d
(mW)
I
F
(mA)
I
FP
* (mA)
V
R
(V)
T
OP
(
o
C)
T
ST
(
o
C)
25
100
-40 C~+100 C
o
o
Notes
1. Condition for IFP is pulse of 1/10 duty and 0.1msec width
Proprietary & Confidential
Inolux Corporation
July 10, 2017
Page 2
www.inolux-corp.com
INL-5AX30
5 mm Through Hole Lamp
A
Electrical Characteristics
T
Emission
Color
= 25°C
(Note 1)
V
F
(V)
Product
I
F
(mA)
min
max
λ
D
λ(nm)
λ
P
△λ
Viewing
Angle
2θ
1/2
I
*V
(mcd)
min
typ.
INL-5AYG30
Yellow
Green
Yellow
20
1.6
2.6
573
575
20
30
270
460
INL5AY30
20
1.6
2.6
590
592
15
30
600
1000
INL5AA30
Amber
20
1.6
2.6
605
610
35
30
460
780
INL5AR30
Red
20
1.6
2.6
624
632
20
30
780
1300
INL5AB30
Blue
20
2.6
3.8
470
468
25
30
2900
5000
INL5AG30
Green
20
2.6
3.6
525
520
X = 0.28
Y = 0.28
35
30
14000 23000
INL5AW30
White
20
2.8
3.8
30
6500
8500
Notes
1. Performance guaranteed only under conditions listed in above tables.
ESD Precaution
ATTENTION: Electrostatic Discharge (ESD) protection
The symbol above denotes that ESD precaution is needed. ESD protection for GaP and AlGaAs based chips is necessary even
though they are relatively safe in the presence of low static-electric discharge. Parts built with AlInGaP, GaN, or/and InGaN based
chips are STATIC SENSITIVE devices. ESD precaution must be taken during design and assembly.
If manual work or processing is needed, please ensure the device is adequately protected from ESD during the process.
Please be advised that normal static precautions should be taken in the handling and assembly of this device to prevent damage or degradation which
may be induced by electrostatic discharge (ESD).
Proprietary & Confidential
Inolux Corporation
July 10, 2017
Page 3
www.inolux-corp.com
INL-5AX30
5 mm Through Hole Lamp

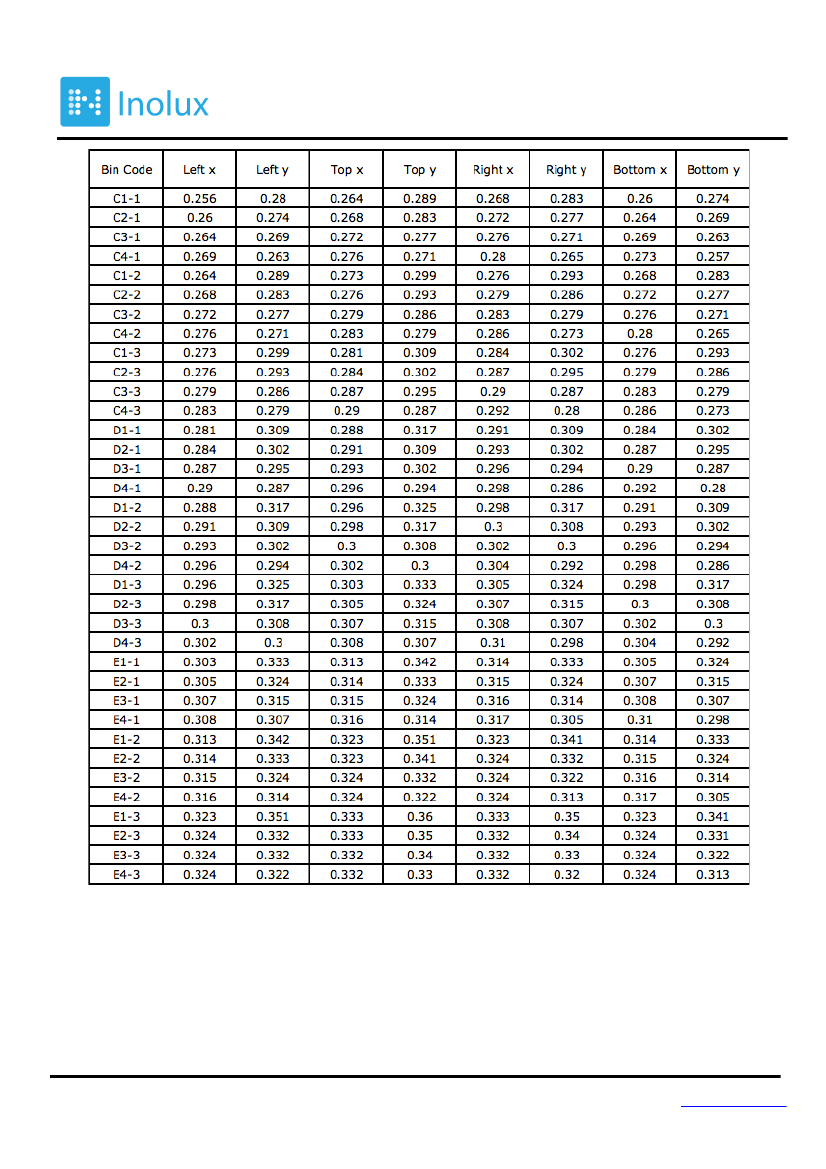

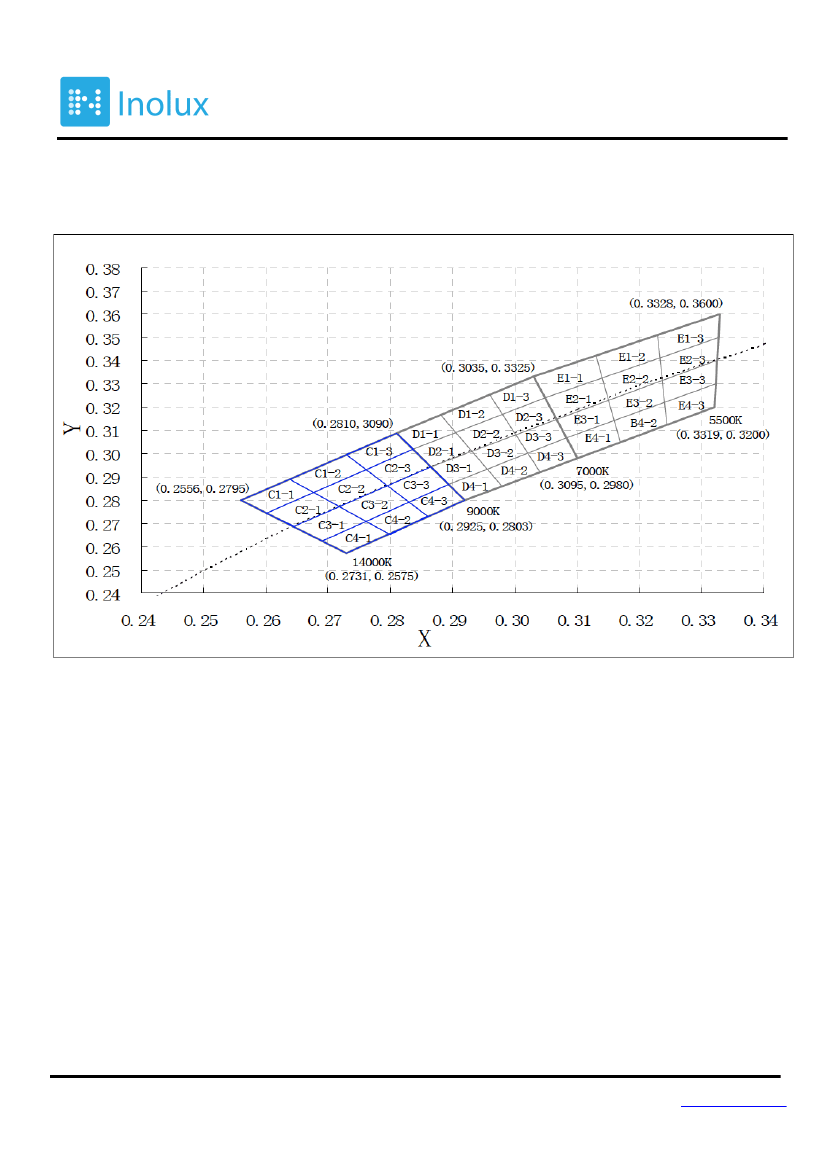

Chromaticity Bin ( For White Only)
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 4
www.inolux-corp.com
INL-5AX30
5 mm Through Hole Lamp
Inolux Corporation
Proprietary & Confidential
July 10, 2017
Page 5
www.inolux-corp.com
