ZMY9.1G datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> ZMY9.1G

ZMY9.1G: Description9.1 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE; CategoryDiscrete semiconductor diode; File Size109KB，2 Pages; ManufacturerDIOTEC; Websitehttp://www.diotec.com/; Environmental Compliance

Download Datasheet Parametric View All

ZMY9.1G Overview

9.1 V, 1 W, SILICON, UNIDIRECTIONAL VOLTAGE REGULATOR DIODE

ZMY9.1G Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	DIOTEC
Parts packaging code	DO-213AB
package instruction	O-LELF-R2
Contacts	2
Reach Compliance Code	compli
ECCN code	EAR99
Shell connection	ISOLATED
Configuration	SINGLE
Diode component materials	SILICON
Diode type	ZENER DIODE
Maximum dynamic impedance	4 Ω
JEDEC-95 code	DO-213AB
JESD-30 code	O-LELF-R2
Humidity sensitivity level	1
Number of components	1
Number of terminals	2
Maximum operating temperature	175 °C
Minimum operating temperature	-50 °C
Package body material	GLASS
Package shape	ROUND
Package form	LONG FORM
Peak Reflow Temperature (Celsius)	260
polarity	UNIDIRECTIONAL
Maximum power dissipation	1 W
Certification status	Not Qualified
Nominal reference voltage	9.1 V
surface mount	YES
technology	ZENER
Terminal form	WRAP AROUND
Terminal location	END
Maximum time at peak reflow temperature	NOT SPECIFIED
Maximum voltage tolerance	5%
Working test current	50 mA
Base Number Matches	1

Preview

Download Datasheet

View All

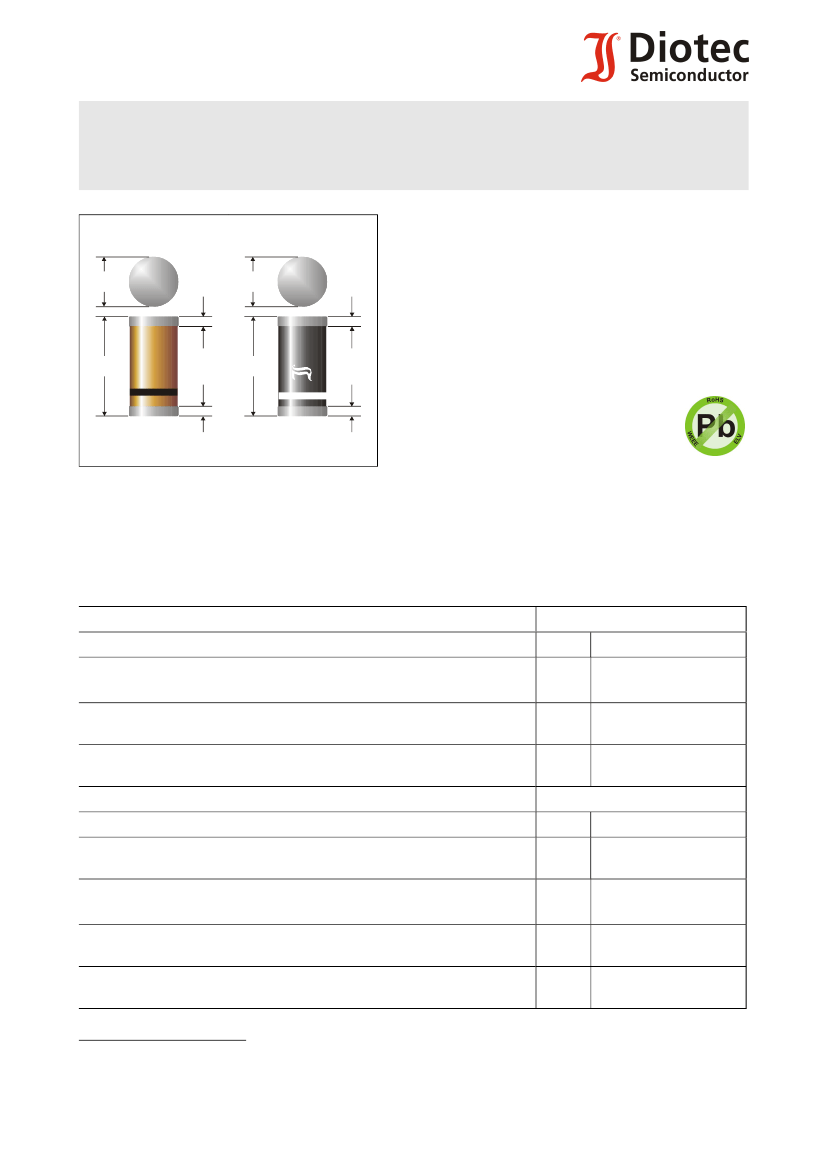

ZMY3.0G ... ZMY9.1G (1.0 W), ZMY1, ZMY10 ... ZMY200 (1.3 W)

ZMY3.0G ... ZMY9.1G (1.0 W),

ZMY1, ZMY10 ... ZMY200 (1.3 W)

Surface Mount Silicon-Zener Diodes

Si-Zener-Dioden für die Oberflächenmontage

Version 2006-04-27

ZMY...G planar

ZMY... non-planar

ZMY3.0G ... ZMY9.1G

Nominal Z-voltage – Nominale Z-Spannung

3.0...9.1 V

DO-213AB

10...200 V

DO-213AB

0.12 g

Glass case – Glasgehäuse MELF

ZMY1, ZMY10 ... ZMY200

Nominal Z-voltage – Nominale Z-Spannung

2.5

0.4

0.5

Type

Typ

5.0

Type

Typ

Plastic case – Kunststoffgehäuse MELF

Weight approx. – Gewicht ca.

Plastic material has UL classification 94V-0

Gehäusematerial UL94V-0 klassifiziert

Standard packaging taped and reeled

Standard Lieferform gegurtet auf Rolle

0.4

Dimensions

- Masse [mm]

Standard Zener voltage tolerance is graded to the international E 24 (~ ±5%) standard.

Other voltage tolerances and higher Zener voltages on request.

Die Toleranz der Zener-Spannung ist in der Standard-Ausführung gestuft nach der internationalen

Reihe E 24 (~ ±5%). Andere Toleranzen oder höhere Arbeitsspannungen auf Anfrage.

Maximum ratings and Characteristics

Power dissipation – Verlustleistung

Junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal

Wärmewiderstand Sperrschicht – Anschluss

Power dissipation – Verlustleistung

Non repetitive peak power dissipation, t < 10 ms

Einmalige Impuls-Verlustleistung, t < 10 ms

Junction temperature – Sperrschichttemperatur

Storage temperature – Lagerungstemperatur

Thermal resistance junction to ambient air

Wärmewiderstand Sperrschicht – umgebende Luft

Thermal resistance junction to terminal

Wärmewiderstand Sperrschicht – Anschluss

0.5

Grenz- und Kennwerte

ZMY3.0G ... ZMY9.1G

= 50°C

tot

1.0 W

)

-50...+175°C

< 150 K/W

)

< 70 K/W

thA

thT

ZMY1, ZMY10 ... ZMY200

= 50°C

= 25°C

tot

ZSM

1.3 W

)

40 W

-50...+150°C

-50...+175°C

< 45 K/W

)

< 10 K/W

thA

thT

Mounted on P.C. board with 50 mm

copper pads at each terminal

Montage auf Leiterplatte mit 50 mm

Kupferbelag (Lötpad) an jedem Anschluss

Tested with pulses – Gemessen mit Impulsen

The ZMY1 is a diode operated in forward mode. Hence, the index of all parameters should be “F” instead of “Z”.
