806-22-001-30-004191 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 806-22-001-30-004191

806-22-001-30-004191: DescriptionSMT SPRING PIN WITH REMOVAL CAPS; CategoryThe connector The connector; File Size406KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

806-22-001-30-004191 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	806-22-001-30-004191	-	-	View	Buy Now

806-22-001-30-004191 Overview

SMT SPRING PIN WITH REMOVAL CAPS

806-22-001-30-004191 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
Reach Compliance Code	unknown
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
contact mode	RECTANGULAR
Contact style	RND PIN-SKT
Dielectric withstand voltage	1400VAC V
Insulation resistance	10000000000 Ω
Insulator color	BLACK
Installation method	STRAIGHT
Installation type	BOARD
Number of connectors	ONE
Number of rows loaded	1
PCB contact pattern	RECTANGULAR
reliability	COMMERCIAL
Termination type	SURFACE MOUNT
Total number of contacts	1
Base Number Matches	1

Preview

Download Datasheet

View All

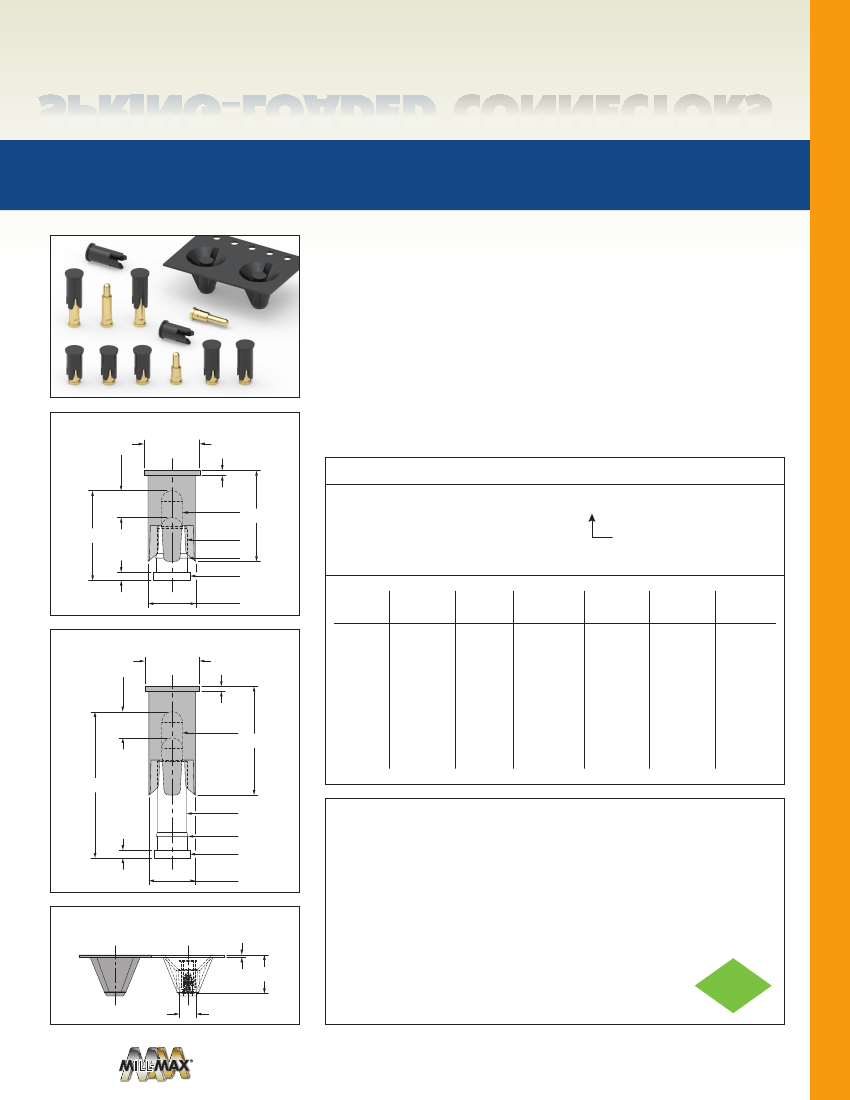

SPRING-LOADED

CONNECTORS

SERIES 806 • REMOVABLE PICK & PLACE CAP, SPRING-LOADED PINS •

SURFACE MOUNT

• Surface mount spring-loaded pins with removable pick & place cap are available in

nine heights from .137” to .295” with a working travel of either .0195” or .0275”

• Spring pins used in this series are Mill-Max 0900-X and 0907-X (see page 23 for more

details)

• The pick & place cap allows individual spring-loaded contacts to be packaged on

tape and reel for automated assembly. The caps are easily removed after soldering

leaving only the spring pin on the board.

• Pick & place cap material is high temperature thermoplastic suitable for most SMT

soldering processes

• Supplied on 16 mm wide carrier tape, 13” reels; packaging per EIA-481. See below for

ordering information

Series 806 (Contact Style 1,2,3,4,10,11)

.110 DIA.

Stroke

.010

ORDERING INFORMATION

Series 806 (Tape & Reel Packaged)

806-22-001-30-0XX191

Specify contact style

1-4

Specify contact style

10-14

Contact

Initial

Working Full Stroke

Quantity

Sleeve

Tape

Style Height (A) Travel

Range (B) Height (C) Depth (D) per Reel

.137

.155

.177

.197

.217

.236

.255

.275

.295

.0195

.0275

.030-.039

.050-.055

.180

.220

.252

.285

.361

780

750

550

.016

.042 DIA.

.059 DIA.

.064 DIA.

.072 DIA.

.094 DIA.

Series 806 (Contact Style 12,13 & 14)

.110 DIA.

Stroke

.010

.042 DIA.

.059 DIA.

.016

.064 DIA.

.072 DIA.

.094 DIA.

Series 806 (Tape Pocket Depth)

.016

.110

Materials:

Contact piston & base: Machined copper alloy plated 20μ” gold over

100μ” nickel

Spring (Contact style 1-14): Beryllium copper-plated 10μ” gold

Insulator: High temperature thermoplastic, rated UL94 V-0

Mechanical:

Spring force @ initial height (A) (Contact style 1-14): 25 grams

Spring force @ mid stroke (B/2) (Contact style 1-14): 60 grams

Durability: Up to 1,000,000 cycles

Electrical:

Current rating: 2A (continous), 3A (peak) per contact

RoHS - 2

2011/65/EU

Contact resistance: 20mW max.

Insulation resistance: 10,000MW min.

Technical Specifications

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com

PAGE 19.8 | SPRING-LOADED CONNECTORS

806-22-001-30-004191 Related Products

	806-22-001-30-004191	806-22-001-30-003191	806-22-001-30-012191	806-22-001-30-001191	806-22-001-30-011191	806-22-001-30-002191	806-22-001-30-013191	PAC200008259FAC000
Description	SMT SPRING PIN WITH REMOVAL CAPS	Headers & Wire Housings SMT SpringPin RmvblCap H.177"	SMT SPRING PIN WITH REMOVAL CAPS	SMT SPRING PIN WITH REMOVAL CAPS	SMT SPRING PIN WITH REMOVAL CAPS	SMT SPRING PIN WITH REMOVAL CAPS	SMT SPRING PIN WITH REMOVAL CAPS	RESISTOR, WIRE WOUND, 2 W, 1 %, 82.5 ohm, THROUGH HOLE MOUNT, AXIAL LEADED, GREEN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	compliant	compliant	compliant	compliant	compliant	compliant	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	-
Contact to complete cooperation	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	-
Contact material	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	-
contact mode	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
Contact style	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	RND PIN-SKT	-
Dielectric withstand voltage	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	1400VAC V	-
Insulation resistance	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	10000000000 Ω	-
Insulator color	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	BLACK	-
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	-
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	-
Number of connectors	ONE	ONE	ONE	ONE	ONE	ONE	ONE	-
Number of rows loaded	1	1	1	1	1	1	1	-
PCB contact pattern	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-
reliability	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-
Termination type	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	-
Total number of contacts	1	1	1	1	1	1	1	-
Base Number Matches	1	1	1	1	1	1	1	-
