HCPL-8100/0810
High Current Line Driver
Data Sheet
Lead (Pb) Free
RoHS 6 fully
compliant
RoHS 6 fully compliant options available;
-xxxE denotes a lead-free product
Description
The HCPL-8100 and HCPL-0810 are low-cost high current
line drivers. With a 5 V single supply, they deliver up to 1
A
PP
current. This is ideal for high current applications such
as a Powerline modem.
The HCPL-8100 and HCPL-0810 are internally protected
against over-temperature conditions through thermal
shutdown. Under-voltage or over-load condition is sensed
by internal detection circuit and indicated by Status pin
output. In addition, with the transmit enable (Tx-en) input,
the line driver output stage can be disabled to reduce
power dissipation when not operating.
The HCPL-8100 and HCPL-0810 are specified for
operation over extended temperature range from
-40°C to +85°C. The HCPL-8100 is available in DIP-8
package, and the HCPL-0810 is available in SO-8 package.
Features
•
1 A
PP
driving current
•
3.5 MHz gain bandwidth product
•
- 60 dB maximum harmonic distortion
•
Load detection function
•
Under-voltage detection
•
Over-temperature shutdown
•
5 V single supply
•
Temperature range: -40°C to +85°C
•
Suitable for FCC Part 15 and EN50065-1 compliant de-
sign
Applications
•
Automatic meter reading (AMR)
•
Powerline modem
•
General purpose line driver
•
Signal conditioning
•
Digital-to-analog converter buffers
Connection Diagram
STATUS
TX -EN
PLM
Transceiver
TX
Filter
1
2
3
4
Status
Tx -en
Tx -in
R
ref
Tx -out
V
CC
GND
GND
8
7
6
5
5V
L
N
HCPL-8100/0810
CAUTION: It is advised that normal static precautions be taken in handling and assembly
of this component to prevent damage and /or degradation which may be induced by ESD.
Package Pin Out
1
2
3
4
Status
Tx-en
Tx-in
R ref
Tx-out
V
CC
GND
GND
8
7
6
5
Pin Descriptions
Pin No.
1
Symbol
Status
Function
Line condition
detection
Description
A logic high indicates line conditions such as- under-
voltage when V
CC
< 4 V- load detection when I
Tx-out
<
-0.25
A- over-temperature (thermal shutdown)
A logic high enables the Tx-out;A logic low disables
the Tx-out and changes it to high impedance state
Transmit signal input
Sets line driver biasing current, typically 24 kW
Power supply and signal ground
5 V power supply
Transmit signal output, to be enabled by Tx-en
2
Tx-en
Transmit enable
3
4
5, 6
7
8
Tx-in
R
ref
GND
V
CC
Tx-out
Transmit input
Resistor reference
Power supply ground
5 V power supply
Transmit output
Block Diagram
Under-Volt
Detection
Status
1
Status
Output
Load
Detection
Over-Temp
Detection
7
V
CC
6
GND
Tx-en
2
5
GND
Tx-in
3
Amp
8
Tx-out
R
ref
4
Ordering Information
Option
Part number
RoHS Compliant
Packaging
Surface Mount
Tape & Reel
Quantity
HCPL-0810
-000E
-500E
SO-8
SO-8
X
X
X
100 per tube
1500 per reel
HCPL-8100
-000E
300mil DIP-8
50 per tube
To order, choose a part number from the part number column and combine with the desired option from the option
column to form an order entry.
Example 1:
ACPL-0810-500E to order product of SO-8 package in Tape and Reel packaging and RoHS compliant.
Example :
HCPL-8100-000E to order product of 300mil DIP-8 package in Tube packaging and RoHS compliant.
Option datasheets are available. Contact your Avago sales representative or authorized distributor for information.
Remarks: The notation ‘#XXX’ is used for existing products, while (new) products launched since 15th July 001 and RoHS
compliant option will use ‘-XXXE‘.

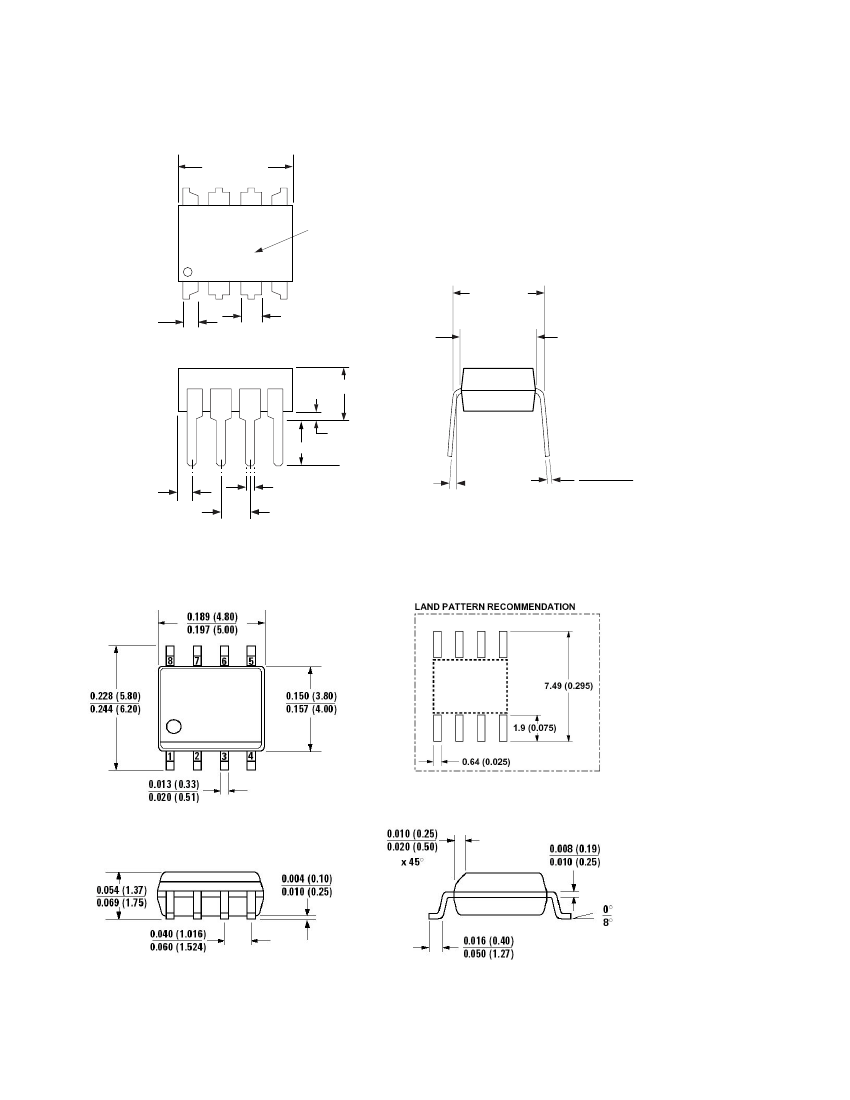

Package Outline Drawings
HCPL-8100 Standard 8-pin DIP package
9.50
±
0.05
(0.374
±
0.002)
8
7
6
A 8100
YYWW
1
1.19 (0.047) MAX.
2
3
4
1.524 (0.060) MAX.
6.62
±
0.05
(0.260
±
0.002)
7.87
±
0.25
(0.310
±
0.010)
5
DATE CODE
3.92 (0.155) MAX.
0.381 (0.015) MIN.
3.05 (0.120) MIN.
5˚ TYP.
0.20 (0.008)
0.35 (0.014)
1.094
±
0.320
(0.037
±
0.013)
0.555 (0.022) MAX.
2.54
±
0.25
(0.100
±
0.010)
DIMENSIONS IN MILLIMETERS AND (INCHES)
HCPL-0810 Small Outline SO-8 Package
DIMENSIONS IN MILLIMETERS AND (INCHES)
3
Recommended Pb-free IR Profile
30 seconds
250
°
C
Temperature (
°
C)
260
°
C (Peak Temperature)
217
°
C
200
°
C
150
°
C
60 sec
25
°
C
60 ~ 150 sec
90 sec
Time (sec)
60 sec
Note: Non-halide flux should be used
Absolute Maximum Ratings
Parameter
Storage Temperature
Ambient Operating Temperature
Junction Temperature
Supply Voltage
Output Voltage
Tx-in Voltage
Tx-en Voltage
Solder Reflow Temperature Profile
Symbol
T
S
T
A
T
J
V
CC
V
O
V
Tx-in
V
Tx-en
Min.
-55
-40
-0.5
-0.5
-0.5
-0.5
Max.
125
85
150
5.5
V
CC
V
CC
V
CC
Unit
°C
°C
°C
Volts
Volts
Volts
Volts
(See Solder Reflow Temperature Profile Section)
Recommended Operating Conditions
Parameter
Ambient Operating Temperature
Supply Voltage
Symbol
T
A
V
CC
Min.
-40
4.75
Typ.
25
5
Max.
85
5.25
Unit
°C
V
4
Electrical Specifications
Unless otherwise noted, for sinusoidal waveform input and reference resistor R
ref
= 4 kW, all typical values are
at T
A
= 5°C and V
CC
= 5 V; all Minimum/Maximum specifications are at Recommended Operating Conditions.
Parameter
V
CC
Supply Current
Symbol
I
CC
Min.
Typ.
1.
0
Max.
45
4.3
Unit
mA
mA
V
°C
A
PP
Test Condition
V
Tx-en
= 0 V, V
Tx-in
= 0 V
PP
,
Tx-out no load
V
Tx-en
= 5 V, V
Tx-in
= 0 V
PP
,
Tx-out no load
Fig.
1
, 3
Note
V
CC
Under Voltage
Detection
Junction Over-Tem-
perature Threshold
Load Detection
Threshold
Status Logic High
Output
Status Logic Low
Output
Power Supply
Rejection Ratio
DC Bias Voltage
Output Impedance
V
UVD
3.8
4.0
150
0.5
1
V
Tx-en
= 5 V, V
Tx-in
= 1.5 V
PP
,
f = 13 kHz, Gain =
-
, R
L
= .5
W
V
CC
= 3.5 V, I
OH
=
-
4 mA
V
CC
= 5 V, I
OL
= 4 mA
50 Hz ripple, V
ripple
= 00 mV
PP
, V
Tx-en
= 5
V, V
Tx-in
= 0 V
PP
, Tx-out no load
V
Tx-en
= 5 V, Tx-out no load
V
Tx-en
= 0 V, V
Tx-in
= 0 V
PP
,
open loop, f = 13 kHz
V
Tx-en
= 5 V, V
Tx-in
= 0 V
PP
, f = 13 kHz
V
Tx-en
= 5 V, V
Tx-in
= 1 V
PP
,
R
L
= 50
W
V
Tx-in
= 1 V
PP
, f = 13 kHz,
Tx-out no load
V
Tx-en
= 5 V, V
Tx-in
= 1.75 V
PP
,
f = 13 kHz, Tx-out no load
V
Tx-en
= 0 V, V
Tx-in
= 1.75 V
PP
,
f = 13 kHz, Tx-out no load
V
Tx-en
= 5 V, V
Tx-out
= 3.5 V
PP
, f = 13
kHz,Gain =
-,
R
ref
= 4 k
W,
R
L
= 50
W
11, 15
15
5-10,
16
4, 14
1, 13
3
V
OH
V
OL
PSRR
V
Bias
Z
O
V
CC
-1
0
7
.7
1
0.5
V
CC
0.8
V
V
dB
V
kW
W
MHz
Gain Bandwidth
Product
Transmit Enable
Threshold Voltage
Tx Enable Time
Tx Disable Time
nd Harmonic
Distortion
3rd Harmonic
Distortion
Output Current
Thermal Resistance
(HCPL-8100)
Thermal Resistance
(HCPL-0810)
GBW
V
th, Tx
t
Tx-en
0.8
3.5
.4
0.9
0.
V
µs
µs
HD
HD3
I
O
q
JA
q
JA
-65
-75
1
100
60
138
70
-60
-65
dB
dB
A
PP
°C/W
°C/W
°C/W
°C/W
V
Tx-en
= 5 V, f=13 kHz
1 oz. trace, -layer PCB, still air, T
A
= 5°C
1 oz. trace, 4-layer PCB, still air, T
A
= 5°C
1 oz. trace, -layer PCB, still air, T
A
= 5°C
1 oz. trace, 4-layer PCB, still air, T
A
= 5°C
4
Notes:
1. Threshold of falling V
CC
with hysteresis of 0. V (typ.).
. Threshold of rising junction temperature with hysteresis of 0°C (typ.).
3. See Application Information section for more information on the load detection feature.
4. See Figure 3 for the plot of supply current versus Tx output current.
5
