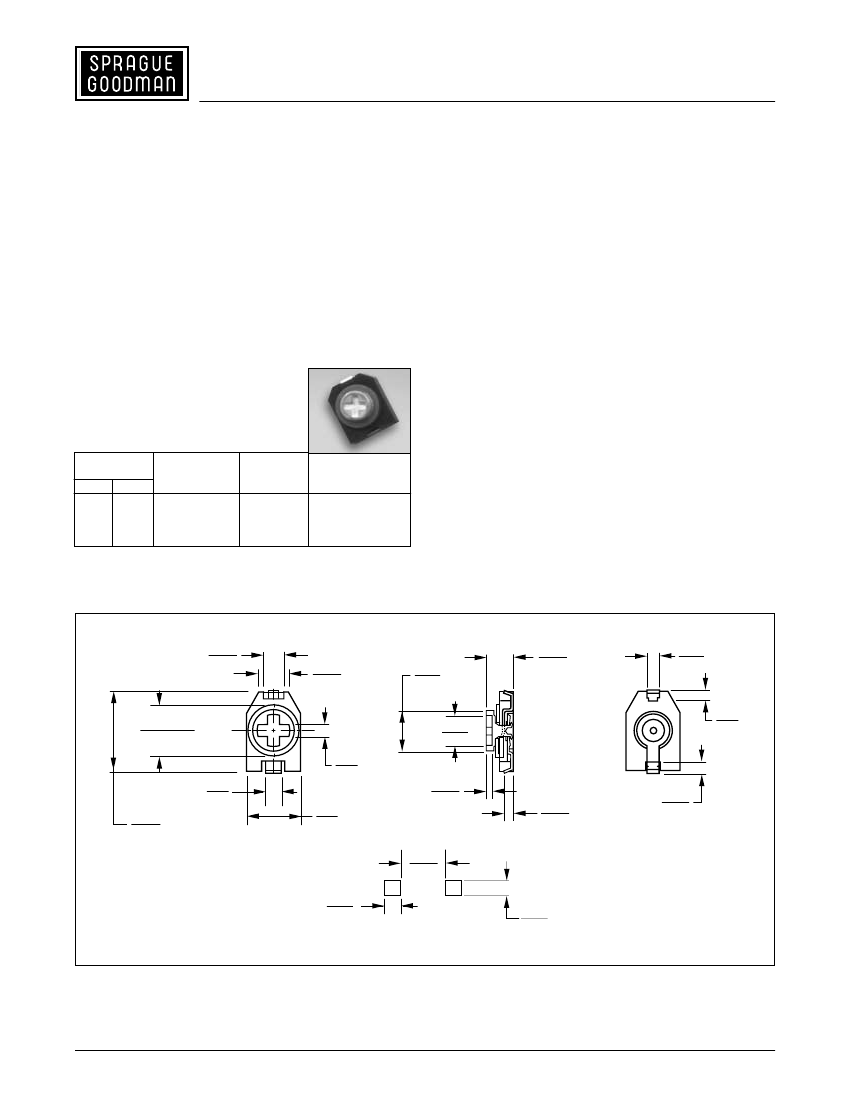

CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305K
SURFTRIM
®
SURFACE MOUNT
GKRP SERIES
FEATURES
• Sealed for washability
• Low mounting profile.
• Carrier and reel packaging standard.
• NPO temperature coefficient (up to 10 pF max).
• Self resonant frequency above 1 GHz.
SPECIFICATIONS
Operating Temperature Range: –40°C to +85°C
Voltage Rating: 25 VDC
Dielectric Withstanding Voltage: 75 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.1 oz-in)
3.2 x 2.5 x 1.3 mm
Models
Capacitance
(pF)
min
max
3.0
5.0
3.0
10.0
5.0
20.0
7.0
30.0
TCC
(ppm
/
°C)
0 ± 500
0 ± 500
N750 ± 500
N750 ± 500
Q min
(1 MHz)
150
150
150
150
Carrier and
Reel Pack
Model No.
GKRP5R066
GKRP10066
GKRP20066
GKRP30066
Carrier and reel specifications on page 11.
0.039
1.0
0.059
1.5
0.059
DIA
1.5
0.051
MAX
1.3
0.028
0.70
0.091
– 0.002
DIA
2.3
+0.15
– 0.05
+0.006
0.037
0.95
0.01
0.25
0.01
0.30
0.039
1.0
0.13
3.2
0.10
2.5
0.007
0.18
0.018
TYP
0.45
0.014
0.35
0.075
1.9
0.039
1.0
PAD LAYOUT
0.035
0.9
All dimensions are in
/
mm. Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
2
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305K.1

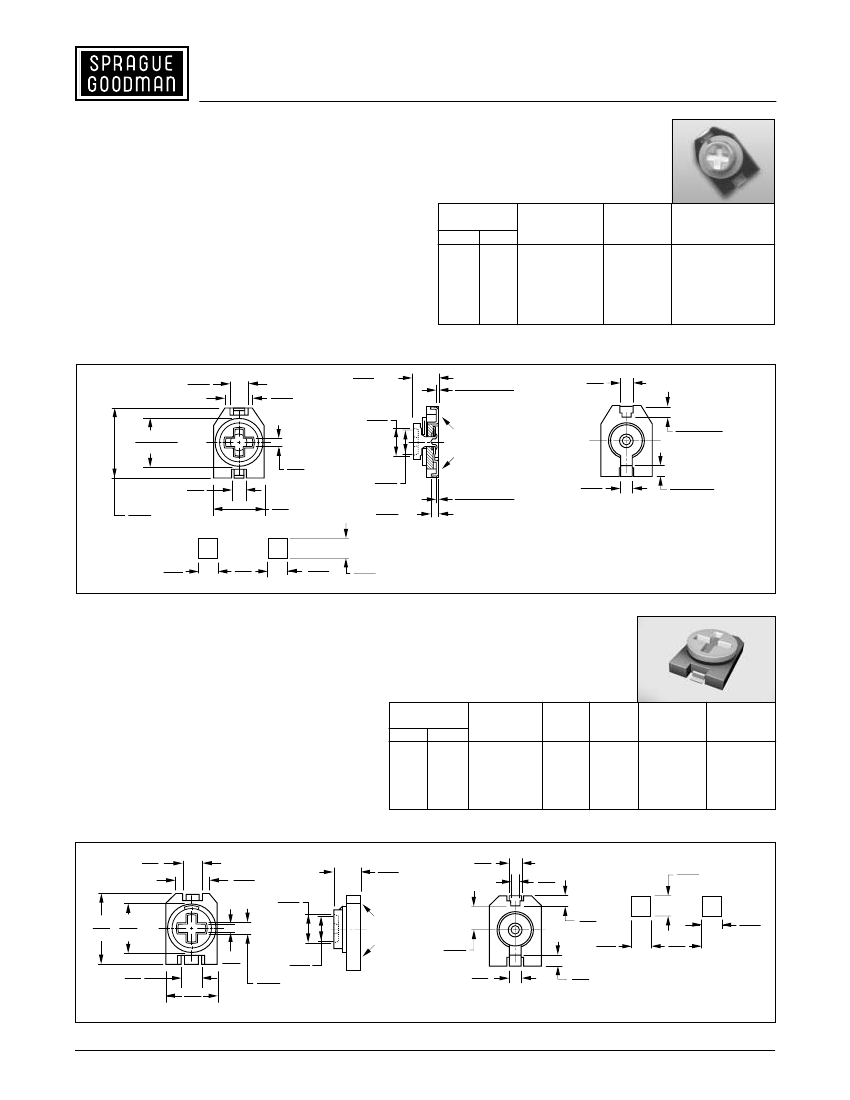

GKYB ECONOMY SERIES
FEATURES
• Suitable for reflow soldering.
• Superior Setting Drift Performance
• Low Mounting Profile (only 1.7 mm)
• Available in carrier and reel packaging.
SPECIFICATIONS
Operating Temperature Range: –25°C to +85°C
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 25 to 100 g-cm (0.35 to 1.39 oz-in)
3.2 x 4.5 x 1.7mm
Models
Capacitance
Range (pF)
min
max
1.7
3.0
2.5
6.0
3.5
10.0
5.5
20.0
7.5
30.0
TCC
(ppm
/
°C)
NP0
NP0
N750
N1200
N1200
±
±
±
±
±
300
300
300
500
500
Q min
(1 MHz)
300
500
500
300
300
Color Code
or Mark
Brown
Blue
White
Red
Green
Model No.
GKYB3R066
GKYB6R066
GKYB10066
GKYB20066
GKYB30066
Carrier and reel specifications on page 11.
0.047
1.2
0.029
0.75
0.079
2.0
0.063
±
0.004
1.6
±
0.1
0.012
±
0.002
0.3
±
0.06
0.006
±
0.001
0.15
±
0.03
STATOR
0.02
0.6
0.098
DIA
2.5
0.02
±
0.002
0.5
±
0.05
0.13
3.2
0.22
5.7
0.047
1.2
0.13
3.3
PAD LAYOUT
0.047
1.2
0.02
0.6
0.047
1.2
0.18
4.5
ROTOR
0.004
±
0.002
0.10
±
0.05
0.03
0.8
0.02
0.6
0.047
1.2
All dimensions are in
/
mm. Unless otherwise specified, the tolerance on dimensions is ± 0.04
/
0.1.
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
3A
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305K
SURFTRIM
®
SURFACE MOUNT

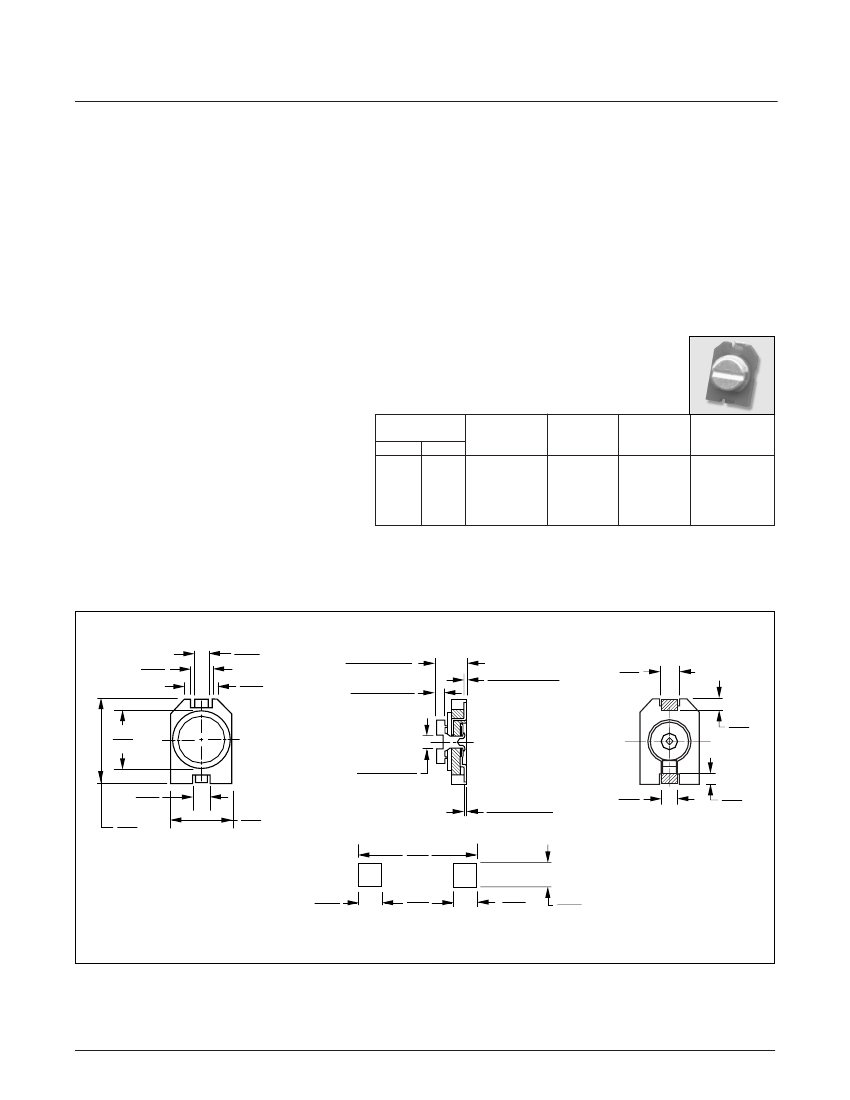

GKY WASHABLE SERIES
FEATURES
• Designed for reflow soldering.
• Carrier and reel packaging.
• Sealed for washability
3.2 x 4.5 x 1.8 mm
Models
Capacitance
(pF)
min
max
1.0
3.0
2.5
10.0
4.5
20.0
4.5
30.0
4.5
40.0
4.5
50.0
TCC
(ppm
/
°C)
0 ± 500
0 ± 300
N750 ± 400
N750 ± 500
N750 ± 500
N750 ± 500
Q min
(1 MHz)
300
300
300
300
300
300
Carrier and
Reel Pack
Model No.
GKY3R086
GKY10086
GKY20086
GKY30086
GKY40086
GKY50086
SPECIFICATIONS
Operating Temperature Range: –40°C to +85°C
Voltage Rating: 25 VDC
Dielectric Withstanding Voltage: 75 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.08 oz-in)
0.043
1.1
0.071
MAX
1.8
0.067
1.7
0.071
1.8
Carrier and reel specifications on page 11.
0.0059
±
0.002
0.15
±
0.05
STATOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
SURFACE
ROTOR
0.0047
±
0.002
0.12
±
0.05
0.02
0.6
+0.006
0.12
– 0.002
DIA
3.0
+0.15
– 0.05
0.02
– 0.004
0.6
+0
– 0.1
+0
0.02
TYP
0.5
0.04
0.9
0.18
4.5
0.13
3.2
0.059
1.5
0.018
TYP
0.45
0.031
0.78
0.02
– 0.004
0.6
+0
– 0.1
+0
PAD LAYOUT
0.047
1.2
0.11
2.9
0.047
1.2
0.059
1.5
GKY
_ _ 86
GKY _
_ _ _ 86
GKY STANDARD SERIES
FEATURES
• Designed for reflow soldering.
• Available in carrier and reel packaging.
3.2 x 4.5 x 1.8 mm
Models
Capacitance
(pF)
min
max
1.7
3.0
2.5
6.0
3.0
10.0
5.0
20.0
6.0
30.0
TCC
Q min
Color
(ppm
/
°C) (1 MHz) Code
0 ± 300
500
Brown
0 ± 300
500
Blue
N400 ± 400
500
White
N900 ± 400
300
Red
N1200 ± 500
300
Green
Bulk Pack
Model No.
GKY3R000
GKY6R000
GKY10000
GKY20000
GKY30000
Carrier and
Reel Pack
Model No.
GKY3R066
GKY6R066
GKY10066
GKY20066
GKY30066
SPECIFICATIONS
Operating
Temperature Range: –25°C to +85°C
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 10 to 150 g-cm (0.14 to 2.08 oz-in)
0.05
1.2
Carrier and reel specifications on page 11.
0.03
0.8
0.079
2.0
0.075
1.9
0.071
MAX
1.8
STATOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
0.065
SURFACE
1.65
ROTOR
0.02
0.6
0.02
0.6
0.047
1.2
0.047
1.2
0.18
4.5
0.12
DIA
3.0
0.02
0.5
0.13
3.2
0.026
0.65
0.067
1.7
0.047
1.2
0.13
3.3
PAD LAYOUT
0.05
1.2
0.03
0.8
0.02
0.6
GKY _ _ _ 00, 66
All dimensions are in
/
mm. Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
4
SPRAGUE-GOODMAN ELECTRONICS, INC., 1700 SHAMES DRIVE, WESTBURY, NY 11590 • TEL: 516-334-8700 • FAX: 516-334-8771 • E-MAIL: info@ spraguegoodman.com
CERAMIC DIELECTRIC TRIMMER CAPACITORS
SG-305K
SURFTRIM
®
SURFACE MOUNT

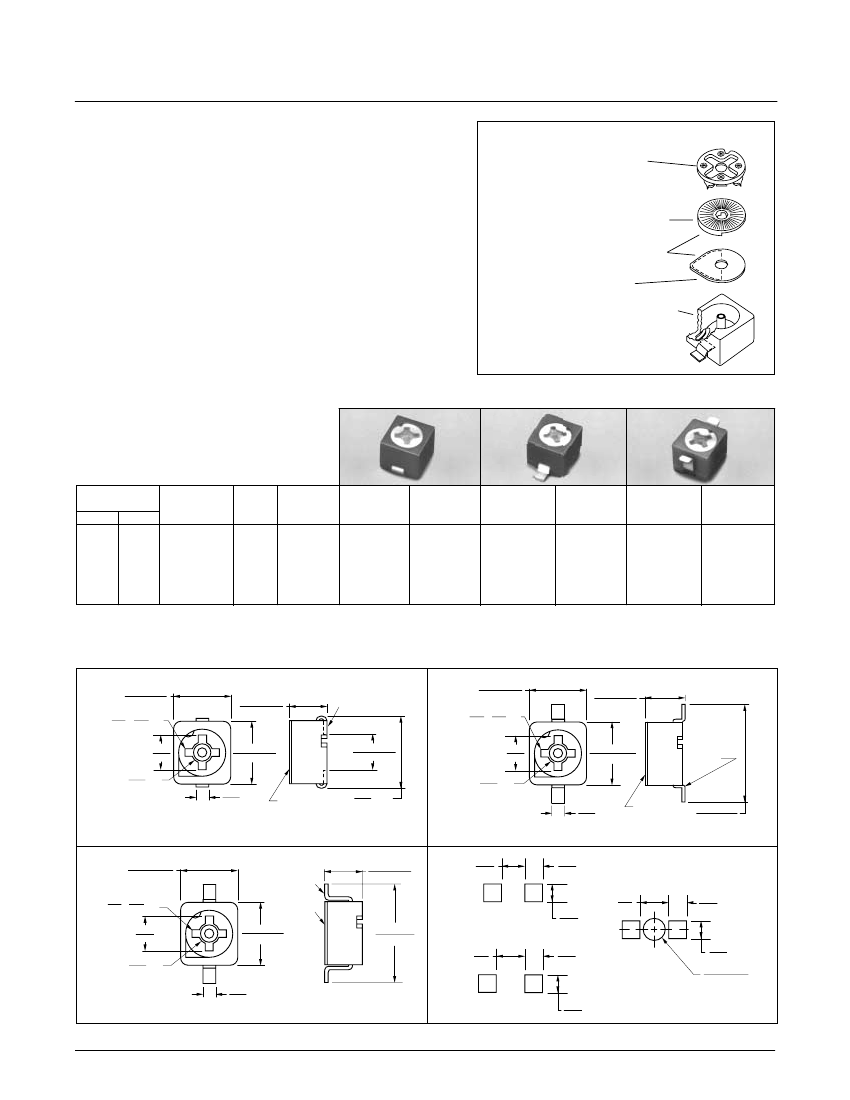

Sealed Construction
FEATURES
• Process seal provides protection against conta-
minants (flux, solvents, etc.) during production.
• Designed for flow and reflow soldering.
• Available in carrier and reel packaging.
CONSTRUCTION DETAILS OF 4 x 4.5 mm GKG MODELS
Model GKG __ __ __ 27 Shown
• Special “drive assembly” with
pointed spring fingers to engage rotor
upper surface contour. Spring fingers
also provide proper tension for smooth
torque and low resistance.
• Special rotor with die-formed “drive”
contour on upper surface.
• Flat-lapped and lubricated surfaces
join for reliable capacitance settings.
• Special ceramic stator insert
with metalized electrode.
• Solid one-piece housing with integrally
molded terminals and contact areas.
Central tubular column is spun-out
into a flare after assembly to maintain
built-in spring tension.
SPECIFICATIONS
Operating Temperature Range: –25°C to +85°C
Voltage Rating: 100 VDC
Dielectric Withstanding Voltage: 220 VDC
Insulation Resistance: 10
4
Megohms min
Torque: 15 to 100 g-cm (0.2 to 1.39 oz-in)
4 x 4.5 x 2.7 mm Models
Capacitance
(pF)
*min
max
1.4
3.0
2.0
6.0
3.0
10.0
4.5
20.0
6.5
30.0
15.0
50.0
TCC
(ppm
/
°C)
0 ± 200
0 ± 200
0 ± 300
N900 ± 300
N1100 ± 450
N1700 ± 500
Q min
Color
(1 MHz) Code
300** †Red Dot
500**
Blue
500**
White
500**
Red
300
Green
300
Orange
Bulk Pack
Model No.
GKG3R026
GKG6R026
GKG10026
GKG20026
GKG30026
GKG50H26
Carrier and
Reel Pack
Model No.
GKG3R066
GKG6R066
GKG10066
GKG20066
GKG30066
GKG50H66
Bulk Pack
Model No.
GKG3R027
GKG6R027
GKG10027
GKG20027
GKG30027
GKG50H27
Carrier and
Reel Pack
Model No.
GKG3R067
GKG6R067
GKG10067
GKG20067
GKG30067
GKG50H67
Bulk Pack
Model No.
GKG3R028
GKG6R028
GKG10028
GKG20028
GKG30028
GKG50H28
Carrier and
Reel Pack
Model No.
GKG3R068
GKG6R068
GKG10068
GKG20068
GKG30068
GKG50H68
† Marking on bottom of capacitor.
* Re-rated in 1994 for lower min capacitance.
** Q at 10 MHz
Available without seal — consult factory.
Carrier and reel specifications on page 11.
Add –07 to Model No. for 700
/
reel, –25 for 2500
/
reel.
0.16 ± 0.008
4.0 ± 0.2
SLOTS
0.02 0.02
x
DP
0.5
0.5
0.094
2.4
0.055
DIA
1.4
0.11 ± 0.008
2.7 ± 0.2
ROTOR
TERMINALS
APPROX. FLUSH TO
MOUNTING SURFACE
0.16 ± 0.008
4.0 ± 0.2
SLOTS
0.02 0.02
x
DP
0.5 0.5
0.11 ± 0.008
2.7 ± 0.2
ROTOR
TERMINALS
APPROX. FLUSH
TO MOUNTING
SURFACE
0.18 ± 0.008
4.5 ± 0.2
0.11 ± 0.008
2.8 ± 0.2
0.094
2.4
0.055
DIA
1.4
0.18 ± 0.008
4.5 ± 0.2
0.047
TYP
1.2
STATOR
SEAL
0.20 max
5.2
STATOR
0.047
TYP
1.2
SEAL
0.28 ± 0.008
7.0 ± 0.2
GKG _ _ _ 26, 66
0.16
±
0.008
4.0
±
0.2
0.02 0.02
x
DP
0.5
0.5
0.094
2.4
0.055
DIA
1.4
0.047
TYP
1.2
0.18
±
0.008
4.5
±
0.2
TERMINALS
APPROX. FLUSH TO
MOUNTING SURFACE
ROTOR
SLOTS
SEAL
0.28
±
0.02
7.0
±
0.5
0.11
±
0.008
2.9
±
0.2
0.094
2.4
0.079
TYP
2.0
GKG _ _ _ 27, 67
PAD LAYOUTS
GKG _ _ _ 26, 66
0.16
4.0
0.063
1.6
0.16
4.0
0.079
TYP
2.0
0.079
TYP
2.0
0.063
1.6
0.120
±
0.006
DIA
3.05
±
0.15
STATOR
GKG _ _ _ 28, 68
GKG _ _ _ 27, 67
0.063
1.6
GKG _ _ _ 28, 68
All dimensions are in
/
mm. Unless otherwise specified, the tolerance on dimensions is ± 0.004
/
0.1.
