Board-to-Cable Connector for
High-Speed Differential Transmission
CONNECTOR
MB-0171-2
December 2008
FI-NX Series
RoHS Compliant
NEW

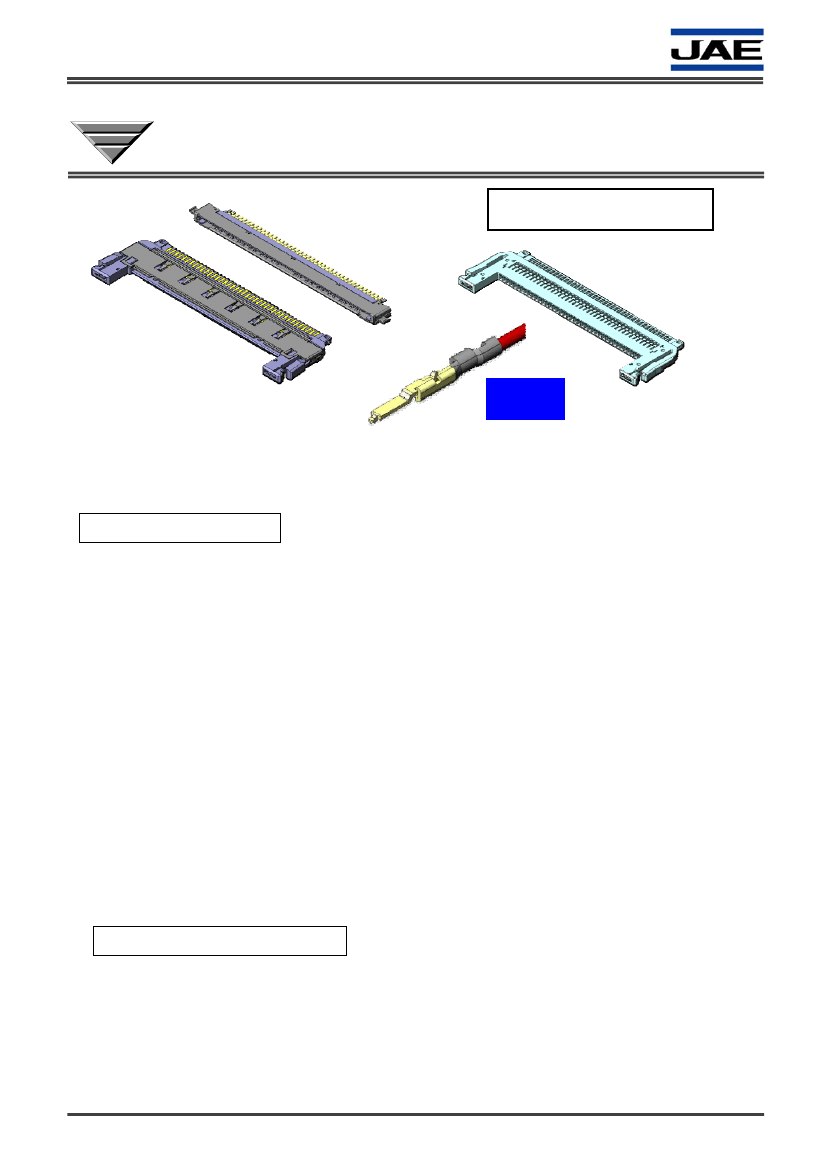

The FI-NX Series is a board-to-cable LCD interface connector designed for high-speed
differential transmission. A discrete wire (twisted pair) plug with crimp contacts has
been added to the existing product line-up.
Features
0.8mm contact pitch, 40pos. connecter for LVDS transmission, compatible with the VESA
8-bit color LCD standard.
LCD (LED back light) interface for notebook PC, cable plug available in solder type for fine
coaxial wire, or crimp type for discrete wire.
Superb impedance matching suitable for high-speed differential transmission.
Low profile, 1.0mm mating height of board-side receptacle (standard bottom mount type).
Metal shell provides superb shielding. Hold downs on the receptacle serve a dual purpose
to reinforce board retention, and also act as ground contacts. When the connector is mated,
the plug and receptacle shells connect to allow the plug shell to be grounded.
Receptacle incorporates a ground plate that is connected to the board through ground
terminals located at both ends of the connection area.
Ni barrier layer is included as a solder diffusion countermeasure for receptacle contacts.
Mechanical lock included to withstand vibration and shock.
Mating side of plug has a guide that adjusts misalignments to ensure easy and secure
mating.
Pb-free product.
General Specifications
No. of Contacts : 40 pos.
Contact Resistance: 40m ohm max.
Dielectric Withstanding Voltage :
AC 500Vr.m.s per minute
Operating Temperature:
-40 Deg. C to +80 Deg. C
Rated Current: AC, DC each 0.5A per pos.
Rated Voltage: AC, DC each 200V per pos.
Insulation Resistance: 100M ohm min.
Contact Pitch: 0.8mm
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
1/10
MB-0171-2

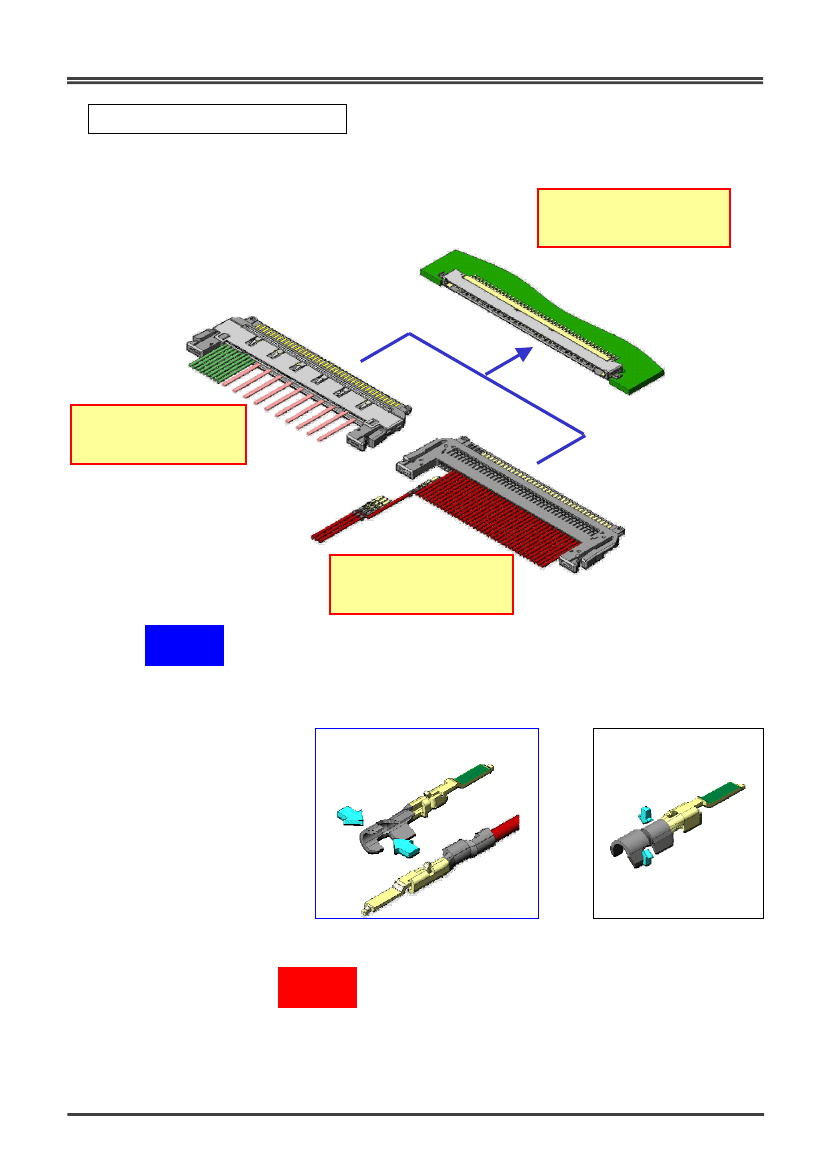

Product Line-up
Receptacle
(LCD Side)
FI-NXB40SL-HF10
Plug
(Solder Type)
FI-NX40CL
FI-NX40CL-SH02-7000
Plug
(Crimp Type)
NEW
FI-NX40HL
FI-NXC3-1-15000
FI-NX
Existing FI-X
Note)
Crimp tool and applicator of existing
FI-X Series can be used.
(Attachment has to be changed).
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
2/10
MB-0171-2

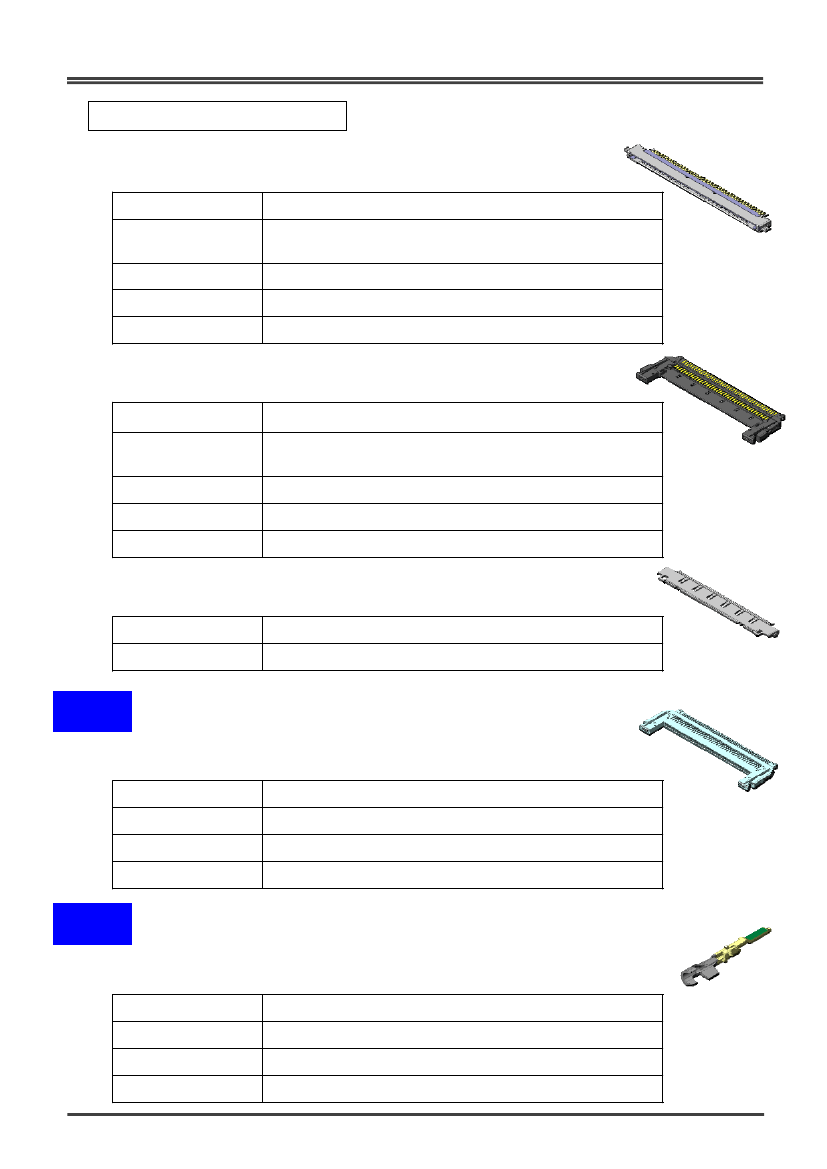

Materials and Finishes
Receptacle Connector
FI-NXB40SL-HF10
Component
Contact
Ground Plate
Insulator
Shell
Material / Finish
Copper alloy/ Contact portion: Au plating over Ni
Terminal portion: Sn plating over Ni
Copper alloy/ Sn plating
Heat resistant plastic/ No
Stainless steel/ Sn plating
Plug Connector, Fine-coaxial Wire, Solder Connection Type
FI-NX40CL
Component
Contact
Press Fit Shell
Insulator
Lock Spring
Material / Finish
Copper alloy/ Contact portion: Au plating over Ni
Terminal portion: Sn plating over Ni
Stainless steel/ Sn plating
Heat resistant plastic/ No
Stainless steel/ No
Plug Connector, Fine-coaxial Wire, Solder Connection Type
FI-NX40CL-SH02-7000
Component
Cover Shell
Material / Finish
Stainless steel/ Sn plating
NEW
Plug Connector, Discrete Wire, Crimp Connection Type
FI-NX40HL
Component
Ground Plate
Insulator
Lock Spring
Material / Finish
Stainless steel/ Sn plating
Heat resistant plastic/ No
Stainless steel/ No
NEW
Plug Connector, Discrete Wire, Crimp Connection Type
FI-NXC3-1-15000
Component
Crimp Contact
Magazine
Paper Tape
Material / Finish
Stainless steel/ Sn plating
Paper
Paper
3/10
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
MB-0171-2

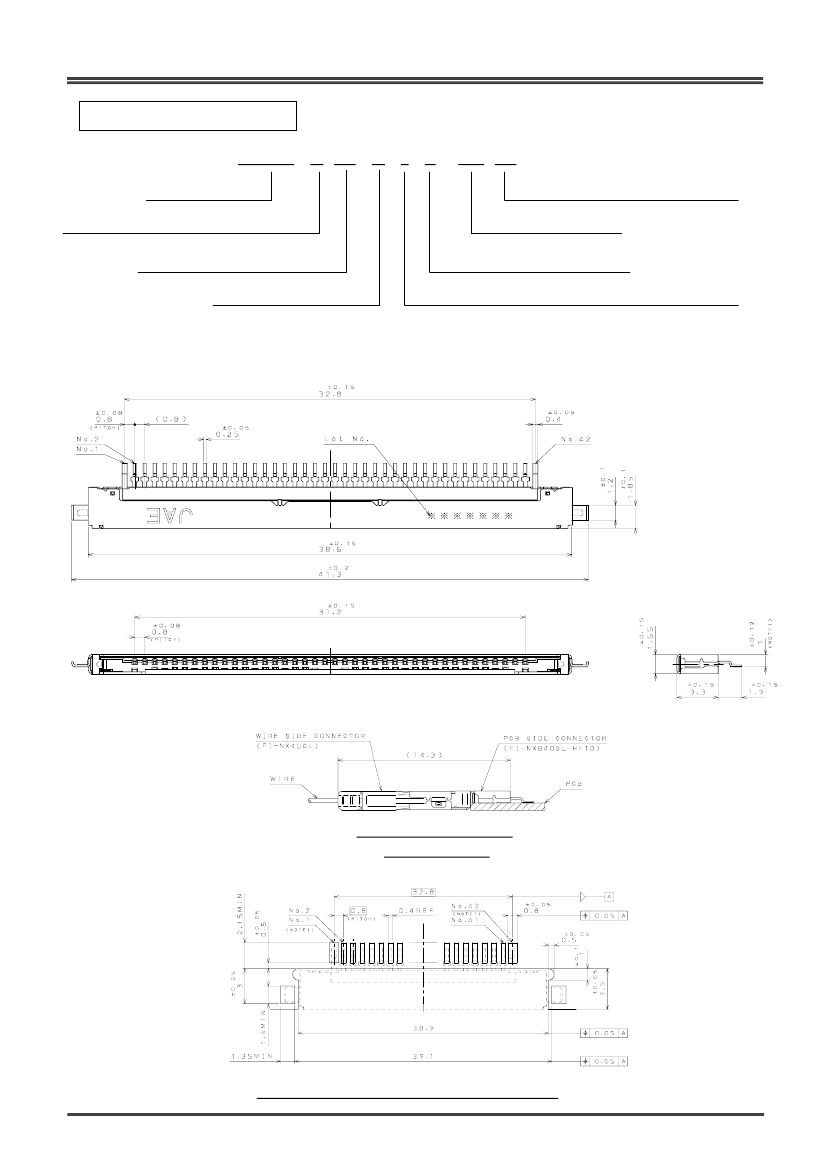

Ordering Information
Receptacle Connector (SJ107066)
FI-NX B 40 S * L - HF 10
Series
B: Bottom Type (Hold-down Type)
No. of Contacts: 40 pos.
S: Receptacle
10 : Mounted Height 1.0mm
HF: Angle
L: Compatible With Lock
None: Standard Type (R: Reverse Type)
Unit: mm
Drawing when mated
(for reference)
±０．０５
±０．０５
Recommended dimension of board
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
4/10
MB-0171-2
Ordering Information
Receptacle Connector
Emboss Product (SJ107067)

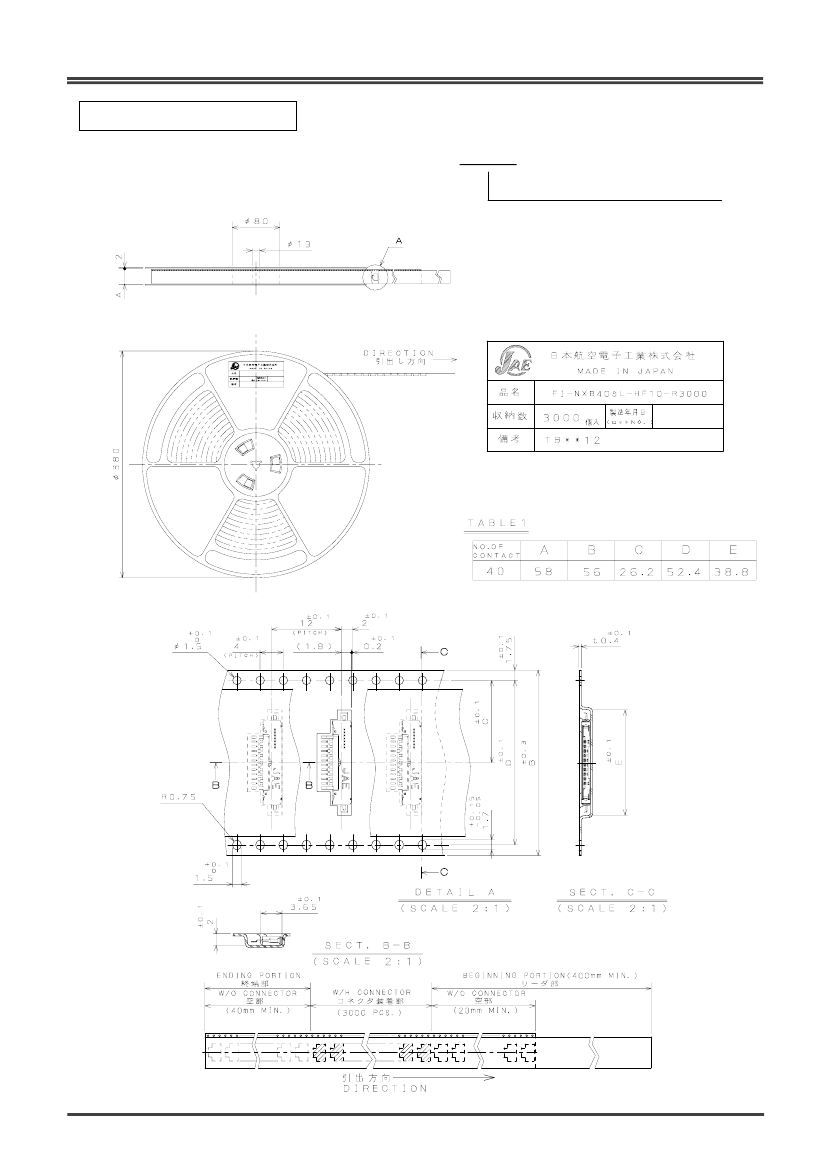

R: Embossed Reel: 3000pcs.
FI-NXB 40 SL - HF10 - R3000
Unit: mm
JAE PMK Div. Proprietary. Copyright © 2008，Japan Aviation Electronics Industry, Ltd.
5/10
