MAX11800/MAX11801 Touch
Evaluation Systems (TEVS)
General Description
The MAX11800/MAX11801 touch evaluation sys-
tems (TEVSs) demonstrate the rich feature set of the
MAX11800–MAX11803 family of touch-screen controllers
(TSCs) and allow for their evaluation. Each TEVS consists of a
USB interface board (UTIB+), a MAX11800/MAX11801
evaluation kit (EV kit) daughter board, and a 4-wire touch
sensor (USB cable included).
Note:
The MAX11802
and MAX11803 are subsets of the MAX11800 and
MAX11801, respectively.
Order the MAX11800 TEVS for a comprehensive
evaluation of the SPI™-compatible TSCs using a PC.
Order the MAX11801 TEVS for a comprehensive evalua-
tion of the I
2
C-compatible TSCs.
The TSCs provide a complete resistive touch-screen
controller solution that targets touch-enabled devices
with small- to medium-size displays. The TSCs enable
miniaturization of consumer products due to their ultra-
small size. Their low power consumption makes them
attractive for portable devices.
Each TEVS operates directly from the USB power.
Windows XP
M
- or Windows
M
7-compatible software
running on a PC interfaces to the TEVS board through
the computer’s USB communications port. See the
Quick
Start
section for setup and operating instructions.
The EV kit provides a proven PCB to facilitate evaluation
of the TSCs directly by the user. It must be interfaced to
the appropriate SPI/I
2
C timing signals for proper opera-
tion. See Figures 12a, 12b, and 13 for connections and
appropriate voltage levels. Refer to the MAX11800–
MAX11803 IC data sheet for timing requirements and
register addresses.
Hardware
S
_ Complete_Evaluation_System_Including_a_USB-to-
Features
Serial_Interface_(I
2
C_or_SPI)_Board
S
Convenient_Test_Points_Provided_On-Board_for_
Evaluate: MAX11800–MAX11803
Digital_Interface_and_Analog_Signals
S
Interfaces_to_Common_4-Wire_Resistive_Touch_
Sensors_through_Standard_FPC/FFC_Connectors
1mm_Pitch
_ _ 0.5mm_Pitch
S
Built-In_LDOs_and_Level_Translators_for_Operation_
with_1.8V,_3.0V,_and_3.6V
Software
S
User-Friendly_GUI_Interface_(Microsoft_Windows_
XP-_and_Windows_7-Compatible_USB_Interface)
S
Easy_Access_to_TSC_Configuration_Registers_and_
Status_Registers
S
Direct_Conversion_Mode_Demonstration_Capability
S
Autonomous_Conversion_Mode_Demonstration_
Capability_(Only_Available_in_the_MAX11800_and_
MAX11801)
S
Ability_to_Capture_Raw_Data_and_Display_the_Data_
in_Either_Conversion_Mode
EV System Contents List
QTY
1
1
DESCRIPTION
Software and driver CD-ROM.
EV kit (with the TSCs mounted on it, but can be
separated from the TEVS for evaluation of the
TSCs in the user setup).
USB interface board (UTIB+). This acts as a
gateway converting and accepting data from
the USB port to SPI/I
2
C for the EV kit. The EV kit
plugs into the UTIB+.
USB cable for power and communication.
PART
MAX11800TEVS+
MAX11801TEVS+
Ordering Information
TYPE
EV System
EV System
INTERFACE_TYPE/
PACKAGE
SPI/TQFN
I
2
C/TQFN
+Denotes
lead(Pb)-free and RoHS compliant.
1
1
Windows and Windows XP are registered trademarks of
Microsoft Corp.
SPI is a trademark of Motorola, Inc.
________________________________________________________________ _Maxim
Integrated Products_
_ 1
For pricing, delivery, and ordering information, please contact Maxim Direct at 1-888-629-4642,
or visit Maxim’s website at www.maxim-ic.com.
MAX11800/MAX11801 Touch
Evaluation Systems (TEVS)
Evaluate: MAX11800–MAX11803
MAX11800/MAX11801 TEVS+ Block Diagram
SPI/I
2
C
USB
INTERFACE
TO HOST
PC
Y+
MAX118xx
USB INTERFACE
BOARD
LEVEL TRANSLATORS
AND LDOs
IRQ
1.8V TO
3.6V/GND
MAX118xx
EV KIT+
X+
Y-
X-
4-WIRE
RESISTIVE
TOUCH SCREEN
FPC CONNECTOR
Component Lists
MAX11800–MAX11803 Interface Board
DESIGNATION
A0/CSB,
A1/DOUT, CSB,
GPIO_K1–
GPIO_K8, MISO,
MOSI, P1_4–
P1_7, P3_4–P3_7,
PGND2, PGND3,
PIRQB, SCL,
SCL/CLK, SCLK,
SDA, SDA/DIN,
TIRQB, U2-PIN1,
U2-PIN20
C1, C2, C11, C13
QTY
DESCRIPTION
DESIGNATION
C26, C27
EN1B, EN2B
FB1, FB2
32
Test points
J1–J5, J11–J17
J6, J7
J8, J9, J18, J19
J10
1FF
Q10%,
16V X5R ceramic
capacitors (0603)
TDK C1608X5R1C105K
10FF
Q20%,
6.3V X5R ceramic
capacitors (0603)
TDK C1608X5R0J106M
0.1FF
Q10%,
50V X7R ceramic
capacitors (0603)
TDK C1608X7R1H104K
22pF
Q5%,
50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H220J
10pF
Q5%,
50V C0G ceramic
capacitors (0603)
TDK C1608C0G1H100J
33nF
Q10%,
16V X5R ceramic
capacitor (0603)
Taiyo Yuden EMK107BJ333KA
QTY
0
0
2
0
2
4
1
DESCRIPTION
Not installed, capacitors (0603)
Not installed, headers
1A, 19I SMD ferrite beads
(1206)
Steward HF1206J150R-10
Not installed, headers
2-pin headers, 0.1in centers
3-pin headers, 0.1in centers
21-position SMD female
connector
Hirose DF9-21S-1V(32)
5-position mini-USB connector
Hirose UX60A-MB-5ST
Dual-row header, 0.1in
centers, gold plated
Red clear SMD LEDs (0603)
Lite-On LTST-C190CKT
Loops for test with 2 vias (use
20 AWG wire to make loops)
4.7kI resistors (0805)
Not installed, resistors (0603)
196kI
Q1%
resistor (0805)
590kI
Q%
resistor (0805)
61.9kI
Q1%
resistor (0805)
100kI
Q1%
resistors (0805)
215I resistors (0805)
4
J20
J21
LED2, LED3,
LED4
PGND103,
PGND104
R1, R2
R3, R4, R10, R19,
R32–R36,
R37–R41
R5
R6
R7
R8, R22
R9, R16, R17
1
1
3
2
2
0
1
1
1
2
3
C3, C6, C12, C14
C4, C5, C9, C10,
C15–C19, C23,
C24, C25
C7, C8
4
12
2
C20, C21
2
C22
1
2_ _ _______________________________________________________________________________________
MAX11800/MAX11801 Touch
Evaluation Systems (TEVS)
Evaluate: MAX11800–MAX11803
Component Lists (continued)
MAX11800–MAX11803 Interface Board (continued)
DESIGNATION
R11–R14
R15, R18
R20
R21
R23, R24
R25
R26
R27
R28
R29, R30, R31
U1, U7
QTY
4
2
1
1
2
1
1
1
1
3
2
DESCRIPTION
0I resistors (0805)
51kI resistors (0805)
100kI resistor (0805)
169kI
Q1%
resistor (0805)
27I resistors (0805)
1.5kI resistor (0805)
2.2kI resistor (0805)
470I resistor (0805)
10kI resistor (0805)
3.3kI resistors (0805)
Adjustable output LDO
regulators (5 SC70)
Maxim MAX8512EXK+
8-channel level translator
(20 TSSOP)
Maxim MAX3001EEUP+
LDO regulator (5 SC70)
Maxim MAX8511EXK25+
USB-to-serial UART (32 LQFP)
FTDI FT232BL
U9
Y1
Y2
Y3
—
0
1
1
0
5
U8
1
DESIGNATION
U5
U6
QTY
1
1
DESCRIPTION
1Kb, 1.8V SRL EEPROM (8 SO)
Atmel AT93C46EN-SH-B
Microcontroller (68 QFN-EP*)
Maxim MAX2000-RAX+
Octal-level translator
(12 TQFN-EP*)
Maxim MAX3395EETC+
Not installed
16MHz crystal
ECS ECS-160-20-5PXDN-TR
6MHz crystal
ECS ECS-60-20-5G3XDS-TR
Not installed, crystal
Bumpers (rubber feet, on
bottom of board)
3M SJ-5003 (GRAY)
Shunts (J8, J9, J18, and J19)
Sullins STC02SYAN
U2
1
U3
U4
1
1
—
*EP
= Exposed pad.
4
MAX11800/MAX11801 EV Kit Daughter Board
DESIGNATION
A0/CSB,
A1/DOUT, AUX,
SCL/CLK,
SDA/DIN,
TIRQB,
VDD, X-, X+,
Y-, Y+
C1–C5
C6
QTY
DESCRIPTION
DESIGNATION
J2
11
Test points
J3
J4
LED1
0
1
Not installed, capacitors (0603)
10FF
Q20%,
6.3V X5R ceramic
capacitor (0603)
TDK C1608X5R0J106M
0.1FF
Q10%,
50V X7R ceramic
capacitor (0603)
Murata GRM188R71H104K
4-position SMD connector
FCI SFW4R-1STE1LF
R1–R5, R9
R6
R7
R11–R15
QTY
1
1
0
1
6
1
1
0
DESCRIPTION
21-position SMD male connector
Hirose DF9-21P-1V(32)
4-position SMD connector, gold
Hirose FH19C-4S-0.5SH(25)
Not installed, jumpers
Red clear SMD LED (0603)
Lite-On LTST-C190CKT
0I resistors (0603)
215I resistor (0603)
1I
Q1%
resistor (0603)
Not installed, resistors (0603)
Touch-screen controller
(12 TQFN-EP*)
Maxim MAX11800ETC+ or
Maxim MAX11801ETC+
C7
1
U1
1
J1
1
*EP
= Exposed pad.
________________________________________________________________________________________ _ 3
MAX11800/MAX11801 Touch
Evaluation Systems (TEVS)
Evaluate: MAX11800–MAX11803
Vendor Specifications
Densitron and Fujitsu are approved panel vendors
for resistive touch-screen controllers from Maxim (see
Tables 1 and 2 for recommended touch panels).
Touch-Panel Vendor and Specification
Table_1._Densitron_4-Wire_Resistive_
Touch-Panel_Specification
Part_Number
Screen_Diagonal
Dimension__
(W_x_H_x_D)
Viewing_Area
Active_Area_
Width_(mm)
Active_Area_
Height_(mm)
Package_Mode
Transparency
DTS408-0380-00
3.8in
91mm x 72mm x
0.95mm
81mm x 63mm
79mm
58mm
Film glass
80%
DTS408-0280-00
2.8in
70mm x 55mm x
1.4 mm
59.6mm x 46.1mm
58mm
44mm
Table_2._Fujitsu_4-Wire_Resistive_Touch-
Panel_Specification
Part_Number
Outer_Dimension
Transparent_Area
Active_Area
Flex_Tail
Glass_Thickness
PET_Film_Features
Transparency
T010-1401-T670
61.4mm x 80.3mm
54.4mm x 71.2mm
51.4mm x 68.2mm
30mm
0.7mm
Clear
80%

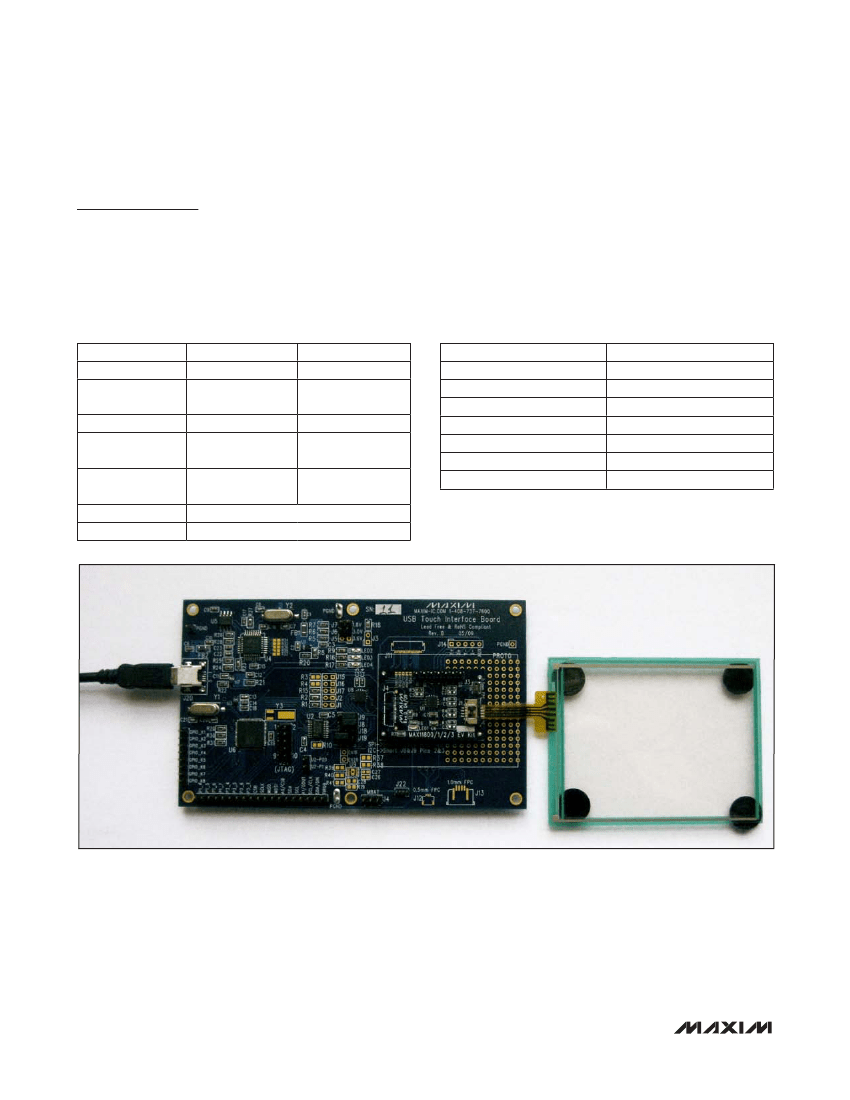

Figure 1. Complete MAX11800/MAX11801 Touch Evaluation System (TEVS) Photo
4_ _ _______________________________________________________________________________________
MAX11800/MAX11801 Touch
Evaluation Systems (TEVS)
Evaluate: MAX11800–MAX11803
USB
INTERFACE
TO HOST
PC
SPI/I
2
C
MAX118xx
INTERFACE BOARD
-
LEVEL TRANSLATORS
AND LDOs
IRQ
1.8V TO 3.6V
Y+
MAX118xx
EV KIT
X+
Y-
X-
FPC
CONNECTOR
4-WIRE
RESISTIVE
TOUCH SCREEN

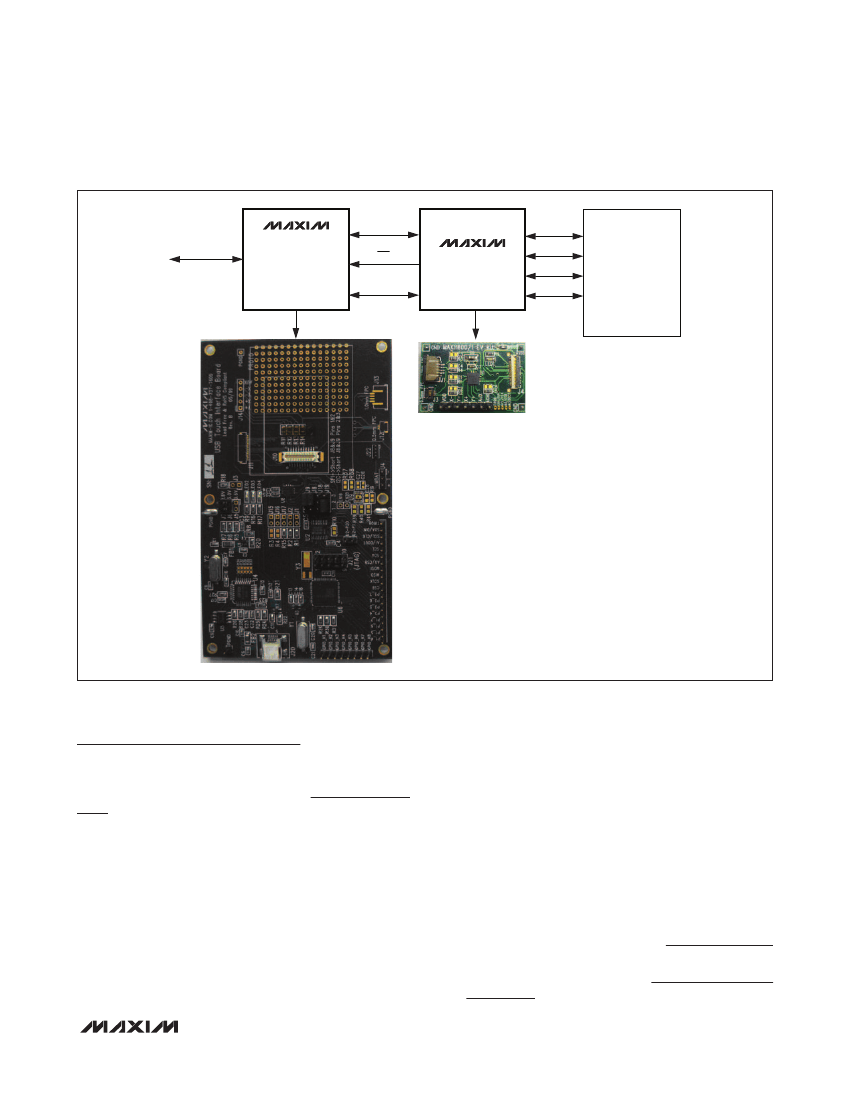

Figure 2. MAX11800/MAX11801 Touch Evaluation System (TEVS) Block Diagram
Quick Start
Note:
In the following sections, software-related items
are identified by bolding. Text in
bold
refers to items
directly from the EV kit software. Text in
bold_and_under-
lined
refers to items from the Windows operating system.
4)
The driver for the EV kit is installed in the following
location:
C:\CMAXQUSB
or
C:\MAXIM TSC USB DRIVER CDM20602 (for
newer drivers)
1)
Before plugging the TEVS into an available port on
a Windows XP- or Windows 7-compatible PC, the
TEVS software must be installed.
Procedure (TEVS Software and
USB Driver Installation)
5)
The application along with its supporting files is
located at:
C:\Program Files\Maxim Integrated Products\
MAX118xx EVS <version>
2)
The software comes with the USB driver and a GUI
application. Unzip the files and put the contents in
an easily accessible location.
Locate the Setup.exe and double-click on it and
follow the instructions for installation.
6)
3)
A short cut to the application executable file is cre-
ated on the desktop and in the
Start_ |_ Programs
menu.
To uninstall the software, go to
My_Computer_|_Add_
or_Remove
program.
7)
________________________________________________________________________________________ _ 5
京公网安备 11010802033920号
EEWORLD
