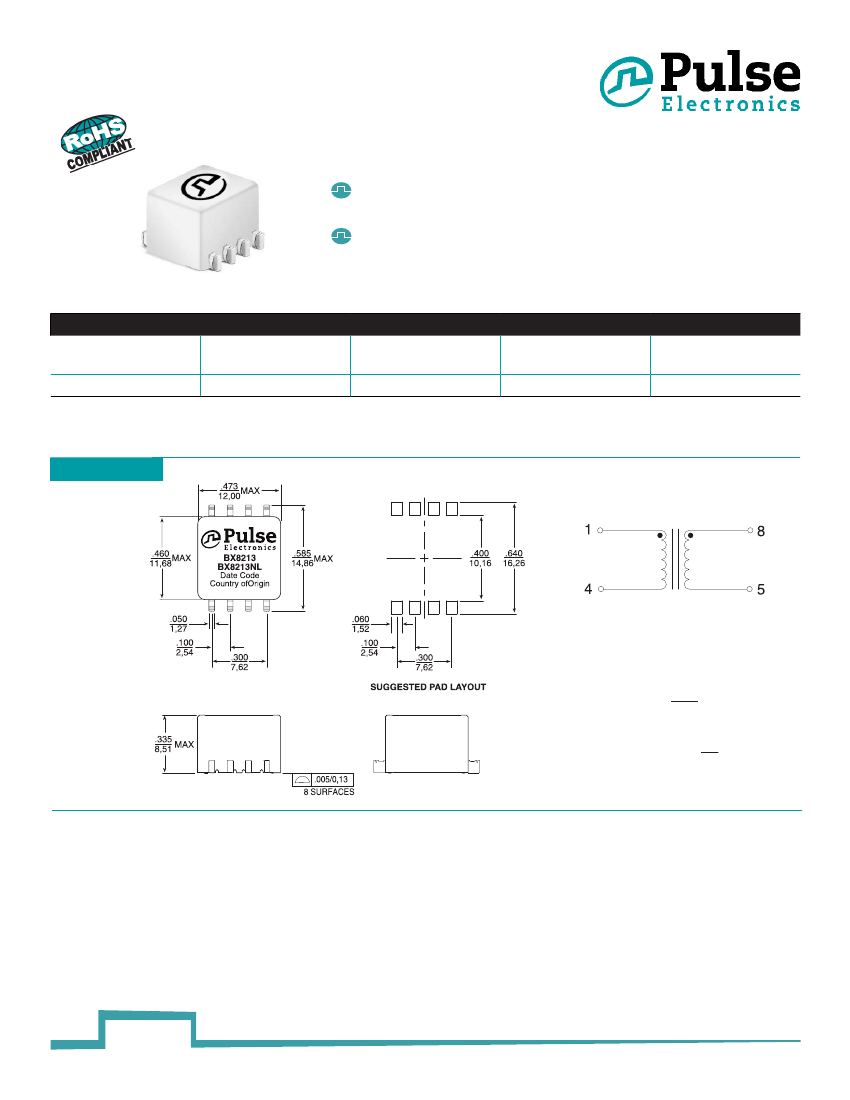

Common Mode Choke

For ADSL and VDSL

Common Mode Chokes for use in ADSL and VDSL

applications

Ideal for high frequency DSL applications

Electrical Specifications @ 25°C - Operating Temperature -40°C to +85°C

RoHS-5 Compliant

Part Number

BX8213

RoHS-6 Compliant

Part Number

BX8213NL

Turns

Ratio

1:1

Inductance (each winding)

(mH)

9.0

Isolation Voltage

(Vrms)

500

Notes:

Parts are shipped in trays unless Tape & Reel packaging is specified by adding the suffix “T” to the part number (i.e. BX8213T).

Mechanical

BX8213 / BX8213NL

Schematic

Weight

......................2.0 grams

Tape & Reel

.................250/reel

Tube

..............................40/tray

Inches

Dimensions:

Unless otherwise specified,

all tolerances are

.010

0,25

For More Information

Pulse Worldwide

Headquarters

12220 World Trade Drive

San Diego, CA 92128

U.S.A.

Tel: 858 674 8100

Fax: 858 674 8262

Pulse Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Pulse China Headquarters

B402, Shenzhen Academy of

Aerospace Technology Bldg.

10th Kejinan Road

High-Tech Zone

Nanshan District

Shenzen, PR China 518057

Tel: 86 755 33966678

Fax: 86 755 33966700

Pulse North China

Room 2704/2705

Super Ocean Finance Ctr.

2067 Yan An Road West

Shanghai 200336

China

Tel: 86 21 62787060

Fax: 86 2162786973

Pulse South Asia

135 Joo Seng Road

#03-02

PM Industrial Bldg.

Singapore 368363

Tel: 65 6287 8998

Fax: 65 6287 8998

Pulse North Asia

3F, No. 198

Zhongyuan Road

Zhongli City

Taoyuan County 320

Taiwan R. O. C.

Tel: 886 3 4356768

Fax: 886 3 4356823 (Pulse)

Fax: 886 3 4356820 (FRE)

Tel: 49 7032 78060

Fax: 49 7032 7806 135

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product names mentioned herein may be

pulseelectronics.com

B830.A (02/12)
