H1126NLT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Power/power management> H1126NLT

H1126NLT: DescriptionXFRMR MODULE 1PORT 1:2 10/100; CategoryPower/power management; File Size357KB，2 Pages; ManufacturerPulse Electronics Network

Download Datasheet Parametric Compare View All

H1126NLT Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	H1126NLT	-	-	View	Buy Now

H1126NLT Overview

XFRMR MODULE 1PORT 1:2 10/100

H1126NLT Parametric

Parameter Name	Attribute value
Transformer type	Isolation and data interface (encapsulated)
inductance	-
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	1CT：2CT
Installation type	surface mount
size/dimensions	0.583" long x 0.460" wide (14.81mm x 11.68mm)
Height - Installation (maximum)	0.202" (5.13mm)
Operating temperature	0°C ~ 70°C
weight	0.06 oz (1.71g)

Preview

Download Datasheet

View All

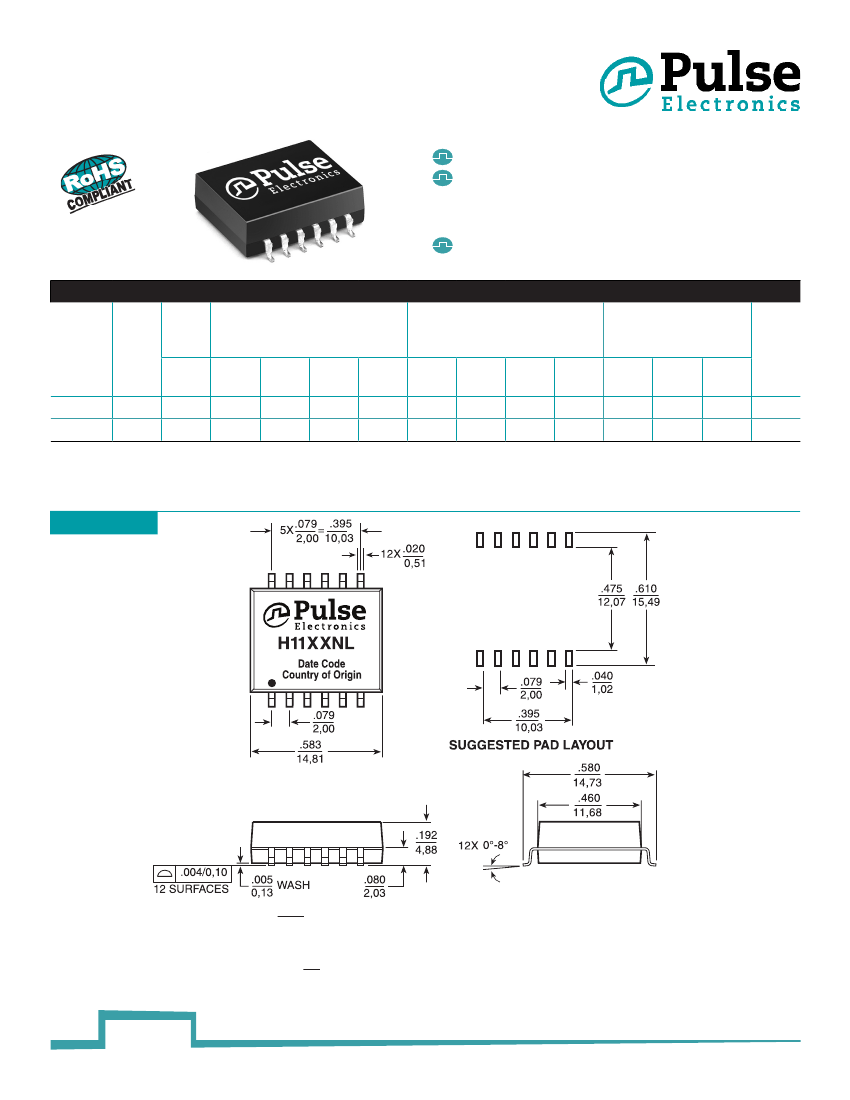

10/100Base-TX Single Port

Transformer Modules

With Various Transmit Turns Ratios

RoHS peak reflow temperature rating 245°C

Compact symmetrical size facilitates chip

shooter placement and reduces

manufacturing time

Meets IEEE 802.3 specification

Electrical Specifications @ 25°C - Operating Temperature 0°C to +70°C

Differential to Common

Mode Rejection

Return Loss

(dB TYP)

(dB MIN)

40 MHz

-14

50 MHz 60-80 MHz 30 MHz

-13

-12

-59

60 MHz

-49

100 MHz

-42

200 MHz

-37

30 MHz

-40

Part

Number

H1112NL

H1126NL

Turns

Ratio

(TRANSMIT)

100 kHZ-

100 MHz 1-30 MHZ

1CT: 1CT

1CT: 1.41CT

1.2

-16

Insertion

Loss

(dB MAX)

Crosstalk

(dB TYP)

60 MHz

-40

100 MHz

-35

Hipot

(Vrms)

1500

1. For Tape & Reel

packaging, add a

“T”

suffix at the end of the part number when ordering e.g. H1112NLT.

2. MSL

= Moisture Sensitivity Level

= 1,

= 2,

= 3,

= 4

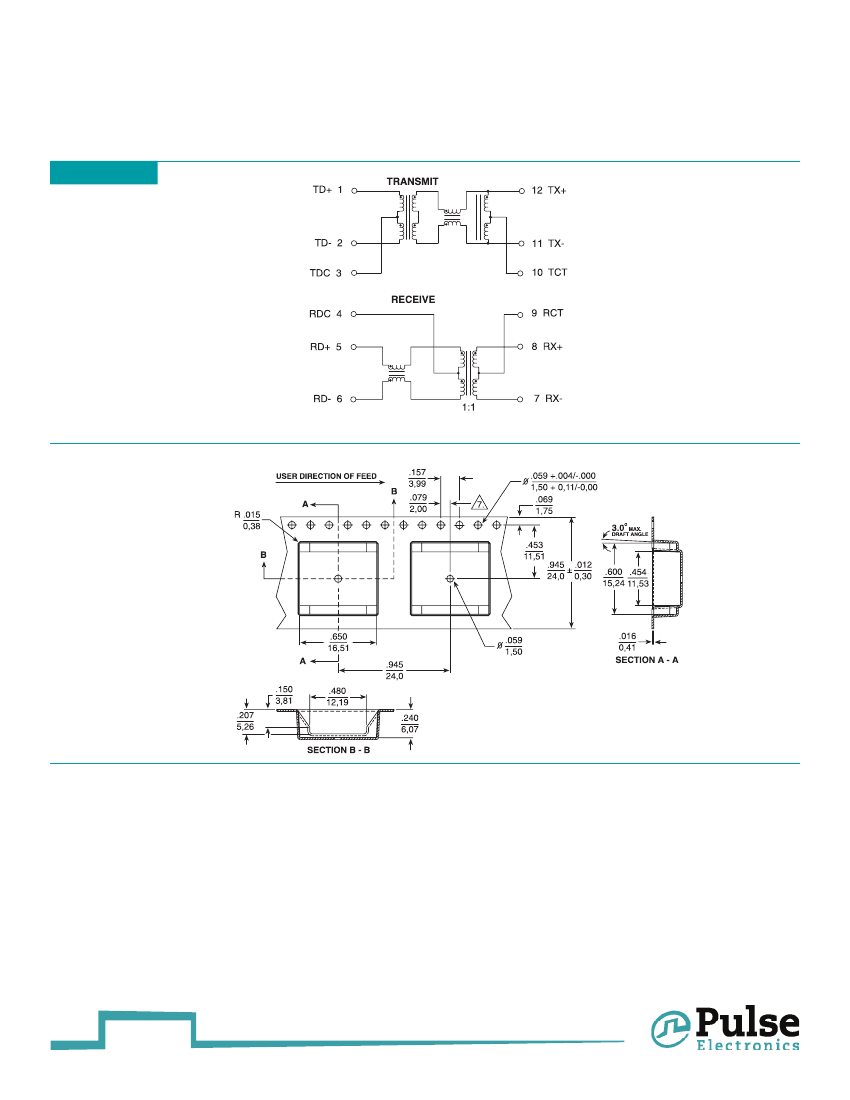

Mechanicals

H1112NL, H1126NL

Dimensions:

Inches

USA 858 674 8100

Germany 49 7032 7806 0

Unless otherwise specified,

all tolerances are

.010

0,25

Weight

...........................................1.7 grams

Tape & Reel

.....................................350/reel

Tube

..................................................35/tube

Singapore 65 6287 8998

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

H326.G (09/13)

pulseelectronics.com

H1126NLT Related Products

	H1126NLT	H1112NLT	H1126NL
Description	XFRMR MODULE 1PORT 1:2 10/100	XFRMR MODULE 1PORT 1:1 10/100	XFRMR MODULE 1PORT 1:2 10/100
Transformer type	Isolation and data interface (encapsulated)	Isolation and data interface (encapsulated)	Isolation and data interface (encapsulated)
Turns Ratio - Primary:Secondary	1CT：2CT	1CT：1CT	1CT：2CT
Installation type	surface mount	surface mount	surface mount
size/dimensions	0.583" long x 0.460" wide (14.81mm x 11.68mm)	0.583" long x 0.460" wide (14.81mm x 11.68mm)	0.583" long x 0.460" wide (14.81mm x 11.68mm)
Height - Installation (maximum)	0.202" (5.13mm)	0.202" (5.13mm)	0.202" (5.13mm)
Operating temperature	0°C ~ 70°C	0°C ~ 70°C	0°C ~ 70°C
weight	0.06 oz (1.71g)	0.06 oz (1.71g)	0.06 oz (1.71g)
