TX1322NL Overview

MODULE 1CT:2.42CT 1.2MH SMD

TX1322NL Parametric

Parameter Name	Attribute value
Transformer type	T1/E1 (dual channel)
inductance	1.2mH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	1CT: 2.42CT transmitter, 1CT: 2.42CT receiver
Installation type	surface mount
size/dimensions	0.690" long x 0.480" wide (17.53mm x 12.20mm)
Height - Installation (maximum)	0.227" (5.76mm)
Operating temperature	-40°C ~ 85°C
weight	0.14 oz (3.99g)

Preview

Download Datasheet

View All

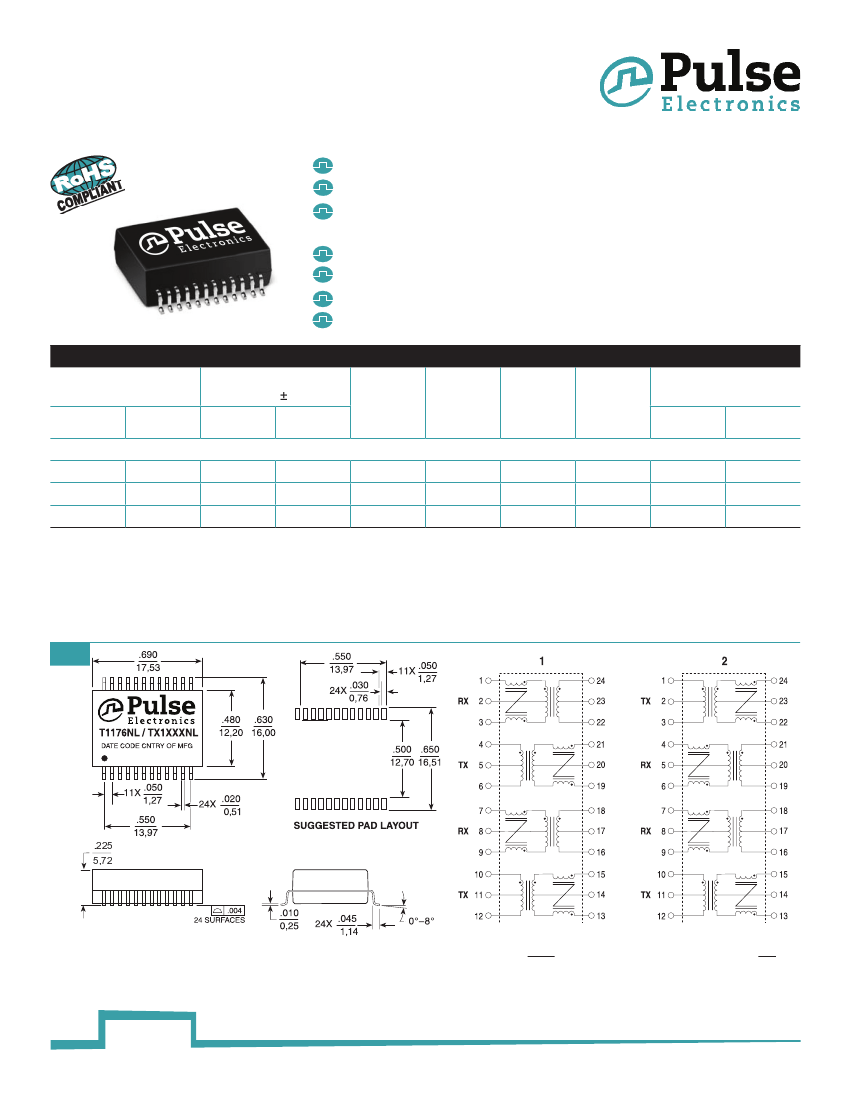

T1/E1/CEPT/ISDN-PRI

INTERFACE MODULES

Four Transformer Modules for Dual SMT

T1/E1 Ports, Extended Temperature Range

SMT Dual Port package contains transformers with optional

common mode chokes on both transmit and receive channels

Patented Interlock Base construction for high-reliability

Recognized to UL 1950

Isolation Voltage: 1500 Vrms

Electrical Speciﬁcations @ 25°C

RoHS Compliant

Part Number

w/CMC

T1176NL

TX1192NL

TX1193NL

wo/CMC

TX1323NL

Turns Ratio

(Pri: Sec 2%)

Transmit

1CT:2.4CT

1CT:2.42CT

1CT:2CT

Receive

1CT:1CT

1CT:2.42CT

1CT:1CT

Secondary

OCL @ 25 C

(mH MIN)

1.20

Primary Pins

Cw/w

(pF MAX)

DCR Pri

( MAX)

.80

Package/

Schematic

WAT/2

WAT/1

Transmit

1-3 & 10-12

4-6 & 10-12

Receive

21-19 & 18-16

1-3 & 7-9

24-22 & 18-16

EXTENDED TEMPERATURE RANGE MODELS - OPERATING TEMPERATURES

-40 C TO +85 C

Notes:

1. Extended Temperature Range Models

- For extended temperature range transformers (-40 C to +85 C operating temperature range), OCL (Open Circuit Inductance) is speciﬁed at both

-40 C and +25 C. At -40 C, OCL is 600 H minimum. All other parameters are speciﬁed at +25 C only.

2. Turns ratio

is speciﬁed primary: secondary (CT = Center Tap).

3. Standard packaging

for the surface mount package is anti-static tubes. Optional Tape & Reel can be ordered by adding a “T” su x to the part number, (i.e T1176NLT).

Mechanical

WAT

Schematics

USA 858 674 8100

Weight

......................3.8 grams

Tape & Reel

..................175/reel

Tray

..............................105/tray

Dimensions:

Inches

Unless otherwise speciﬁed, all tolerances are

.010

0,25

Germany 49 7032 7806 0

Singapore 65 6287 8998

pulseelectronics.com

Shanghai 86 21 62787060

China 86 755 33966678

Taiwan 886 3 4356768

T662.F (5/17)

TX1322NL Related Products

	TX1322NL	T1176NLT	TX1192NL	TX1323NLT	TX1322NLT	TX1192NLT	TX1323NL	T1176NL	TX1193NLT
Description	MODULE 1CT:2.42CT 1.2MH SMD	MODULE INTERFACE 1CT:2.4CT SMD	MODULE 1CT:2.42CT 1.2MH SMD	MODULE 1CT:2CT 1.2MH SMD	MODULE 1CT:2.42CT 1.2MH SMD	MODULE 1CT:2.42CT 1.2MH SMD	MODULE 1CT:2CT 1.2MH SMD	MODULE INTERFACE 1CT:2.4CT SMD	MODULE 1CT:2CT 1.2MH SMD
Transformer type	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)	T1/E1 (dual channel)
inductance	1.2mH	1.2mH	1.2mH	1.2mH	1.2mH	1.2mH	1.2mH	1.2mH	1.2mH
Turns Ratio - Primary:Secondary	1CT: 2.42CT transmitter, 1CT: 2.42CT receiver	1CT: 2.4CT transmitter, 1CT: 1CT receiver	1CT: 2.42CT transmitter, 1CT: 2.42CT receiver	1CT: 2CT transmitter, 1CT: 1CT receiver	1CT: 2.42CT transmitter, 1CT: 2.42CT receiver	1CT: 2.42CT transmitter, 1CT: 2.42CT receiver	1CT: 2CT transmitter, 1CT: 1CT receiver	1CT: 2.4CT transmitter, 1CT: 1CT receiver	1CT: 2CT transmitter, 1CT: 1CT receiver
Installation type	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount	surface mount
size/dimensions	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)	0.690" long x 0.480" wide (17.53mm x 12.20mm)
Height - Installation (maximum)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)	0.227" (5.76mm)
Operating temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
weight	0.14 oz (3.99g)	-	0.14 oz (3.99g)	0.14 oz (3.99g)	0.14 oz (3.99g)	0.14 oz (3.99g)	0.14 oz (3.99g)	-	0.14 oz (3.99g)

Recommended Resources

Electronic fly swatter circuit

Simple telephone intercom circuit diagram

Boost switching regulator composed of MC34063

Precision current source circuit diagram using AD586

875p computer motherboard circuit diagram_104

Telephone schematic diagram 02

[MSP430 Sharing] MSP430 Venus remote control G328111 decoding program: This program is a modification of the Venus remote control G328111 decoding program on Mr. Tian's 51 board. This is the most basic decoding program. I did not add multiple values and application funct...; hangsky Microcontroller MCU

How to batch change the font height and width in AD (PCB)?: [i=s]This post was last edited by TANG20051008 on 2017-5-16 18:26[/i] [b][color=#5E7384]This content was originally created by [size=3]TANG20051008[/size], a user of EEWORLD forum. If you want to repr...; TANG20051008 PCB Design

Please give Shengda Electronics a generous reward for your copy of Zigbee: A Simple Introduction: Shengda Electronics has launched the original Zigbee teaching video "Zigbee in Simple Terms", which will be rewarded! !...; yanglc2014 RF/Wirelessly

msp430 human-machine interface framework: [i=s] This post was last edited by paulhyde on 2014-9-15 09:17 [/i] msp430 human-machine interface framework...; fujisyusuke Electronics Design Contest

Why are PCBs mostly green?: Hello, everyone! Today I will share with you a very interesting topic: Why are most PCB circuit boards green?Green oil boardWhether it is the various small household appliances we disassemble in our d...; 捷多邦方先生 PCB Design

(Transfer) MSP430 capacitive touch wheel and LED PWM output design: [p=24, null, left][font=微软雅黑, Tahoma,][b][color=#a0522d]Abstract[/color][/b][/font][/p][p=24, null, left][font=微软雅黑, Tahoma,][color=#a0522d]This application note introduces the PWM software driving te...; qwqwqw2088 Microcontroller MCU
