B2232NLT Overview

XFRM FOR STMICRO DYNAMITE CHIPST

B2232NLT Parametric

Parameter Name	Attribute value
Transformer type	ADSL
inductance	410µH
Energy Time (ET)	-
Turns Ratio - Primary:Secondary	2 ：1
Installation type	surface mount
size/dimensions	0.530" long x 0.516" wide (13.46mm x 13.11mm)
Height - Installation (maximum)	0.485"（12.32mm）
Operating temperature	-40°C ~ 85°C
weight	0.22 oz (6.27g)

Preview

Download Datasheet

View All

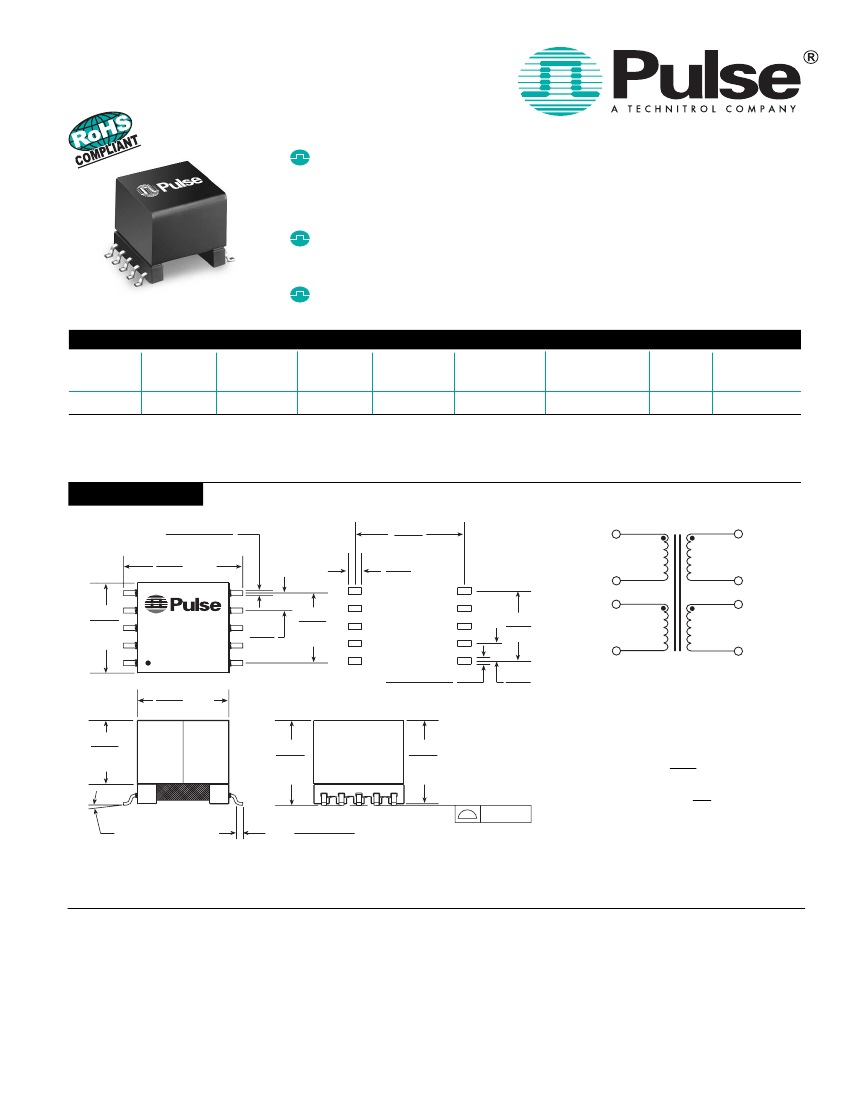

ADSL LINE TRANSFORMER

For Use with STMicro's Dynamite Chipset

Matched to STMicro's Dynamite MTK-20140,

MTK-20150, MTK-20450, MTB-20170, MTC20174

and MTC20166 CO/CPE chipsets.

Designed to meet IEC950 supplementary insulation

requirements for working voltages up to 250Vrms

Industry standard surface mount footprint

Electrical Specifications @ 25°C — Operating Temperature -40°C to 85°C

RoHS-5

Compliant

Part No.

B2232

RoHS-6

Compliant

Part No.

B2232NL

Turns Ratio

Ratio

(Line:Chip)

2:1

OCL

Primary

(µH ±6%)

409.5

Leakage

Inductance

(µH MAX)

6.5

DCR Primary

(1-4 & 2-5)

(Ω MAX)

0.66

DCR Secondary

(10-7 & 9-6)

(Ω MAX)

0.20

Isolation

Voltage

(Vrms)

1500

THD @ 30kHz,

1.58 Vp-p

(dB MIN)

-78

NOTE:

Optional Tape & Reel packaging can be ordered by adding a

"T"

suffix to the part number (ex: B2232T and B2232NLT).

Mechanical

B2232 / B2232NL

X .028

± .002

0,71

± 0,05

.695

17,65

MAX

.530

13,46

MAX

B2232

B2232NL

.394

10,00

MAX

X .051

± .002

1,30

± 0,05

.605

15,37

.100

2,54

.394

10,00

.098

2,50

Schematic

PRI

SEC

Date

Code

Country

of Origin

.098

2,50

.516

13,11

MAX

.354

8,99

MAX

.485

12,32

MAX

.031 ± .006

10X

0,79 ± 0,15

.475

12,07

MAX

.005/0,13

10 SURFACES

Weight

. . . . . . . . . . . . . .6.2 grams

Tape and Reel

. . . . . . . . .150/reel

Tray

. . . . . . . . . . . . . . . . . .60/tray

Dimensions:

Inches

Unless otherwise specified,

all tolerances are ± .010

0,25

10X

0° 8°

For More Information:

Pulse Worldwide

Headquarters

12220 World Trade Dr.

San Diego, CA 92128

U.S.A.

www.pulseeng.com

TEL: 858 674 8100

FAX: 858 674 8262

Pulse

Europe

Einsteinstrasse 1

D-71083 Herrenberg

Germany

Tel: 49 7032 7806 116

Fax: 49 7032 7806 135

Pulse China

Headquarters

No. 1

Industrial District

Changan, Dongguan

China

Tel: 86 769 85538070

Fax: 86 769 85538870

Pulse North China

Room 1503

XinYin Building

No. 888 YiShan Rd.

Shanghai 200233

China

Tel: 86 21 54643211/2

Fax: 86 21 54643210

Pulse South Asia

150 Kampong Ampat

#07-01/02

KA Centre

Singapore 368324

Tel: 65 6287 8998

Fax: 65 6280 0080

Pulse North Asia

No. 26

Kao Ching Rd.

Yang Mei Chen

Taoyuan Hsien

Taiwan, R. O. C.

Tel: 886 3 4641811

Fax: 886 3 4641911

Performance warranty of products offered on this data sheet is limited to the parameters specified. Data is subject to change without notice. Other brand and product

names mentioned herein may be trademarks or registered trademarks of their respective owners.

www.pulseeng.com

B820.C (6/06)
